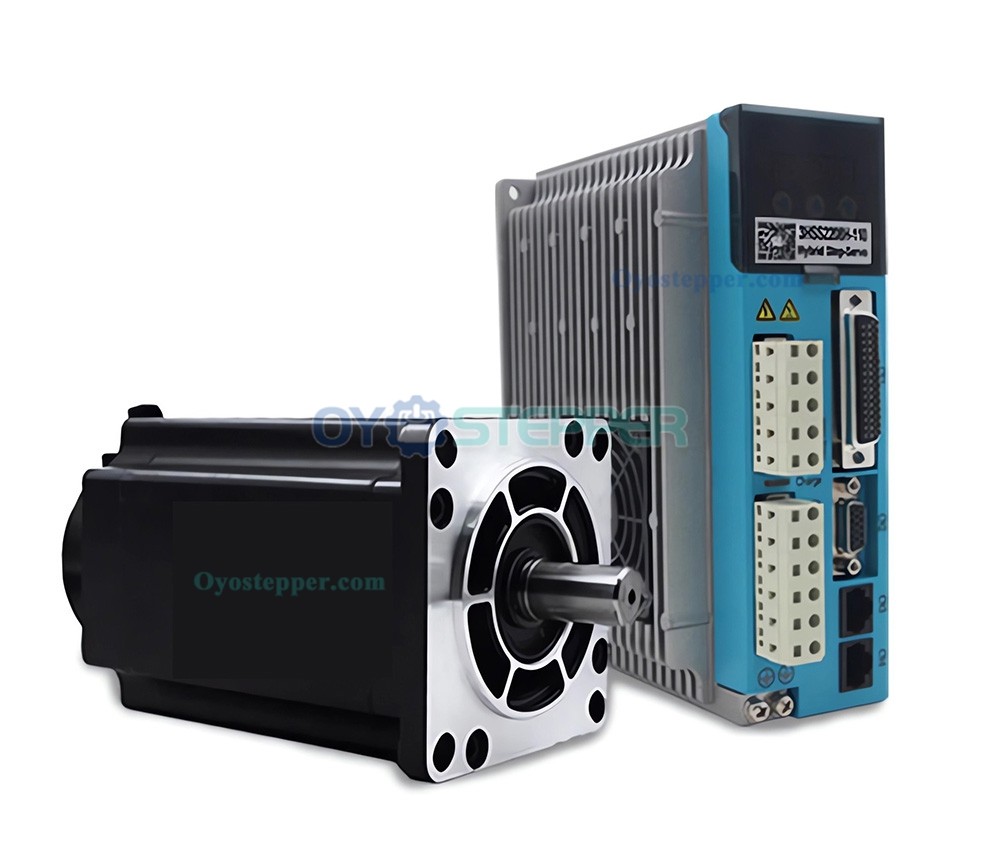

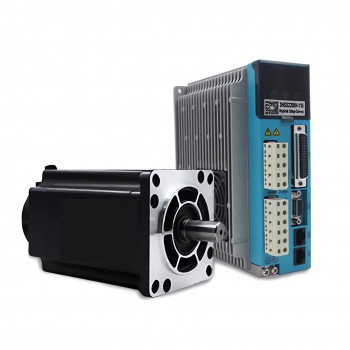

NEMA 42 Closed loop Stepper Motor 3 Phase 19mm Shaft Hybrid Servo Driver CNC Kit

NEMA 42 Closed loop Stepper Motor 3 Phase 19mm Shaft Hybrid Servo Driver CNC Kit

Motor Parameters:
Size: NEMA42 110mm
Step angle/phase: 1.2 degree/3PH
Phase current: 6.8A
Hold torque: 12/16/20N.m
Body length:160mm/185mm/190mm
Shaft Diameter:19mm (6mm key)
Speed: 0-2000RPM
Encoder: 1000line
Class of insulation: B
Resistance phase: 1.24ohms
Inductance phase: 22mH

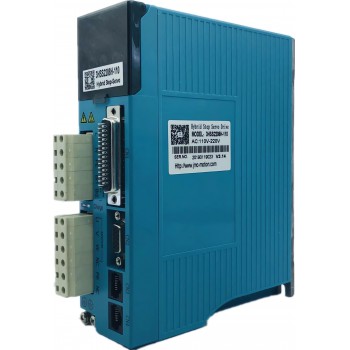

Driver Parameters:
Model: 3HSS2208H-110
Type: 32Bit DSP Closed loop Digital display drive
Input Voltage: 110-250VAC
Max. peak current: 6A
Signal Input Current: 7-20mA
Impulse response frequency: 200KHz
Default Communication Rate: 57.6Kbps
Protective function: Over voltage, over current, tracking error, over proof
Signal input Compatible: 4.5-28V signal (Don't need a resistor)
Control Way: 32 bit DSP Vector Closed Loop

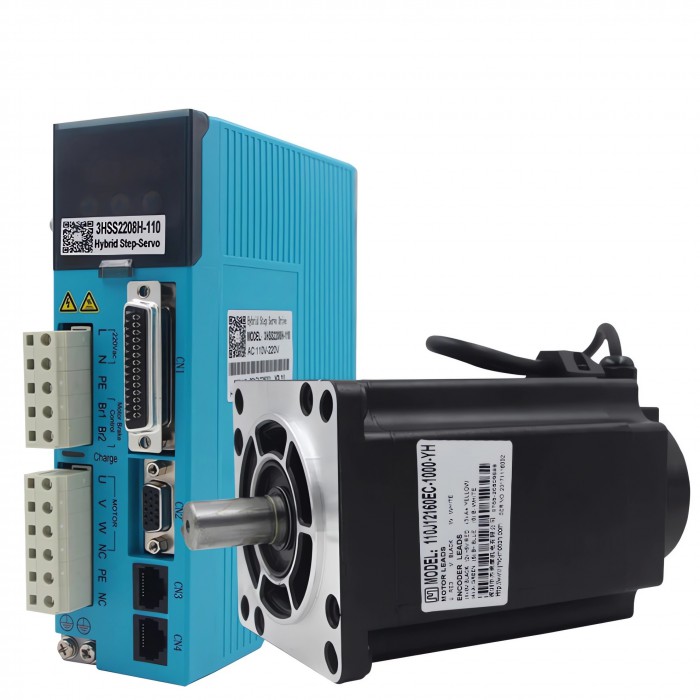

Package including:
1Pcs 3phase NEMA42 closed loop stepper motor shaft diameter 19mm with 1000 line encoder(12/16/20Nm)
1Pcs 3phase motor driver 3HSS2208H;
1Pcs 3m encoder extend cable

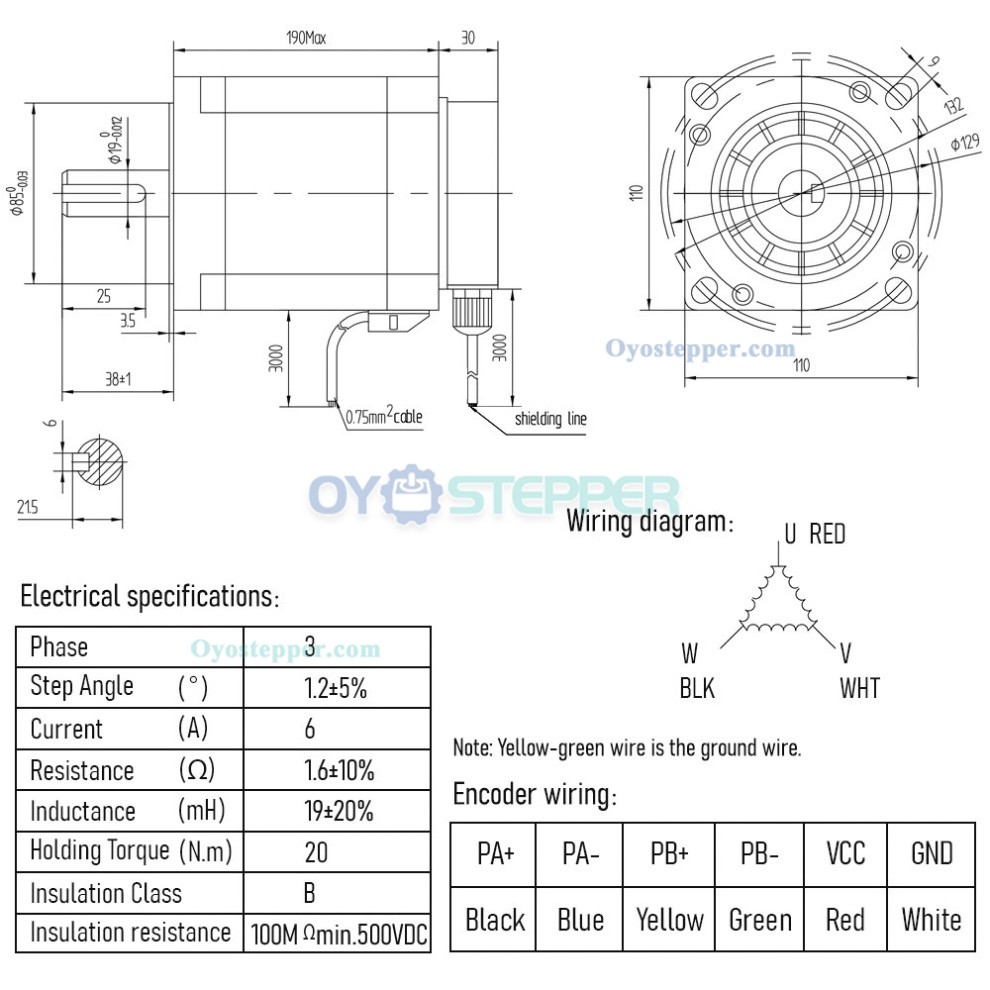

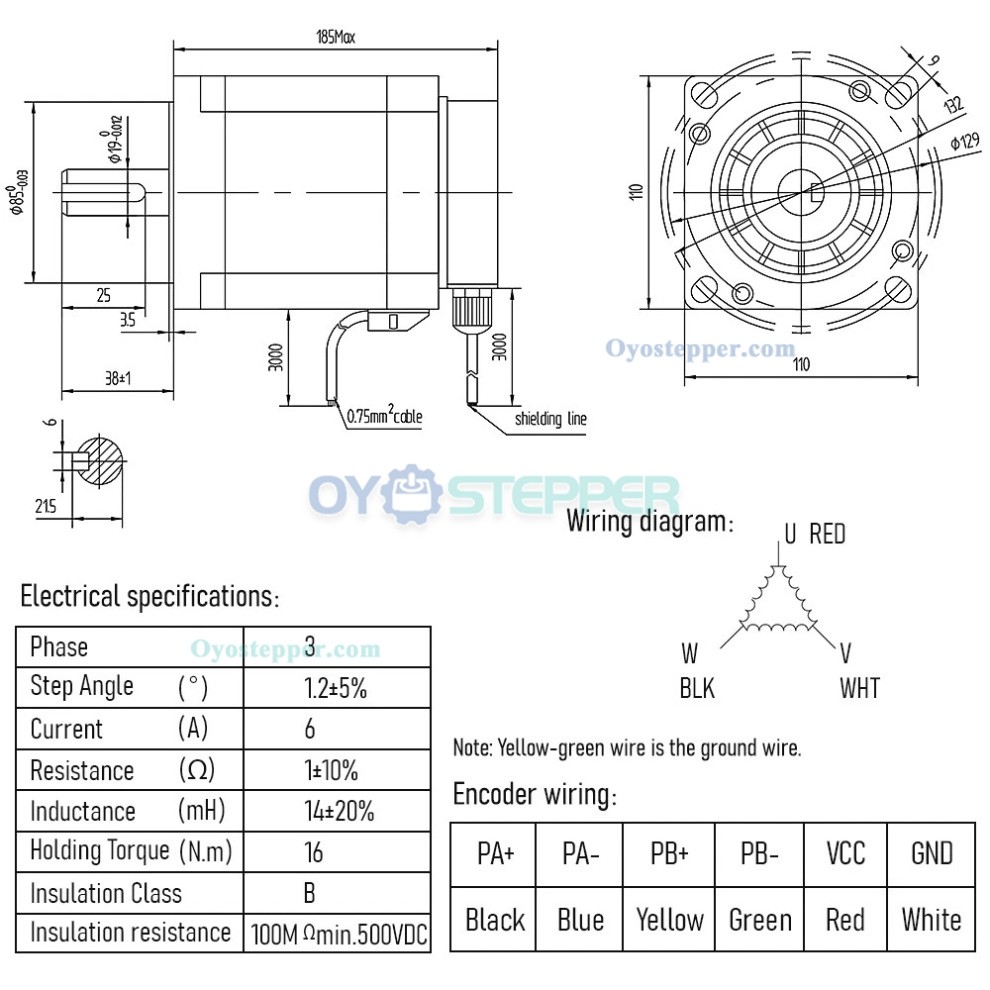

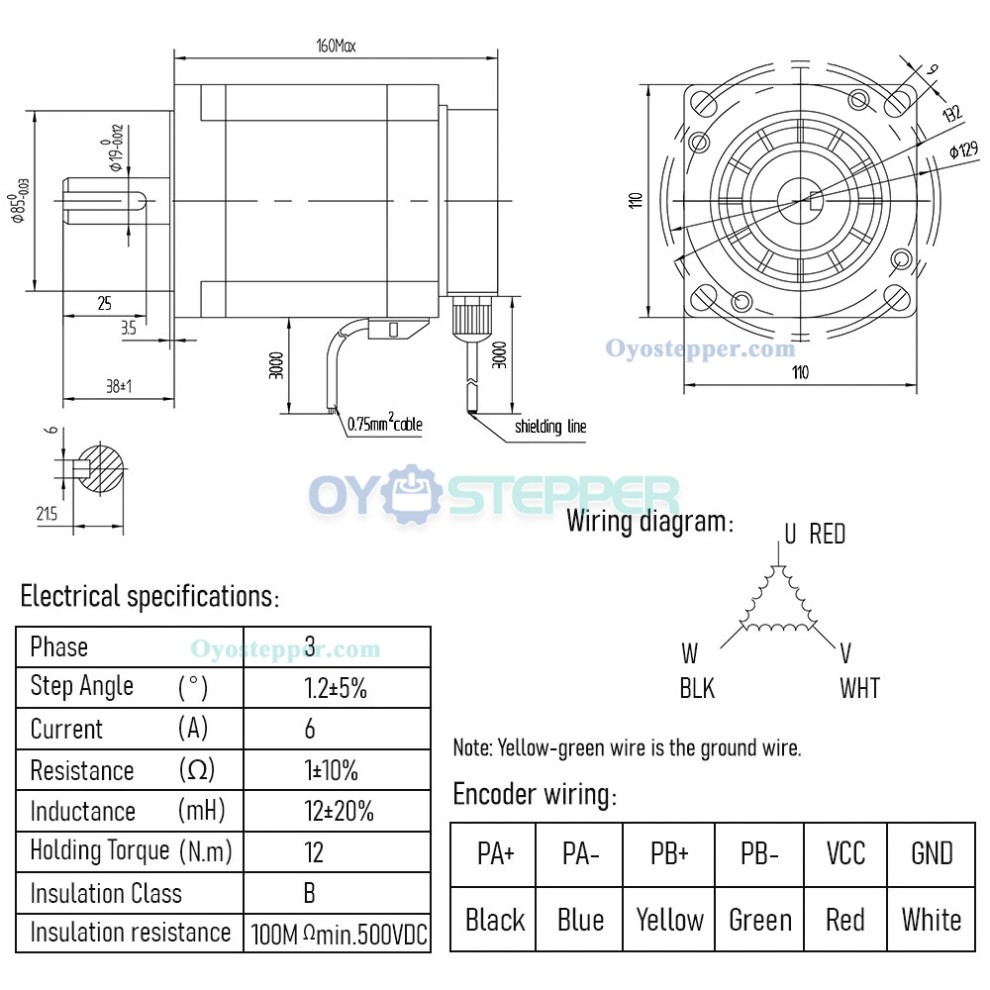

Size Chart:
