TQMG Series Planetary Gearbox 10:1 Backlash 30 Arc-min for 8mm Shaft Nema 23 Stepper Motor

TQMG Series Planetary Gearbox 10:1 Backlash 30 Arc-min for 8mm Shaft Nema 23 Stepper Motor
NO.:TQMG23-G10-D8
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$31.95
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $30.35 5%
10 $29.71 7%
50 $28.76 10%
100 $27.80 13%
Add To Cart

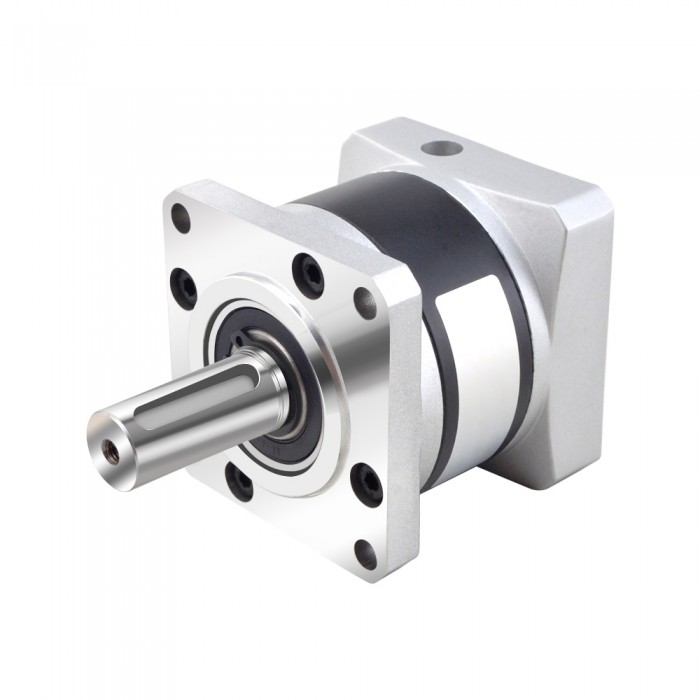

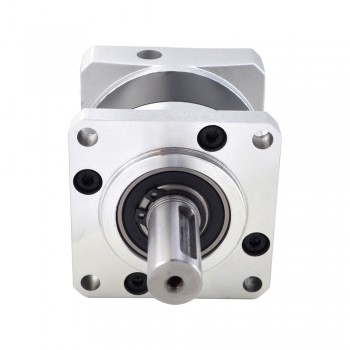

TQMG Series Planetary Gearbox Gear Ratio 10:1 Backlash 30 arc-min for 8mm Shaft Nema 23 Stepper Motor



It with gear ratio 10:1 and a maximum 30arc-min backlash. Diffent with the TQEG series' steel gears, TQMG series' gears are made of powder metallurgy.

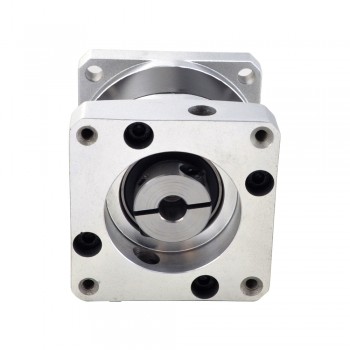

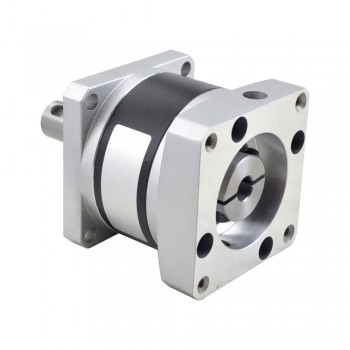

This inline planetary gearbox built-in an input shaft coupling which can match standard 8mm diameter short shaft of Nema 23 stepper motor, brushless dc motor and brushed dc motor.

One of matchable motor is 23HS30-2904S, for other motors, please contact our technical support to custom the motor shaft.



Gearbox Specifications

Manufacturer Part Number: TQMG23-G10-D8

Gearbox Type: Planetary

Gear Ratio: 10: 1

Efficiency: 90%

Backlash at No-load: <=30arcmin

Max.Permissible Torque: 15Nm(132.76lb-in)

Noise: <=60dB

Waterproof Rating: IP54

Lifetime: 20000hours



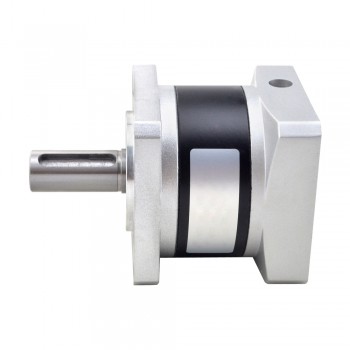

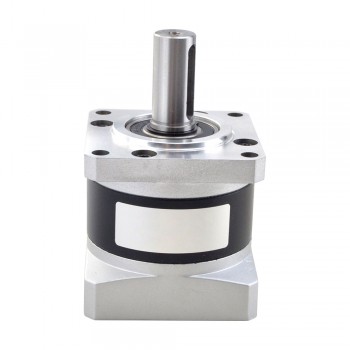

Physical Specifications

Frame Size: 57 x 57mm

Gearbox Length: 55.5mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ14mm

Output Shaft Length: 34mm

Input Shaft Diameter: Φ8mm

Input Shaft Length: 13.5mm



Resources

Gearbox Datasheet:TQMG23-G10-D8.pdf

TQMG23-G10-D8.STEP



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: TQMG Series Planetary Gearbox 100:1 Backlash 50 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
Next: TQMG Series Planetary Gearbox Gear 50:1 Backlash 50 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
Physical Specification
Frame Size(mm) 57 x 57
Weight(g) 750
Gearbox Length(mm) 55.5
Input Shaft Diameter(mm) 8
Input Shaft Length(mm) 13.5
Output Shaft Diameter(mm) 14
Output Shaft Length(mm) 34
Suit for Motor Nema 23
Gearbox Type PLM Series
Gear Ratio 10
Backlash at No-load <=30arcmin
Product Type GEARBOX
Output Shaft Type Keyway Shaft
