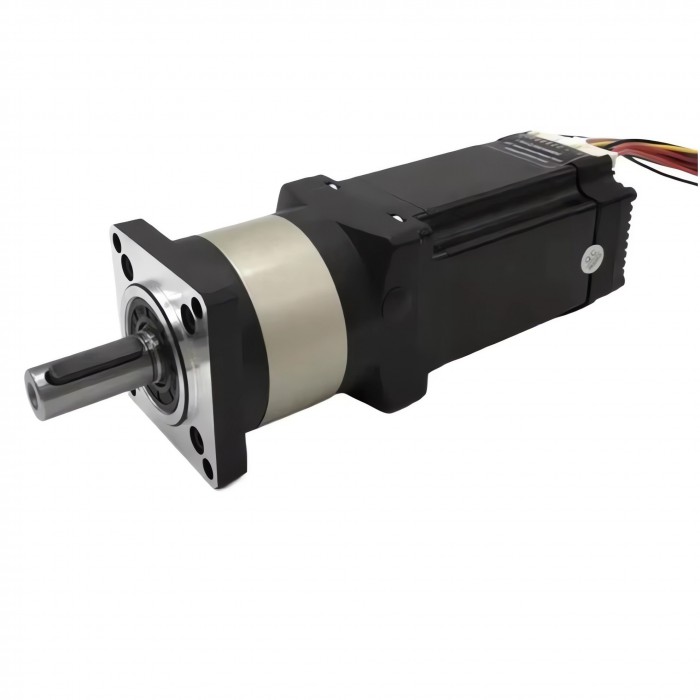

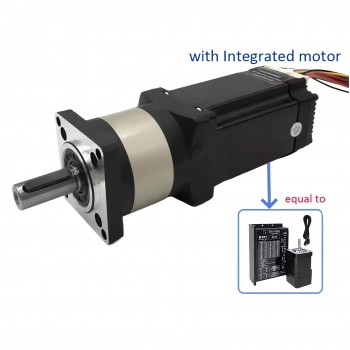

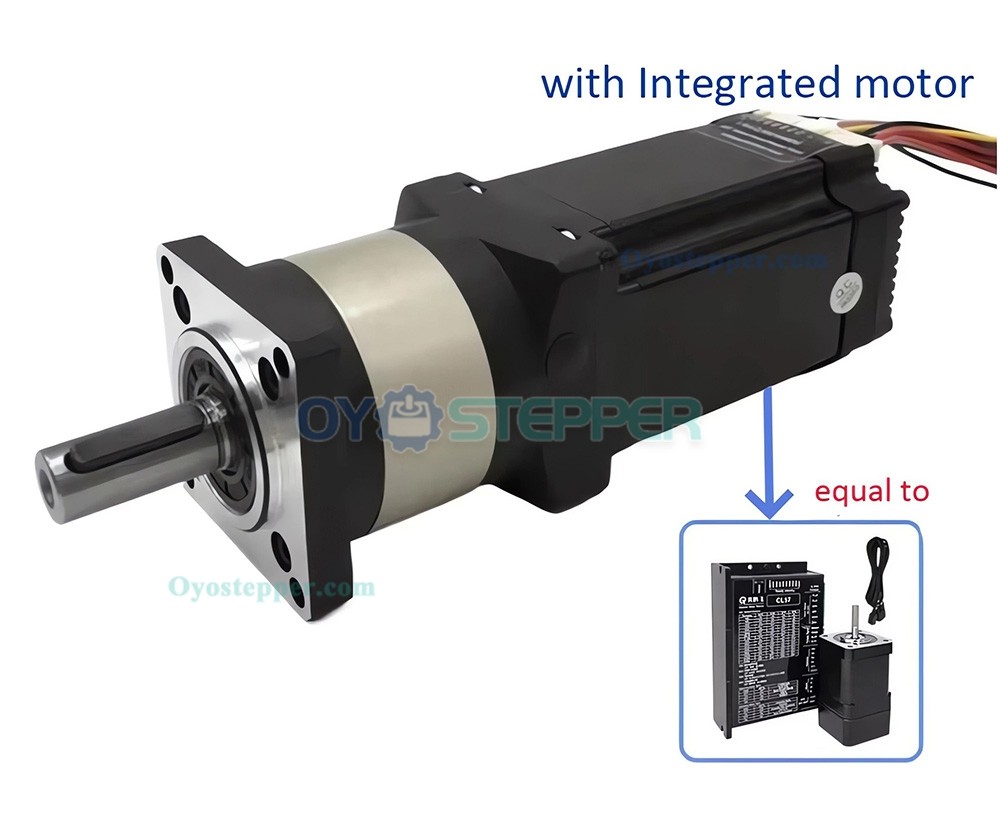

DLF Series Planetary Gearbox Gear Speed Reducer with 2Nm Integrated NEMA23 Stepper Motor Kit 14mm Output

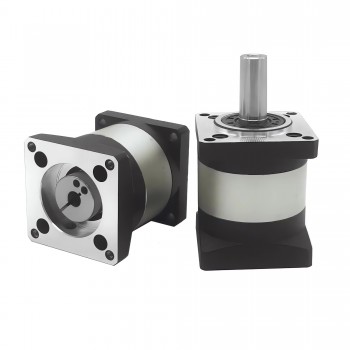

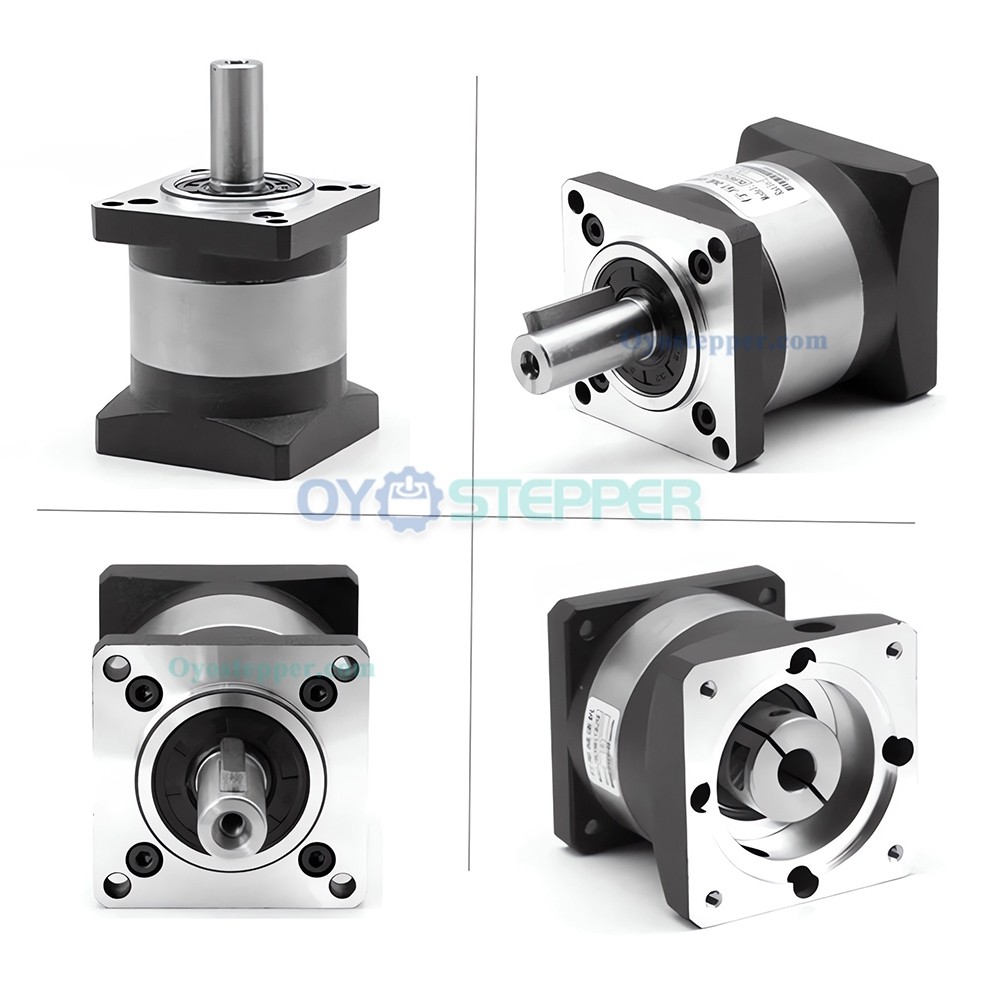

DLF Series Nema 23 Planetary Gearbox Gear Head Speed Reducer 1/4'' Input 6.35mm 8mm

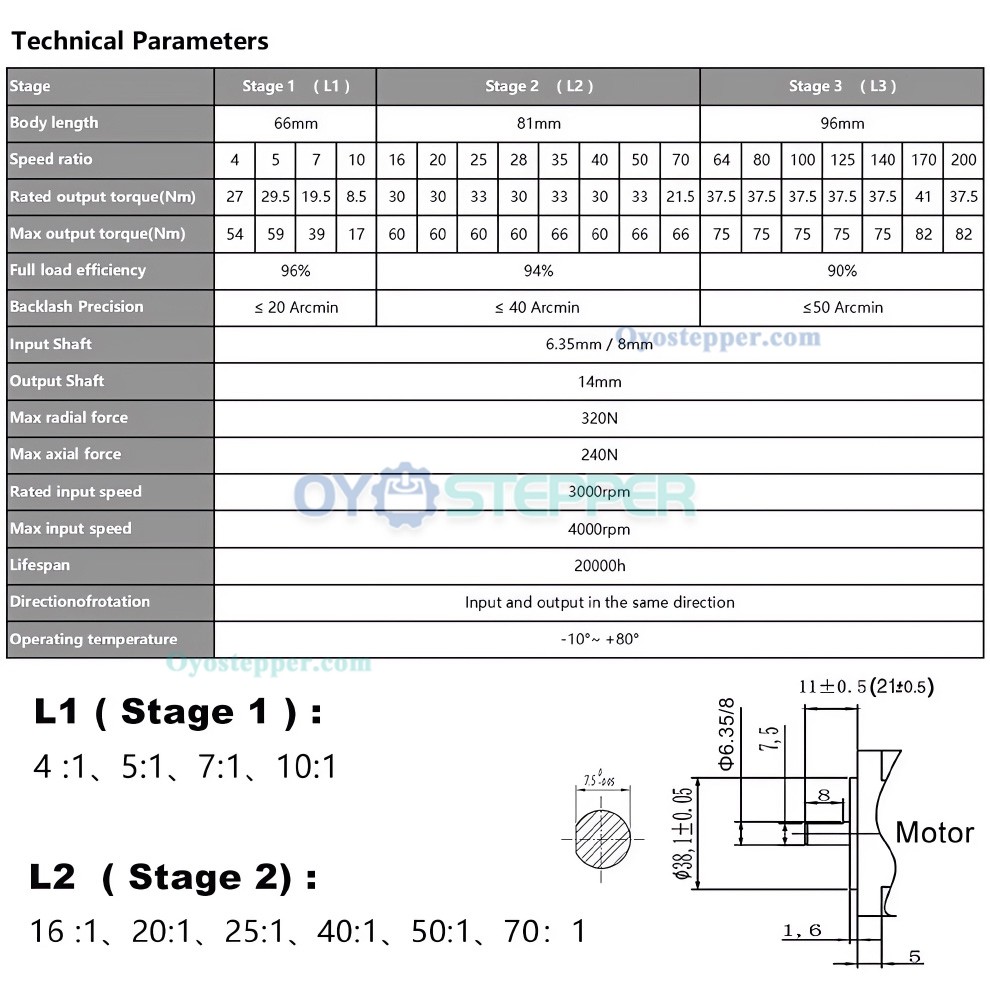

Specification

Speed Ratios:

Single-stage (L1): 4:1 / 5:1 / 7:1 / 10:1

Two-stage (L2): 16:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1;

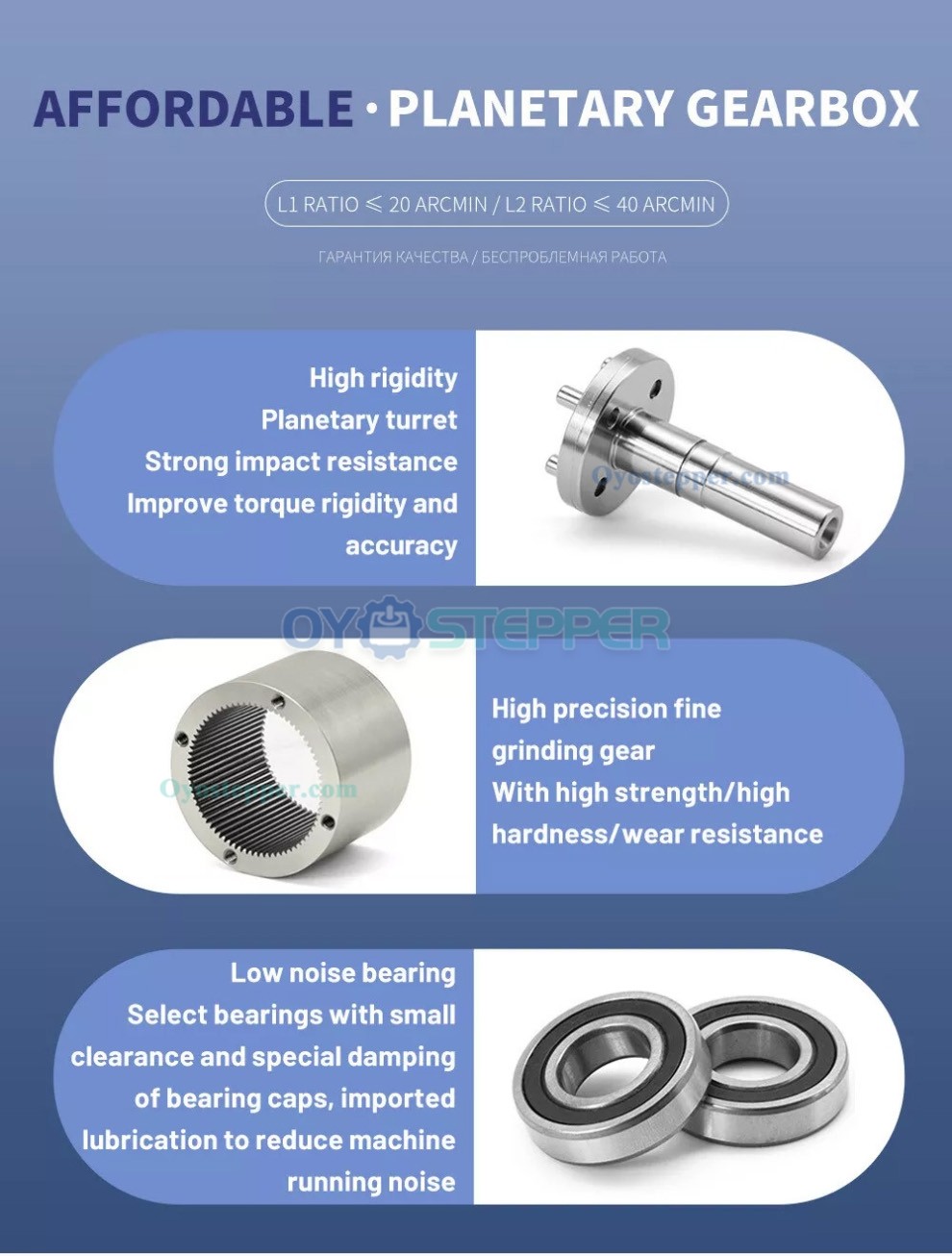

Backlash

L1: ≤ 20 arcmin

L2: ≤ 40 arcmin

Rated Output Torque

27 N·m (4:1)

29 N·m (5:1)

19 N·m (7:1)

8 N·m (10:1)

30 N·m (16:1 / 20:1 / 40:1)

33 N·m (25:1 / 35:1 / 50:1)

Efficiency and Size

Full-load efficiency: L1 ≥ 95%, L2 ≥ 90%

Body length: L1 = 66 mm, L2 = 81 mm

Load Capacity and Speed

Maximum radial force: 320 N

Maximum axial force: 240 N

Maximum input speed: 4000 rpm

Rated input speed: 3000 rpm;

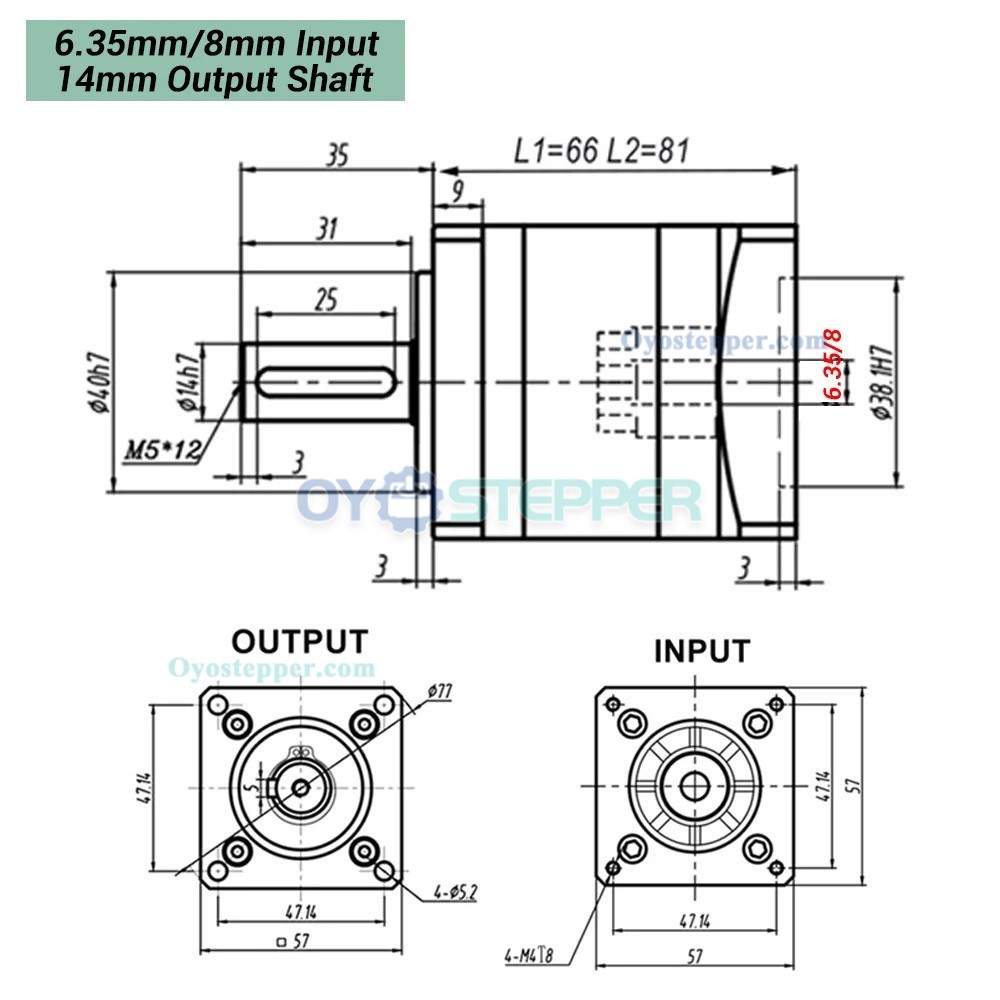

Interface:

Output shaft diameter: 14 mm

Shaft adapter sleeve: 8 mm to 6.35 mm (for devices requiring a 6.35 mm input bore)

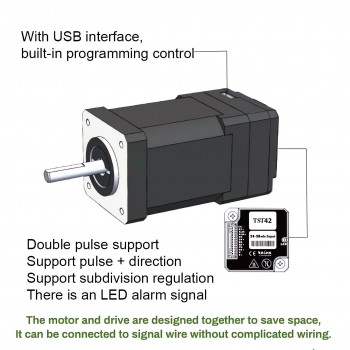

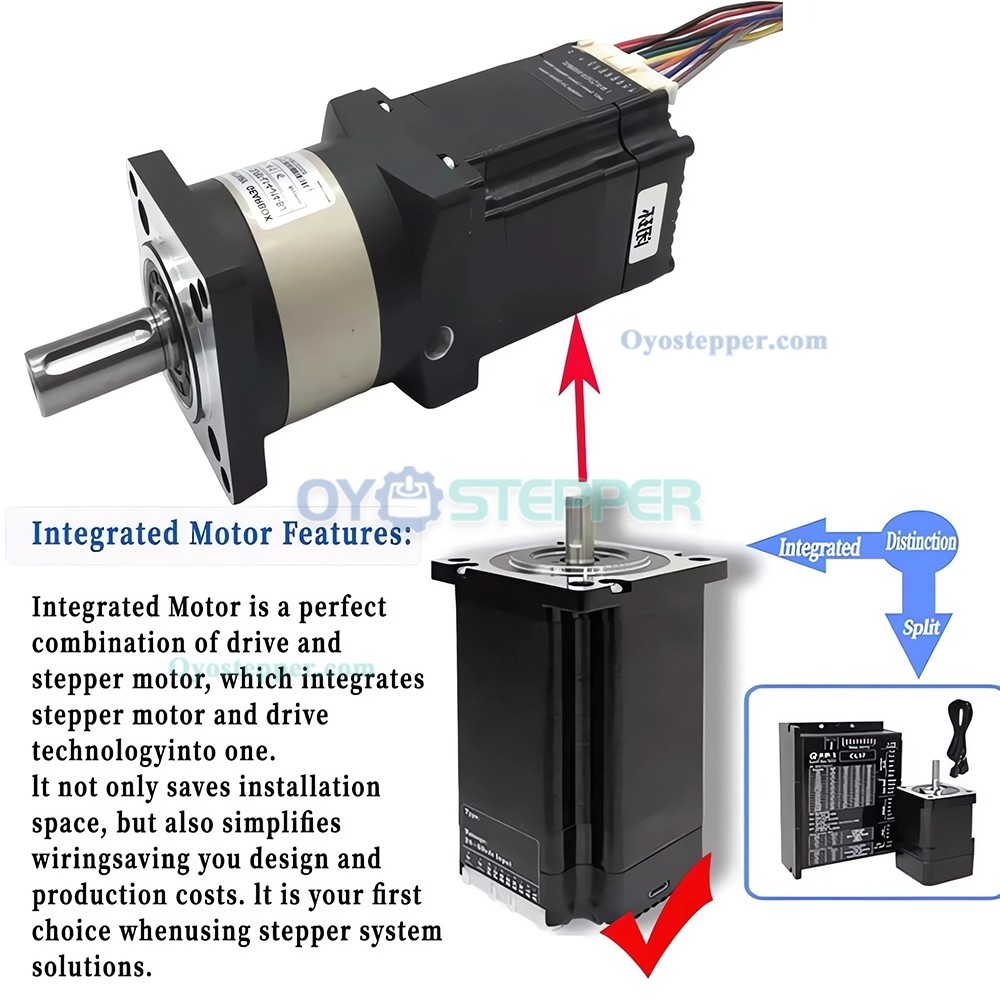

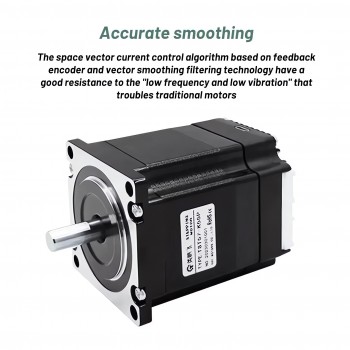

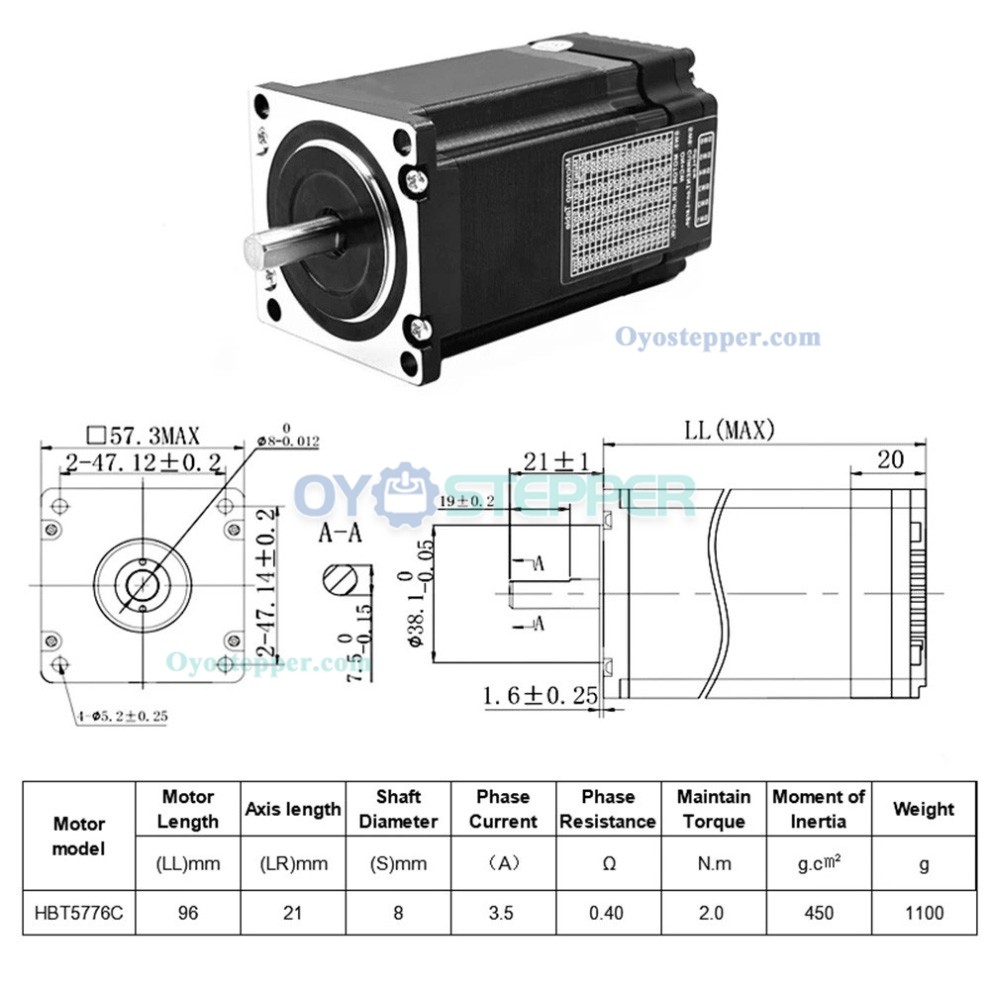

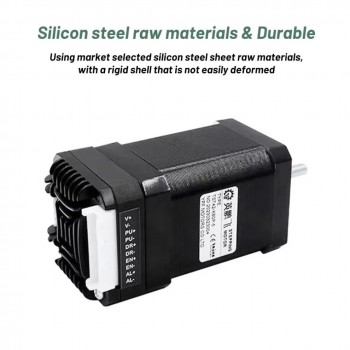

HBT5776C Integrated Motor Specifications:

Motor model: HBT5776C

Rated torque: 2 N·m

Motor shaft diameter: 8 mm

Input voltage range: 20–48 VDC

Output current range: 3.0–4.2 A

Input signal voltage: 5 VDC

Control signal input current: 7–16 mA

Maximum stepping pulse frequency: 200 kHz

Overvoltage protection: 55 VDC

Insulation resistance: 100 MΩ

Encoder type: Magnetic encoder

Encoder resolution: 1000 lines



Package List

1 × planetary gearbox

1 × key

1 × stepper motor

4 × mounting screws

1 × shaft adapter sleeve (8 mm to 6.35 mm)
