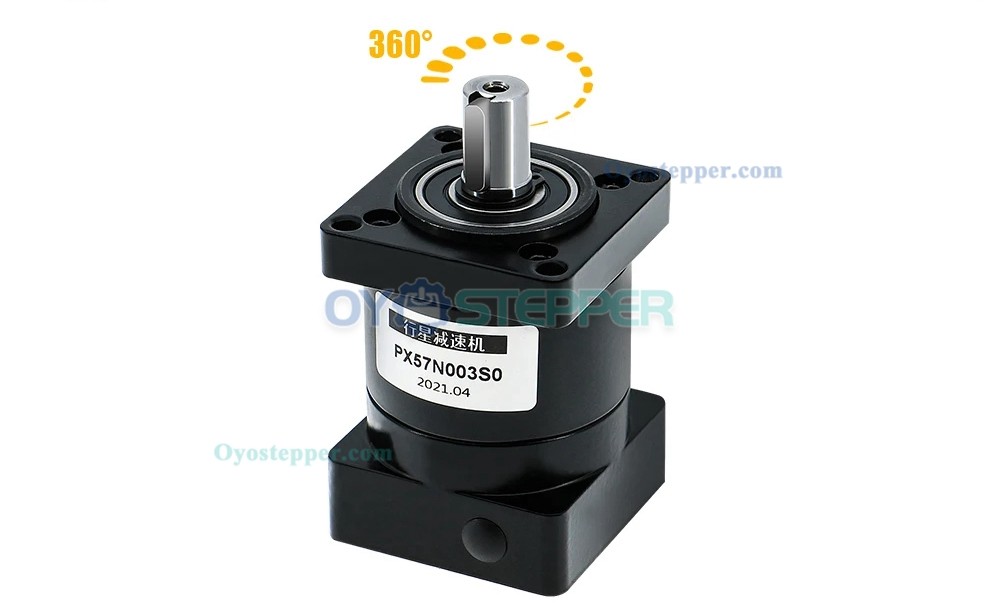

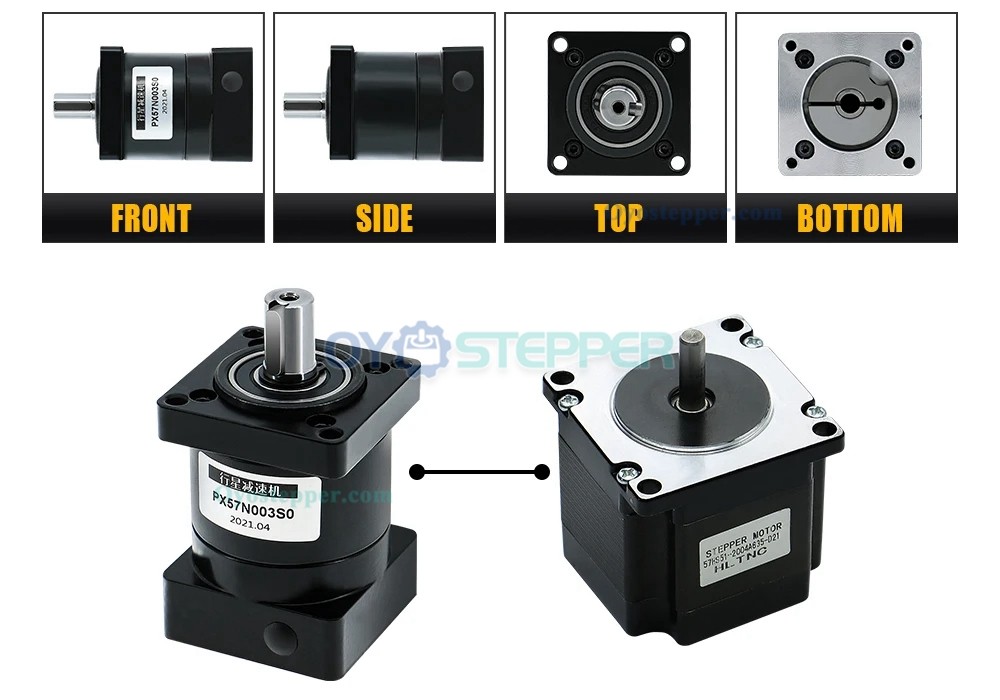

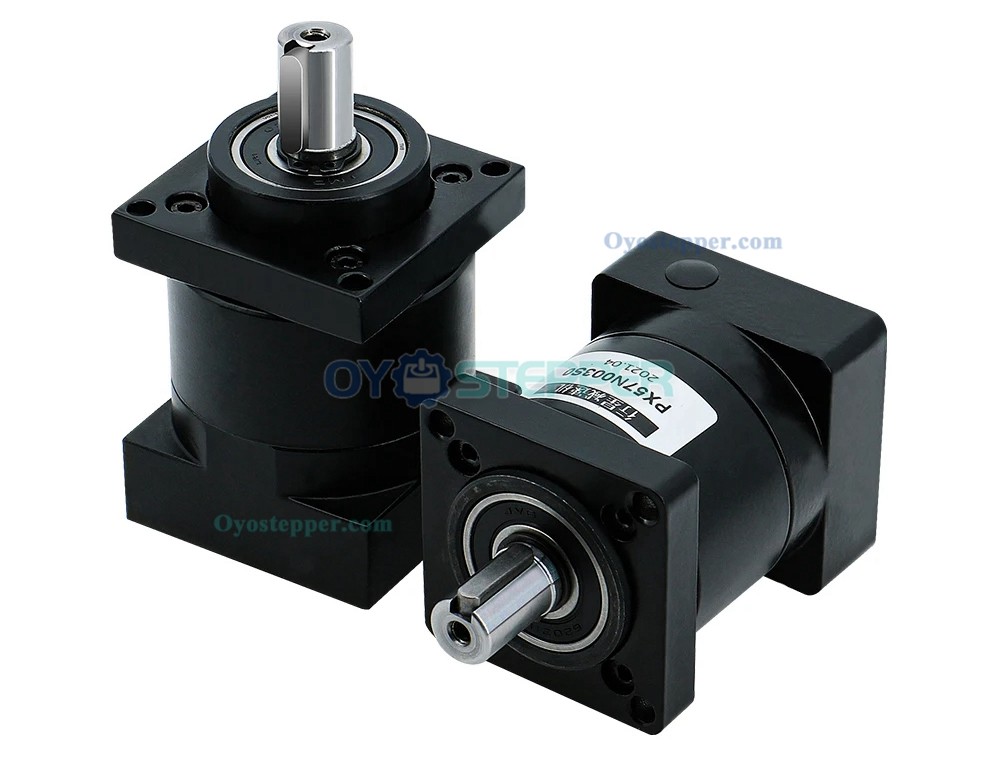

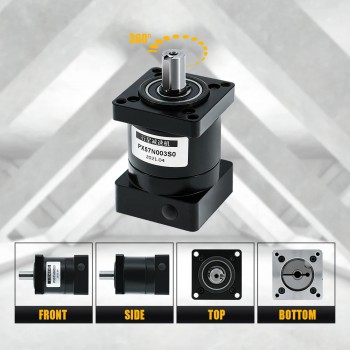

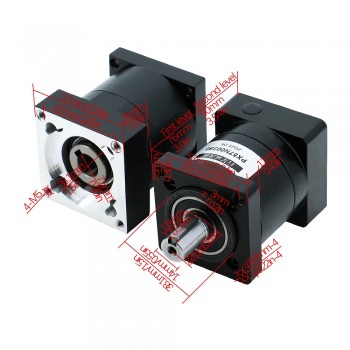

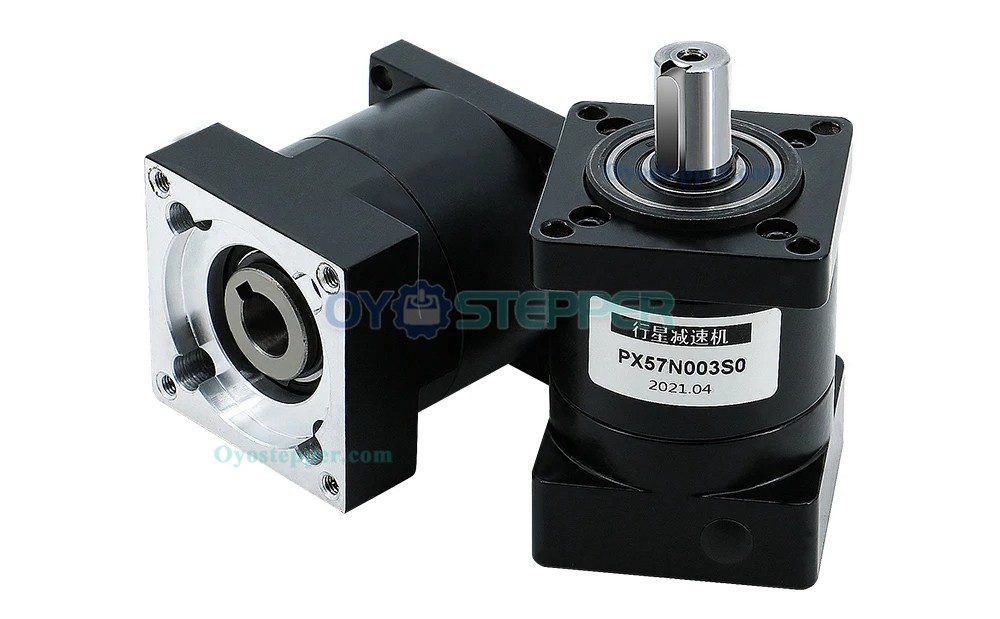

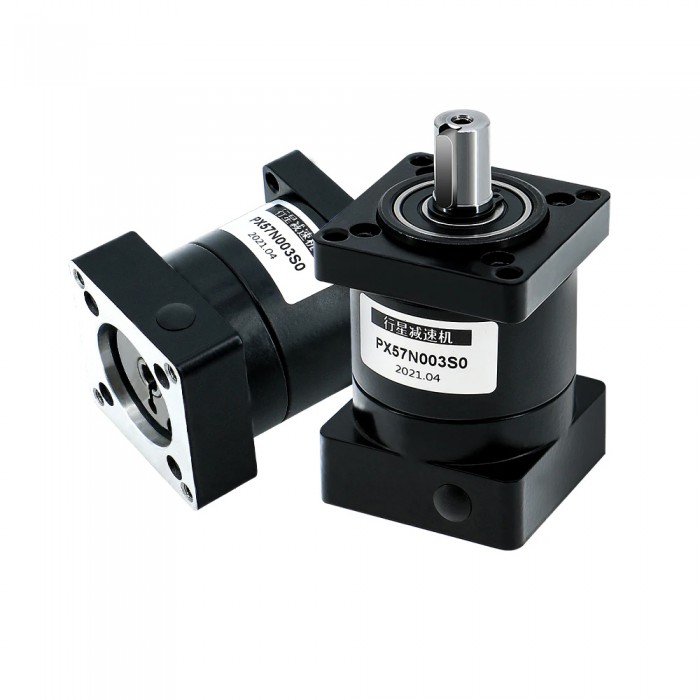

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm
NO.:PX57
Post a review
Our Price:$39.99

Quantity:- +

Add To Cart

PX57 Series Nema 23 Planetary Gearbox Reducer Gearbox Input Shaft 8mm Output Shaft: 14mm

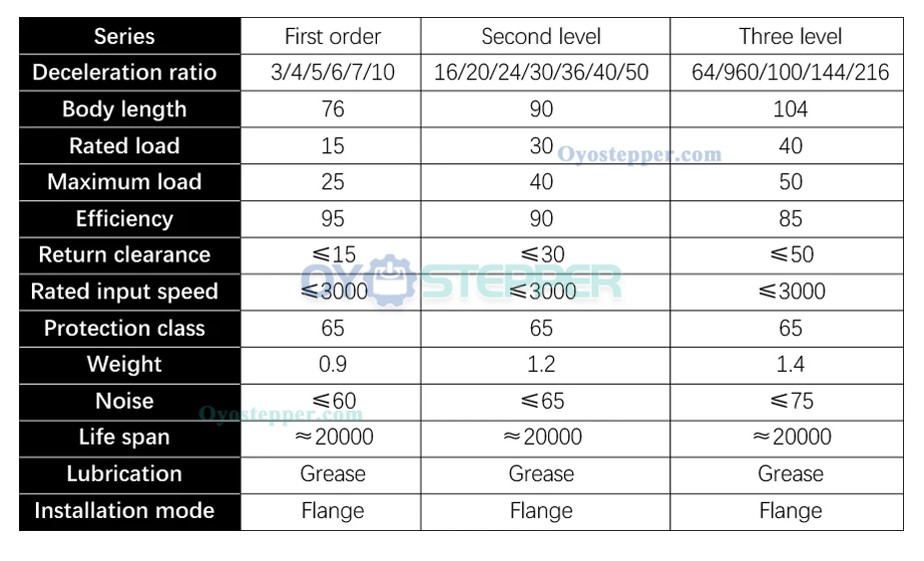

Specifications:

Input Speed: 3000

Output Torque: 40N.m

Model Number: PX57

Gearing Arrangement: Planetary Gear Reducer Gearbox

Certification: CE

Ratio: 4:1/6:1/10:1/16:1/24:1/36:1/64:1/96:1/100:1/216:1

Efficiency: 95% 90% 85%

Protection class: IP65

Noise value: ≤ 60/65/70 DB

Input shaft: 8mm

Output shaft: 14mm



PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor
Next: Planetary Reducer PX60 Ratio 4/6/10/16/24/36/64/96/144/216 Max 40N.m Suit For Nema24 60 Stepper Motor

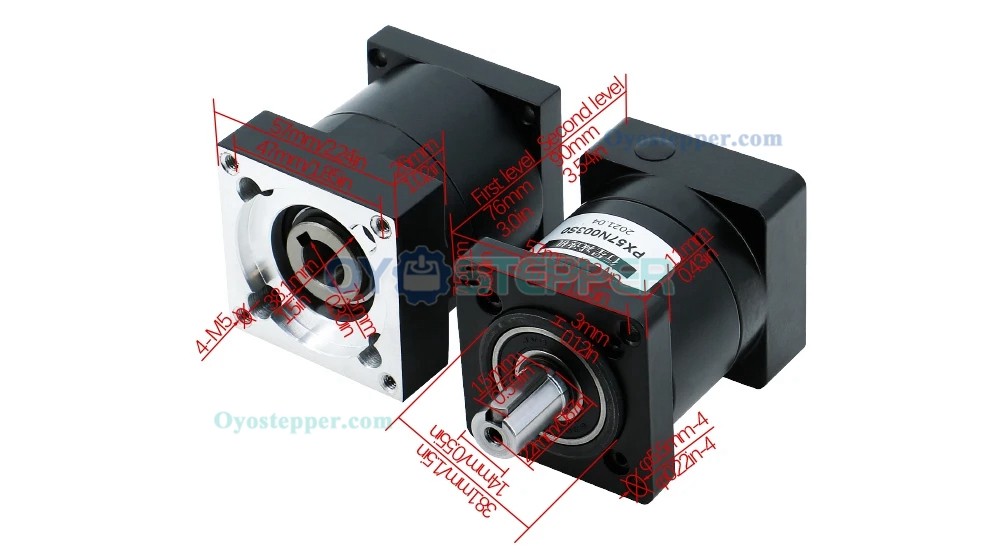

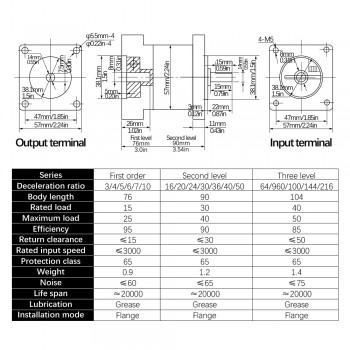

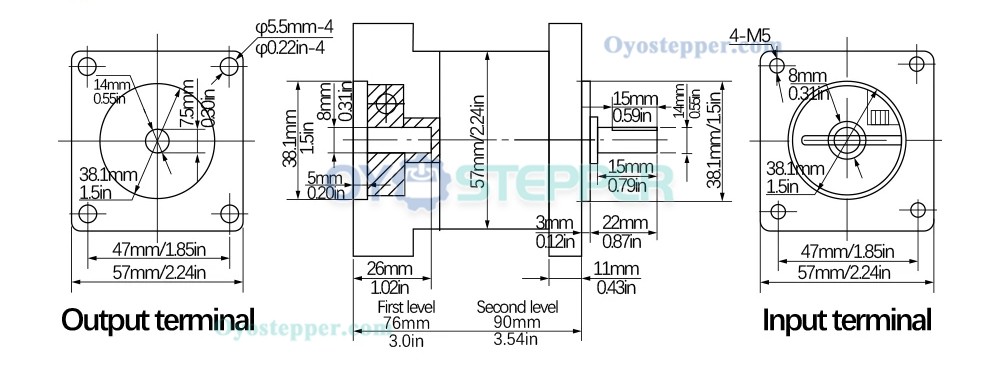

Physical Specification
Frame Size(mm) 57 x 57
Weight(g) 900 / 1200 / 1400
Gearbox Length(mm) 76 / 90 / 104
Input Shaft Diameter(mm) 8
Input Shaft Length(mm) 26
Output Shaft Diameter(mm) 14
Output Shaft Length(mm) 15
Gearbox Type Planetary Gearbox
Gear Ratio 3:1 / 144:1 / 216:1 / 4:1 / 5:1 / 6:1 / 7:1 / 10:1 / 16:1 / 20:1 / 24:1 / 30:1 / 36:1 / 40:1 / 50:1 / 64:1 / 96:1 / 100:1
Output Shaft Type Keyway Shaft
Product Series PX57

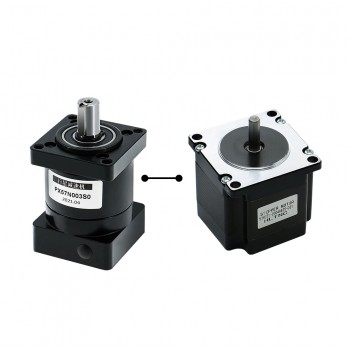

Suit for Motor Nema 23
