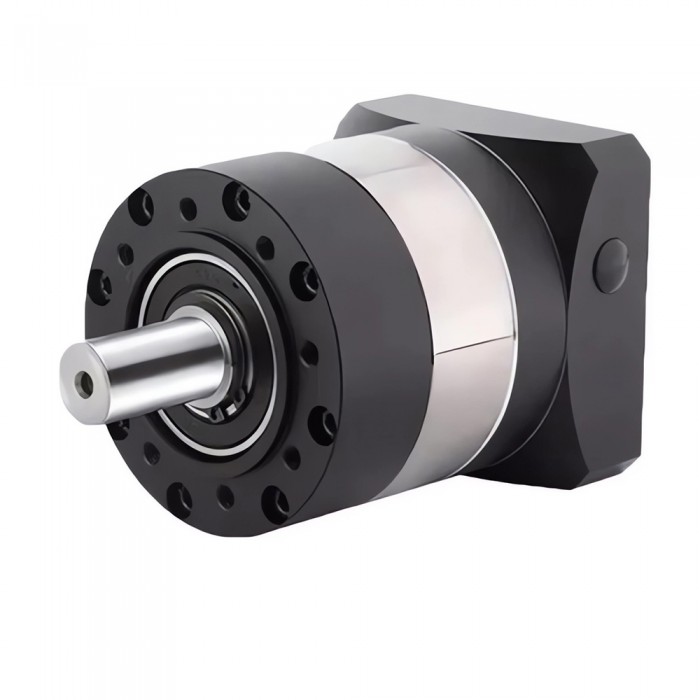

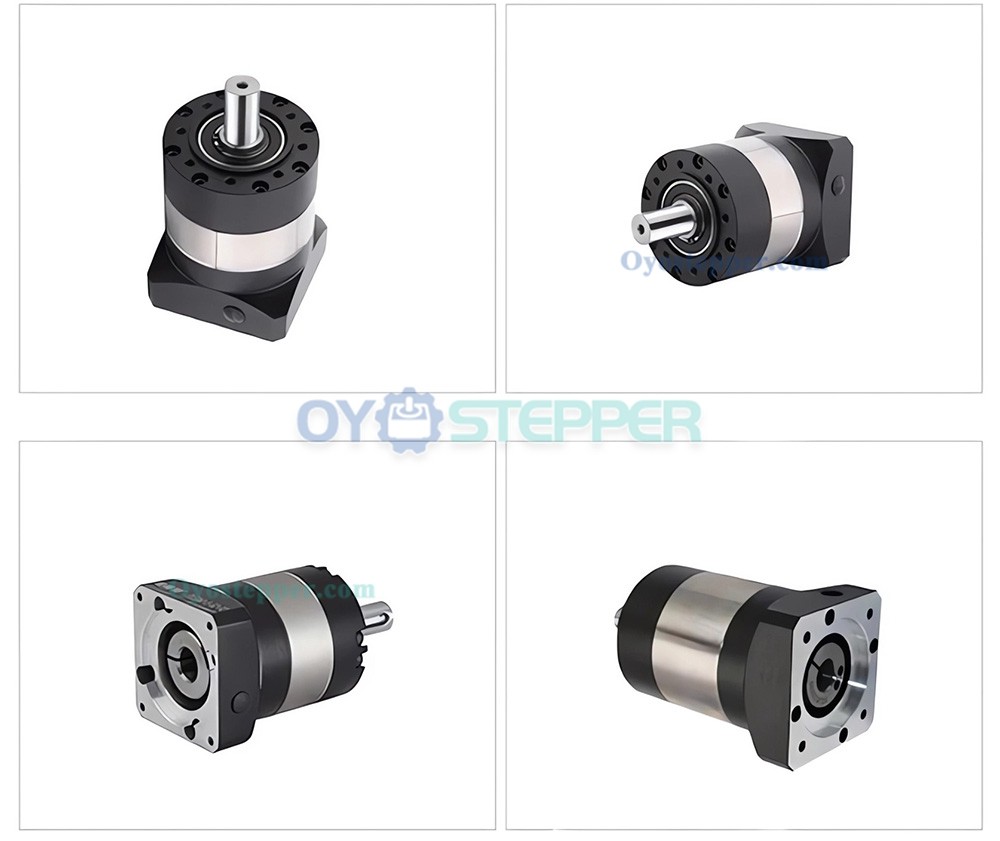

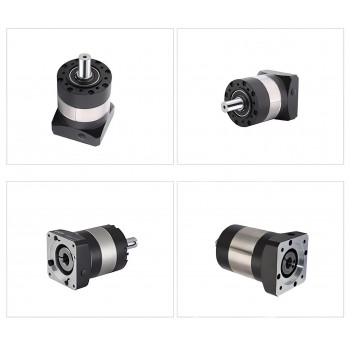

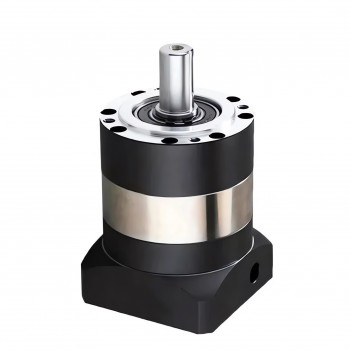

PLE060 Planetary Gearbox Reducer for NEMA23 Stepper Motor / 200W 400W 60mm AC Servo Motor
PLE060 Planetary Gearbox Reducer for NEMA23 Stepper Motor / 200W 400W 60mm AC Servo Motor
It is compatible with 14mm output shafts and can be used with NEMA 23 57mm stepper motors, 200W 400W 60mm AC servo motors. This gearbox is used for automation, home, office, and consumer electronics applications.
Applications:
It can be used in automation, robotics, printing, textile machines, packaging, machine tools, food processing, agriculture, and handling systems.
Specifications:

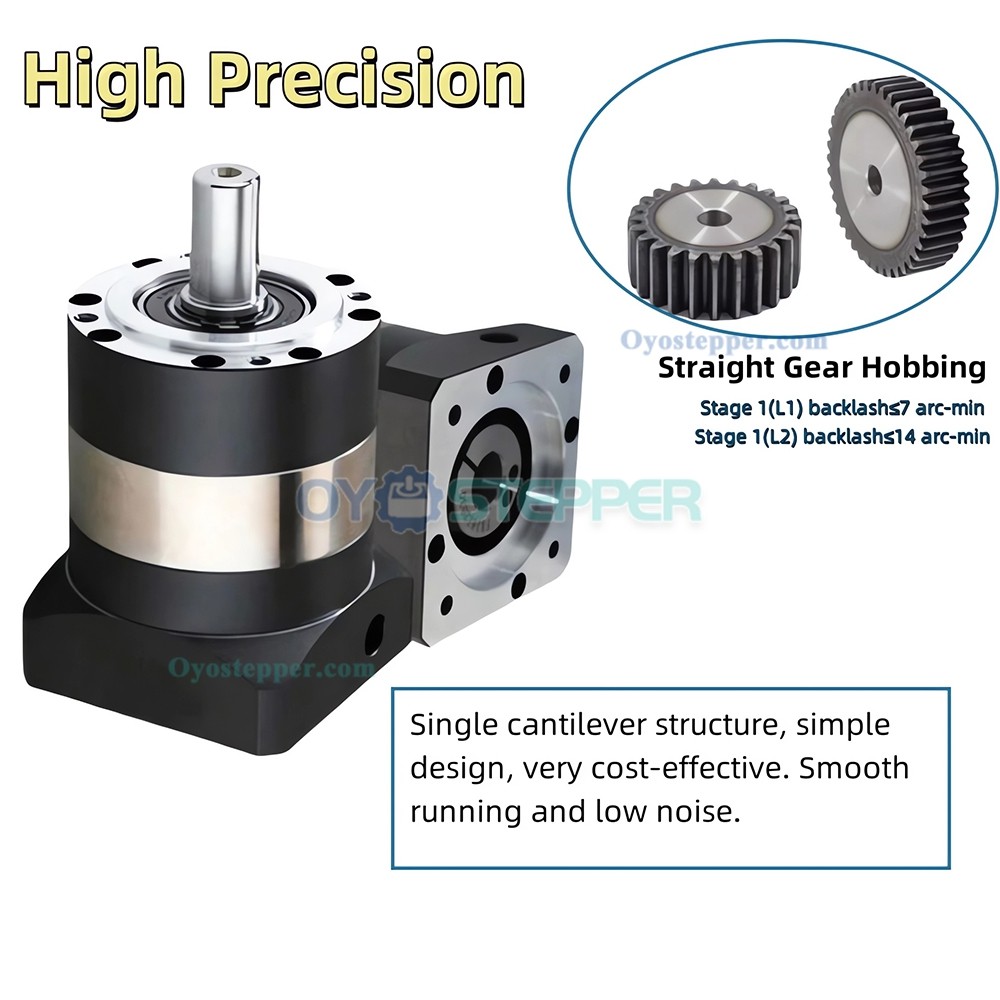

Backlash: ≤7/12 arcmin
Nominal ratios: 4:1, 5:1, 7:1, 10:1, 20:1, 25:1, 35:1, 40:1, 50:1, 70:1, 100:1
Rated output torque: 16-40Nm
Maximum input speed: 5,000 RPM
Operating temperature range: -10°C to +90°C
Torsional stiffness: 6Nm/arcmin
Noise level: ≤55 dB
Protection: IP54
Package includes:
1x Planetary reducer
1x Key
4x Installation screws
| Gear Reducer Technical Parameters | |||
|---|---|---|---|
| Parameter | Level 1 (L1) | Level 2 (L2) | |
| Body length | 78mm | 95.5mm | |
| Rated input speed | 3000rpm | ||
| Max. input speed | 5000rpm | ||
| Max. radial force | 320N | ||
| Max. axial force | 280N | ||
| Torsional stiffness | 6Nm/arcmin | ||
| Noise | ≤60dB | ||
| Life time | 20000 h | ||
| Operating temperature | -25~90℃ | ||
| Degree of protection | IP65 | ||
| Lubrication | Life lubrication | ||
| Mounting position | Standard | ||
| Direction of rotation | Same direction | ||
| Maximum efficiency | ≥95% | ≥92% | |

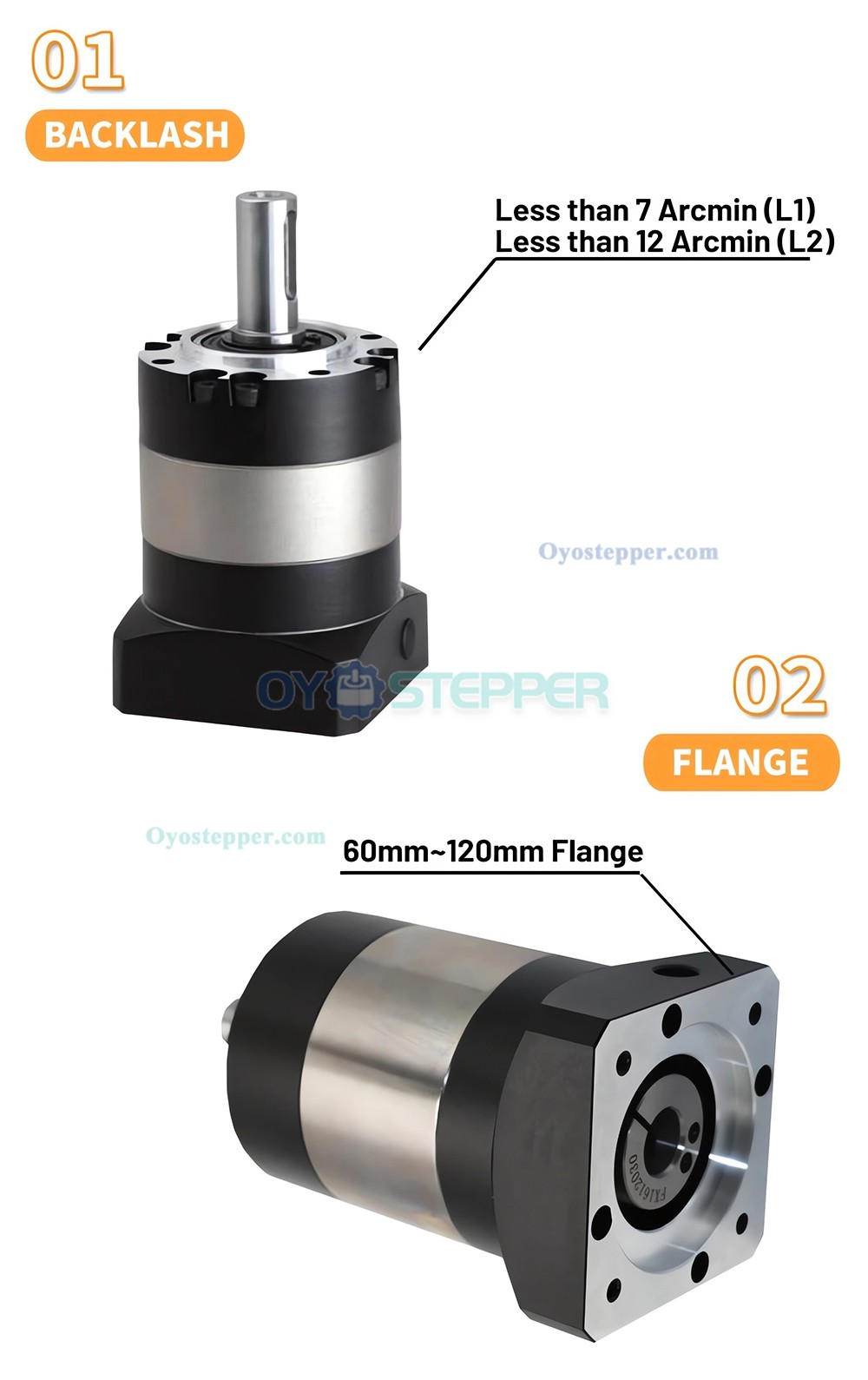

| Backlash | ≤7 Arcmin | ≤12 Arcmin | |
| Max. output torque | 2 × Rated output torque | ||
| Speed Ratio & Rated Output Torque (Nm) | |||
| Level | Speed Ratio | Rated Output Torque | |
| Level 1 (L1) | 3:1 | 25 | |
| 4:1 | 40 | ||
| 5:1 | 39 | ||
| 7:1 | 30 | ||
| 10:1 | 18 | ||
| Level 2 (L2) | 20:1 | 40 | |
| 25:1 | 39 | ||
| 30:1 | 25 | ||
| 35:1 | 39 | ||
| 40:1 | 40 | ||
| 50:1 | 39 | ||
| 70:1 | 30 | ||
| 100:1 | 18 | ||

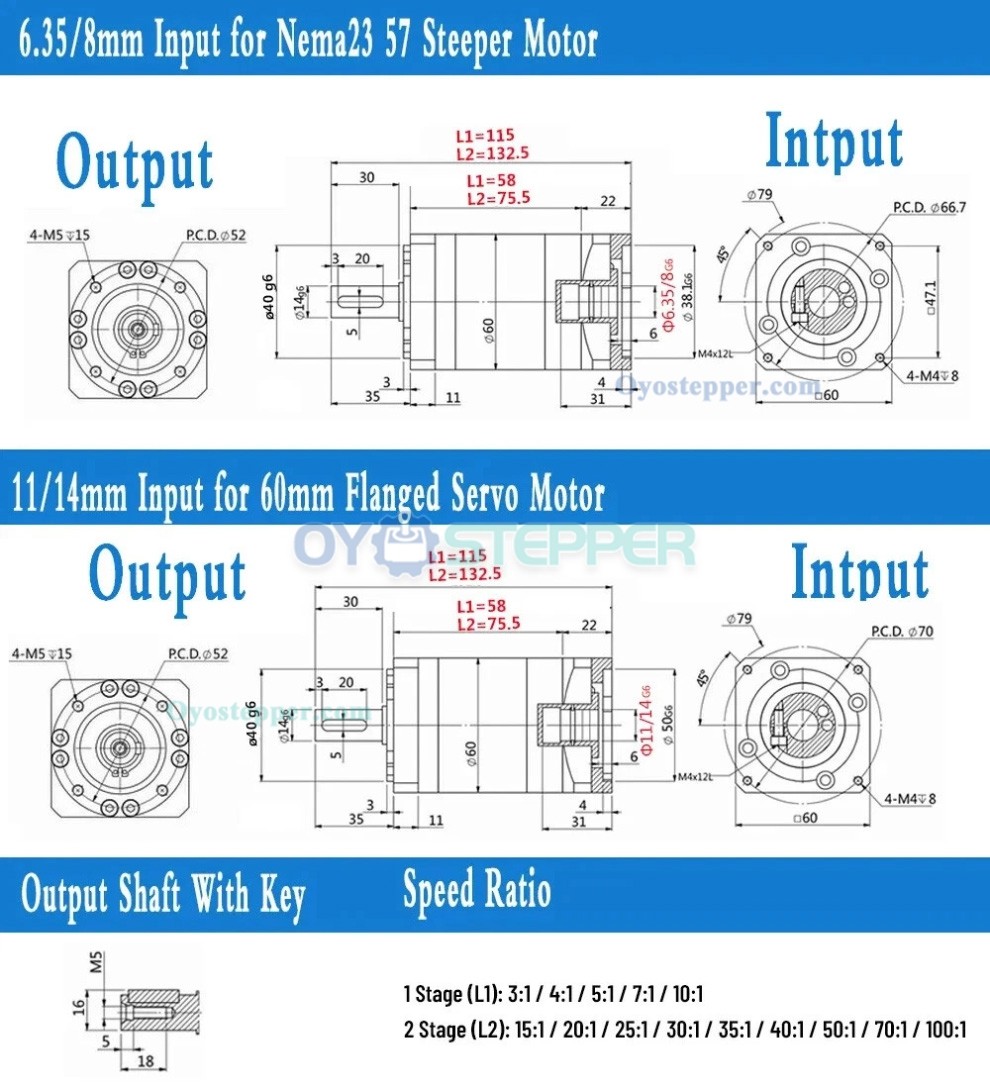

| Gearbox Specification | |
|---|---|

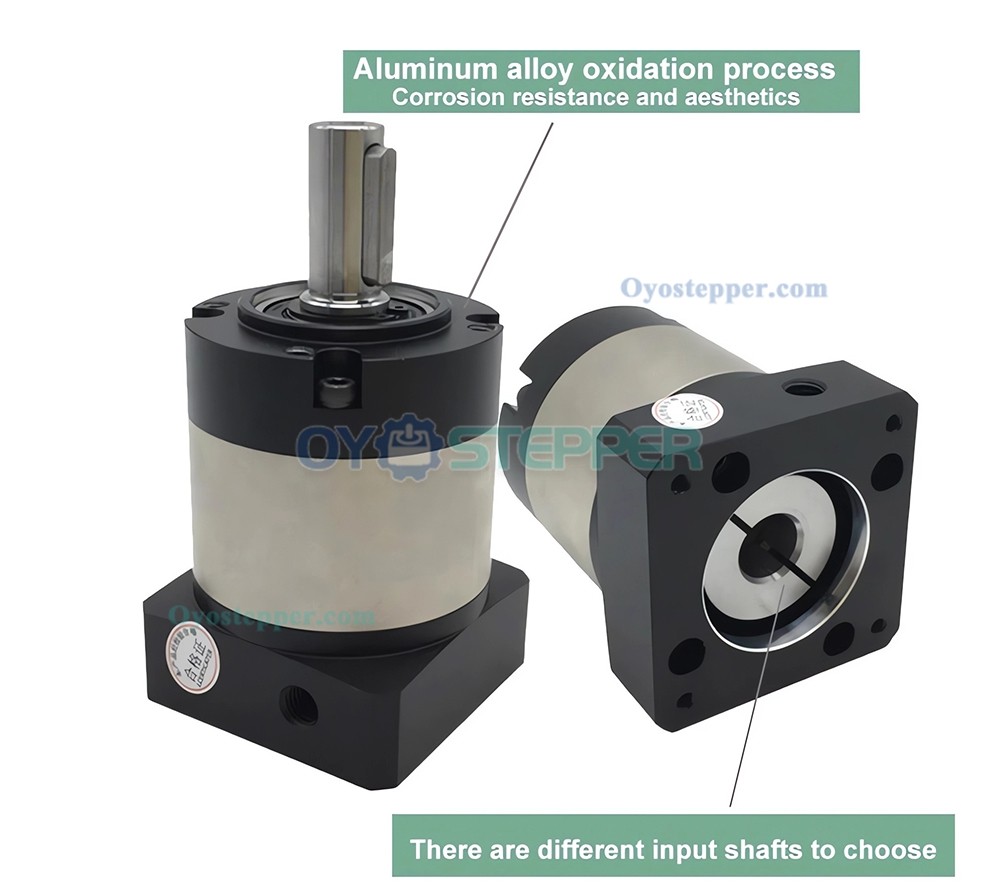

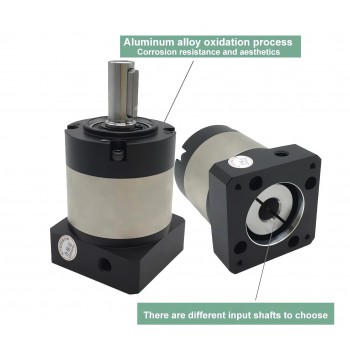

| Input Shaft Diameter(mm) | 6.35mm / 8mm / 11mm / 14mm |

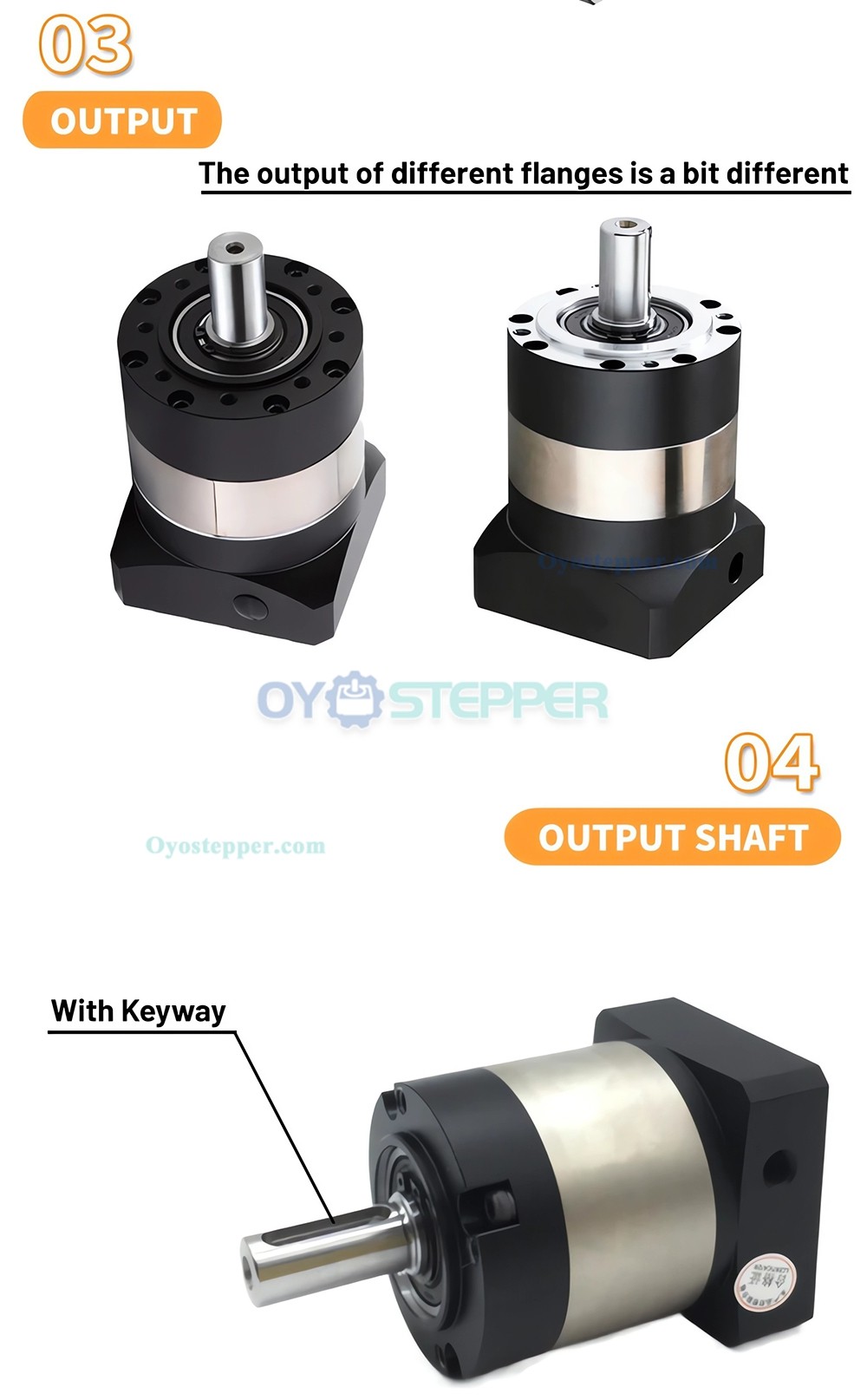

| Output Shaft Type | Keyway |
| Matching Motor Size | Nema 23 Stepper Motor / 60mm Servo Motor |
| Gear Ratio | 3:1 / 4:1 / 5:1 / 7:1 / 10:1 / 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1 |
| Gearbox Type | Planetary Gearbox |
| Backlash at No-load(Max.°) | ≤7arcmin / ≤12arcmin |
