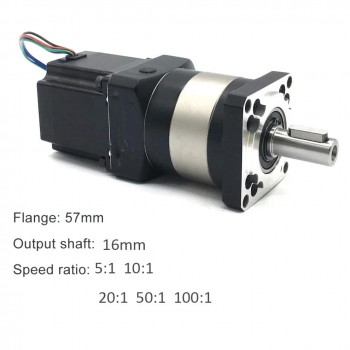

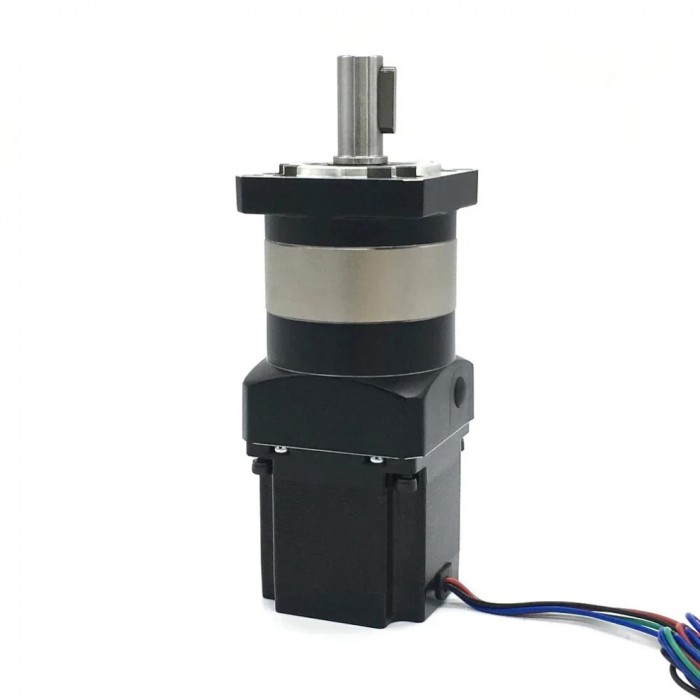

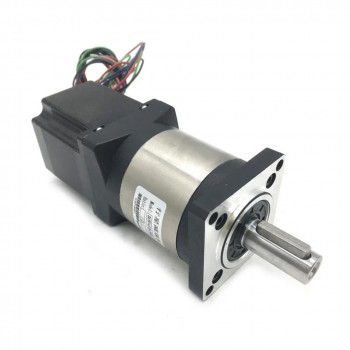

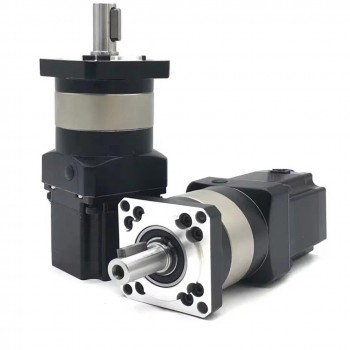

DLF Series Planetary Gearbox Speed Reducer with Nema 23 Stepper Motor 1.8 ° 1.2nm Kit

DLF Series Nema 23 Planetary Gearbox Gear Head Speed Reducer 1/4'' Input 6.35mm 8mm



Specification:

Speed ratios:

1-stage (L1): 4:1 / 5:1 / 7:1 / 10:1

2-stage (L2): 16:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1;


Backlash:

L1: ≤20 arcmin

L2: ≤40 arcmin

Rated output torque

27 Nm (4:1)

29 Nm (5:1)

19 Nm (7:1)

8 Nm (10:1)

30 Nm (16:1 / 20:1 / 40:1)

33 Nm (25:1 / 35:1 / 50:1)


Efficiency and size:

Full-load efficiency: L1 ≥95%, L2 ≥90%

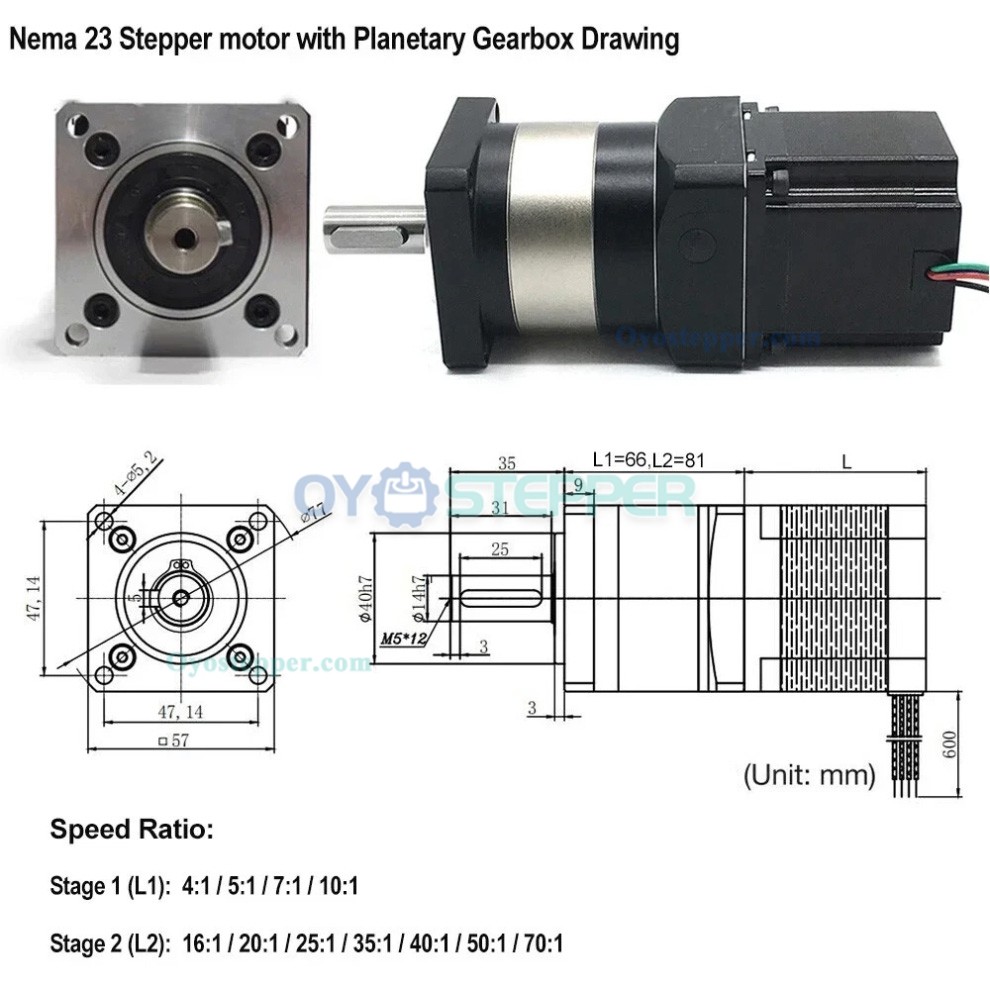

Body length: L1 = 66 mm, L2 = 81 mm

Load capacity and speed

Max radial force: 320 N

Max axial force: 240 N

Max input speed: 4000 rpm

Rated input speed: 3000 rpm

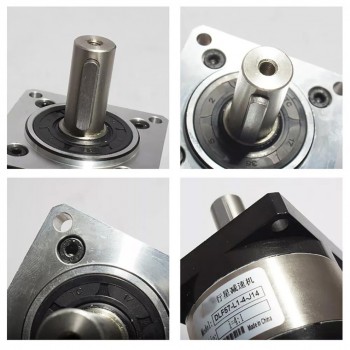

Interface:

Output shaft: 14 mm

Axle sleeve: 8 mm to 6.35 mm (for devices requiring 6.35 mm input hole);


Package List:

1 × Planetary gearbox

1 × Key

4 × Install screws

1 × Axle sleeve (8 mm to 6.35 mm)



NEMA 23 Stepper Motor Specifications:

Model:57HS5630A4D

Size: 57 mm (NEMA 23)

Body Length: 56 mm (1.2 Nm)

Current: 3 A

Shaft Diameter: 8 mm

Phases: 2 phases, 4 wires

Step Angle: 1.8°

Wiring: 1 meter

Driver Configuration: TB6600 or DM556
