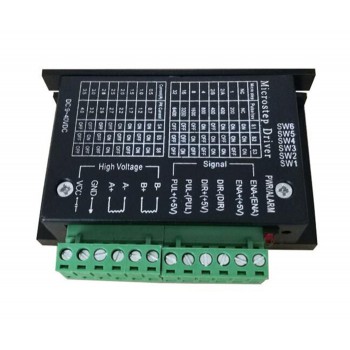

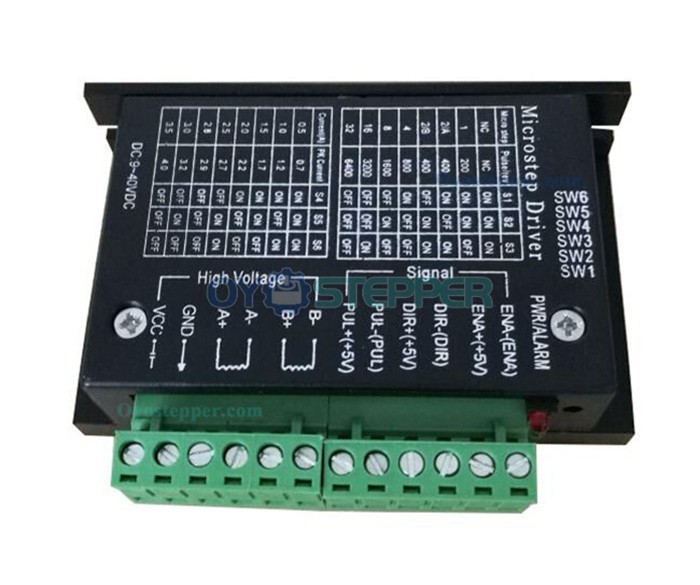

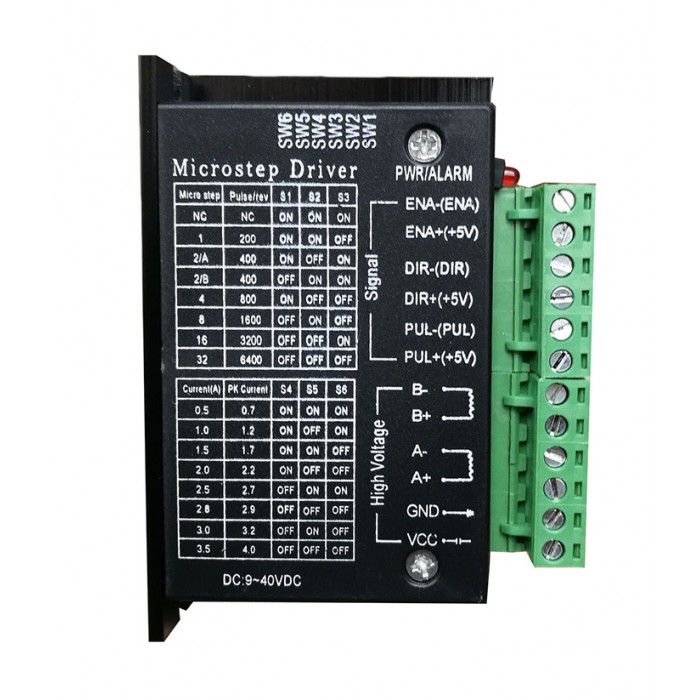

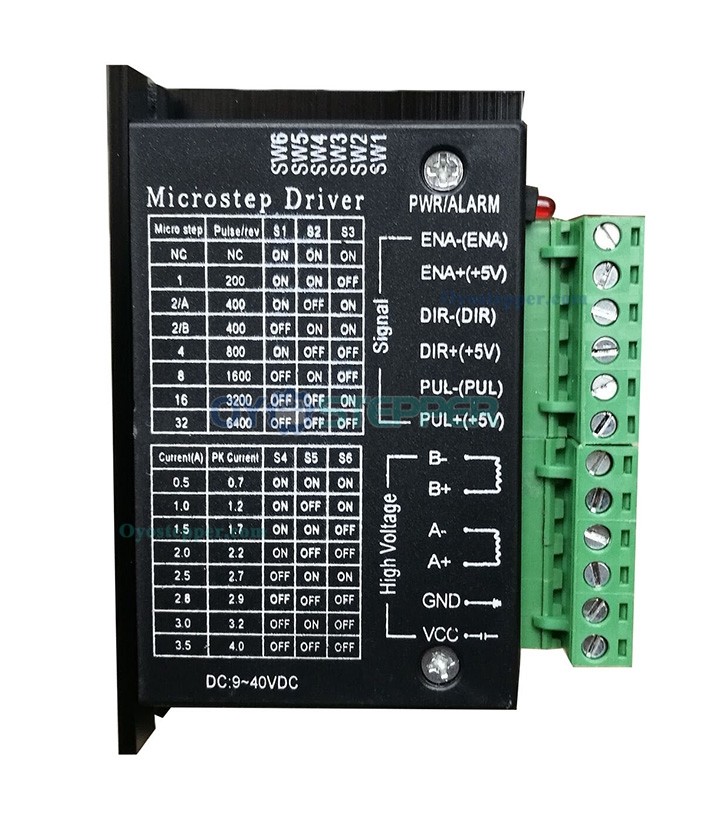

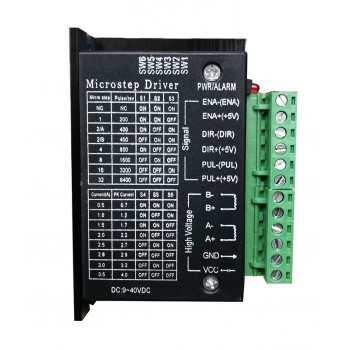

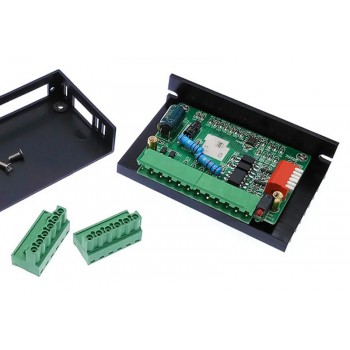

Oukeda TB6600 Motor Driver Controller 2 Phase 9-40VDC 4A for NEMA 17, 23, 24 Stepper Motor

Oukeda TB6600 Motor Driver Controller 2 Phase 9-40VDC 4A for NEMA 17, 23, 24 Stepper Motor

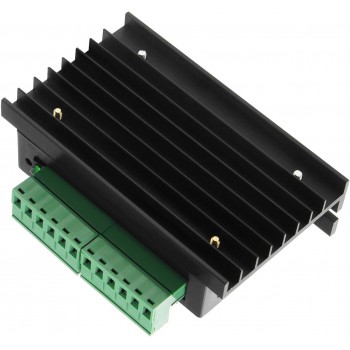

The TB6600 is a bipolar stepper motor driver designed for 2-phase motors. It operates with a DC power supply voltage range of 9V to 40V and provides a configurable output current from 0.5A to 4.0A.

Features:

Motor Compatibility: Compatible with 4-wire, 6-wire, and 8-wire two-phase stepper motors.

Microstepping Control: Offers six selectable microstepping modes (Full step, 1/2, 2-A, 2-B, 1/4, 1/8, 1/16, 1/32).

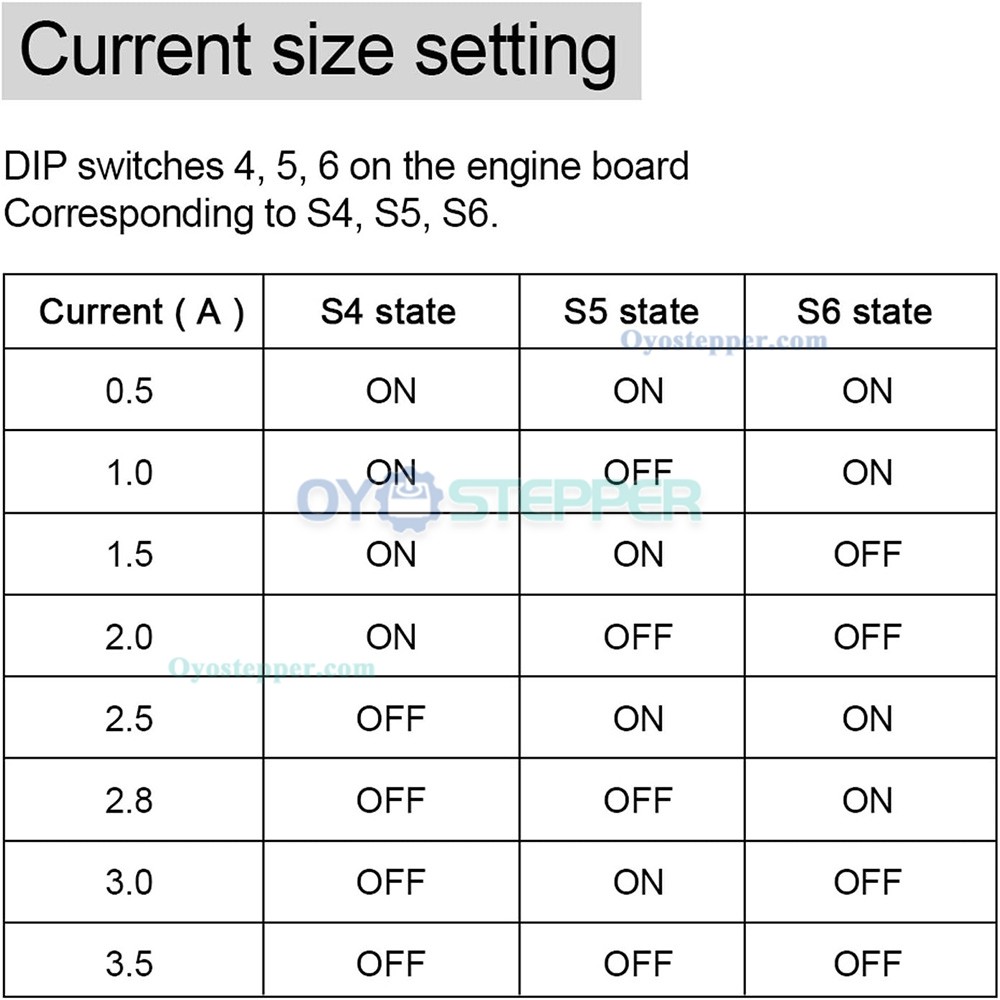

Current Adjustment: Output current can be configured to one of eight levels (0.5A, 1.0A, 1.5A, 2.0A, 2.5A, 2.8A, 3.0A, 3.5A) via DIP switches.

Excitation Modes: Supports 1-phase, 2-phase, and 1-2 phase (half-step) excitation modes.

Current Control: Utilizes a constant current chopping drive method with a semi-automatic current reduction function.

Protection Functions: Includes circuitry for thermal shutdown, overcurrent protection, and undervoltage lockout.

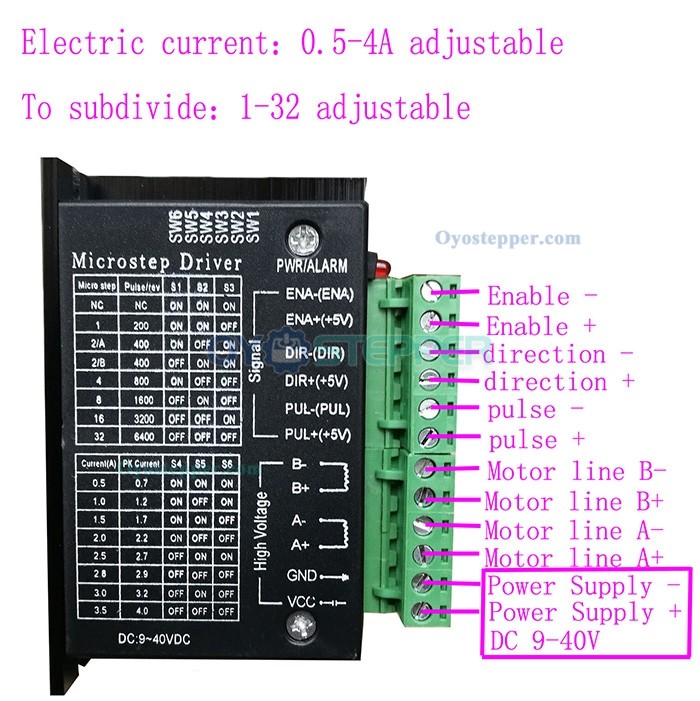

Control Inputs: Accepts direction and pulse signals for motor control.

Configuration: Settings are adjusted via onboard DIP switches.


Applications:

This driver is designed for use in various automation equipment and projects. It is compatible with NEMA 17, 23, and 24 frame stepper motors. Example applications include 3D printers, CNC machines, robotics, and laser cutters.

Electric parameter:

Input voltage DC9-40V

Power supply: 5A input

Output current 0.5-4.0A

Maximum power consumption 160W;

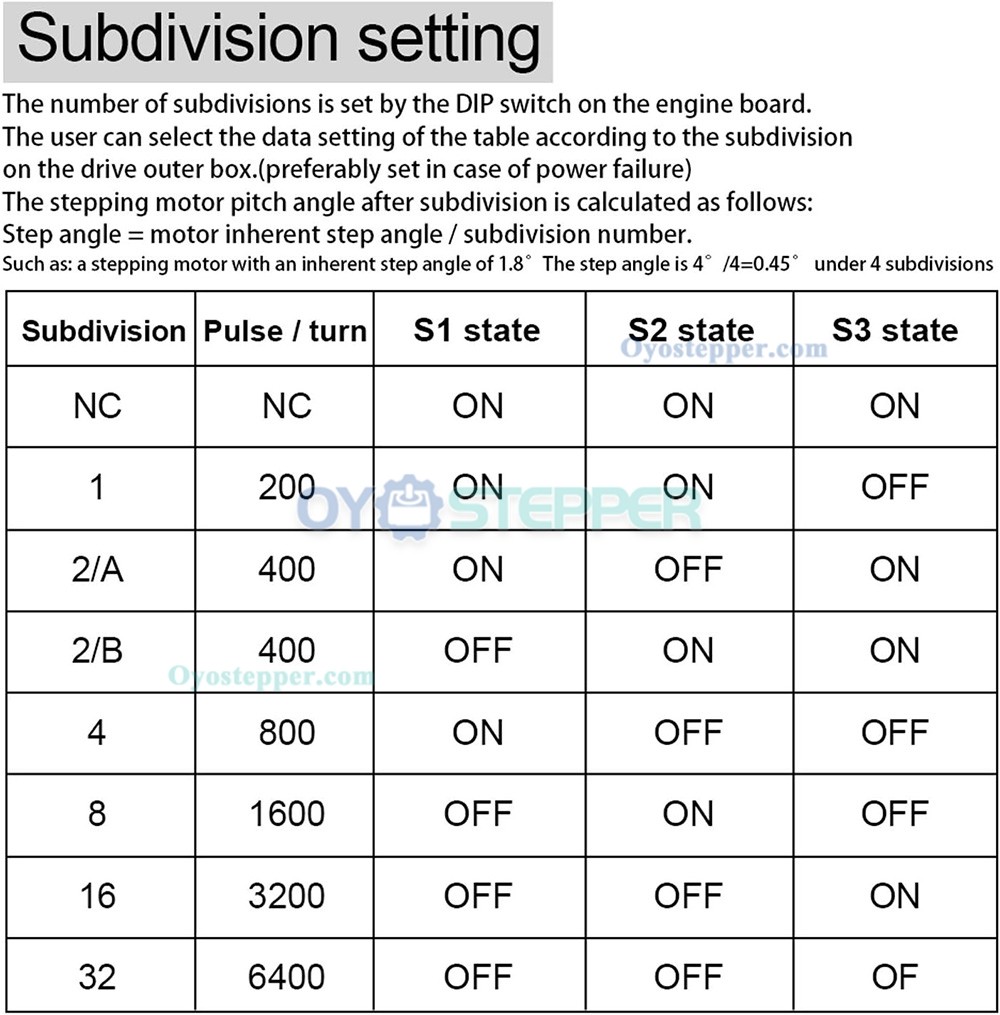

Subdivision 1. 2/A, 2/B, 4, 8, 16, 32;

Operating Environment and other Specifications(Tj = 25℃/77℉):

Operating temp: -10 to 45°C

Storage temp: -40 to 70°C

Cooling: natural or forced air

Humidity: no condensation or water drip

Environment: no flammable gas or conductive dust

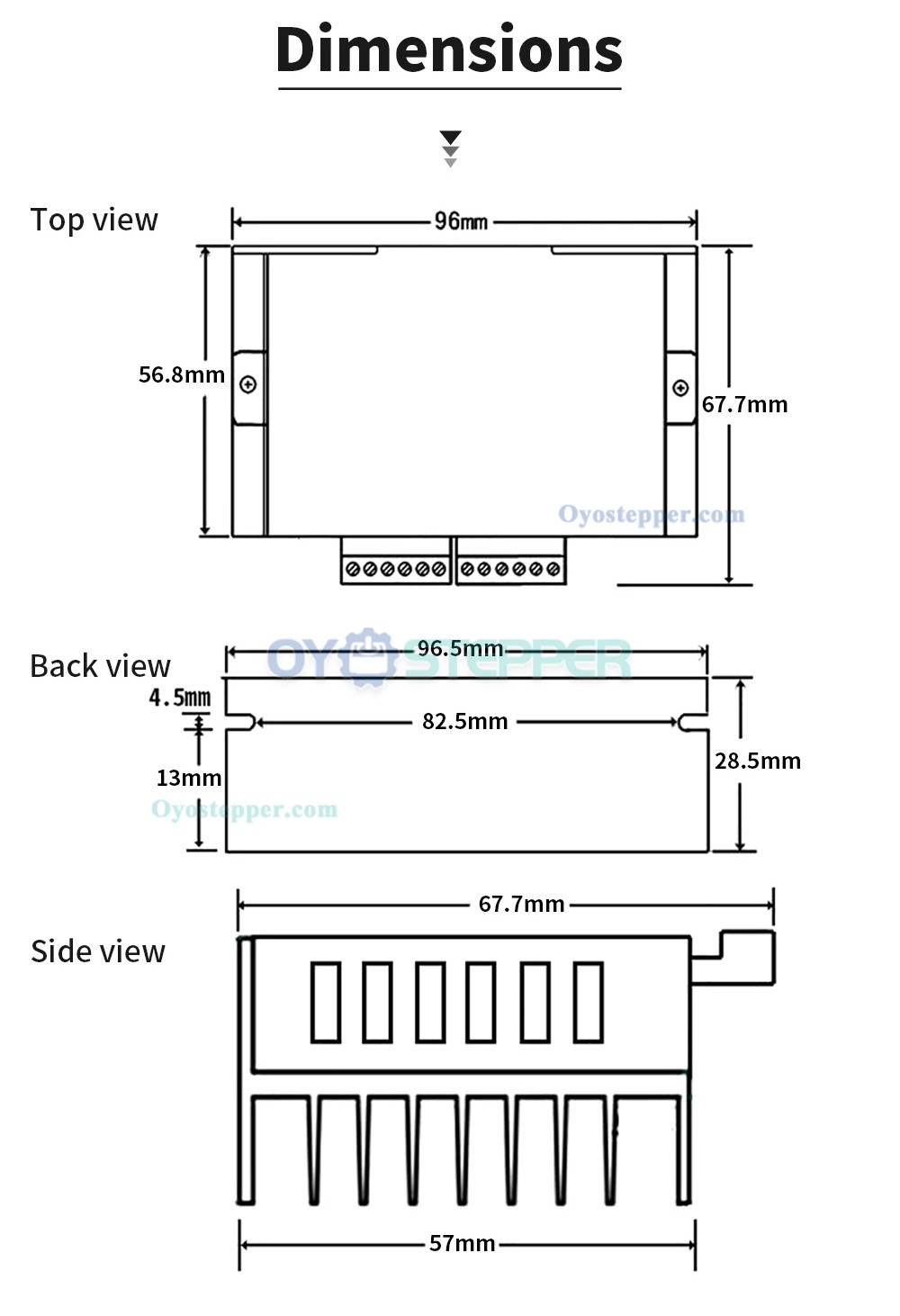

Dimensions: 96 × 57 × 28.5 mm

Weight: 0.2 kg

Package includes:

1 x Stepper Motor Driver
