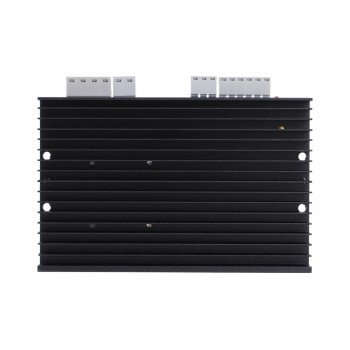

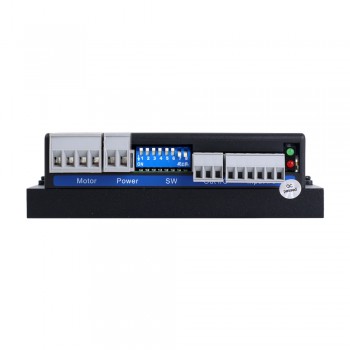

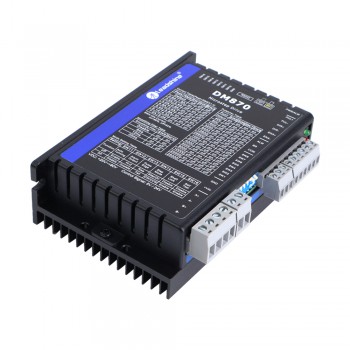

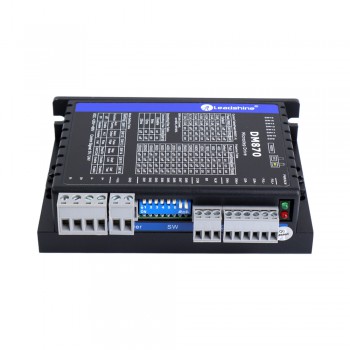

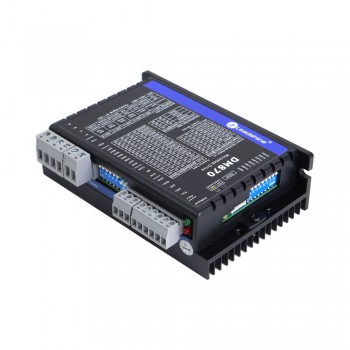

Leadshine DM870 Digital Stepper Driver 0.5-7.0A 20-80VDC for Nema 23, Nema 24, Nema 34 Stepper Motor

Leadshine DM870 Digital Stepper Driver 0.5-7.0A 20-80VDC for Nema 23, Nema 24, Nema 34 Stepper Motor

The DM870 stepper drive is designed to power 2 phase (1.8°) or 4-phase (0.9°) NEMA23, 24 and 34 hybrid stepper motors. It can be adopted in many industries (CNC machinery, electronics, medical, automation, packaging…) for applications such as CNC routers, mills, plasma, laser cutters, factory assembly lines, vending machines, etc. Its stable performance, simple design, and easy setup features make DM870 suitable for many step & direction control type applications.

Key Features:

Step & direction (PUL/DIR) or CW/CCW (double pulse) control

20-80VDC supply voltage

200 KHz max pulse input frequency

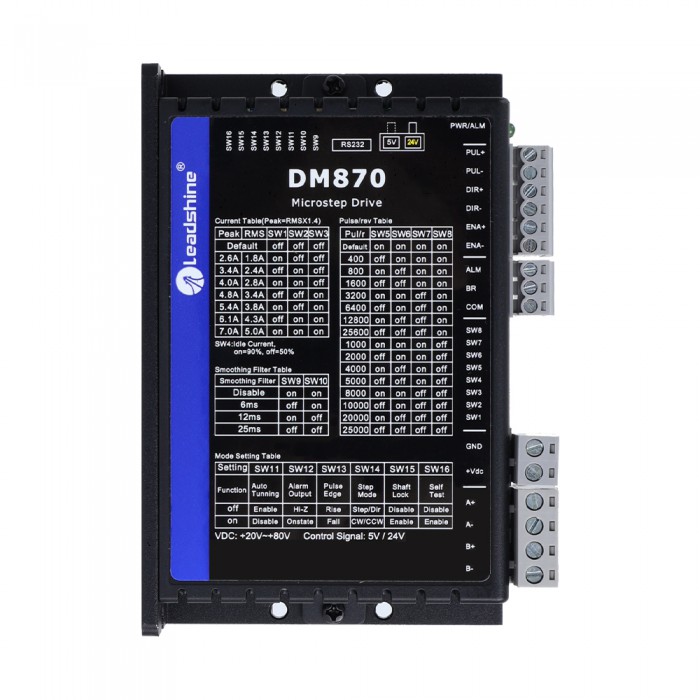

16 micro-step resolutions of 200-25,600 via DIP switches, or 200-51,200 via software (increase by 200)

8 output current settings of 1.4 -7.0A via DIP Switches, or 0.5-7.0A via software (increase by 0.1)

Configurable control command smoothing for reducing motor vibration

Idle current reduction to 50% or 90% selection via SW4

Convenient self-test for easy diagnosis

Auto-tuning to match wide-range NEMA 23, 24, 34 stepper motors

Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise

Soft-start with no "jump" when powered on

Optically isolated inputs with 5V or 24V

Fault and Brake output

Over-voltage and over-current protections

CE certified and RoHS compliant

Electrical Specifications:

Output Current: 0.5~7.0A (5.0RMS)

Input Voltage: +20~80VDC (Typical 24 - 72VDC)

Logic Signal Current: 7~16mA (Typical 10mA)

Pulse Input Frequency: 0~200kHz

Minimal Pulse Width: 2.5μS

Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

Cooling: Natural Cooling or Forced cooling

Environment: Avoid dust, oil fog and corrosive gases

Ambient Temperature: 0℃ － 65℃

Humidity: 40%RH－90%RH

Operating Temperature: 0℃ － 50℃

Vibration: 10-55Hz / 0.15mm

Storage Temperature: -20℃ － 65℃

Weight: Approx.250g(8.8oz)
