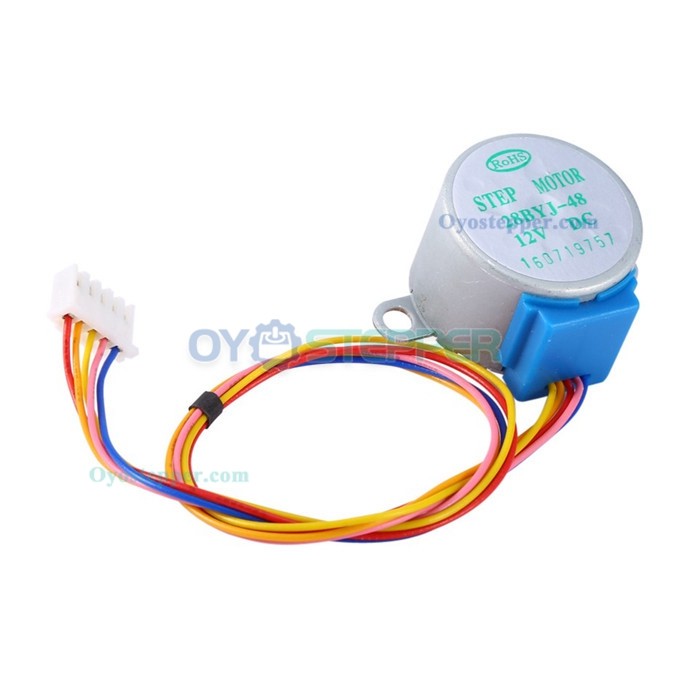

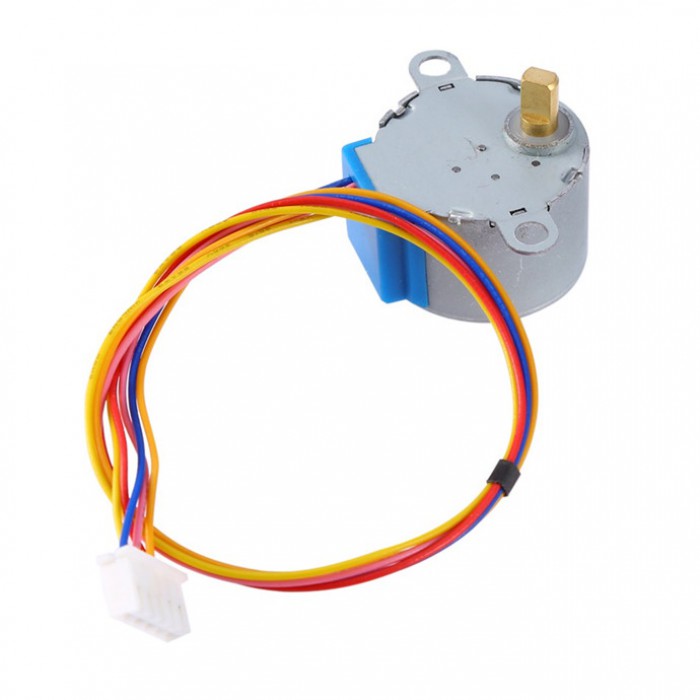

28BYJ-48 12V Reduction Step Gear Stepper Motor DC 4 Phase Step Motor Diy Kit for Arduino

12V 28BYJ-48 PM Gear Stepper Motor 64:1 Reduction 4 Phase Step Motor for Arduino

Description:

Gear Stepper Motor DC 12V 4 Phase Step Motor Reduction Step Motor

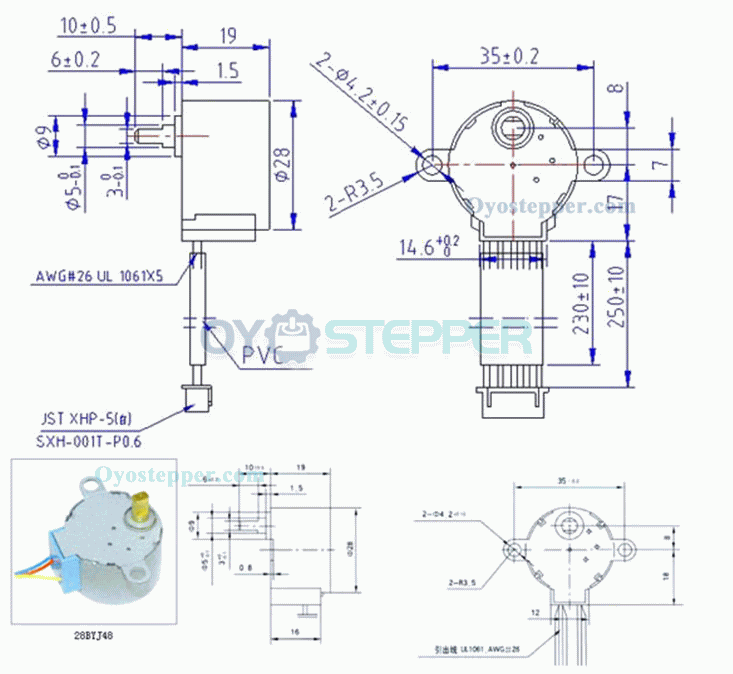

Diameter: 27mm.

Voltage: 12V.

Step angle: 5.625 x 1/64.

Reduction ratio: 1/64.

Phase: 4

No-load pull-out frequency:> 1000 Hz

Pull-in force:> 34.3 mN.m (120Hz)

Self-positioning force:> 34.3 mN.m

DCR: 200ohm +/- 7% (25 ° C)

Temperature: <40 K (120 Hz)

Insulation resistance:> 10 Mohm (500V)

Noise production: <40 dB (120Hz, No load, 10cm)

Dielectric: AC 600V / 1mA / 1s

Isolate class: A

5 lines cable 4 phase stepper motor can be driven by ULN2003 chip. It also can be connected as 2 phase to use.

Color: Silver

Package included:
1pcs x 28BYJ-48;
