2Pcs 24 48V Micro Coreless Brushless Motor Brushless DC Motor 30*67 mm 10.0-20.0Kg.cm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
Application:
BOAT, Car, Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Industrial equipment.

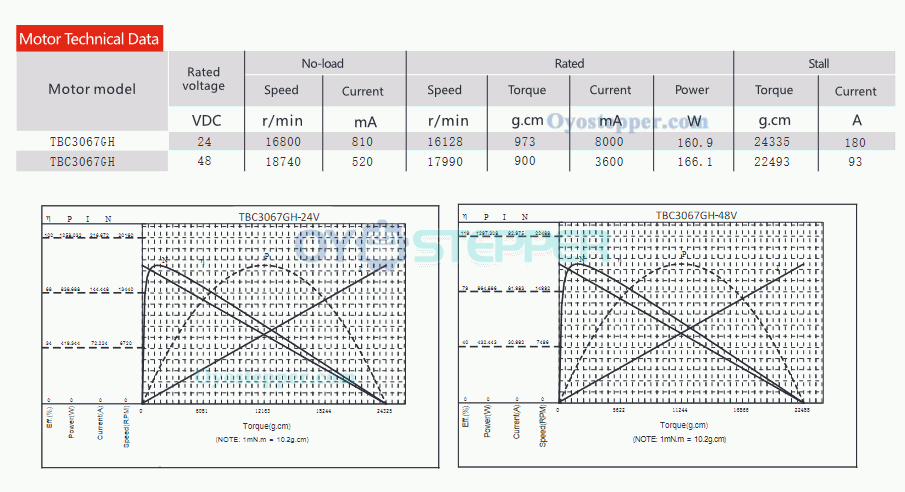

Electrical Specification：
Part Number:TBC3067GH
Rated Voltage:24V/48V
Rated Speed:16100RPM(24V) / 17990RPM(48V)
No-load Speed:16800RPM(24V) / 18700RPM(48V)
Rated Current: 8000mA(24V) /3600mA(48V)
Rated Torque: 973g.cm(24V) /900g.cm(48V)
Rated Power:160W(12V) / 166W(24V)
Motor type:Brushless Coreless Motor
Direction of Rotation:CW/CCW
Efficiency:85%
Noise:30cm.40-50DB

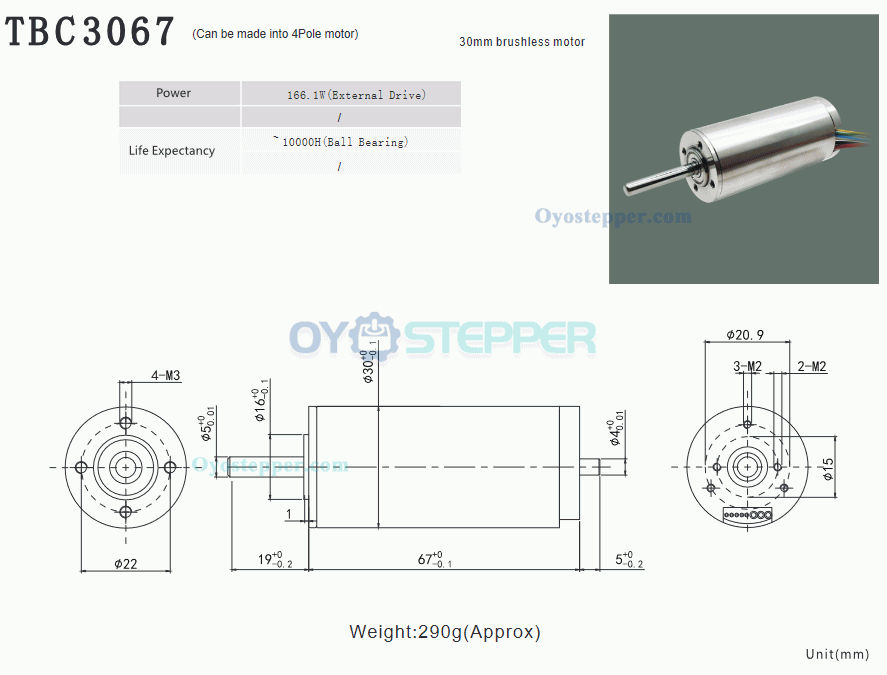

Physical Specification:
Motor Size:30*67mm
Motor Diameter:30mm
Frant Size:Φ30mm
Front Shaft Length:8mm
Front Shaft Diameter:5mm
Rear Shaft Length:18mm
Rear Shaft Diameter:4mm
Shaft Type:O
Weight:290g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Speed(rpm) | 0.42 / 0.05 |
| Rated Voltage(V) | 0.16 / 24 |
| Rated Power(W) | BLDC Motor / 160 |
| Rated Current (A) | 1.3 / 8.2 |
| Rated Torque(kg.cm) | 4.5 / 0.973 |
| Physical Specification | |
| Body Length(mm) | 67 |
| Frame Size(mm) | 0.3 |
| Output Shaft Diameter(mm) | 5 |
| Output Shaft Length(mm) | 0.62 |
| Product Type | Brushless Coreless Motor |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 290 |
