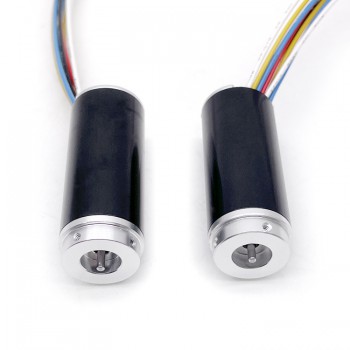

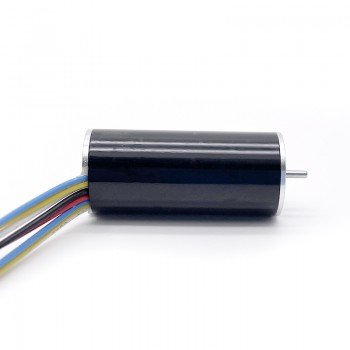

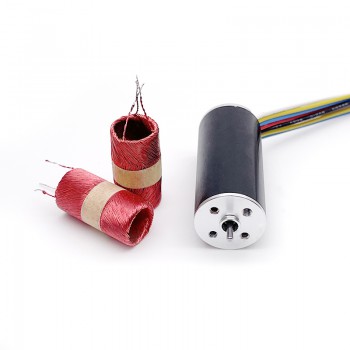

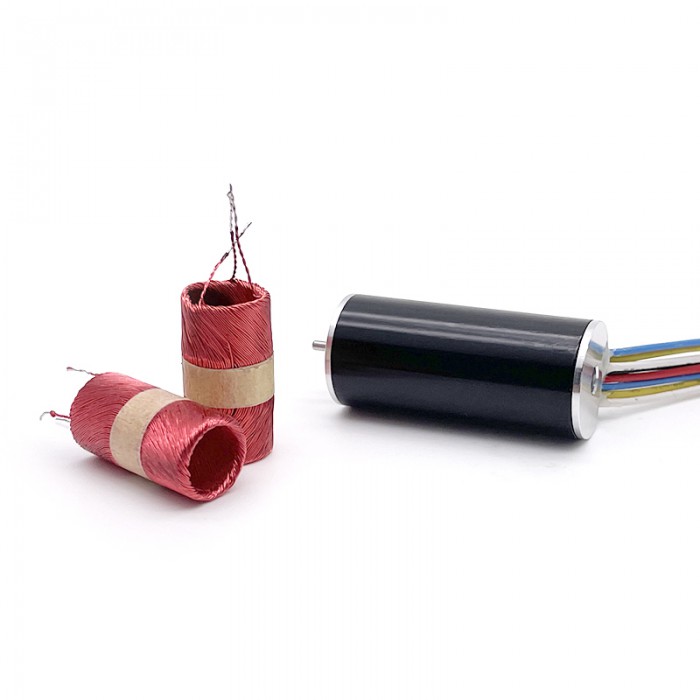

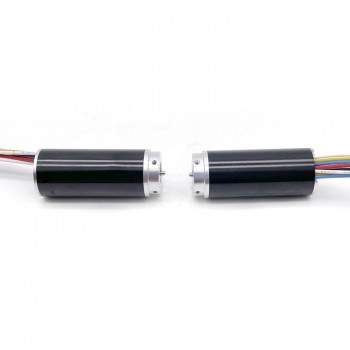

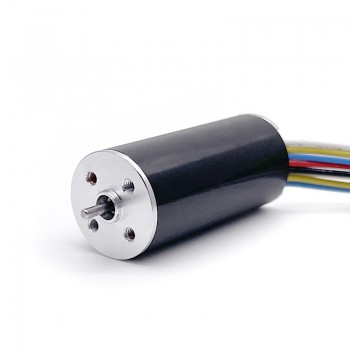

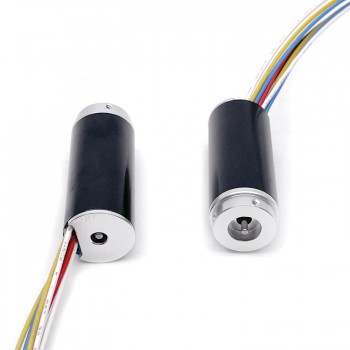

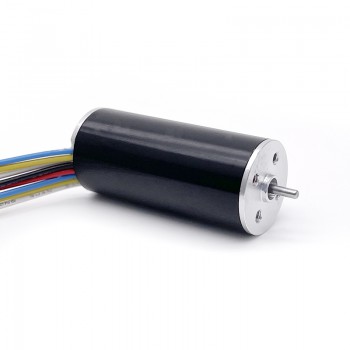

2Pcs 12V 24V Round Electric BLDC Coreless Motor 32.6g.cm 16mm*36mm 2mm Shaft

2Pcs 12V 24V Round Electric BLDC Coreless Motor 32.6g.cm 16mm*36mm 2mm Shaft
NO.:TEC1636
Post a review
Our Price:$21.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $20.88 5%
30 $20.44 7%
50 $19.78 10%
100 $18.68 15%
Add To Cart



Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Electric grinder.

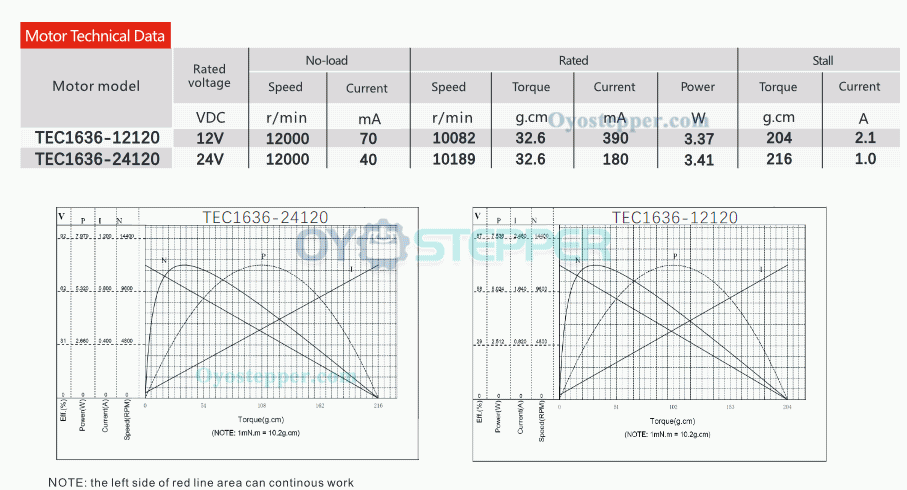

Electrical Specification
Part Number: TEC1636
Power:3W
Rated Voltage:12V/24V
Continuous Current(A):390(12V) / 180mA(24V)
Rated Torque:32g.cm
Rated Speed:10000rpm
No Load Speed : 12000RPM
Stall Torque:200g.cm
Stall Current:2.1A(12V) / 1.0A(24V)

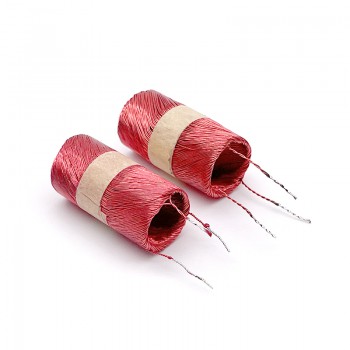

Type:Coreless brushless motor
Efficiency:IE 1
Construction:Permanent Magnet
Noise:30cm.<40db
Life Expectancy:3000H(Oil Bearing)

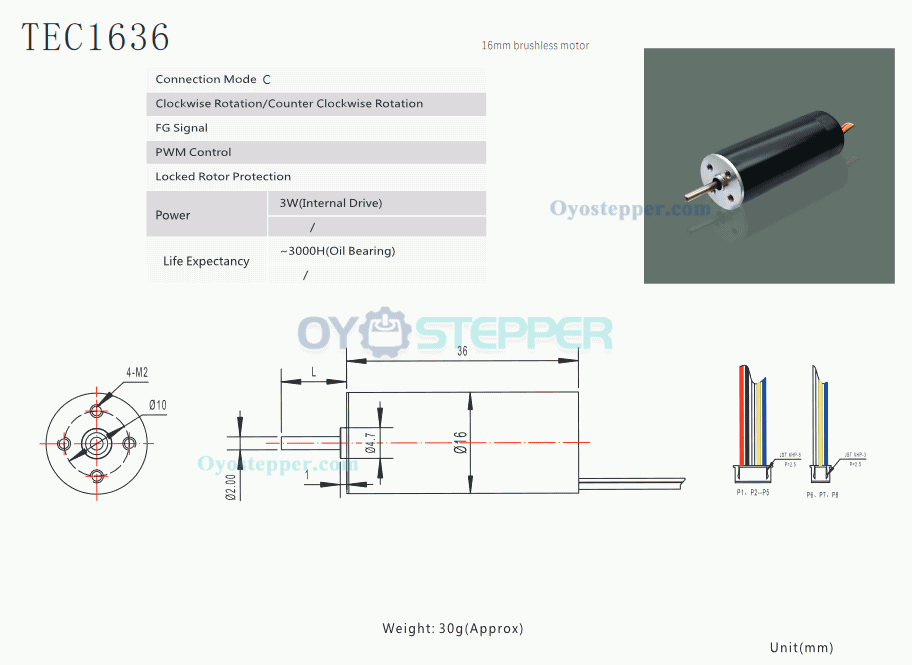

Physical Specification:
Motor Size:16mm*36mm
Motor Diameter:16mm
Motor Length:36 mm
Shaft Type:O
Shaft Diameter:2mm
Weight:30g

2Pcs 12V 24V Round Electric BLDC Coreless Motor 32.6g.cm 16mm*36mm 2mm Shaft

2Pcs 12V 24V Round Electric BLDC Coreless Motor 32.6g.cm 16mm*36mm 2mm Shaft



Resources

TEC1636-45.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V Electric Brushless BLDC DC Motor 150g.cm 28mm*47mm 3mm Shaft
Next: 2Pcs 12V 24V Electric Brushless DC Motor 20g.cm 6000rpm/8700rpm 24mm*18mm 2mm Shaft
Physical Specification
Body Length(mm) 40
Shaft Diameter(mm) 2
Weight(g) 30
Frame Size(mm) Ф16
Shaft Type O
Single Shaft/Dual Shaft Single Shaft
Electrical Specification
Rated Voltage(V) 12 / 24
Rated Speed(rpm) 10000
Rated Current (A) 0.39 / 0.18
Rated Torque(kg.cm) 0.032
Motor Type Coreless brushless motor
