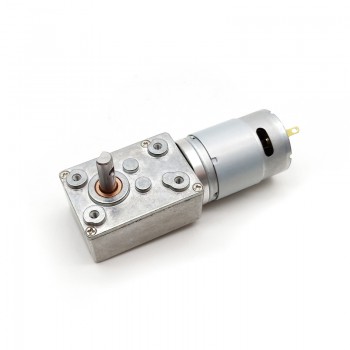

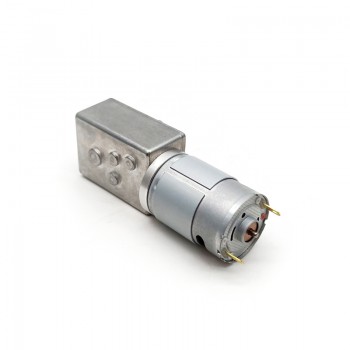

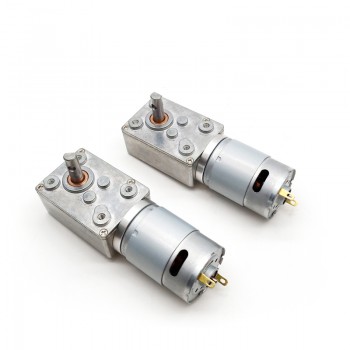

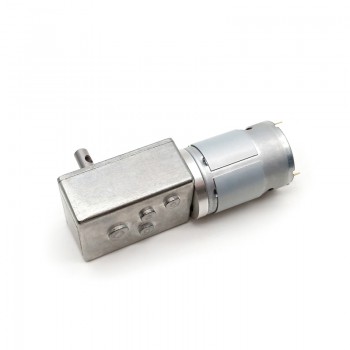

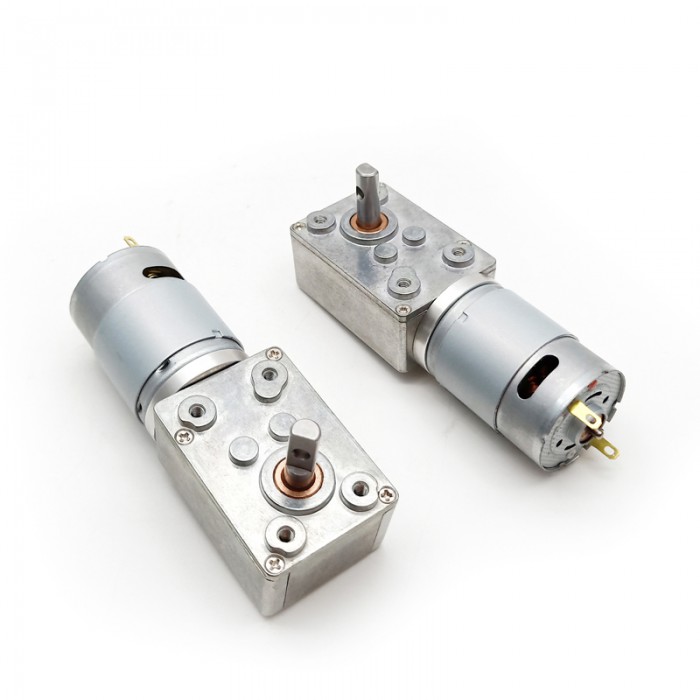

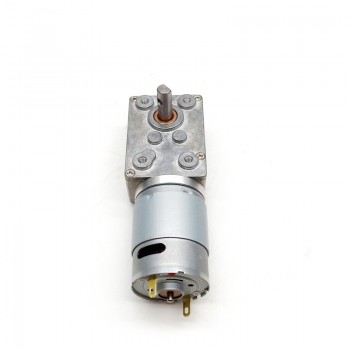

2Pcs 6V 12V High Torque DC Worm Gear Motor Permanent Magnet 8kg.cm 32*46mm
Features:
1.Small size dc gear motor with low speed and big torque
2.32*46mm gear motor provide 1.0Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Dc Gear motors can match encoder,12ppr-1000ppr
5.Reduction Ratio: 146/188/300/438/563/700/900/1313/1688
3 stages: 146:1/188:1/300:1
4 stages: 438:1/563:1/700:1/900:1
5 stages: 1313:1 /1688:1
Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Electric grinder.

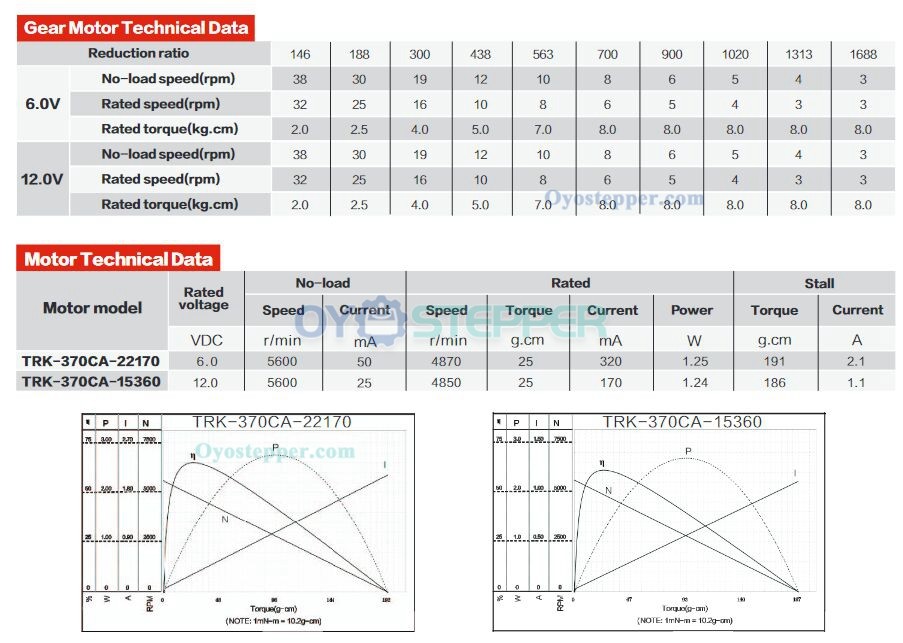

Electrical Specification
Part Number:TWG3246-370CA
Rated Voltage:6V/12VDC
Rated Torque:8.0Kg.cm max
Max momentary tolerance torque: 15.0kg.cm
Rated current:320mA(6V)/170mA(12V)
No Load Speed W/O Gearbox: 5600RPM(6V)/5600RPM(12V)
Rated Speed W/O Gearbox: 4870RPM(6V)/4850RPM(12V)
No Load Speed W Gearbox: 3-38 RPM
Rated Speed W/ Gearbox:3-32 RPM
Rated Power:1.25W(6V) /1.24W(12V)
Gear type:Worm gearbox
Type:DC Worm Gear Motor
Efficiency:80%-90%
Construction:Permanent Magnet
Noise:30cm.<40db
Direction of Rotation:CW/CCW
Average Backlash no load:<3°

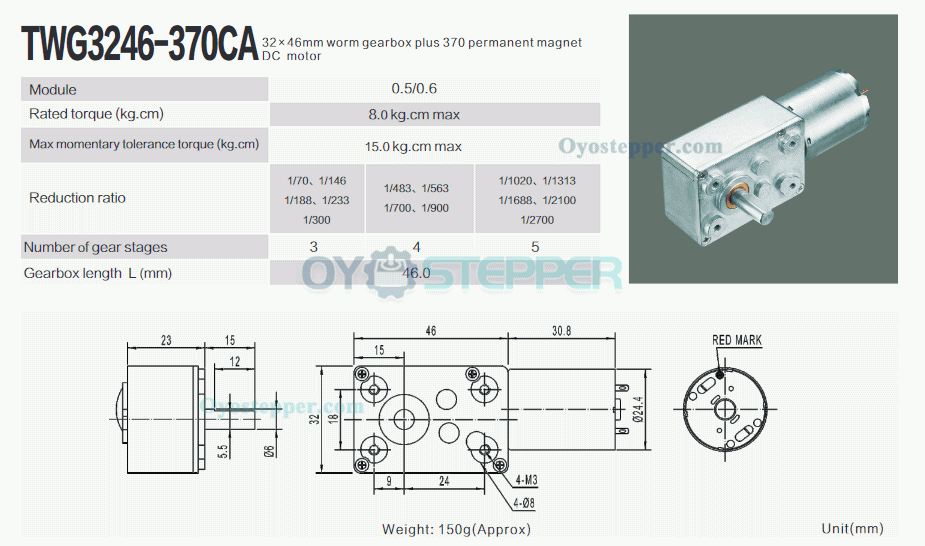

Physical Specification:
Motor Size:Φ24*30.8mm
Motor Diameter: 30.8mm
Gearbox Size: 32 x 46mm
Length:30.8mm+Planetary gearbox
Gearbox Length:46mm
Shaft Type:D-cut
D-cut Diameter:5.5mm
D-cut Length:12mm
Shaft Diameter:6mm
Shaft Length:15mm
Weight:150g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 15 |
| Gearbox Type | Worm gearbox |
| Body Length(mm) | 30.8+gearbox |
| Gearbox Length(mm) | 46 |
| Gear Ratio | 146:1 / 188:1 / 300:1 / 1600 / 4000 / 700:1 / 900:1 / 1313:1 / 1688:1 |
| Weight(g) | 300 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Electrical Specification | |
| Rated Voltage(V) | 6 / 12 |
| Rated Torque(kg.cm) | 8 |
| Rated Power(W) | 1.24 / 1.25 |
| Rated Current (A) | 0.32 / 0.17 |
| Rated Speed(rpm) | 3-32 |
