2Pcs 12V 24V Brushless DC Motor Electric BLDC DC Motor 500g.cm 21-24W 5000RPM

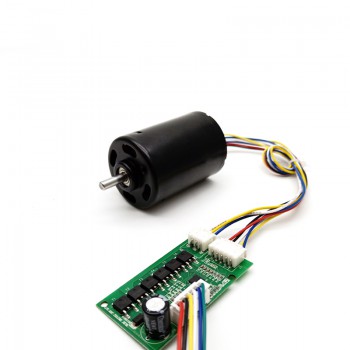

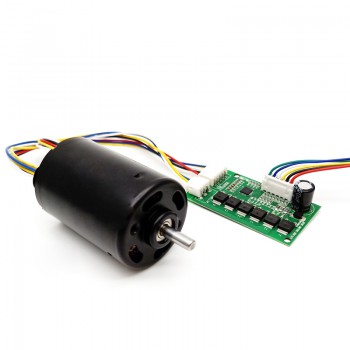

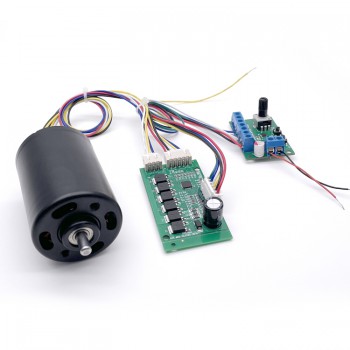

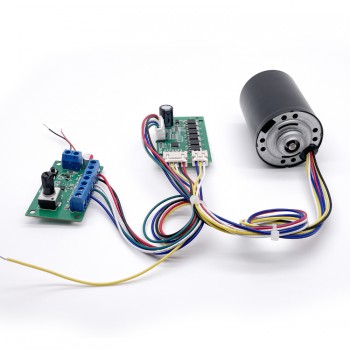

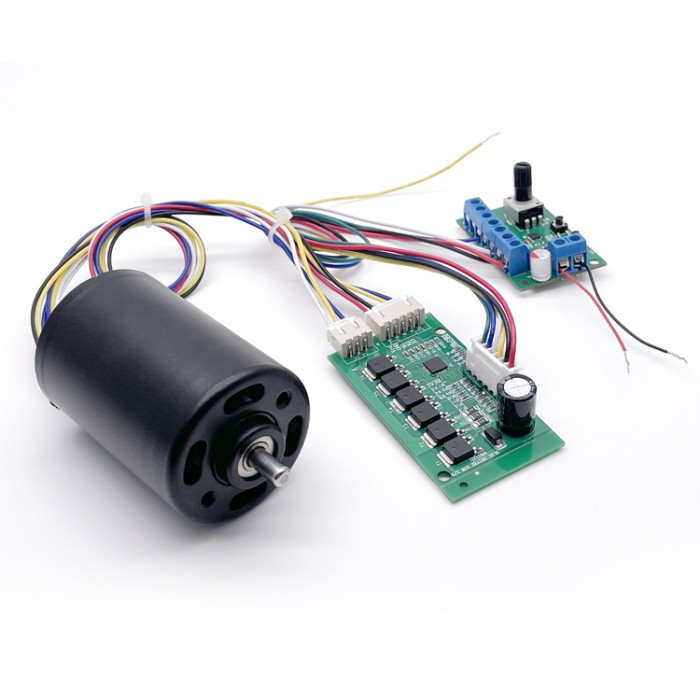

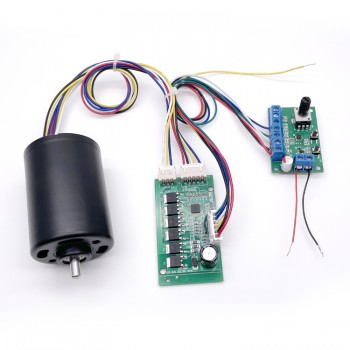

2Pcs 12V/24V Brushless DC Motor + BLDC Motor Drive Kit TEC4266 500g.cm 21/24W 4500RPM
Features:
1.Small size dc brushless motor with low speed and big torque;
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Planetary Gear Reducer
Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Sex toys.

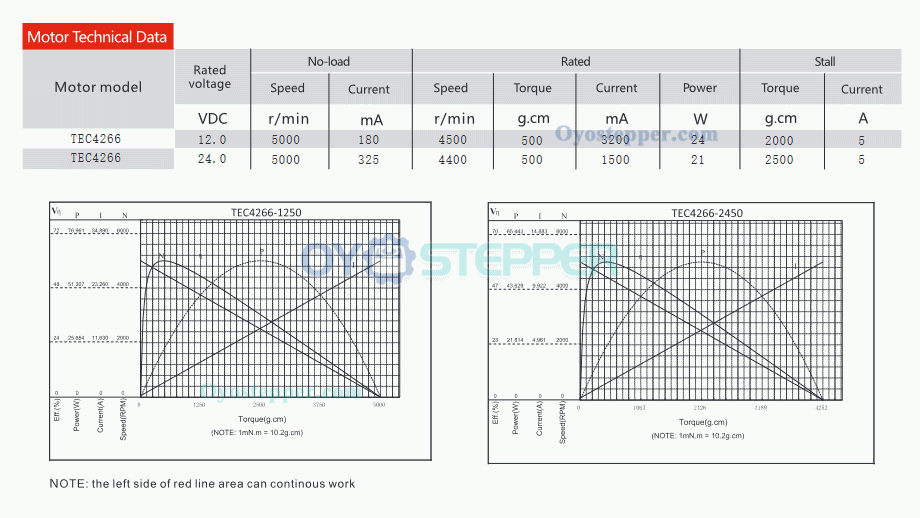

Electrical Specification：
Part Number: TEC4266
Rated Power:24W(12V)/21W(24V)
Rated Voltage:12V/24V
Rated Current(A):3200mA(12V) / 1500mA(24V)
Rated Torque:500g.cm
Rated Speed:4500rpm(12V)/4400rpm(24V)
No Load Speed : 5000RPM
Stall Torque:2000g.cm(12V)/1500g.cm(24V)
Stall Current:5.0A
Efficiency:IE 4
Efficiency: 65%
Noise:30cm.40-50db

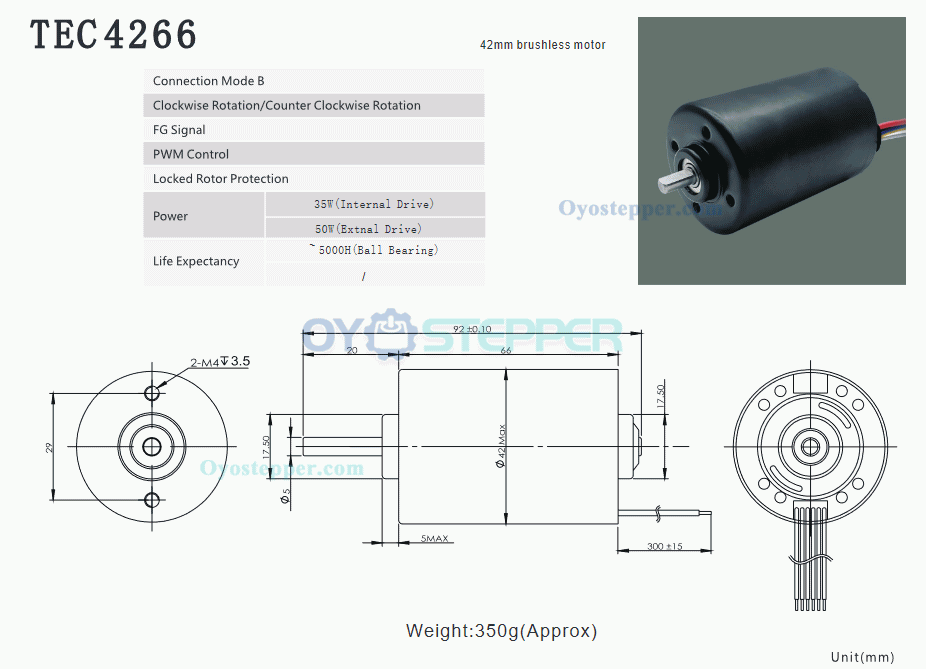

Physical Specification:
Motor Size:Φ42mm*66mm
Motor Diameter:42mm
Motor Length:66mm
Shaft Type:D-Cut
Shaft Diameter:5mm
Shaft Length:15mm
Weight:350g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Body Length(mm) | 66 |
| Frame Size(mm) | Φ42 |
| Shaft Diameter(mm) | 5 |
| Weight(g) | 350 |
| Shaft Length(mm) | 15 |
| Product Type | BLDC Motor |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Electrical Specification | |
| Rated Power(W) | 21 / 24 |
| Rated Voltage(V) | 24 / 12 |
| Rated Speed(rpm) | 4500 / 4400 |
| Rated Current (A) | 3.2 / 1.5 |
| Rated Torque(kg.cm) | 0.5 |
