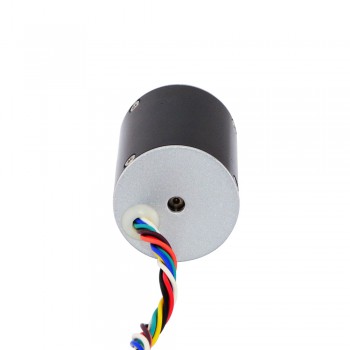

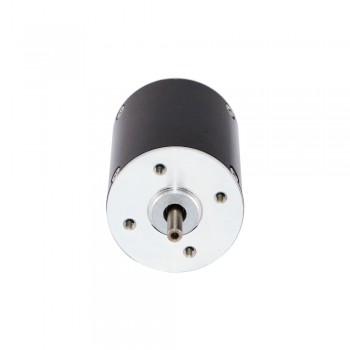

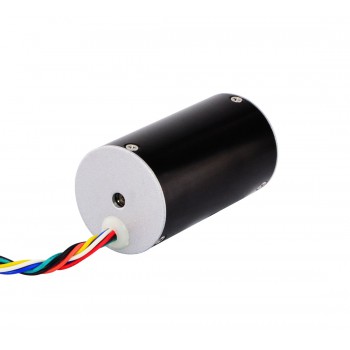

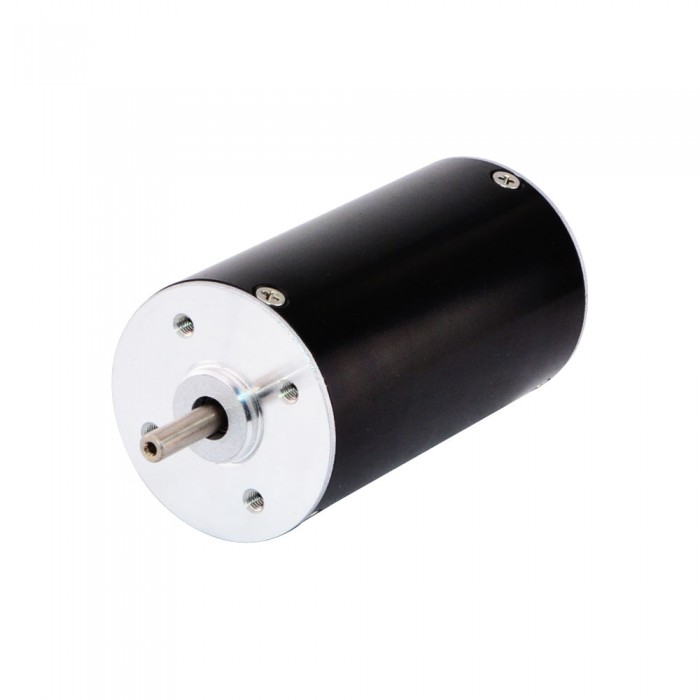

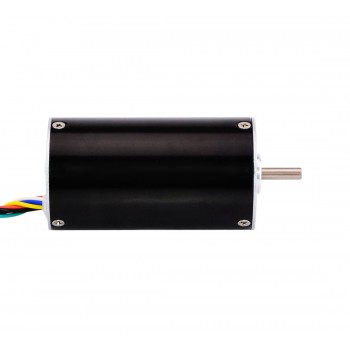

24V BLDC Motor 4000RPM 0.131Nm 55W 3.5A Round Ф42x63mm 42BLR Brushless DC Motor

NO.:42BLR63-24-01
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$39.75

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$37.76	5%
10	$36.97	7%
50	$35.78	10%
100	$34.58	13%

Affiliate Link

Description Specification Custom Options Review

Electrical Specification

Manufacturer Part Number: 42BLR63-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 4000±10%RPM
Noload Speed: 6300RPM
Rated Torque: 0.131Nm(18.55oz.in)
Rated Current: 3.5±10%A
Noload Current: 0.3A
Rated Power: 55W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ42mm
Body Length: 63mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor
Weight: 0.45kg

Connection

U	V	W	+5V	GND	A	B	C
ORG	GRN	BRW	RED	BLK	YEL	WHT	BLU

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 12V BLDC Motor 3000RPM 0.048Nm 15W 1.9A Round Ф42x53mm 42BLR High Speed Brushless DC Motor
Next: 24V Brushless DC Motor 4000RPM 0.179Nm 75W 5A Round Ф42x83mm BLDC Motor

BLDC Motor Specification
Bearing Type	NMB Ball Bearing, C3
Insulation Class	Class B
No. of Lead	8
No. of Phases	3
No. of Poles	4
Rated Current(A)	3.5
Rated Power(W)	55
Rated Speed(rpm)	4000±10%
Rated Torque(Nm)	0.131
Rated Torque(oz.in)	18.55
Rated Voltage(V)	24
Sensor Type	Hall Sensor
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Flange Size(mm)	Ф42
Body Length(mm)	63
Physical Specification
Weight(g)	450
