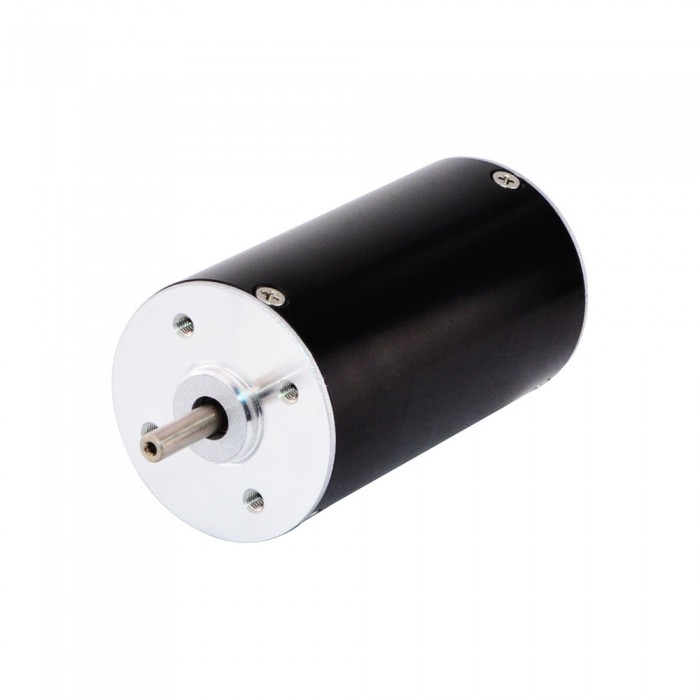

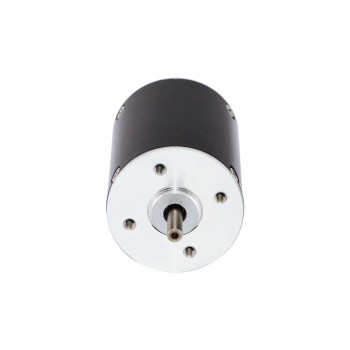

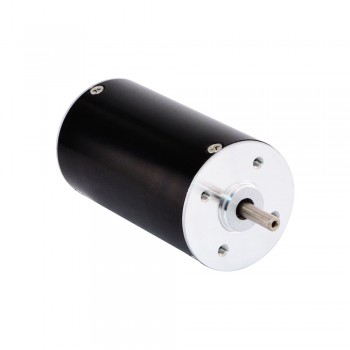

Brushless DC Motor 24V 4000RPM 0.179Nm 75W 5A Round Ф42x83mm

Brushless DC Motor 24V 4000RPM 0.179Nm 75W 5A Round Ф42x83mm
NO.: 42BLR83-24-01
Review: Post a review
Special Offer in March 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 30th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$49.69
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $47.21 5%
10 $46.21 7%
50 $44.72 10%
100 $42.24 15%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 42BLR83-24-01
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Speed: 4000±10%RPM
  • Noload Speed: 6200RPM
  • Rated Torque: 0.179Nm(25.35oz.in)
  • Rated Current: 5±10%A
  • Noload Current: 0.36A
  • Rated Power: 75W
  • Insulation Class: Class B
  • Insulation Resistance: 100MΩ Min @500VDC
  • Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

  • Frame Size: Φ42mm
  • Body Length: 83mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Bearing Type: NMB Ball Bearing, C3
  • Sensor: Hall Sensor
  • Weight: 0.6kg

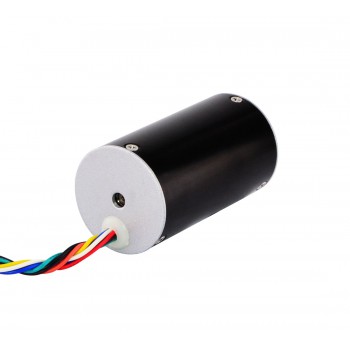

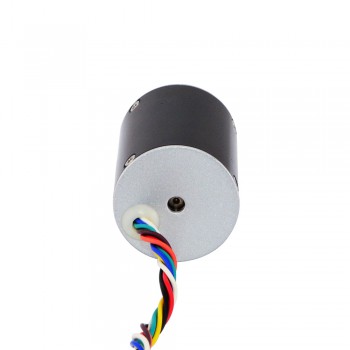

Connection

U
V
W
+5V
GND
A
B
C
ORG
GRN
BRW
RED
BLK
YEL
WHT
BLU

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 24V 4000RPM 0.131Nm 55W 3.5A Round Ф42x63mm 42BLR Brushless DC Motor
Next: 24V 4000RPM 0.0625Nm 26W 1.8A 42x42x40mm 42BLR Brushless DC Motor
BLDC Motor Specification
Bearing Type NMB Ball Bearing, C3
Insulation Class Class B
No. of Lead 8
No. of Phases 3
No. of Poles 4
Rated Current(A) 5
Rated Power(W) 75
Rated Speed(rpm) 4000±10%
Rated Torque(Nm) 0.179
Rated Torque(oz.in) 25.35
Rated Voltage(V) 24
Sensor Type Hall Sensor
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Flange Size(mm) Ф42
Body Length(mm) 83
Physical Specification
Weight(g) 600
