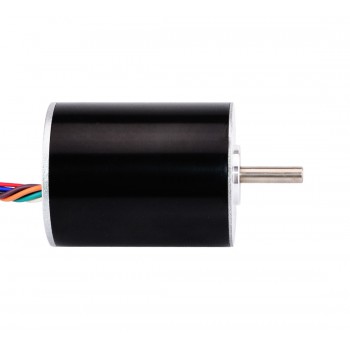

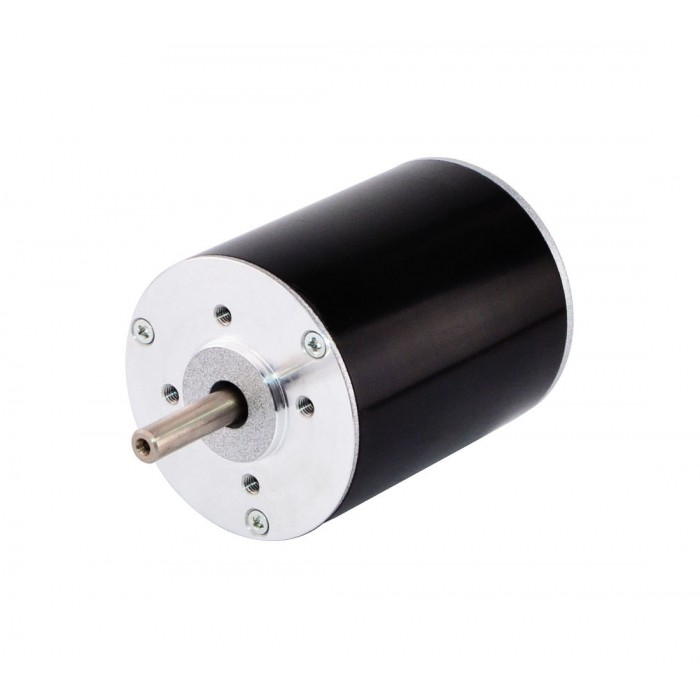

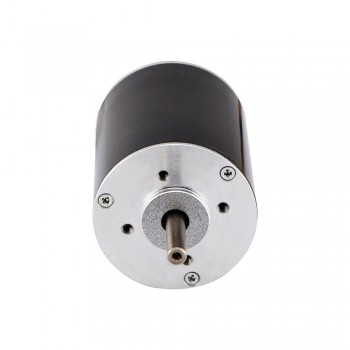

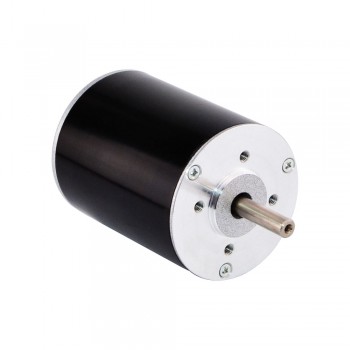

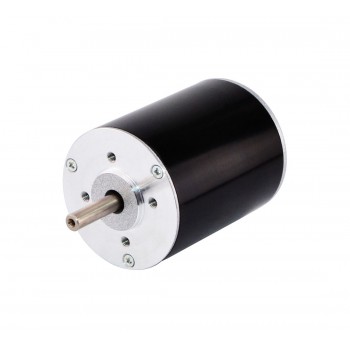

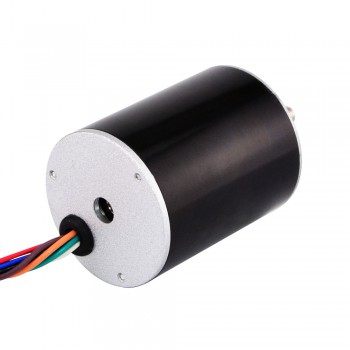

24V BLDC Motor 2000RPM 0.062Nm 13W 0.91A Round Ф42x43mm 42BLR Brushless DC Motor
The 42BLR43-24-01 BLDC motor delivers 0.062 Nm at 2000 rpm on 24 V, with a 42 mm frame, Hall sensors, and ball bearings.
Electrical Specification
Manufacturer Part Number: 42BLR43-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 2000±10%RPM
Noload Speed: 3300RPM
Rated Torque: 0.062Nm(8.78oz.in)
Rated Current: 0.91±10%A
Noload Current: 0.13A
Rated Power: 13W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: Φ42mm
Body Length: 43mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Sensor: Hall Sensor
Weight: 0.25kg
Connection
|
U |
V |
W |
+5V |
GND |
A |
B |
C |
|
ORG |
GRN |
BRW |
RED |
BLK |
YEL |
WHT |
BLU |
| BLDC Motor Specification | |
|---|---|
| Bearing Type | NMB Ball Bearing, C3 |
| Insulation Class | Class B |
| No. of Lead | 8 |
| No. of Phases | 3 |
| No. of Poles | 4 |
| Rated Current(A) | 0.91 |
| Rated Power(W) | 13 |
| Rated Speed(rpm) | 2000±10% |
| Rated Torque(Nm) | 0.062 |
| Rated Torque(oz.in) | 8.78 |
| Rated Voltage(V) | 24 |
| Sensor Type | Hall Sensor |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Flange Size(mm) | Ф42 |
| Body Length(mm) | 43 |
| Physical Specification | |
| Weight(g) | 250 |
