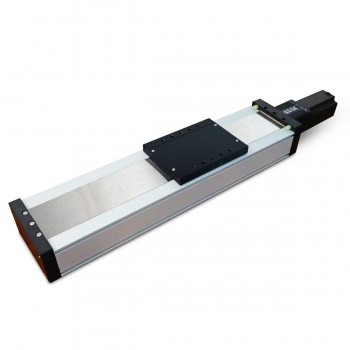

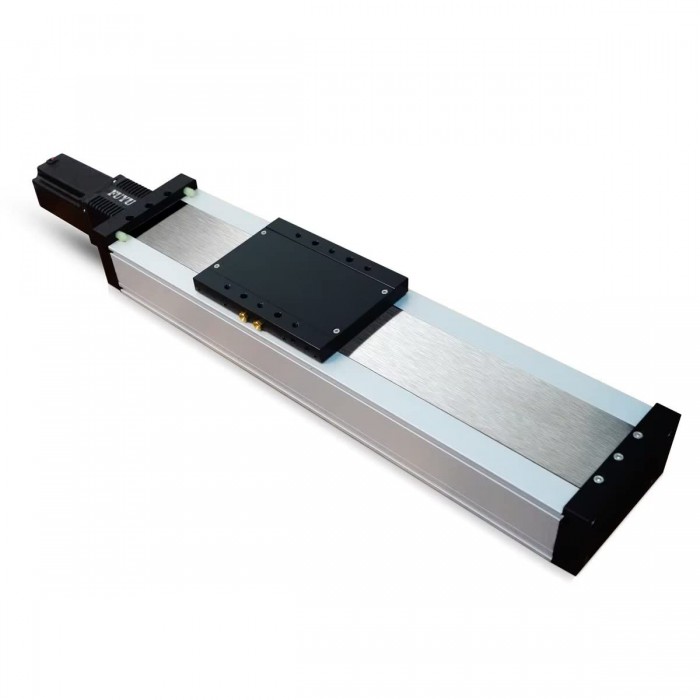

FSL120 Linear Stage Heavy Load Linear Guide Motion Ball Screw Linear Actuator Slide Table

Heavy Load Linear Guide Motion Stage Ball Screw Linear Actuator FSL120 50-1500mm with Nema34 Stepper Motor

Feature:

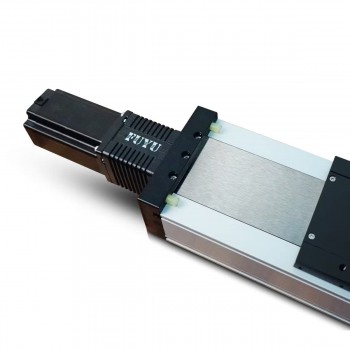

Nema34 stepper motor provide enough power and easy to be controlled by controller.Linear rail's stroke range from 50mm to 1000mm,aluminum made panel ensure horizontal loading capacity up to 100kgs，vertical loading capacity up to 50kgs.

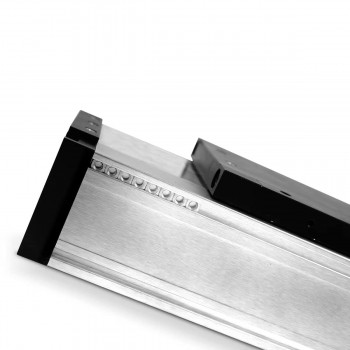

Linear motion with M6 screws at the baseboard and sideway make easy installnation and convenient to install additional accessories.

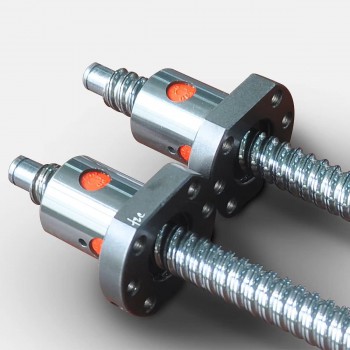

Linear module fully aluminum structure and G1610 ballscrew with steel belt offer better strength.Repeat Position Accurancy: ±0.02mm

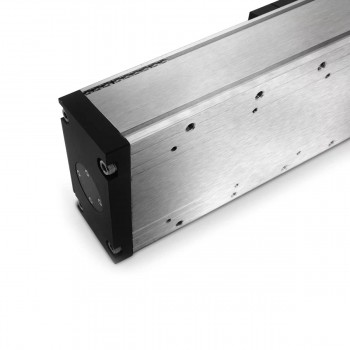

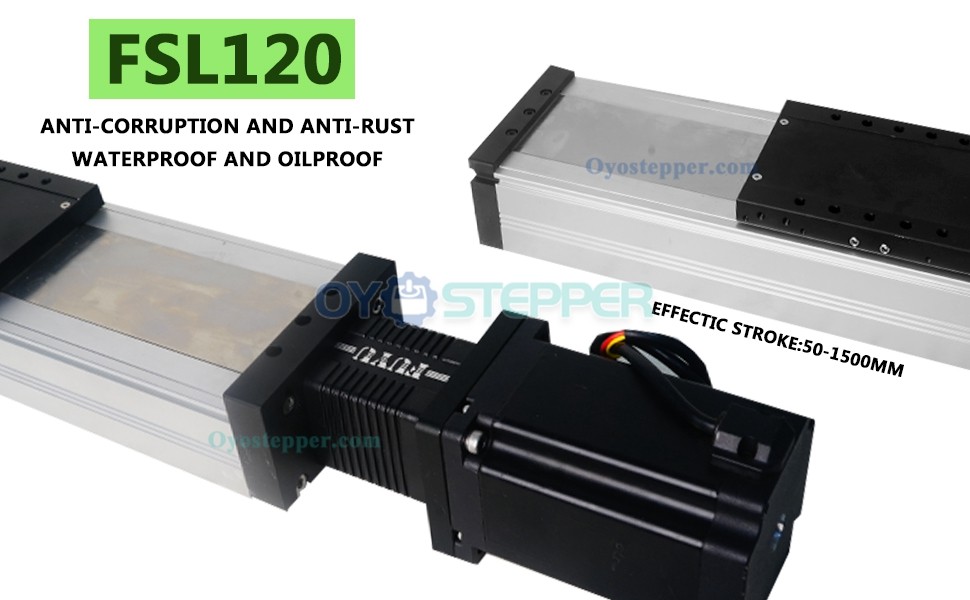

Silver polished aluminum avoid get rusty,complete sealed structure realized dustproof and IP51 waterproof for linear rail guide,suitable for working at harsh environment.

Application:

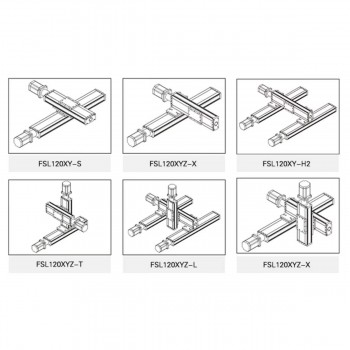

Linear Rail Stage Cross,widely used in production machinery, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, mechanical equipment positioning and movement.accept customization for stepper motor and slider.

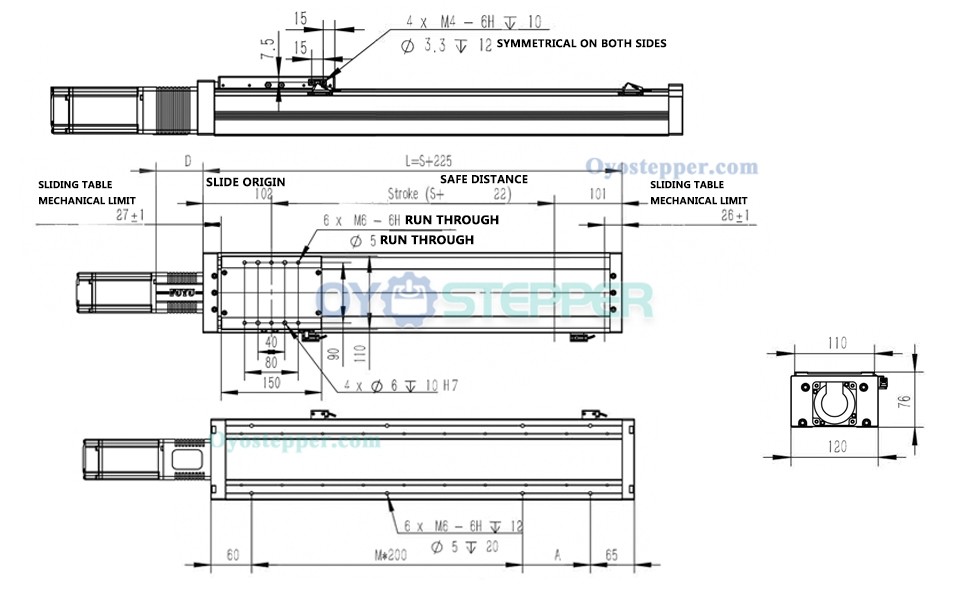

FSL120 Linear Guide Specification:

Effective Stroke: 50-1500mm

Total Length: L=S+225mm

Total Height: 76mm

Slide Width: 110mm

Maximum Horizontal Load: 100kg

Maximum Vertical Load: 50kgs

Max Horizontal Speed: 380mm/s[max loading]

Max Vertical Speed: 300mm/s[max loading]

Max Speed: 420mm/s[No loading]

Repeat Position Accurancy: ±0.02mm

Ball Screw Model: G1620

Ball Screw Accuracy Class: C7

TECHNICAL PARAMETER
