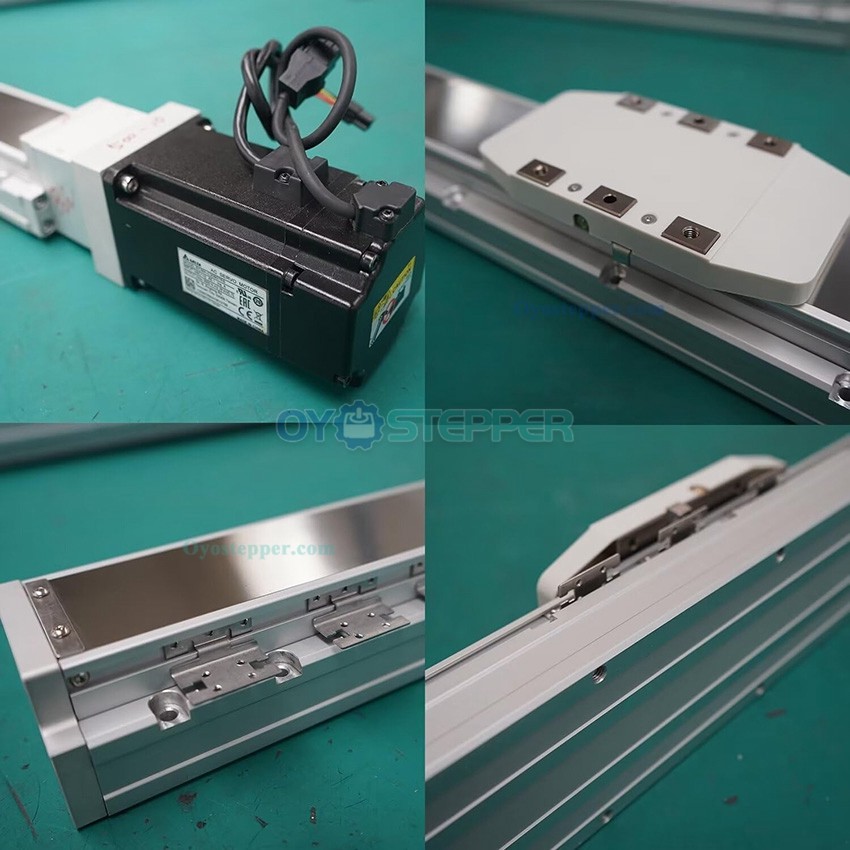

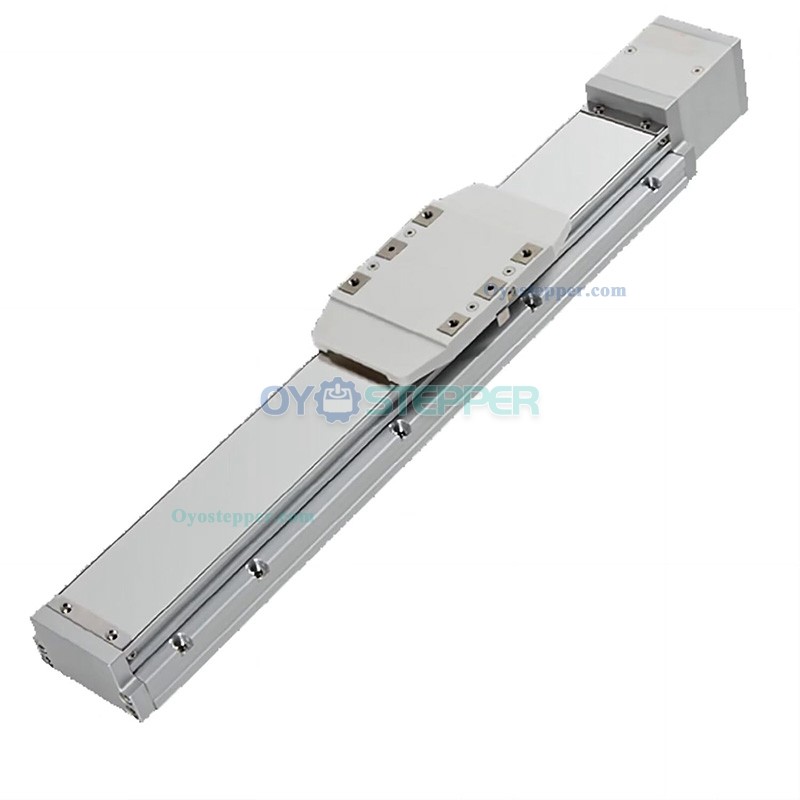

FCH90 Linear Module Linear Guide Actuator Double Rail with 750W Servo Motor

Double Rail Linear Module Linear Guide Actuator FCH90 50-1100mm with 750W Servo Motor

Specifications:

Motor & Drive:

Motor: 750W servo motor

Drive system: G1610 ball screw

Positioning accuracy: ±0.01mm

Thread turns: 2.4 turns

Rail structure: Built-in dual rail with ground-grade insert

Body material: Aluminum

Noise level: <65dB

Storage temperature: -15°C to +60°C;

Load Capacity:

Maximum horizontal load: 80kg

Maximum vertical load: 40kg

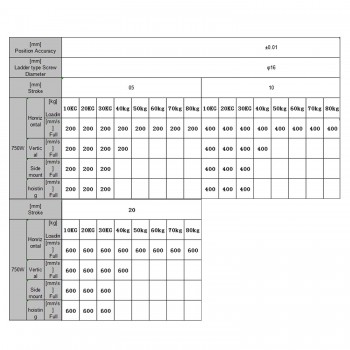

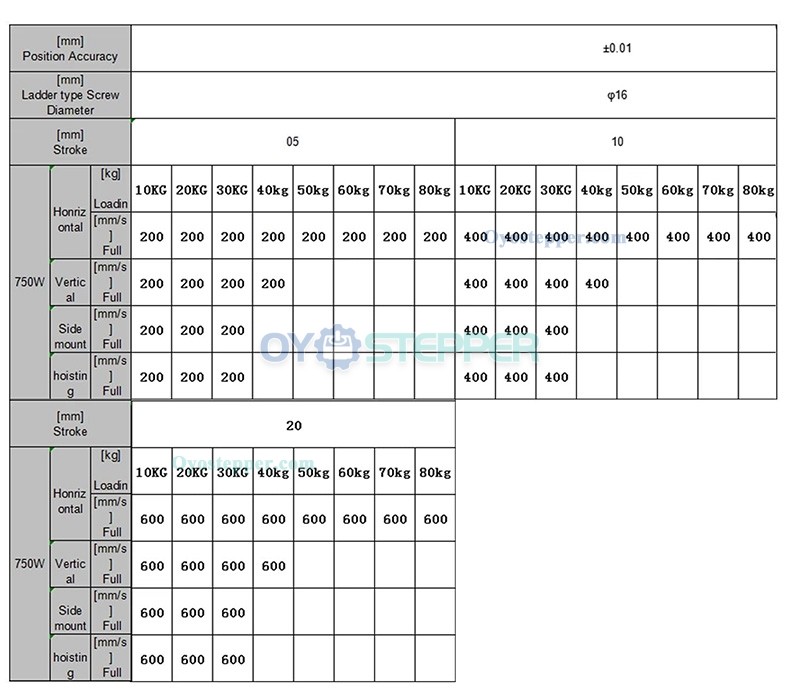

Parameters (Default Configuration):

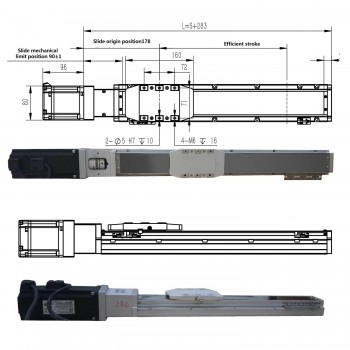

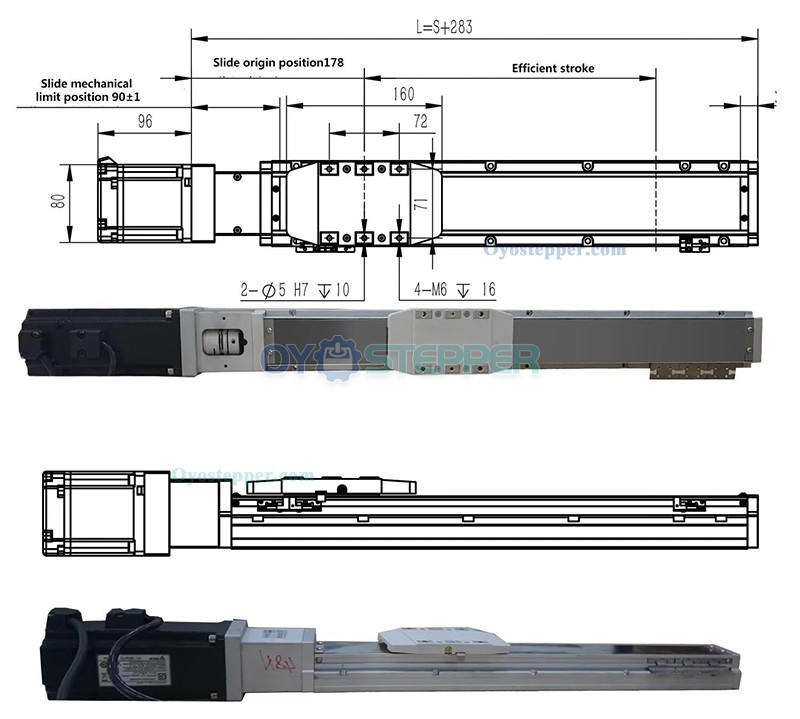

Effective stroke: 50–1100mm

Horizontal load: 80kg

Vertical load: 40kg

Side load: 30kg

Hoisting load: 30kg

Horizontal speed: 400mm/s

Vertical speed: 400mm/s

Side load speed: 400mm/s

Hoisting speed: 400mm/s

Applications:

Production machinery, inspection equipment, optical laboratory precision measurement,tuning displacement, mechanical equipment positioning and movement.
