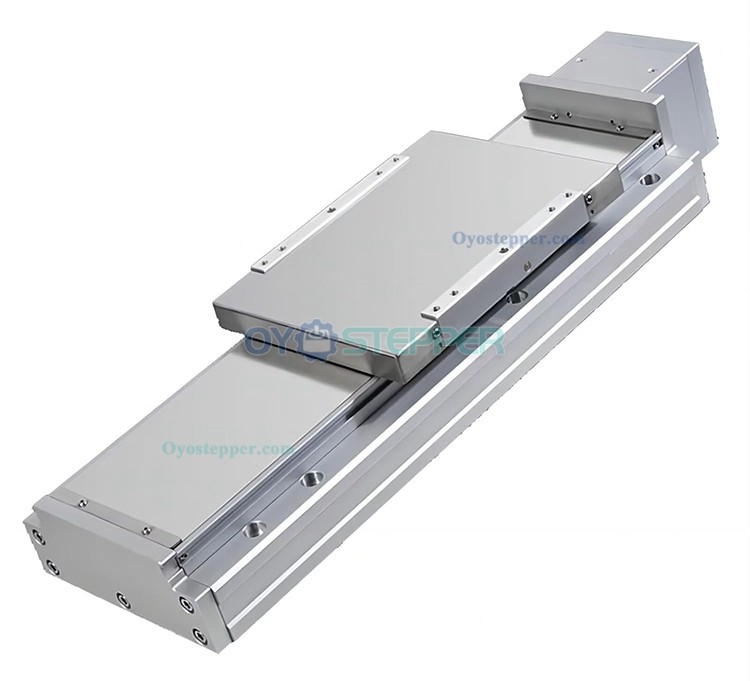

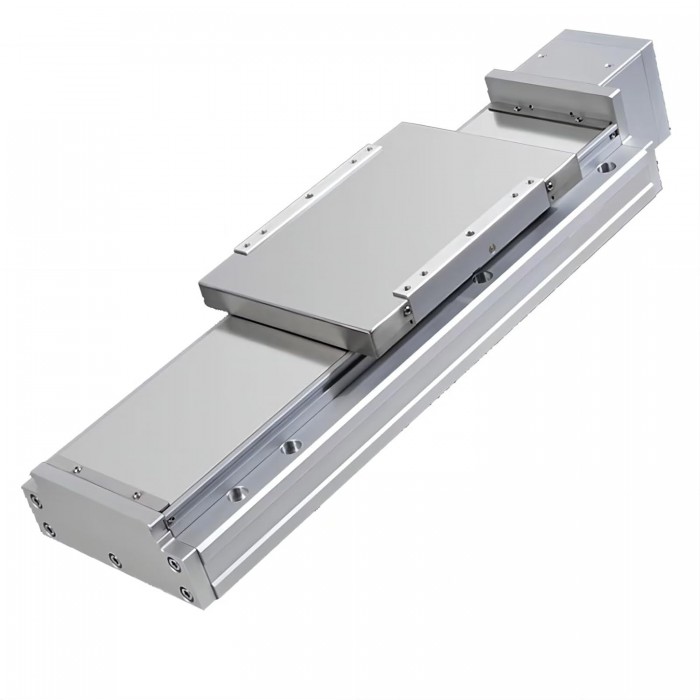

FCH140 Linear Module Linear Guide Actuator Double Rail with 1000W Servo Motor

FCH140 Linear Module Linear Guide Actuator Double Rail with 1000W Servo Motor
NO.:FCH140
Post a review
Our Price:$759.00

Quantity:- +

Add To Cart

Double Rail Linear Module Linear Guide Actuator FCH140 50-1250mm with 1000W Servo Motor



Feature:

Linear module with 1000W servo motor provide enough power and easy to be controlled by controller.Linear rail's stroke range from 50mm to 1250mm.

Position accuracy ±0.01mm for the linear module.The number of thread turns is 2.4 times,which is twice that of its counterparts.

Linear built-in double rail,Orbital embedded grinding grade body,The operation is more stable and the lifting is worry-free.

Linear module one-piece molded profile,More rigid and not afraid of high loads.No deformation or shaking,long lasting service life.

Linear module fully aluminum structure and G1610 ballscrew with steel belt offer better strength.horizontal loading capacity up to 120kgs, vertical loading capacity up to 80kgs.



Product Description

Application :Linear Rail Stage Cross,widely used in production machinery, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, mechanical equipment positioning and movement.

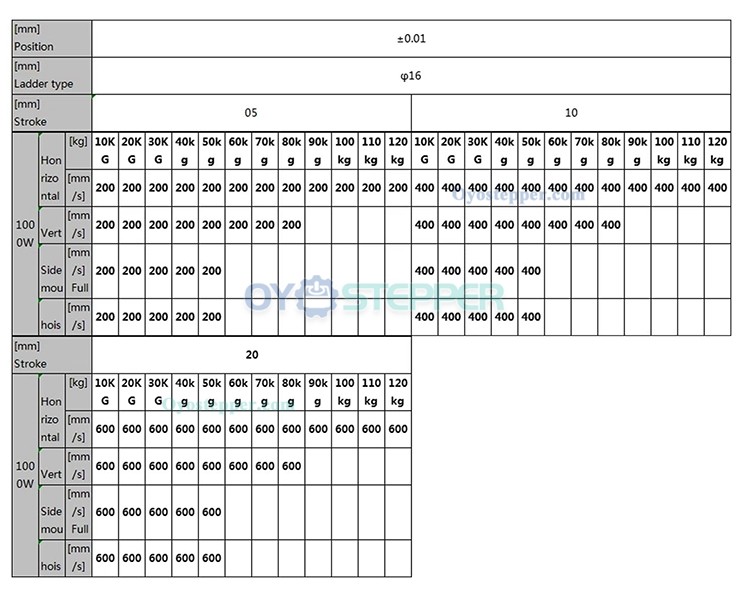

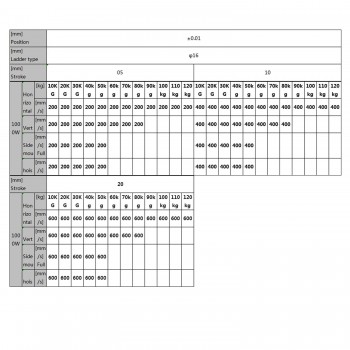

FCH140 Performance Parameter(Default servo motor)

Default Ball Screw:G1610

Position Accuracy: ±0.01mm

Efficient Stroke: 50-1250mm

Horizontal Load: 120kg

Vertical Load: 80kg

Side Load: 50kg

Hoisting Load: 50kg

Horizontal Speed: 400mm/s

Side Load Speed: 400mm/s

Vertical Speed: 400mm/s

Hoisting Speed: 400mm/s

Noise: <65dB

Stored Temperature: -15℃-+60℃;

FCH140 Linear Module Linear Guide Actuator Double Rail with 1000W Servo Motor

FCH140 Linear Module Linear Guide Actuator Double Rail with 1000W Servo Motor

FCH140 Linear Module Linear Guide Actuator Double Rail with 1000W Servo Motor

FCH140 Linear Module Linear Guide Actuator Double Rail with 1000W Servo Motor



FCH140 Linear Module Linear Guide Actuator Double Rail with 1000W Servo Motor
