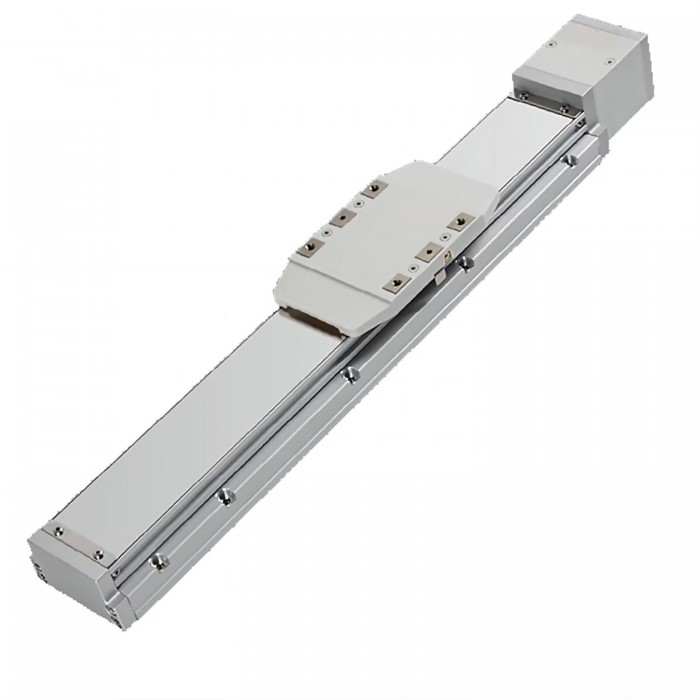

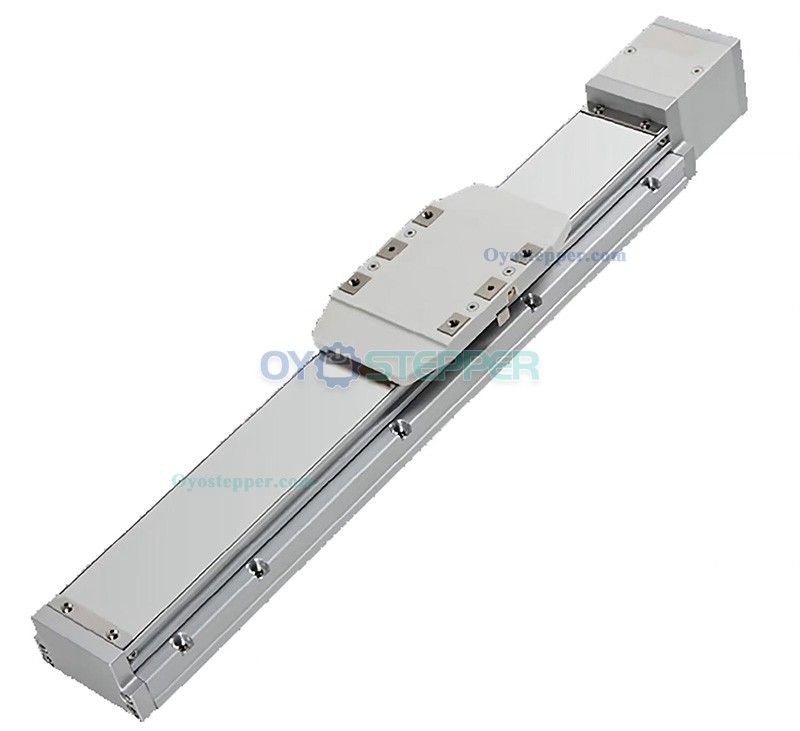

FCH60 Linear Module Linear Guide Actuator Double Rail with 400W Servo Motor

Double Rail Linear Module Linear Guide Actuator FCH60 50-1000mm with 400W Servo Motor

Feature:

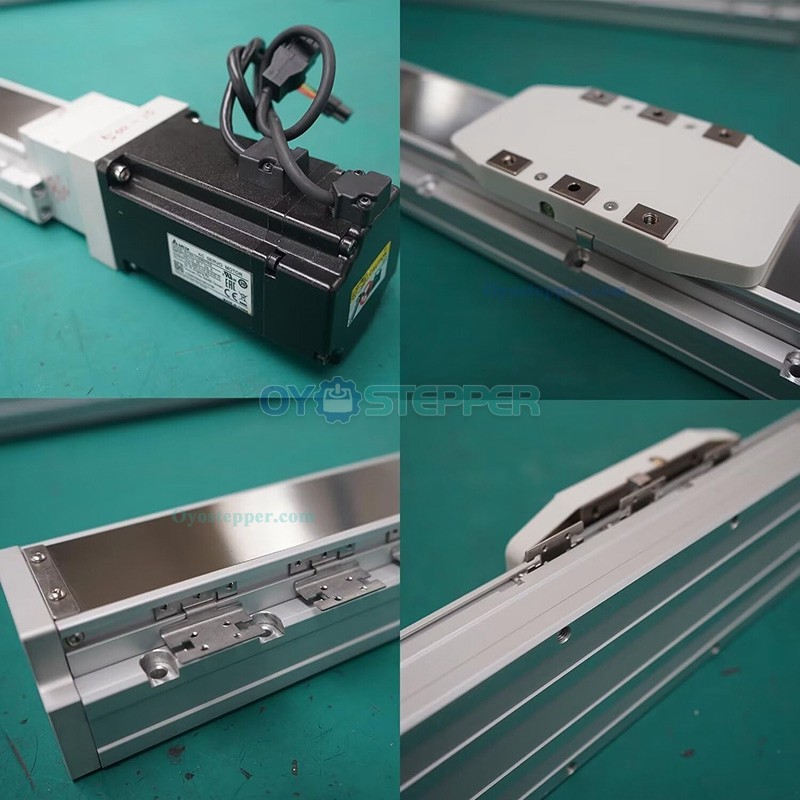

Linear module with 400W servo motor provide enough power and easy to be controlled by controller.Linear rail's stroke range from 50mm to 1000mm.

Position accuracy ±0.01mm for the linear module.The number of thread turns is 2.4 times,which is twice that of its counterparts.

Linear built-in double rail,Orbital embedded grinding grade body,The operation is stable and the lifting is worry-free.

Linear module fully aluminum structure and G1210 ballscrew with steel belt offer sufficient strength.horizontal loading capacity up to 80kgs,vertical loading capacity up to 40kgs.

Application:

Linear Rail Stage Cross,widely used in production machinery, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, mechanical equipment positioning and movement.

Description:

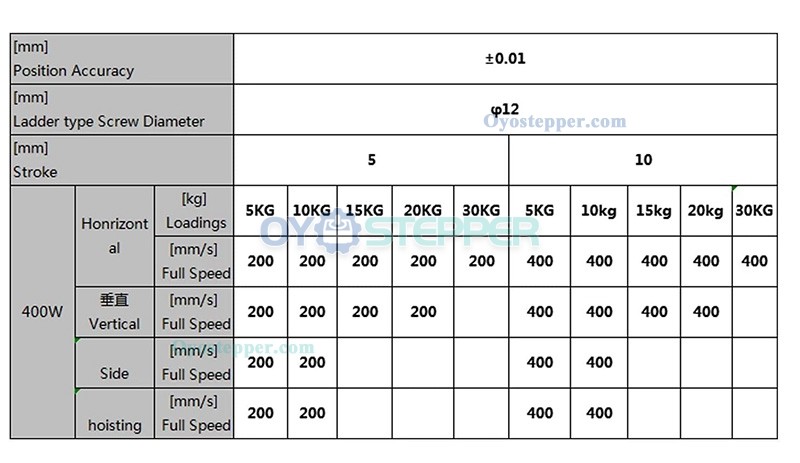

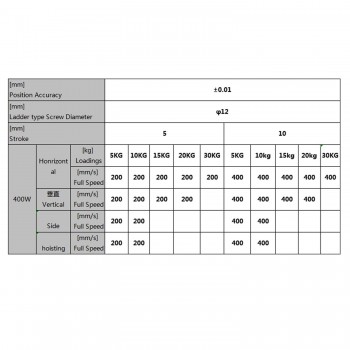

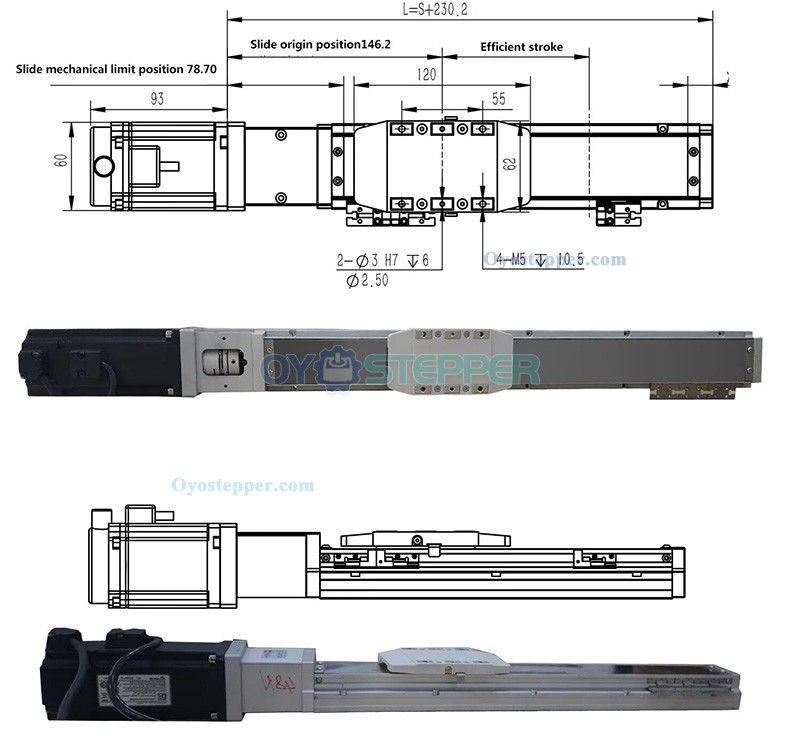

FCH60 Performance Parameter(Default servo motor)

Default Ball Screw:G1210

Position Accuracy: ±0.01mm

Efficient Stroke: 50-1000mm

Horizontal Load: 30kg

Vertical Load: 20kg

Side Load: 10kg

Hoisting Load: 10kg

Horizontal Speed: 400mm/s

Side Load Speed: 400mm/s

Vertical Speed: 400mm/s

Hoisting Speed: 400mm/s

Noise: <65dB

Stored Temperature: -15℃-+60℃;
