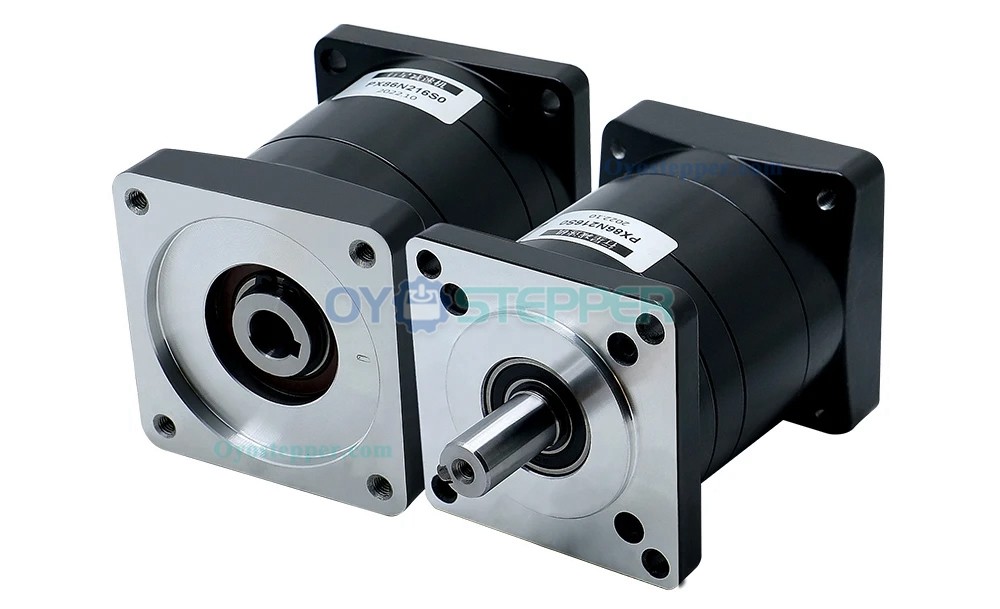

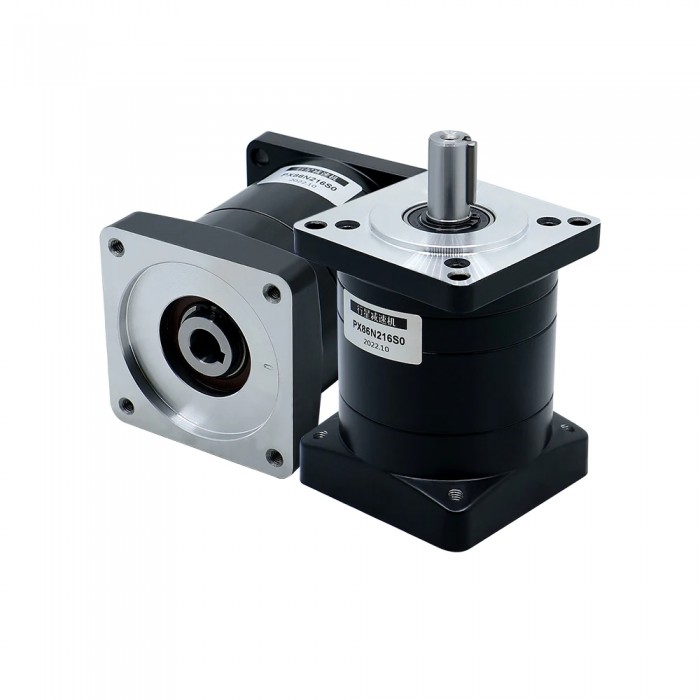

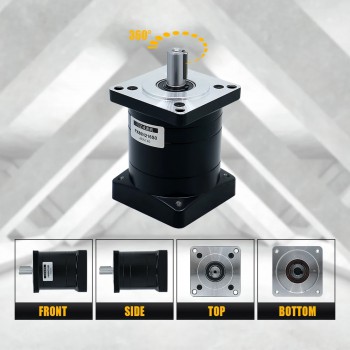

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor
NO.:PX86
Review: Post a review
Our Price:$109.80

Quantity:- +

Add To Cart

PX86 Series Nema 24 Planetary Gearbox Reducer Gearbox Input Shaft 14mm Output Shaft: 16mm

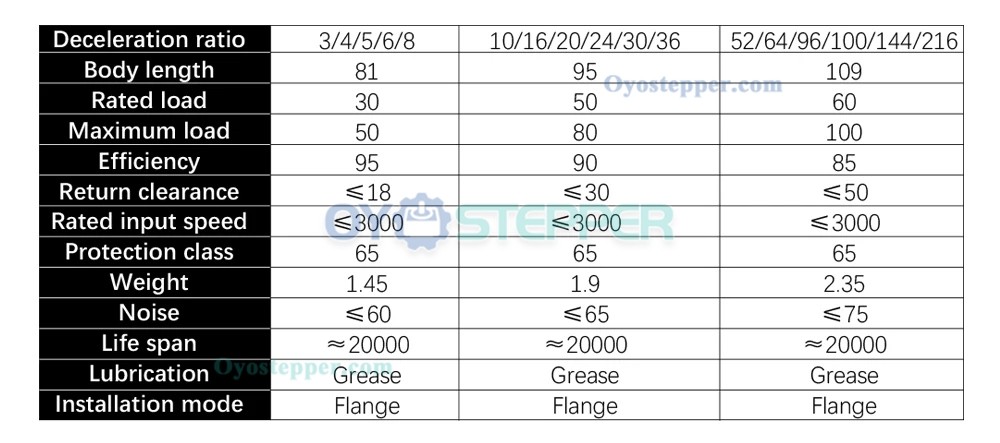

Specifications:

Input Speed: 3000rpm

Output Torque: 60N.m

Model Number: PX86

Gearing Arrangement: Planetary Reducer

Certification: CE

Ratio: 3/4/5/6/8/10/16/20/24/30/36/52/64/96/100/114/216

Protection class: 65IP

Life span: 20000H

Efficiency: 95% 90% 85%

Noise value: ≤ 60/65/75 DB

Output shaft: 16mm

Input hole: 14mm



PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

PX86 Planetary Gear Speed Reducer for Nema 34 Stepper Motor / Servo Motor

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 400W / 600W / 750W / 1000W AC Servo Motor & Driver Kit 110V / 220V 1.27Nm-3.8Nm For CNC Engraver
Next: PX57 Planetary Gearbox Speed Reducer For Nema 23 Stepper Motor Input Shaft 8mm

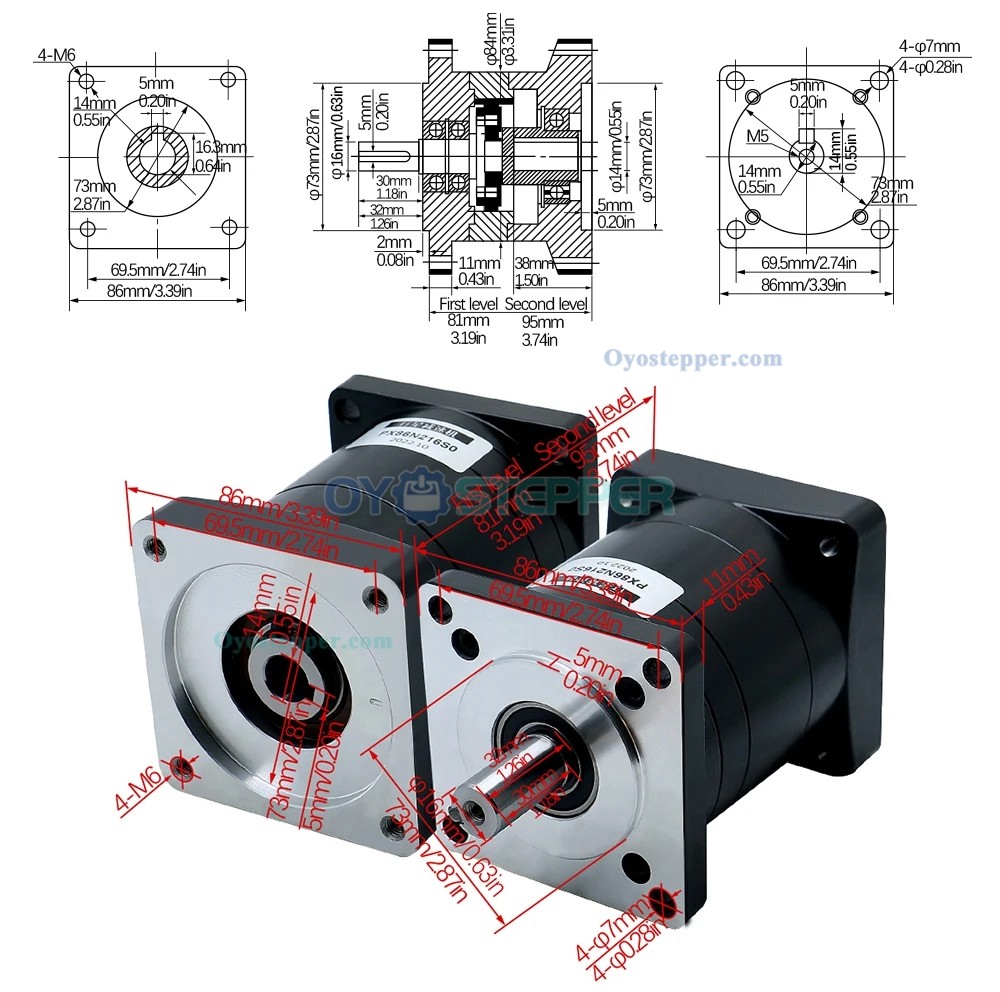

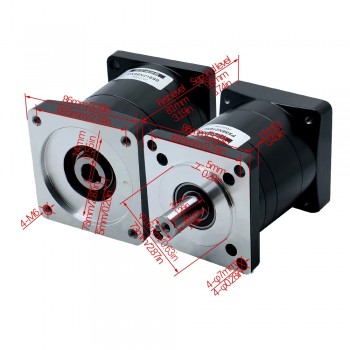

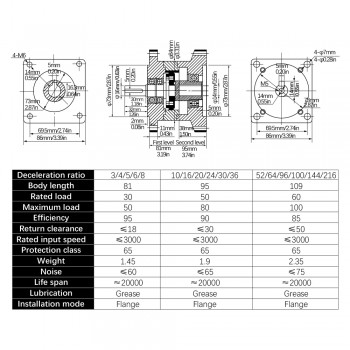

Physical Specification
Frame Size(mm) 90 x 90
Weight(g) 1450 / 1900 / 2350
Gearbox Length(mm) 81 / 95 / 109
Input Shaft Diameter(mm) 14
Input Shaft Length(mm) 38
Output Shaft Diameter(mm) 16
Output Shaft Length(mm) 30

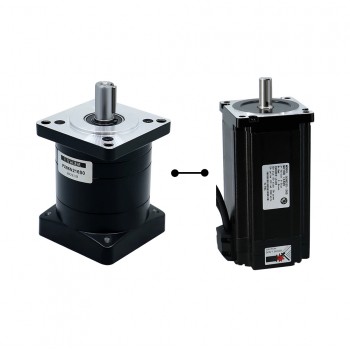

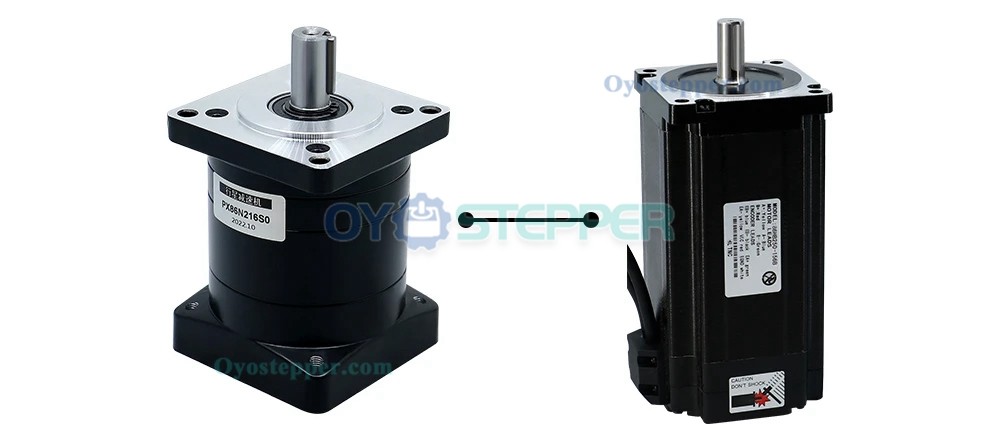

Suit for Motor Nema 34
Gearbox Type Planetary Gearbox
Gear Ratio 3:1 / 4:1 / 5:1 / 6:1 / 8:1 / 10:1 / 16:1 / 20:1 / 24:1 / 30:1 / 36:1 / 52:1 / 64:1 / 96:1 / 100:1 / 144:1 / 216:1
Product Series PX86
Output Type Keyway Shaft

Cheney – 15 Nov 2024

It just happened to be suitable for my machine. My machine suddenly broke down for some reason. I asked the relevant industry personnel and they said that it could be fixed by replacing the parts. Then I chose it and it is working well now.
