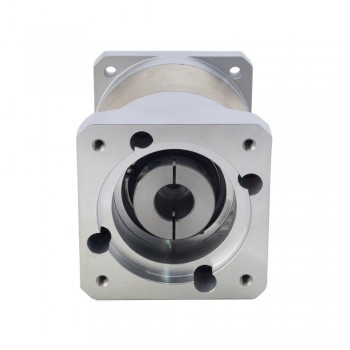

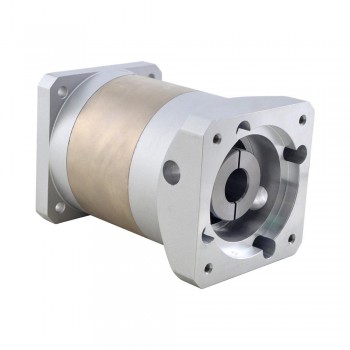

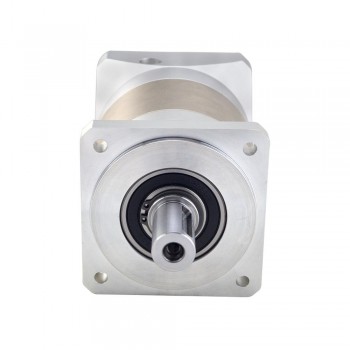

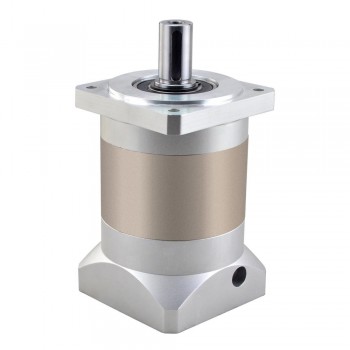

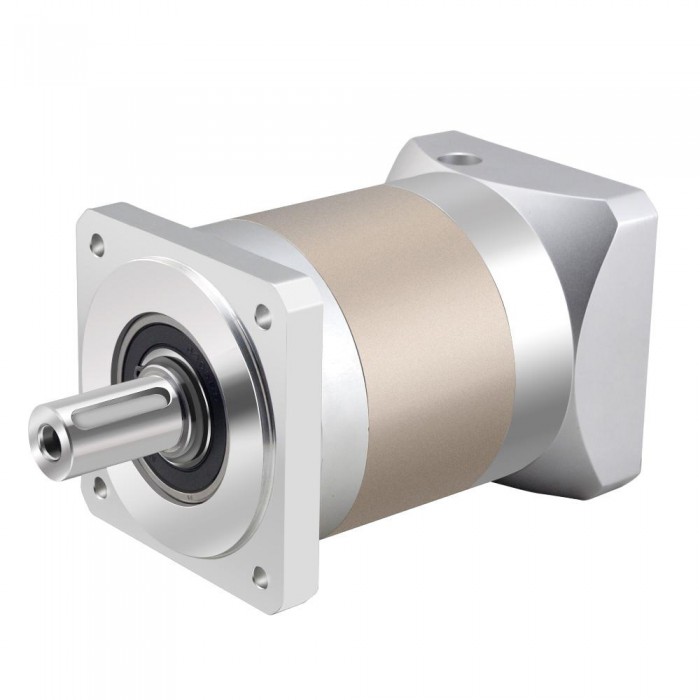

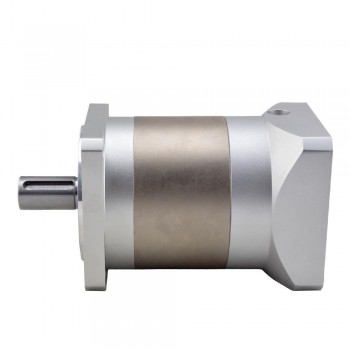

TQEG Series Nema 34 Planetary Gearbox 50:1 Backlash 20 Arcmin for Nema 34 Stepper Motor

TQEG Series Nema 34 Planetary Gearbox 50:1 Backlash 20 Arcmin for Nema 34 Stepper Motor
NO.:TQEG34-G50
Review: Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$143.33
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $136.16 5%
5 $133.30 7%
10 $129.00 10%
50 $124.70 13%
Add To Cart

TQEG Series Planetary Gearbox Gear Ratio 50:1 Backlash 20 arc-min for Nema 34 Stepper Motor



This planetary gearbox is belong to TQEG series gearbox, it with gear ratio 50:1 and a maximum 50 arc-min backlash. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 34 stepper motor, brushless dc motor and servo motor.



Gearbox Specifications

Manufacturer Part Number: TQEG34-G50

Gearbox Type: Planetary

Gear Ratio: 50: 1

Efficiency: 94%

Backlash at No-load: <=20 arcmin

Max.Permissible Torque: 100 Nm(885.07 lb-in)

Moment Permissible Torque: 200 Nm(1770.15 lb-in)

Noise: <=60dB

Waterproof Rating: IP54

Lifetime: 20000 hours



Physical Specifications

Frame Size: 90 x 90 mm

Gearbox Length: 132 mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ20 mm

Output Shaft Length: 40 mm

Input Shaft Diameter: Φ14 mm

Input Shaft Length: 30-40 mm



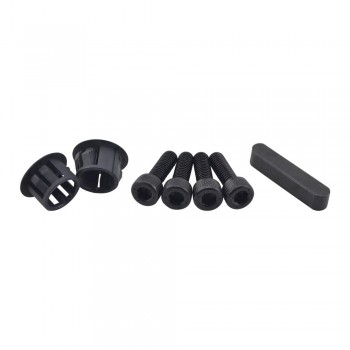

By using shaft sleeves, this gearbox can match different shaft diameters:

Shaft Sleeve Input Shaft Diameter
No Sleeve 19mm
SS-14 14mm
SS-13 12.7mm(1/2inch)



Resources

Gearbox Datasheet: TQEG34-G50.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: TQEG Series Nema 34 Planetary Gearbox 20:1 Backlash 20 Arcmin for Nema 34 Motor
Next: TS Series 1 Axis Closed Loop Stepper CNC Kit 2 Phase 3.0 Nm 4.2A Nema 23 Closed Loop Motor & Driver
Physical Specification
Frame Size(mm) 90 x 90
Weight(g) 3720
Gearbox Length(mm) 132
Input Shaft Diameter(mm) 19
Input Shaft Length(mm) 30-40
Output Shaft Diameter(mm) 20
Output Shaft Length(mm) 40
Suit for Motor Nema 34
Gearbox Type PLE Series
Gear Ratio 50
Backlash at No-load <=20 arcmin
Product Type PLE Series Planetary Gearbox
Output Shaft Type Keyway Shaft

B.Rodgers – 10 Jul 2023

Arrived fast and packed well! It works well and Instructions included. Smooth transaction.
