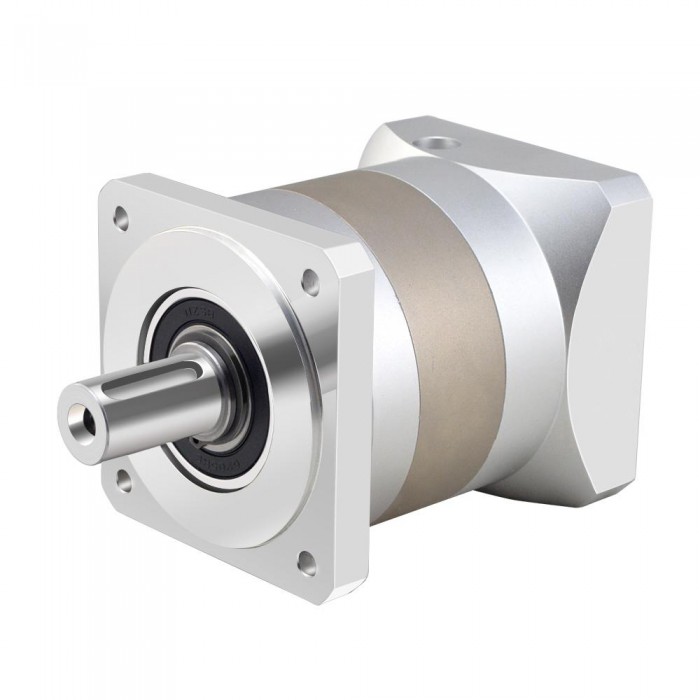

TQEG Series Nema 34 Planetary Gearbox 10:1 Backlash 15 Arcmin for Nema 34 Motor
- Manuals and Documentation: Gearbox Datasheet:
Our Price:$107.47

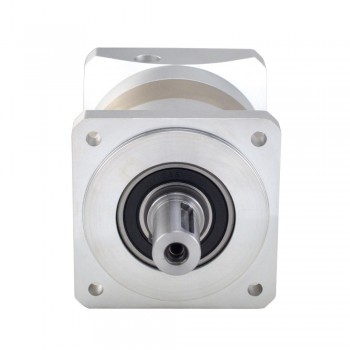

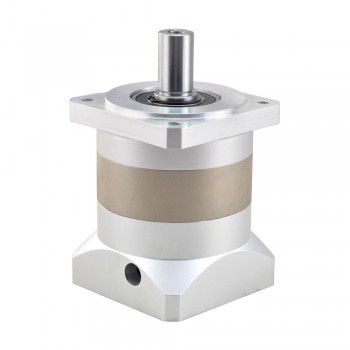

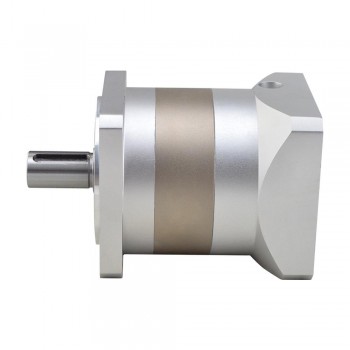

TQEG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15 arc-min for Nema 34 Stepper Motor

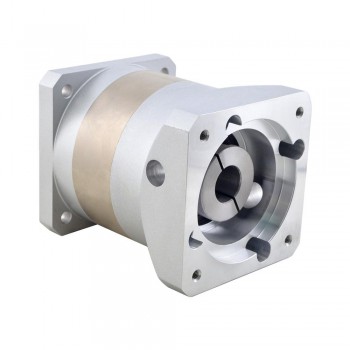

TQEG series inline planetary gearbox, 10:1 ratio with 15 arc-min backlash, includes an input coupling that fits NEMA 34 motors with a standard shaft—stepper, brushless DC, or servo.
Gearbox Specifications
Manufacturer Part Number: TQEG34-G10
Gearbox Type: Planetary
Gear Ratio: 10: 1
Efficiency: 96%
Backlash at No-load: <=15 arcmin
Max.Permissible Torque: 39 Nm(345.18 lb-in)
Moment Permissible Torque: 78 Nm(690.36 lb-in)
Noise: <=60dB
Waterproof Rating: IP54
Physical Specifications
Frame Size: 90 x 90 mm
Gearbox Length: 110 mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ20 mm
Output Shaft Length: 40 mm
Input Shaft Diameter: Φ14 mm
Input Shaft Length: 30-40 mm

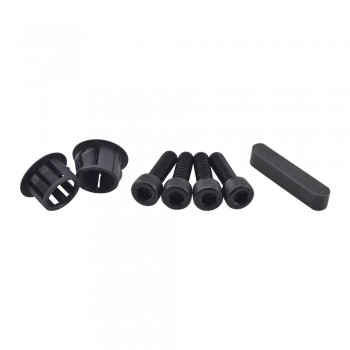

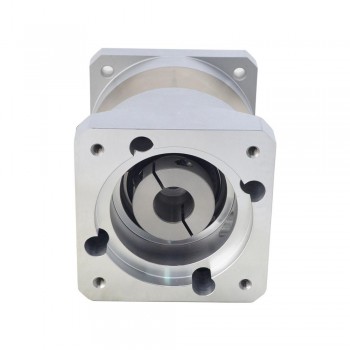

By using shaft sleeves, this gearbox can match the following shaft diameters:
| Shaft Sleeve | Input Shaft Diameter |
| No Sleeve | 19mm |
| SS-14 | 14mm |
| SS-13 | 12.7mm(1/2inch) |
| Physical Specification | |
|---|---|
| Frame Size(mm) | 90 x 90 |
| Weight(g) | 3000 |
| Gearbox Length(mm) | 110 |
| Input Shaft Diameter(mm) | 19 |
| Input Shaft Length(mm) | 30-40 |
| Output Shaft Diameter(mm) | 20 |
| Output Shaft Length(mm) | 40 |
| Suit for Motor | Nema 34 |
| Gearbox Type | PLE Series |
| Gear Ratio | 10 |
| Backlash at No-load | <=15 arcmin |
| Product Type | PLE Series Planetary Gearbox |
| Output Shaft Type | Keyway Shaft |
