NMRV063 Series Round Worm Gearbox Ratio 5:1-100:1 Input Shaft 14mm 19mm 24mm Output 25mm
Specifications:
Usage: Boat,Car,Electric Bicycle,FAN,Home Appliance
Model Number: NMRV063
Continuous Current(A): Acording to the motor
Construction: Permanent Magnet
Type: Gear Motor
Protect Feature: Drip-proof
Commutation: Brush
Certification: CE
Material of housing: aluminium alloy
Input Bore Size: 14mm / 19mm / 24mm
Output hole diameter: 25mm
Speed ratio: 5:1 , 7.5:1 , 10:1 , 15:1 , 20:1 , 25:1 , 30:1 , 40:1 , 50:1 , 60:1 , 80:1 , 100:1
IEC Flange: 90B5; 90B14; 80B5 ; 80B14 ; 71B5 ; 71B14
Application: Fit for Servo Motor /Stepper Motor

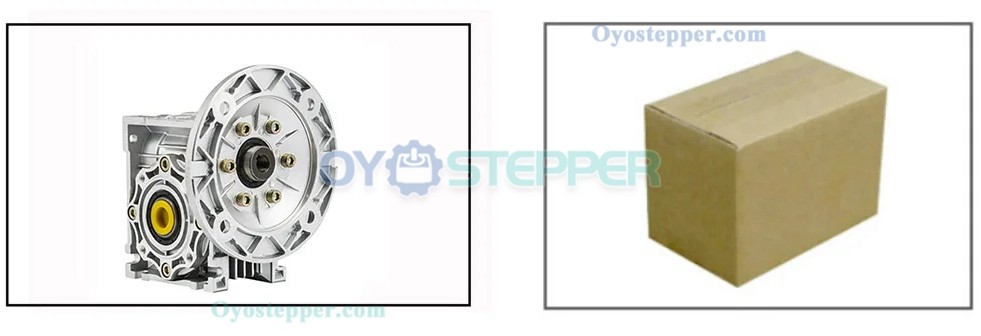

1 * NMRV063 Worm Reducer
Note:
The default output shaft aperture is 25mm. If you need to customize the hole diameter of the output shaft, please contact our customer service.

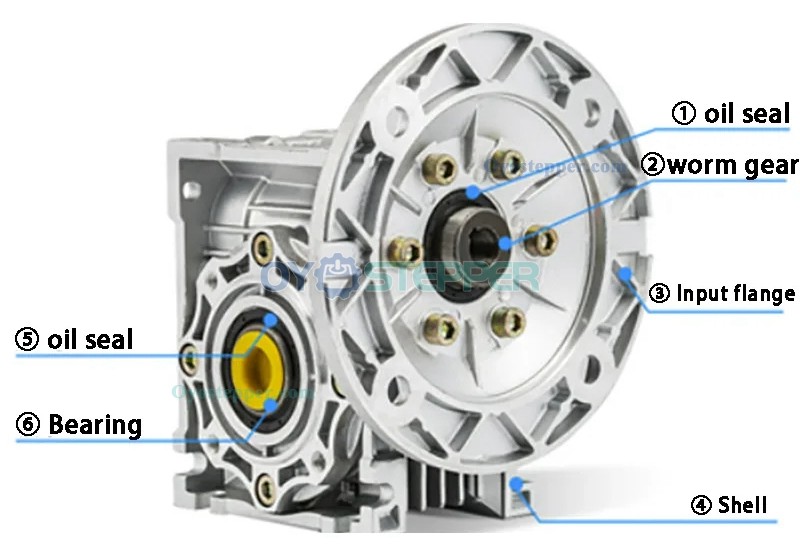

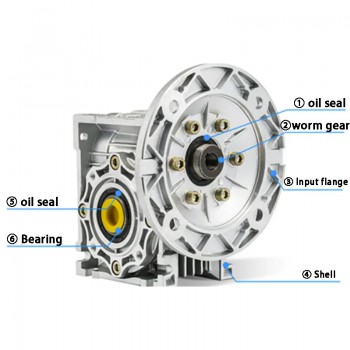

① Oil Seal
② Worm Gear
③ Input Flange
④ Shell
⑤ Oil Seal
⑥ Bearing

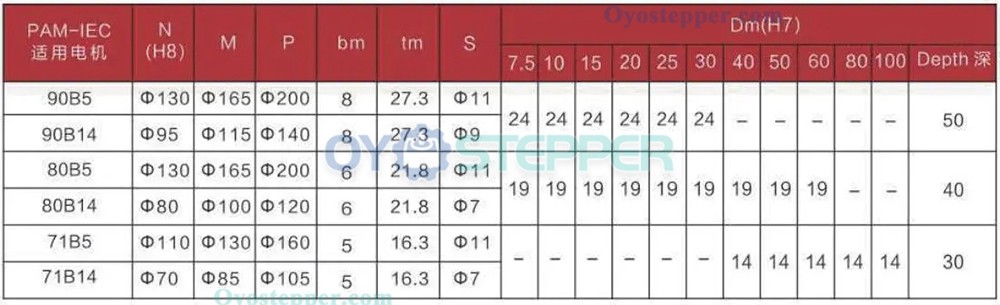

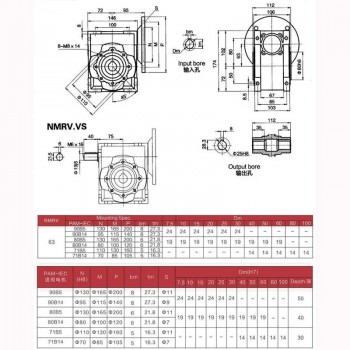

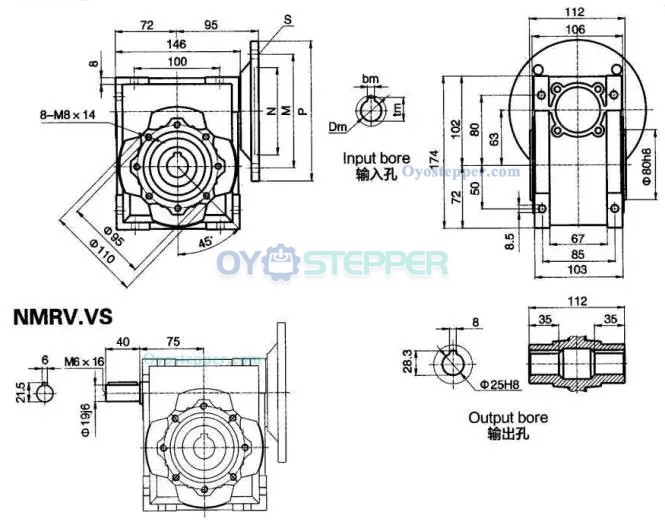

| Center Distance A |
Motor Flange | Input Shaft Hole Diameter | ||||||||||||||||
| PAM IEC |
N | M | P | bm | tm | Transmission Ratio | ||||||||||||
| 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |||||||
| NMRV063 | 90B5 | 130 | 165 | 200 | 8 | 27.3 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | - | - | - | - |
| 90B14 | 95 | 115 | 140 | |||||||||||||||
| 80B5 | 130 | 165 | 200 | 6 | 21.8 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | - | - | |
| 80B14 | 80 | 100 | 120 | |||||||||||||||
| 71B5 | 110 | 130 | 160 | 5 | 16.3 | - | - | - | - | - | - | - | 14 | 14 | 14 | 14 | 14 | |
| 71B14 | 70 | 85 | 105 | |||||||||||||||
| Gearbox Specification | |
|---|---|
| Output Shaft Diameter(mm) | 25mm |
| Input Shaft Diameter(mm) | 14mm / 19mm / 24mm |
| Gear Ratio | 5:1 / 7.5:1 / 10:1 / 15:1 / 20:1 / 25:1 / 30:1 / 40:1 / 50:1 / 60:1 / 80:1 / 100:1 |
