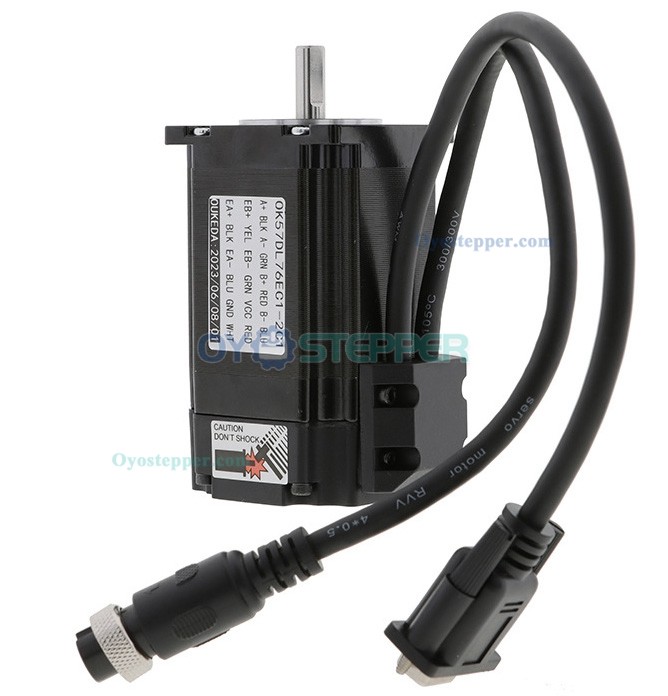

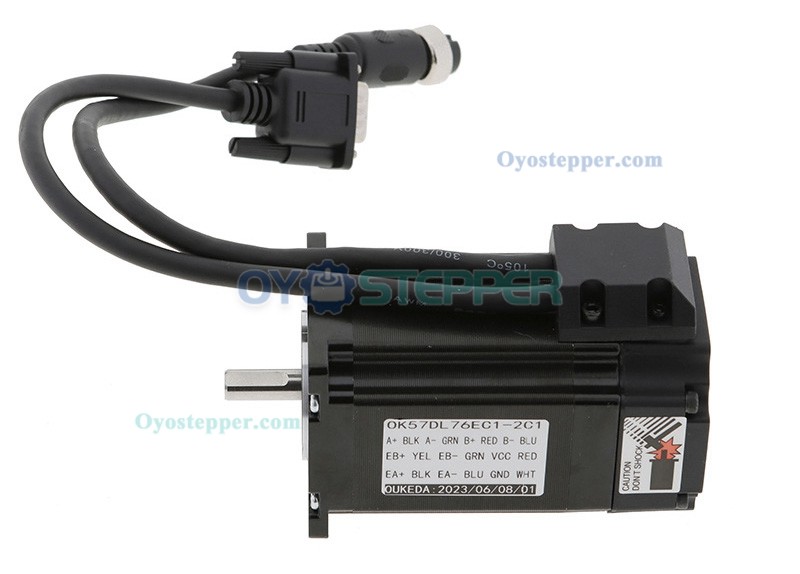

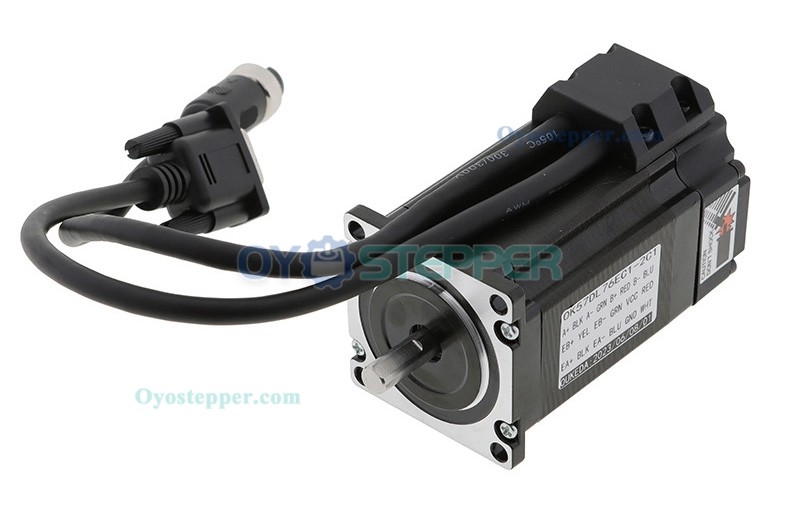

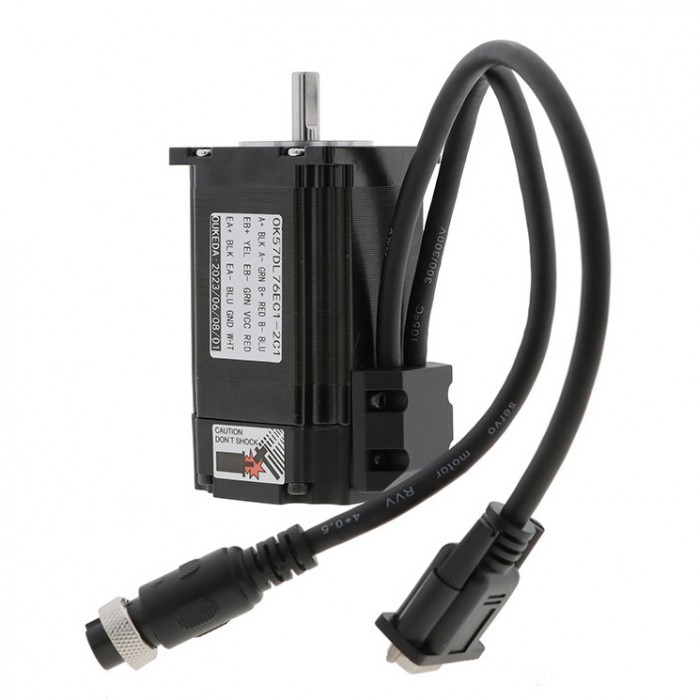

Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm

Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm
NO.:OK57DL76EC1-2C1
Post a review
Our Price:$69.99
Quantity:- +

Add To Cart

Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm


Electrical Specification
Manufacturer Part Number: OK57DL76EC1-2C1
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 2.0 Nm(283.22oz.in)
Phase Current: 2.8 A
Phase Voltage:2.0DVC
Related Voltage:20-48VDC
Phase Resistance: 1.13 ohms± 10%
Inductance: 3.6 mH ± 20%(1KHz)

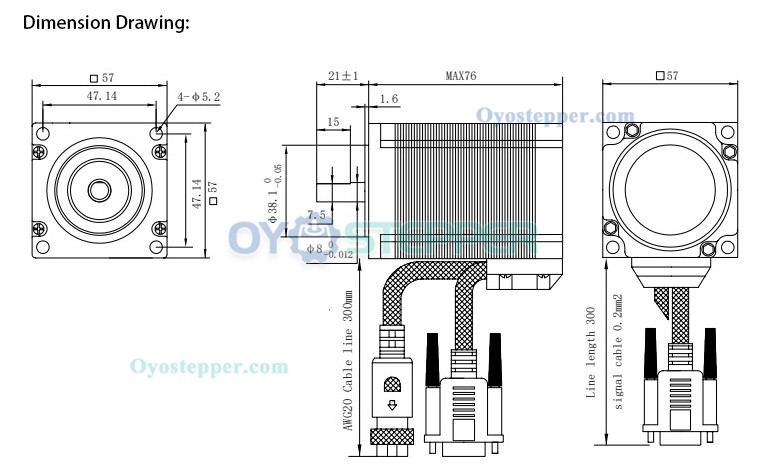

Physical Specification

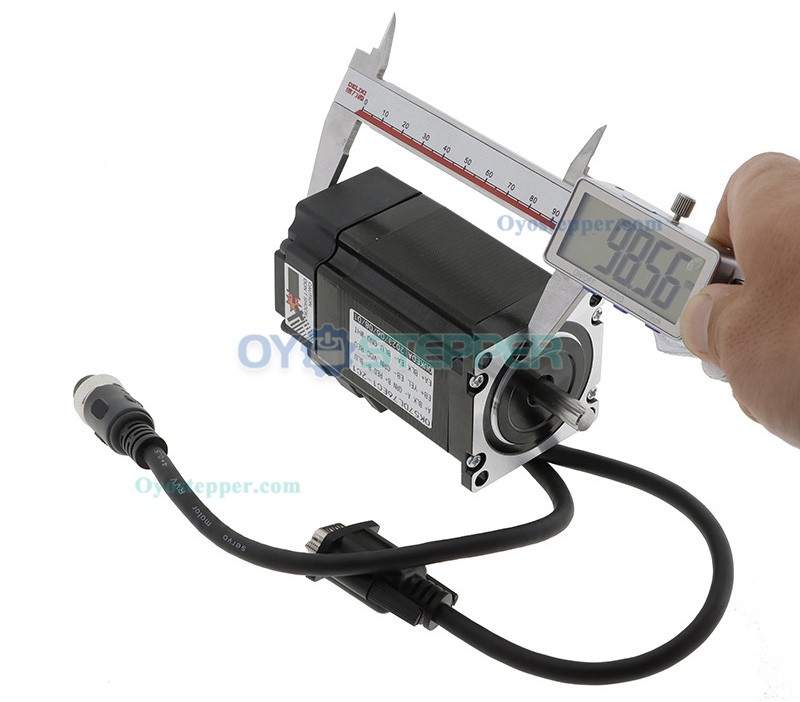

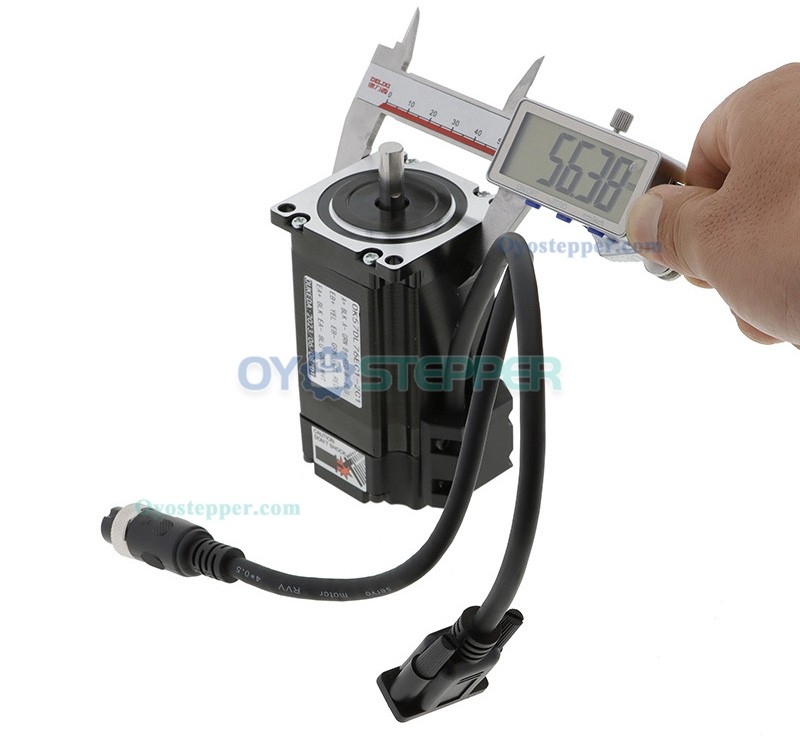

Frame Size: 57 x 57 mm
Body Length: 76 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-Cut Shaft Length: 15 mm
Lead Length: 300 mm
Weight: 1.6 kg;

Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm



Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm

Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm



Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm





Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm







Oukeda NEMA 23 Closed-loop Stepper Motor with Encoder 2Nm 1.8 Deg 2 Phase 57 x 57 mm
