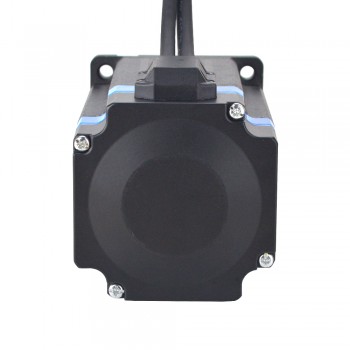

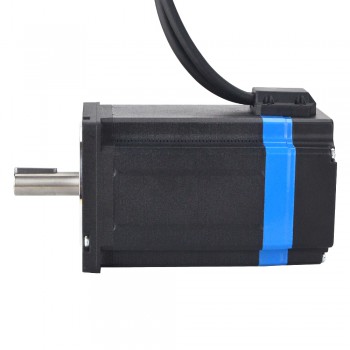

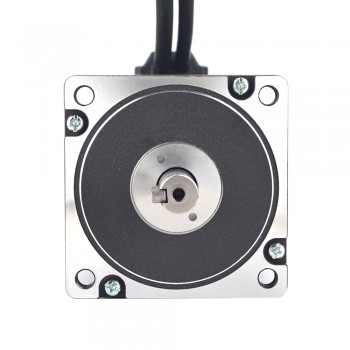

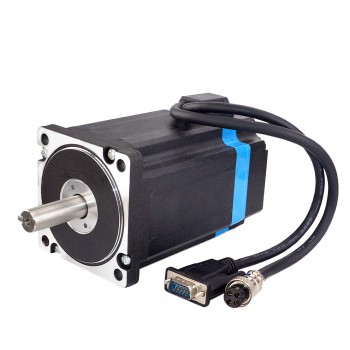

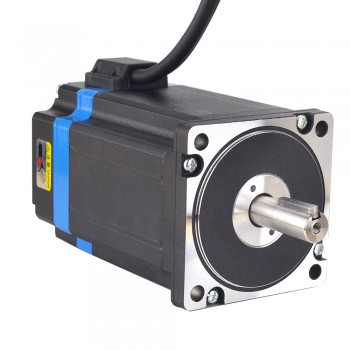

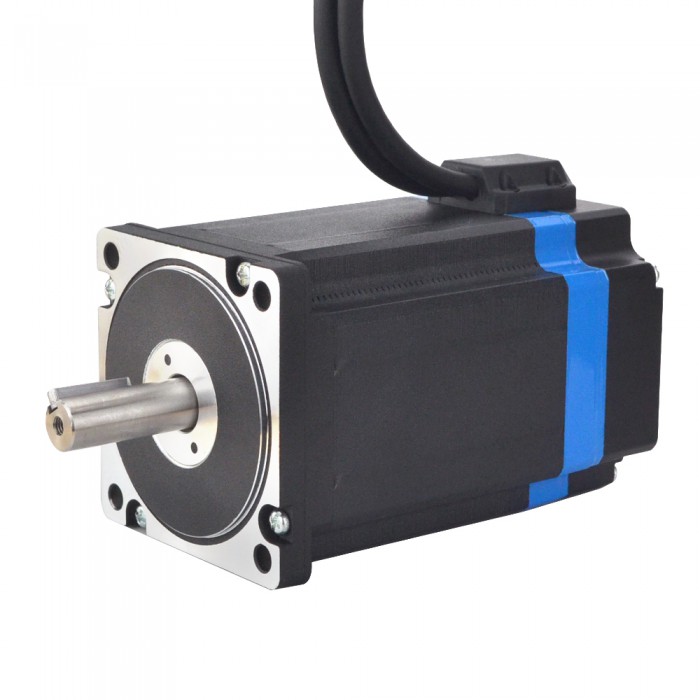

Nema 34 Closed Loop Stepper Motor 1.8 Deg 8.25Nm/1168.53oz.in Encoder 1000CPR
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2024
- Note:No coupon code needed, please place order directly!
Motor Specification
Manufacturer Part Number: 34HS46-6004D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Frame Size: 86 x 86 mm
Holding Torque: 8.25 N.m(1168.53 oz.in)
Rated Current/phase: 6 A
Shaft Diameter: Φ14 mm
Shaft Length: 40 mm
Key-Way Length: 25 mm
Phase Resistance: 0.4 ohm
Inductance: 4.2 mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 300 mm
Encoder Specification
Driving Voltage : 5V
Output current : 55mA
Resolution : 1000ppr
Output Signal : 2 Channels
Bore Diameter : Φ8mm
Output Frequency : ≤1MHz
Running Speed : ≤5000rpm
IP Protection : IP20
Connection
A+
|
A-
|
B+
|
B-
|
White
|
Green
|
Blue
|
Black
|
Resources
Motor Datasheet: 34HS46-6004D-E1000.pdf
Torque Curve: 34HS46-6004D-E1000 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Motor Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Holding Torque (Ncm) | 825 |
Holding Torque (oz.in) | 1168.53 |
Inductance(mH) | 4.2 |
Lead Length(mm) | 300 |
Motor Nema Size | Nema 34 |
No. of Lead | 4 |
Phase Resistance(ohm) | 0.4 |
Rated Current (A) | 6 |
Shaft Diameter(mm) | 14 |
Shaft Length(mm) | 40 |
Step Angle(°) | 1.8 |
Encoder Specification | |
IP Protection | IP20 |
Output Current(mA) | 55 |
Output Frequency | ≤1MHz |
Rated Voltage(V) | 5 |
Resolution(CPR) | 1000 |
Running Speed(rpm) | ≤5000 |
Output Signal Channels | 2 Channels |
