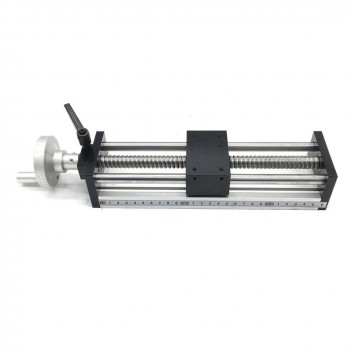

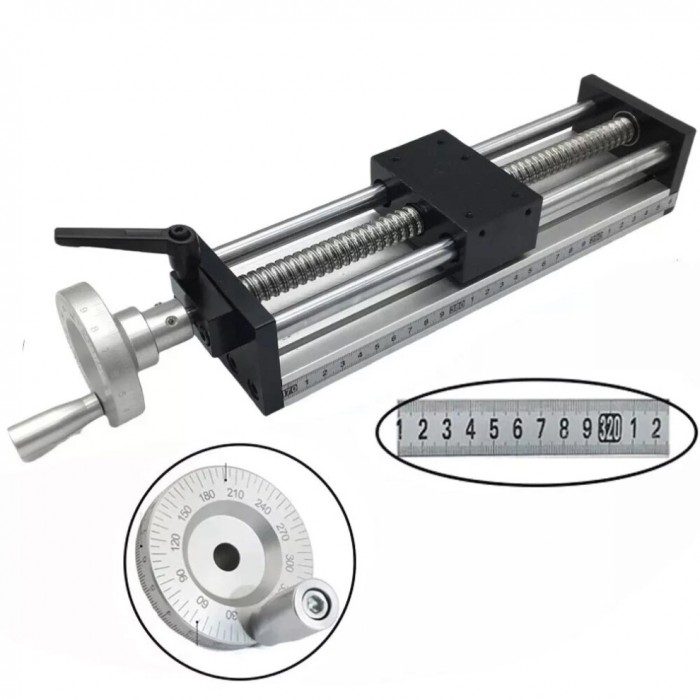

GGP5080 Manual Linear Guide Rail Slide Stage Ballscrew CNC Motion Module Handwheel

Manual Linear Guide Rail Slide Stage Ballscrew CNC Motion Module Handwheel

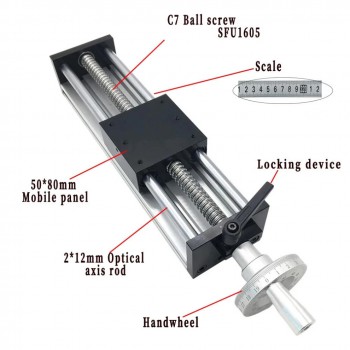

Table Features :

1.Slide Material: Aviation aluminum

2.Stroke:100-300MM

3.Effective Stroke: Stroke + 10 mm

4.Horizontal load: 40KG (Max)

5.Vertical load: 20KG(Max)

6.Mobile panel size: 80mm X 50mm

7.Repeat positioning accuracy: 0.02mm-0.05mm

8.Maximum speed: 100mm/s

9.Guide Type:2X12mm Optical axis rod

10.Screw Precision:C7

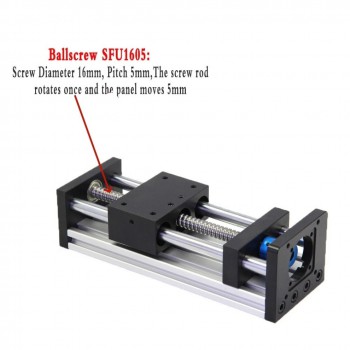

11.Screw Model:SFU1605(Tips:SFU1605 means:Screw Diameter 16mm, Pitch 5mm )

Package List:

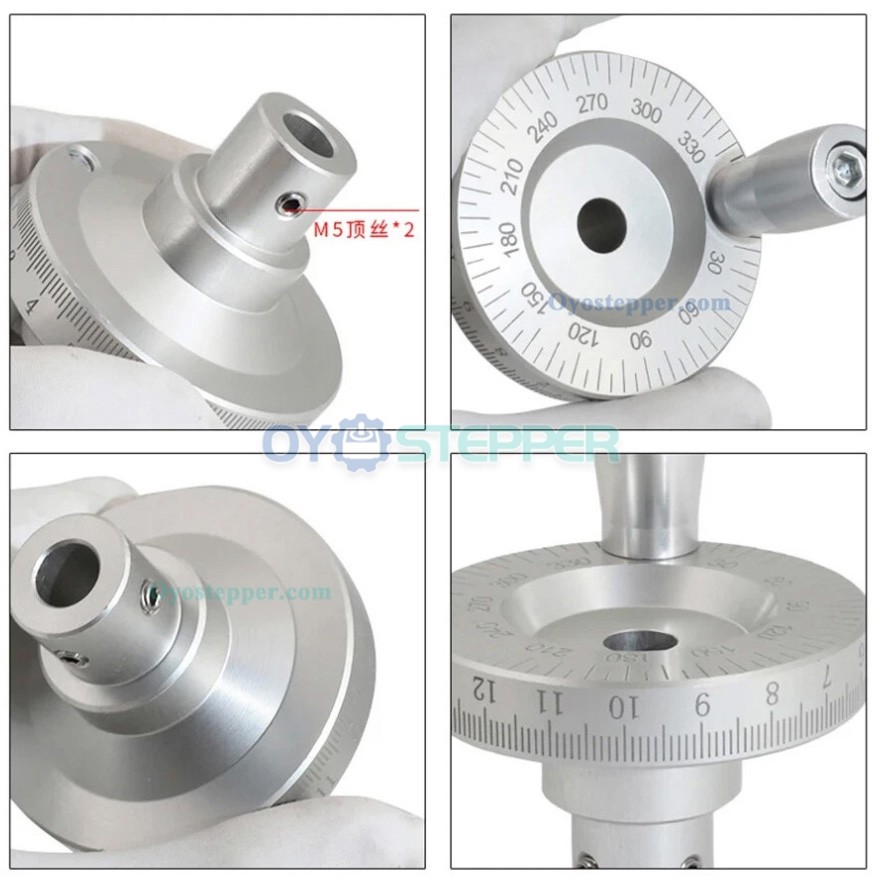

1 X Sliding Table with Manual Handwheel;

Drawings:
