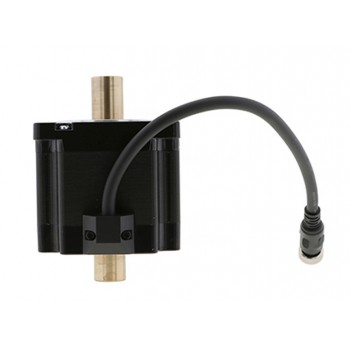

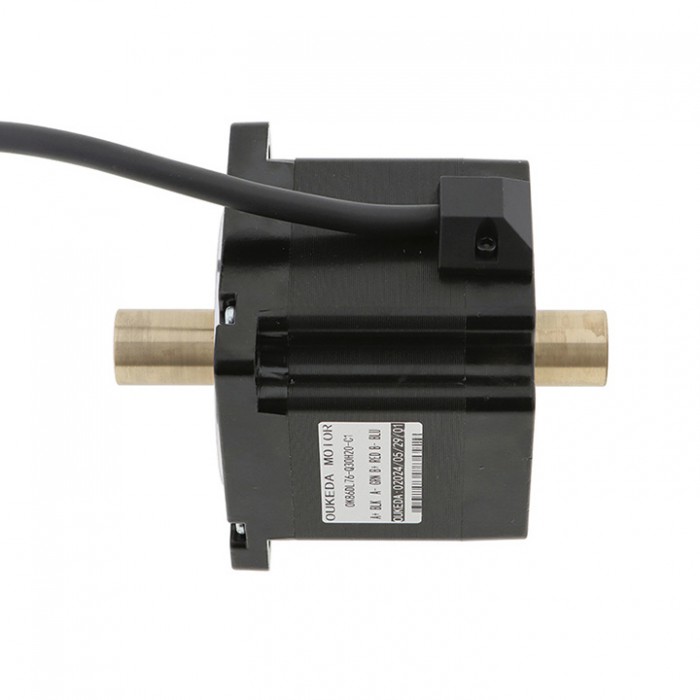

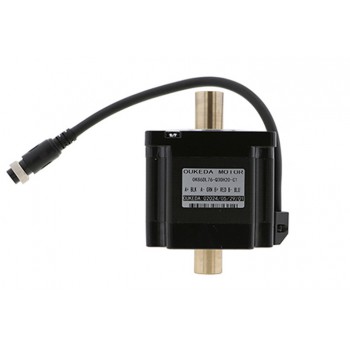

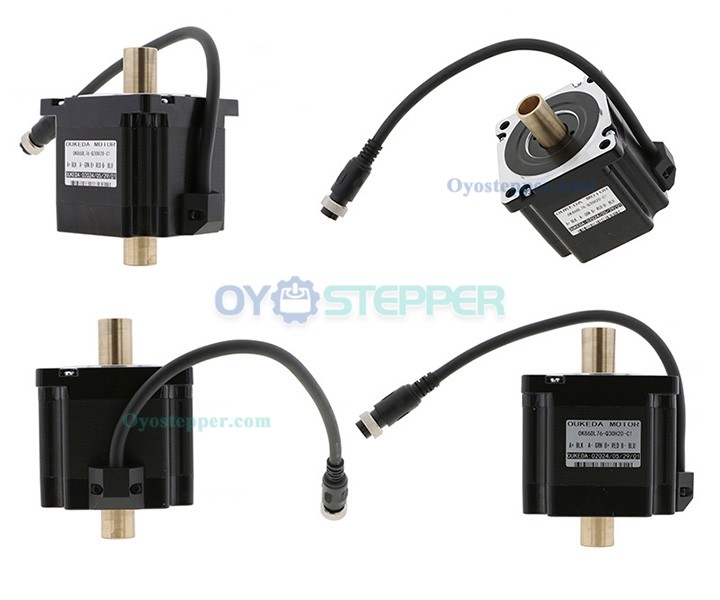

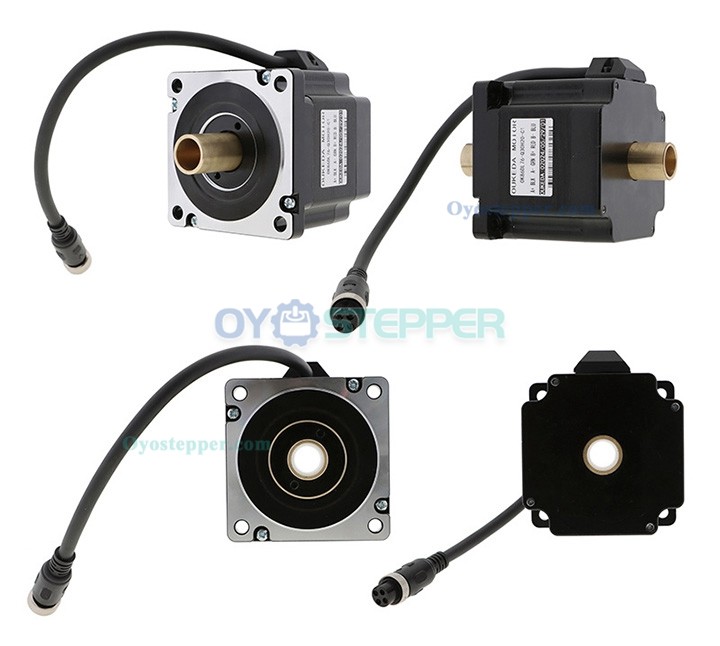

Oukeda Hollow Shaft Nema 34 Stepper Motor Bipolar 1.8 Deg 4.5 Nm 6.0A 2.1V Dual Shaft 4 Wires

Oukeda Hollow Shaft Nema 34 Stepper Motor Bipolar 1.8 Deg 4.5 Nm 6.0A 2.1V Dual Shaft 4 Wires
NO.:OK86DL76-Q30H20-C1
Post a review
Our Price:$59.99
Quantity:- +

Add To Cart

Oukeda Hollow Shaft Nema 34 Stepper Motor Bipolar 1.8 Deg 4.5 Nm 6.0A 2.1V Dual Shaft 4 Wires



Electrical Specification:

Manufacturer Part Number:OK86DL76-Q30H20-C1

Motor Type: Bipolar Stepper

Number of Phase:2

Step Angle: 1.8 deg

Static Moment: 4.5 Nm(637.25 oz.in)

Phase Voltage:2.1VDC

Rated Current/phase: 6.0 A

Phase Resistance: 0.35 ohms± 10%

Inductance: 3.2 mH ± 20%(1KHz);

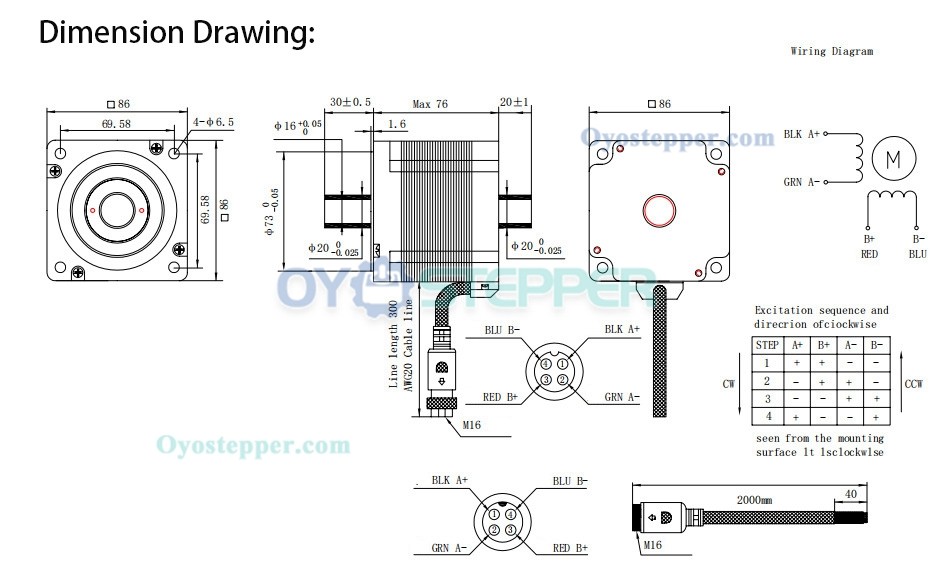

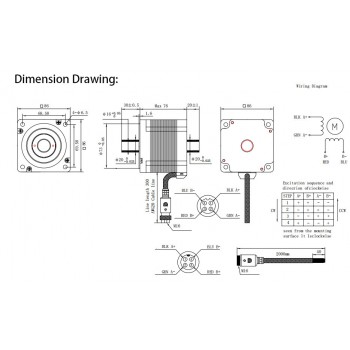

Physical Specification:

Frame Size: 86 x 86 mm

Body Length: 76 mm

Outer Shaft Diameter: Φ16 mm

Inner Shaft Diameter: Φ20 mm

Front Shaft Length: 30 mm

Rear Shaft Length: 20 mm

Number of Leads: 4

Lead Length: 300 mm

Weight: 2.3kg;



Oukeda Hollow Shaft Nema 34 Stepper Motor Bipolar 1.8 Deg 4.5 Nm 6.0A 2.1V Dual Shaft 4 Wires



Oukeda Hollow Shaft Nema 34 Stepper Motor Bipolar 1.8 Deg 4.5 Nm 6.0A 2.1V Dual Shaft 4 Wires



Oukeda Hollow Shaft Nema 34 Stepper Motor Bipolar 1.8 Deg 4.5 Nm 6.0A 2.1V Dual Shaft 4 Wires

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Oukeda Nema 17 Worm Gearbox Stepper Motor 17:1/30:1/50:1/75:1/100:1/290:1/500:1 1.8 Deg 44Ncm 1.68A 2 Phase
Next: Oukeda Hollow Shaft Nema 23 Stepper Motor Bipolar 1.8 Deg 1.89 Nm 4.2A 2.52V Dual Shaft 57 x 57 mm
Electrical Specification
Static Moment 4.5
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 450
Holding Torque (oz.in) 637.25
No. of Phase 2
Open-loop/Closed-loop Open-loop
Phase Current(A) 6.0
Phase Voltage(V) 2.1
