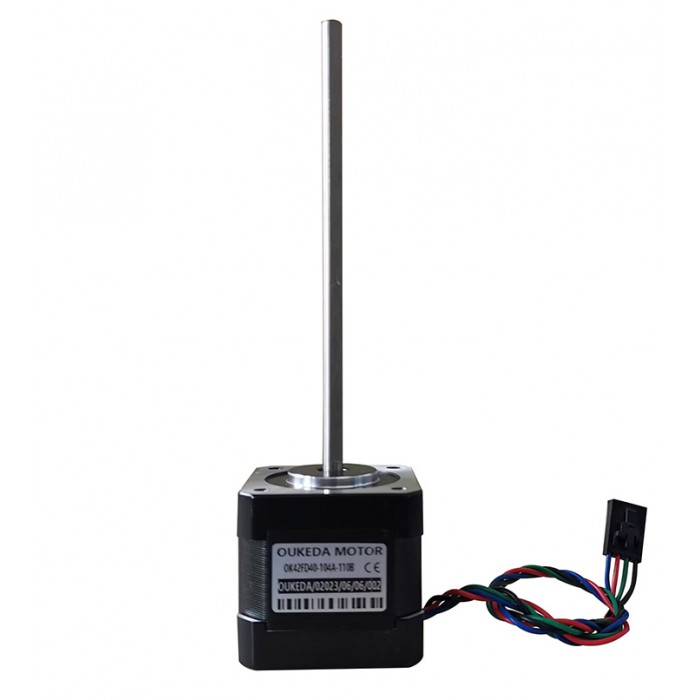

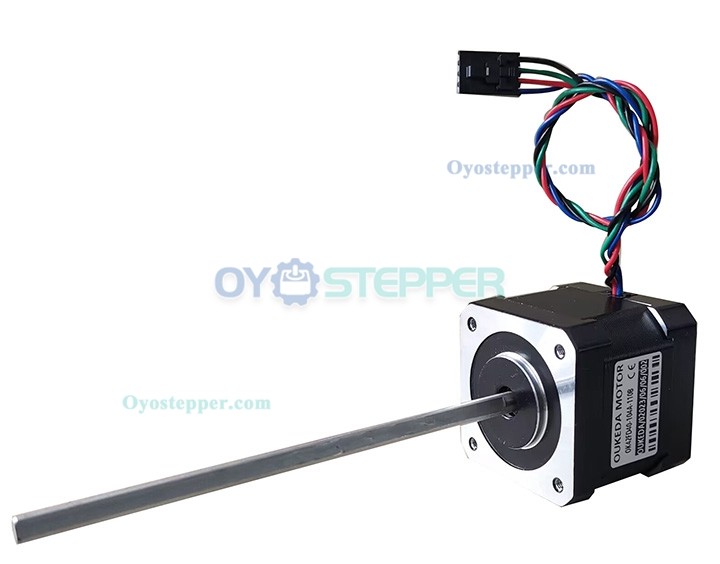

Oukeda Nema 17 Non-captive Stepper Motor 1.8 deg 49Ncm(69.38 oz.in) 40mm Stack Lead Screw 110mm

Oukeda Nema 17 Non-captive Stepper Motor 1.8 deg 49Ncm(69.38 oz.in) 40mm Stack Lead Screw 110mm
NO.:OK42FD40104A-110B
Post a review
Our Price:$17.99
Quantity:- +

Add To Cart

Oukeda Nema 17 Non-captive Stepper Motor 1.8 deg 49Ncm(69.38 oz.in) 40mm Stack Lead Screw 110mm



Electrical Specification:

Manufacturer Part Number: OK42FD40104A-110B

Motor Type: Non-Captive Linear Stepper

Step Angle: 1.8 deg

Static Moment: 49Ncm(69.38 oz.in)

Phase Current:1A

Phase Voltage:6.5VDC

Phase Resistance: 6.5ohms

Use Voltage: 12-36V

Inductance: 13mH ± 20%(1KHz);

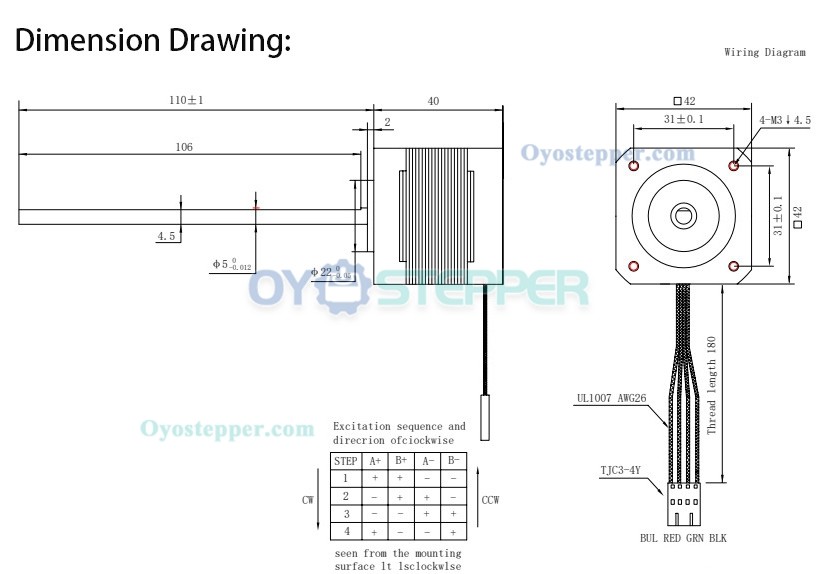

Physical Specification:

Frame Size: 42 x 42mm

Body Length: 40mm

Lead Screw Length: 110mm

Lead Screw Diameter: Φ5mm

Number of Leads: 4

Lead Length: 400mm

Weight: 400g;



Oukeda Nema 17 Non-captive Stepper Motor 1.8 deg 49Ncm(69.38 oz.in) 40mm Stack Lead Screw 110mm



Oukeda Nema 17 Non-captive Stepper Motor 1.8 deg 49Ncm(69.38 oz.in) 40mm Stack Lead Screw 110mm

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Oukeda Round Non-excited DC Motor Brake 2NM 24V for 57mm/60mm BLDC Motor / Nema 23 Stepper Motor
Next: Oukeda Nema 17 Worm Gearbox Stepper Motor 17:1/30:1/50:1/75:1/100:1/290:1/500:1 1.8 Deg 44Ncm 1.68A 2 Phase
Electrical Specification
Holding Torque (Ncm) 49
Holding Torque (oz.in) 69.38
Step Angle(deg.) 1.8
Phase Current(A) 1
Phase Voltage(V) 6.5
Physical Specification
Body Length(mm) 40
Lead Screw Diameter(mm) 5
Lead Screw Length(mm) 110
Single Shaft/Dual Shaft Single Shaft/
Weight(g) 400
Frame Size(mm) Nema 17 (42 x 42)
