JMC Nema 23 Integrated AC Servo Motor with Driver 180W 36V 0.6N.m 3 Phase 3000RPM 60 x 60mm
The IHSV57-30-18-36 is an integrated AC servo motor with a built-in servo drive. It utilizes DSP-based vector control and operates in a full closed‑loop digital control architecture. Three adjustable feedback control loops are included: position, speed, and current.
Specifications:
Integrated AC servo drive and motor;
DSP-based vector control;
Full closed-loop control;
Digital control architecture;
Adjustable position, speed, and current loops;
Electrical Specifications:
Manufacturer Part Number:iHSV57-30-18-36
Number of Phase:3
No-load Speed: 4200RPM +/- 7%
Rated speed: 3000RPM +/- 7%
Rated torque: 0.6N.m(84.96 oz.in)
Rated Voltage:36V
Rated Current:7.5A
No-load Current:0.65A
Power:180W
Insulation Class:B;
Physical Specifications:
Frame Size: 57 x 57mm
Body Length:148 mm
Shaft Length:33 mm
Shaft Diameter: Φ8 mm
Keyway Length: 20 mm
Weight: 1.64kg;
.jpg "JMC Nema 23 Integrated AC Servo Motor with Driver 180W 36V 0.6N.m 3 Phase 3000RPM 60 x 60mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor with Driver 180W 36V 0.6N.m 3 Phase 3000RPM 60 x 60mm")

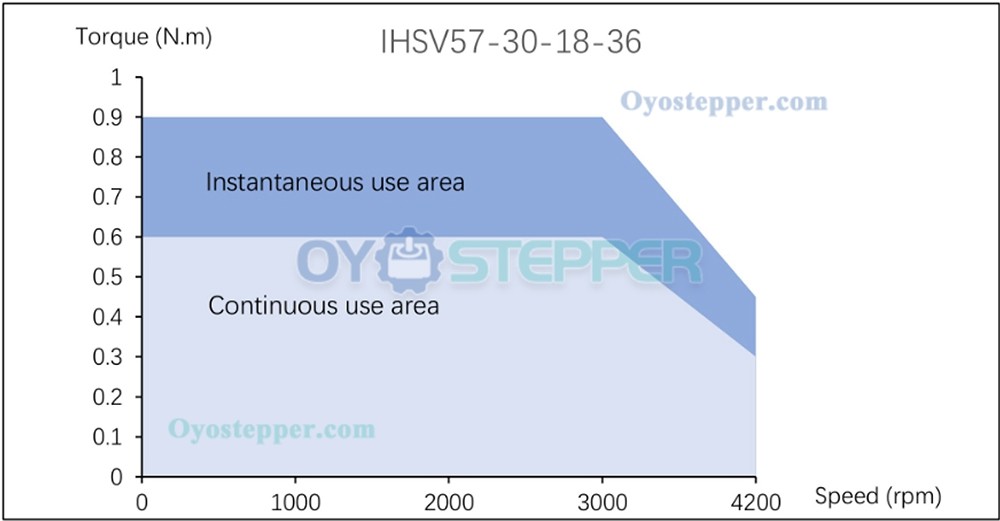

Torque diagram:
| Servo Motor Specification | |
|---|---|
| Rated Voltage | 36 |
| Rated Current | 7.5 |
| No-load Speed | 4200 |
| Number of Phase | 2 Phase |
| Rated Power(W) | 180 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 0.6 |
| With Brake | Without brake |
| Physical Specification | |
| Keyway Length | 20 |
| Body Length(mm) | 148 |
| Frame Size(mm) | 57 x 57 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
