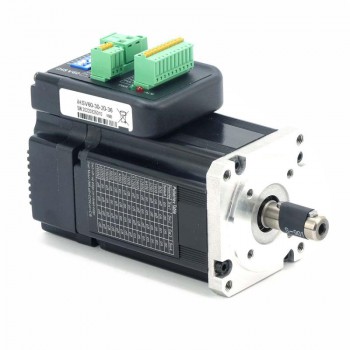

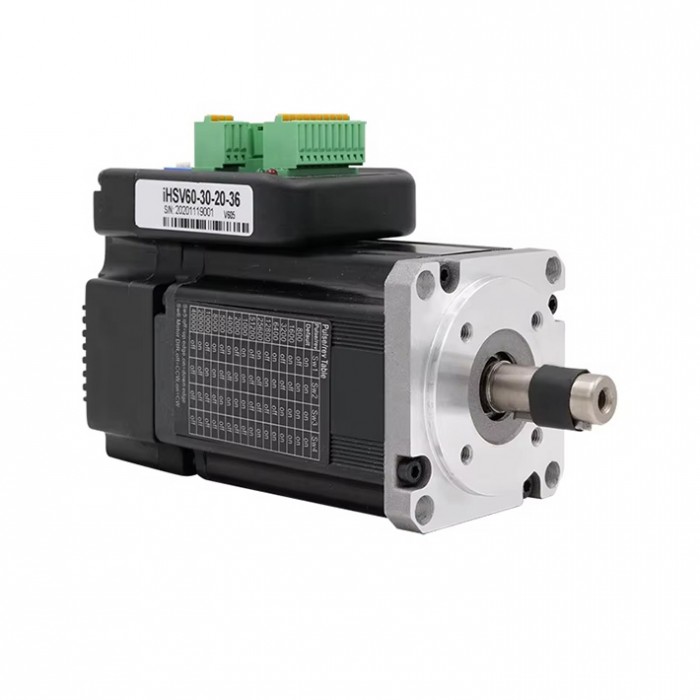

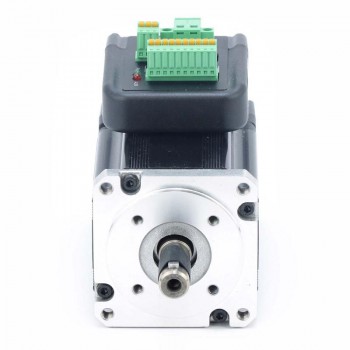

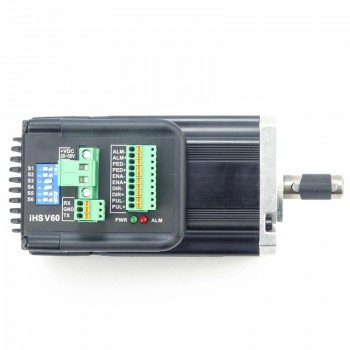

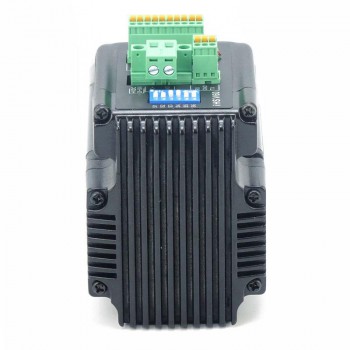

JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm

JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm
NO.:iHSV60-30-20-36
Post a review
Our Price:$164.99
Quantity:- +

Add To Cart

JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm



iHSV60-30-20-36 Integrated AC Servo Driving Motor is integrated AC servo drive into servo motor, adopts vector control in DSP chip, features in low cost, full closed loop, all digital, low heat, small vibration, and high response, as well as includes three adjustable feedback loop control modes(postition loop, speed loop, and current loop). iHSV60 is a series of stable performance, high cost-effective motion control products.



Electrical Specifications:

Manufacturer Part Number:iHSV60-30-20-36

Number of Phase:3

No-load Speed: 4200RPM +/- 7%

Rated speed: 3000RPM +/- 7%

Rated torque: 0.65N.m(92.04 oz.in)

Rated Voltage:36V

Rated Current:8.5A

No-load Current:0.8A

Power:200W

Insulation Class:B;

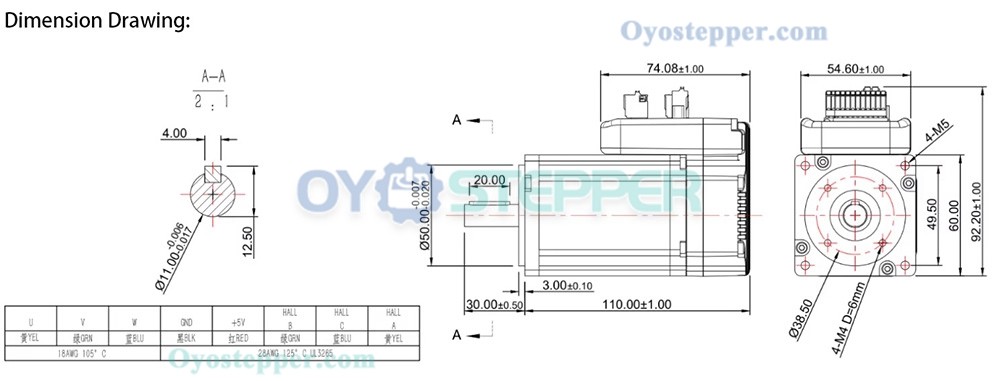

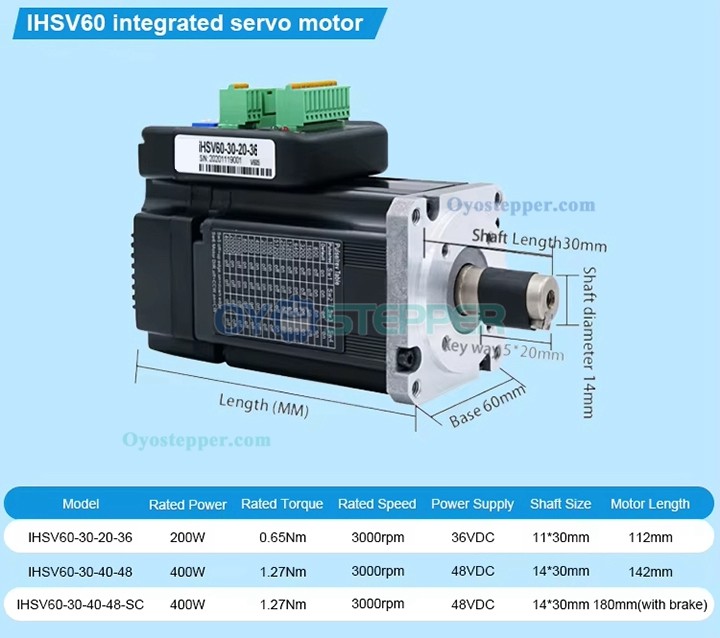

Physical Specifications:

Frame Size: 60 x 60mm

Body Length:112mm

Shaft  Length:30 mm

Shaft Diameter: Φ11 mm

Keyway Length: 20 mm

Weight: 1.2kg



JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm

JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm

JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm

JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm



JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm

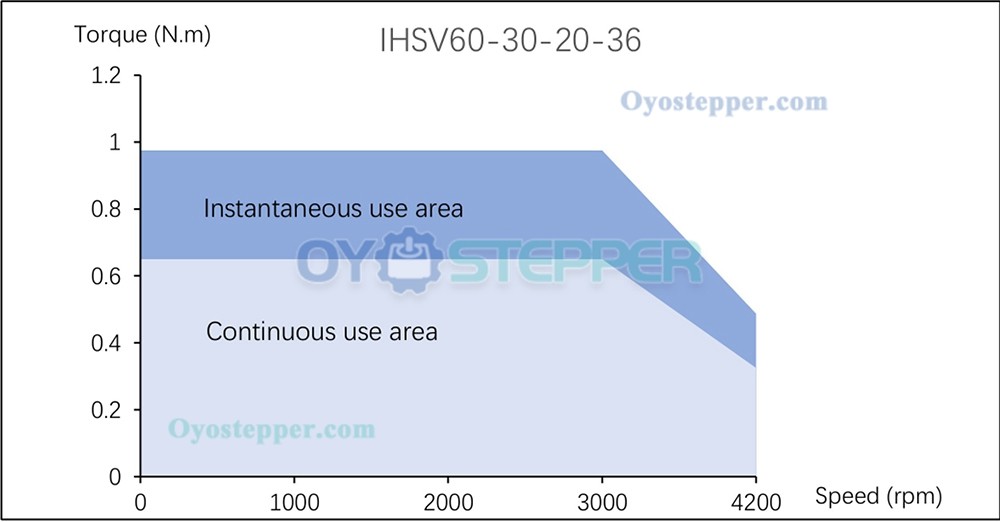

Torque diagram:

JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm

JMC Nema 23 Servo Motor with Integrated Driver 200W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm



Datasheet:DS_iHSV60en_221209.pdf

Manual:ihsv_v6_2020_manual.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NMRV050 80B14 Worm Gearbox Speed Reducer Gear Ratio 10:1/15:1/20:1/25:1/30:1/50:1/60:1/80:1/100:1 Input 19mm
Next: JMC Nem23 Integrated AC Servo Motor 400W 48V 1.27N.m(179.84 oz.in) 3000RPM 60 x 60mm
Servo Motor Specification
Rated Voltage 36
Rated Current 8.5
No-load Speed 4200
Number of Phase 3 Phase
Rated Power(W) 200
Rated Speed(rpm) 3000
Rated Torque(Nm) 0.65
With Brake Without brake
Physical Specification
Keyway Length 20
Body Length(mm) 112
Frame Size(mm) 60 x 60
Shaft Diameter(mm) 11
Shaft Length(mm) 30
Shaft Type Keyway
Single Shaft/Dual Shaft Single Shaft
