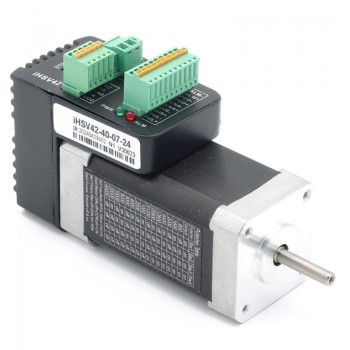

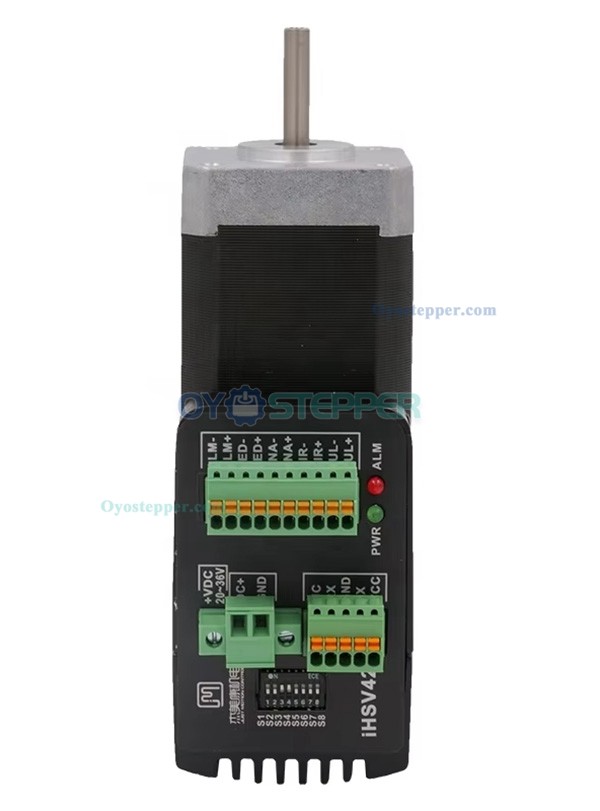

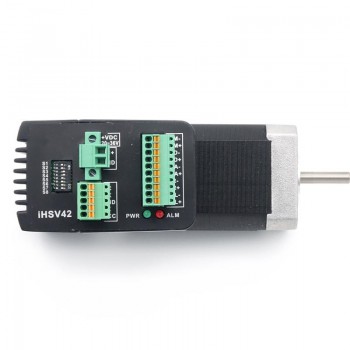

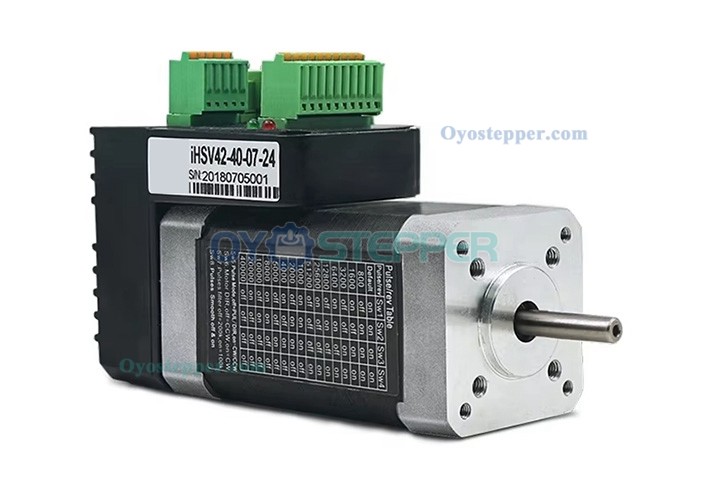

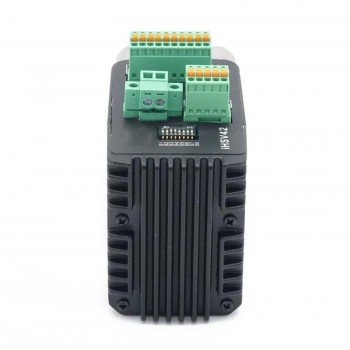

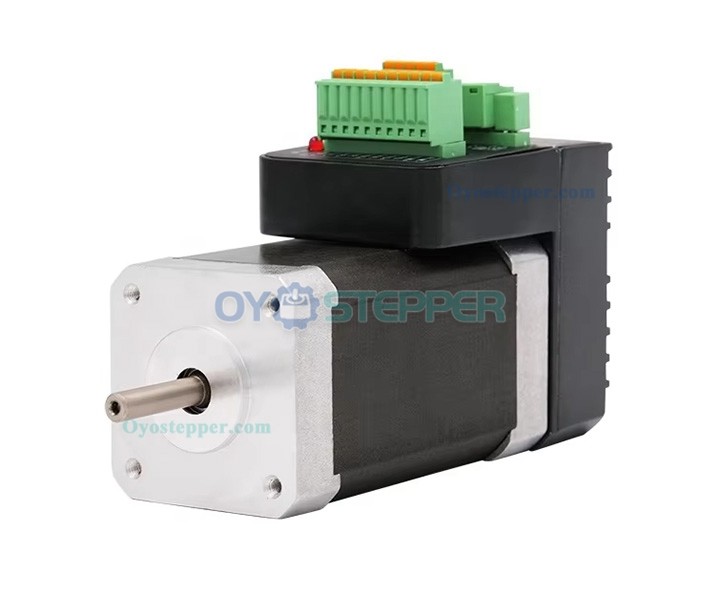

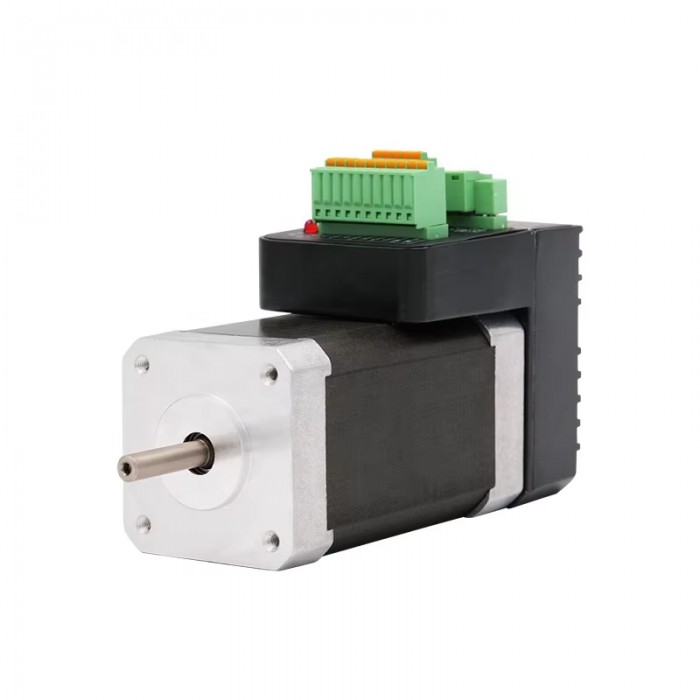

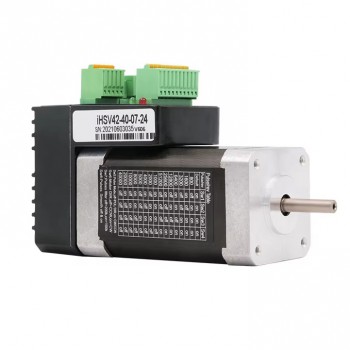

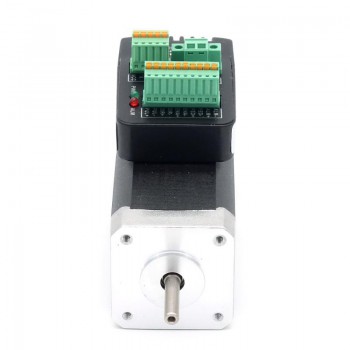

JMC Nema 17 Integrated AC Servo Motor 78W 24V 0.185N.m(26.19 oz.in) 52000RPM 42 x 42mm
The IHSV42-40-07-24 is an integrated AC servo motor with a built-in servo drive. It features DSP-based vector control and operates in a full closed-loop configuration with digital control. Three adjustable feedback control loops are included: position, speed, and current.
Features:
Integrated AC servo drive and motor
DSP-based vector control
Full closed-loop control
Digital control architecture
Adjustable position, speed, and current loops;

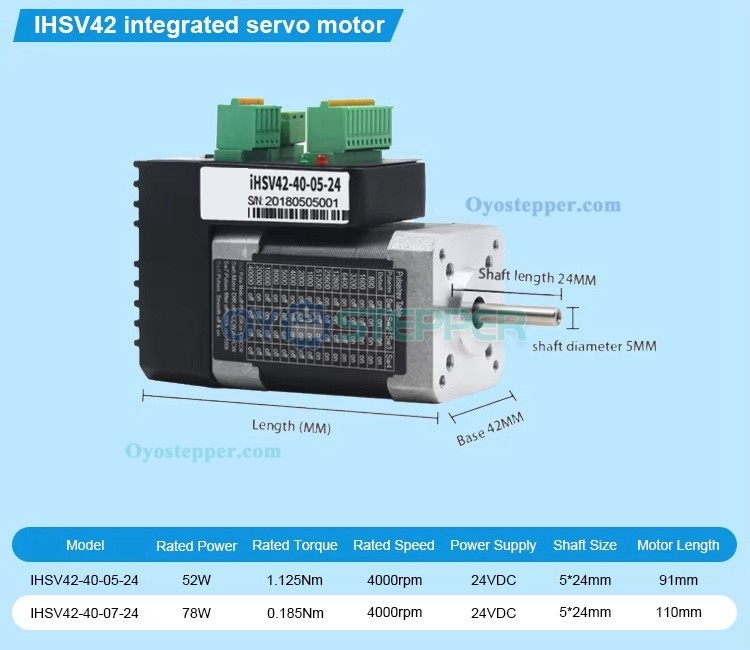

Electrical Specifications:
Manufacturer Part Number:IHSV42-40-07-24
Number of Phase:3
No-load Speed: 4000RPM +/- 7%
Rated speed: 5200RPM +/- 7%
Rated torque: 0.185N.m(26.19 oz.in)
Rated Voltage:24V
Rated Current:3.5A
No-load Current:0.6A
Power:78W
Insulation Class:B;

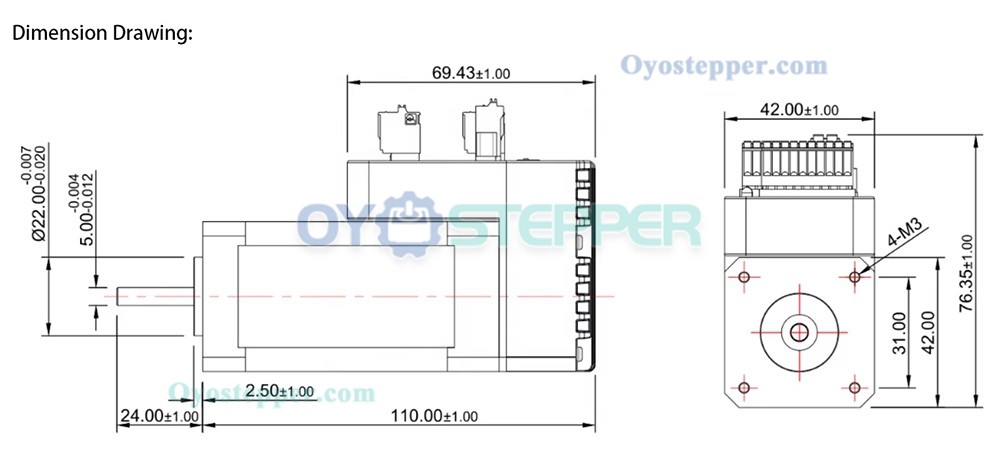

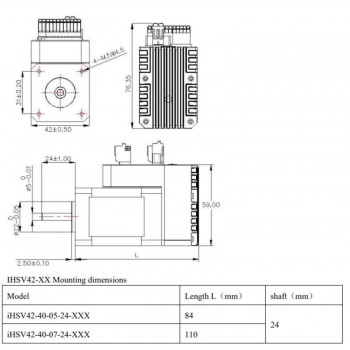

Physical Specifications:
Frame Size: 42 x 42mm
Body Length:110 mm
Shaft Length:24 mm
Shaft Diameter: Φ5 mm
Weight: 1.1kg;
.jpg "JMC Nema 17 Integrated AC Servo Motor 78W 24V 0.185N.m(26.19 oz.in) 52000RPM 42 x 42mm")
.jpg "JMC Nema 17 Integrated AC Servo Motor 78W 24V 0.185N.m(26.19 oz.in) 52000RPM 42 x 42mm")
.jpg "JMC Nema 17 Integrated AC Servo Motor 78W 24V 0.185N.m(26.19 oz.in) 52000RPM 42 x 42mm")
.jpg "JMC Nema 17 Integrated AC Servo Motor 78W 24V 0.185N.m(26.19 oz.in) 52000RPM 42 x 42mm")
.jpg "JMC Nema 17 Integrated AC Servo Motor 78W 24V 0.185N.m(26.19 oz.in) 52000RPM 42 x 42mm")
.jpg "JMC Nema 17 Integrated AC Servo Motor 78W 24V 0.185N.m(26.19 oz.in) 52000RPM 42 x 42mm")

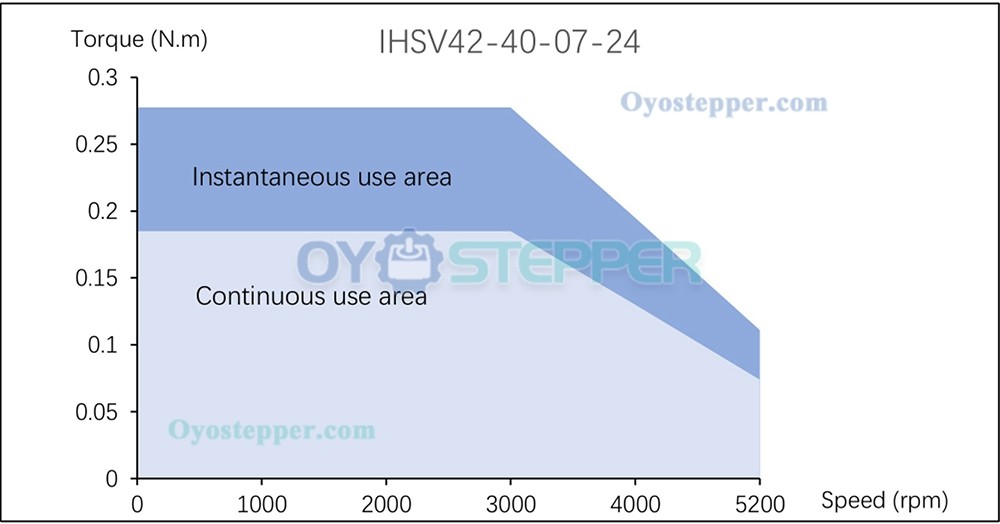

Torque diagram:
| Servo Motor Specification | |
|---|---|
| Rated Voltage | 24 |
| Rated Current | 3.5 |
| No-load Speed | 5200 |
| Number of Phase | 3 Phase |
| Rated Power(W) | 78 |
| Rated Speed(rpm) | 4000 |
| Rated Torque(Nm) | 0.185 |
| With Brake | Without brake |
| Physical Specification | |
| Body Length(mm) | 110 |
| Frame Size(mm) | 42 x 42 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Shaft Type | O |
| Single Shaft/Dual Shaft | Single Shaft |
