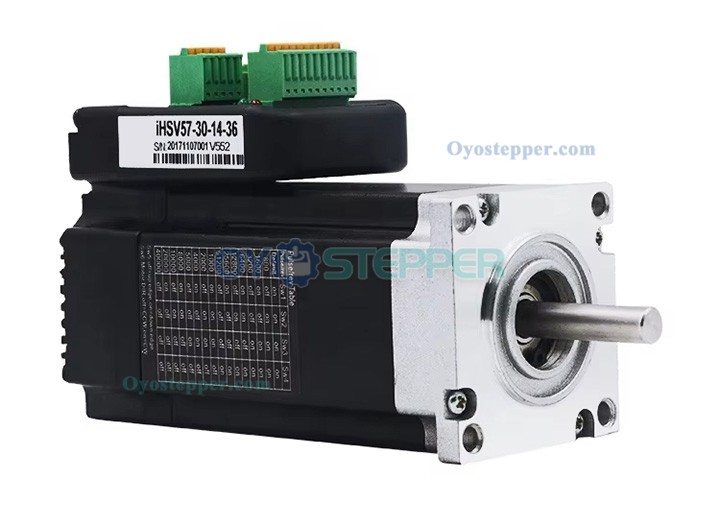

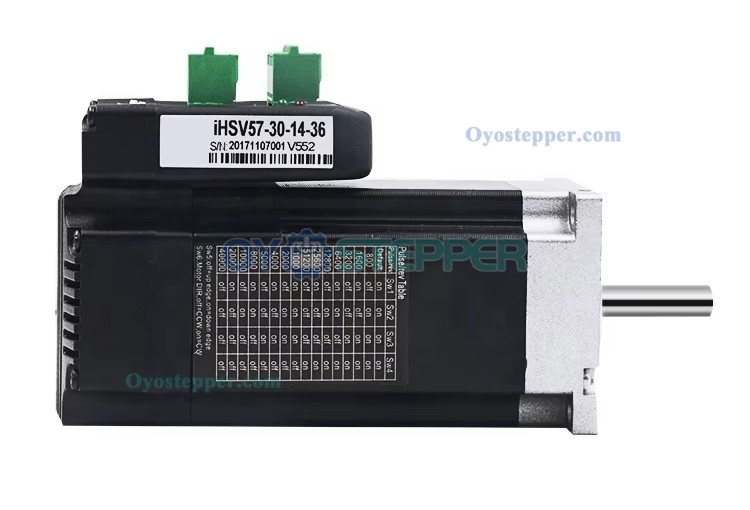

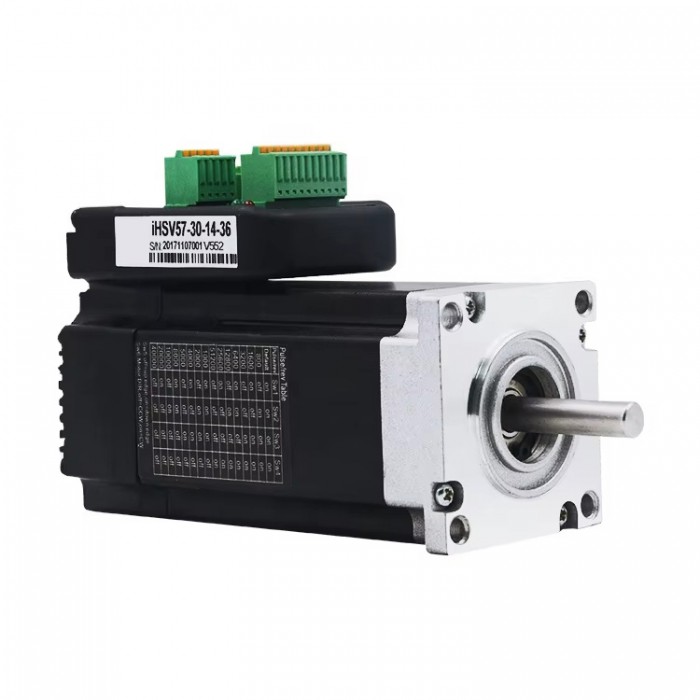

JMC Nema 23 Integrated AC Servo Motor 140W 36V 0.45N.m 5.4A 3 Phase 3000RPM 57 x 57mm
The IHSV57-30-14-36 is an integrated AC servo motor with a built-in servo drive. It features DSP-based vector control and operates in a full closed-loop digital control architecture. Three adjustable feedback control loops are included: position, speed, and current.

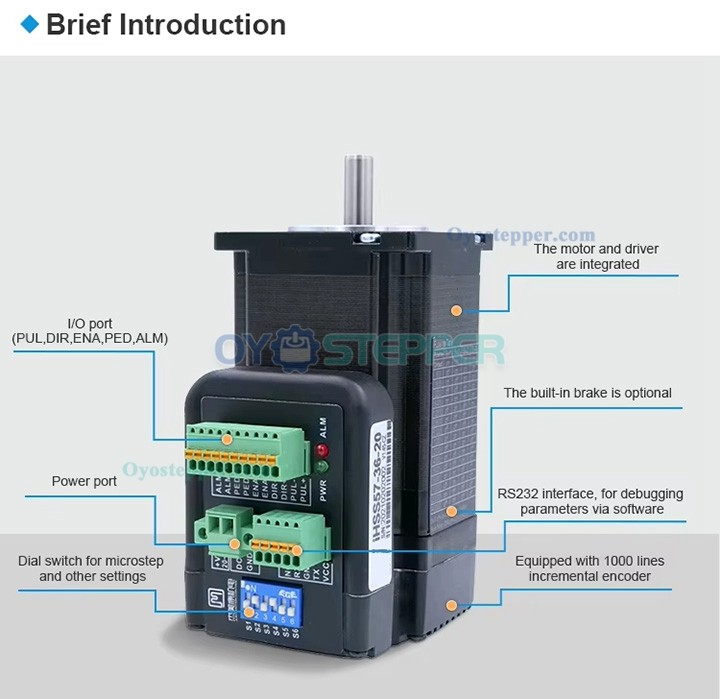

Features:
Integrated AC servo drive and motor;
DSP-based vector control;
Full closed-loop control;
Digital control architecture;
Adjustable position, speed, and current loops;
Electrical Specifications:
Manufacturer Part NumberiHSV57-30-14-36
Number of Phase:3
No-load Speed: 4200RPM +/- 7%
Rated speed: 3000RPM +/- 7%
Rated torque: 0.45N.m(63.72 oz.in)
Rated Voltage:36V
Rated Current:5.4A
No-load Current:0.55A
Power:140W
Insulation Class:B;

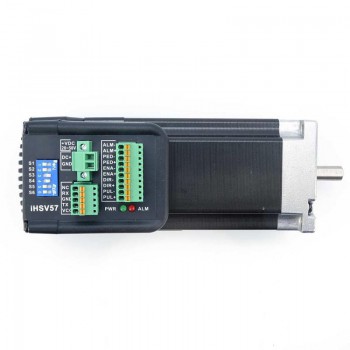

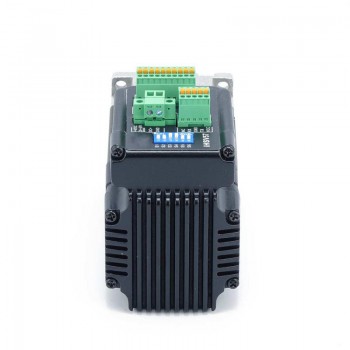

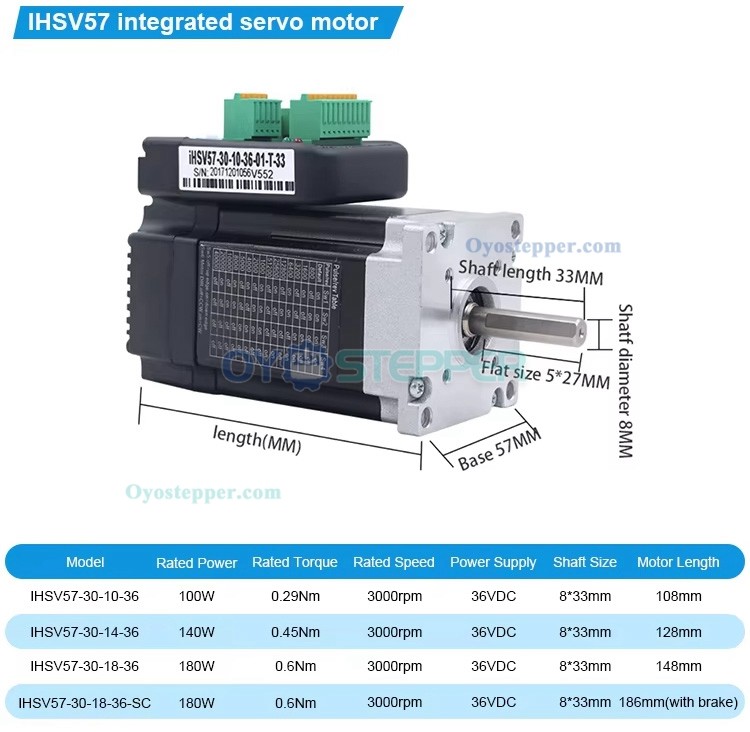

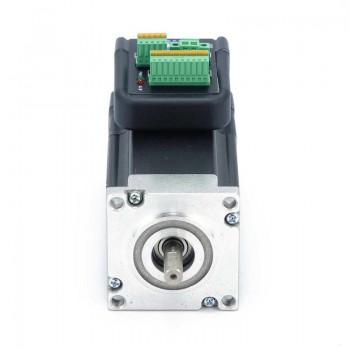

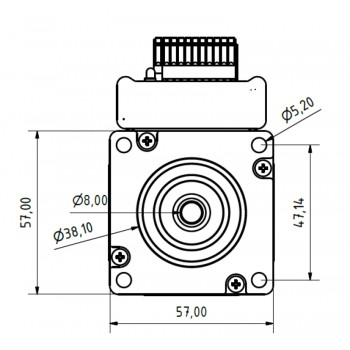

Physical Specifications:
Frame Size: 57 x 57mm
Body Length:128 mm
Shaft Length:33 mm
Shaft Diameter: Φ8 mm
D-cut Length: 27 mm
Weight: 1.4kg;
.jpg "JMC Nema 23 Integrated AC Servo Motor 140W 36V 0.45N.m 5.4A 3 Phase 3000RPM 57 x 57mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor 140W 36V 0.45N.m 5.4A 3 Phase 3000RPM 57 x 57mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor 140W 36V 0.45N.m 5.4A 3 Phase 3000RPM 57 x 57mm")
.jpg "JMC Nema 23 Integrated AC Servo Motor 140W 36V 0.45N.m 5.4A 3 Phase 3000RPM 57 x 57mm")

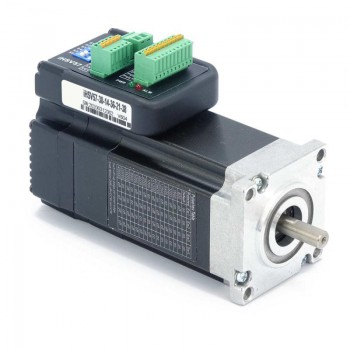

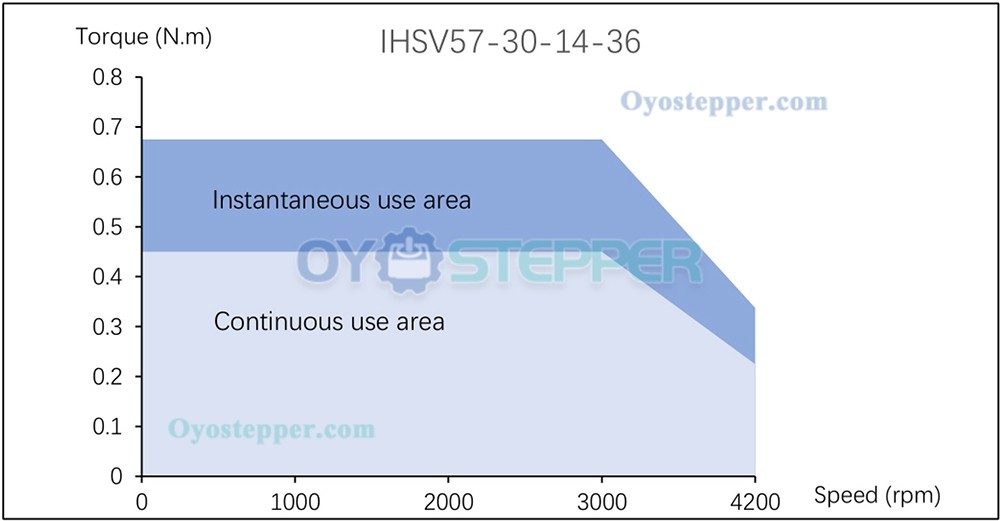

Torque diagram:
| Servo Motor Specification | |
|---|---|
| Rated Voltage | 36 |
| Rated Current | 0.55 |
| No-load Speed | 4200 |
| Number of Phase | 3 Phase |
| Rated Power(W) | 140 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 0.45 |
| With Brake | Without brake |
| Physical Specification | |
| D-cut Length | 27 |
| Body Length(mm) | 128 |
| Frame Size(mm) | 57 x 57 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 33 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
