RV040 Round Worm Gearbox Speed Reducer Ratio 5:1 10:1 20:1 30:1 40:1 Input 14mm 71B14/71B5

RV040 Round Worm Gearbox Speed Reducer Ratio 5:1 10:1 20:1 30:1 40:1 Input 14mm 71B14/71B5

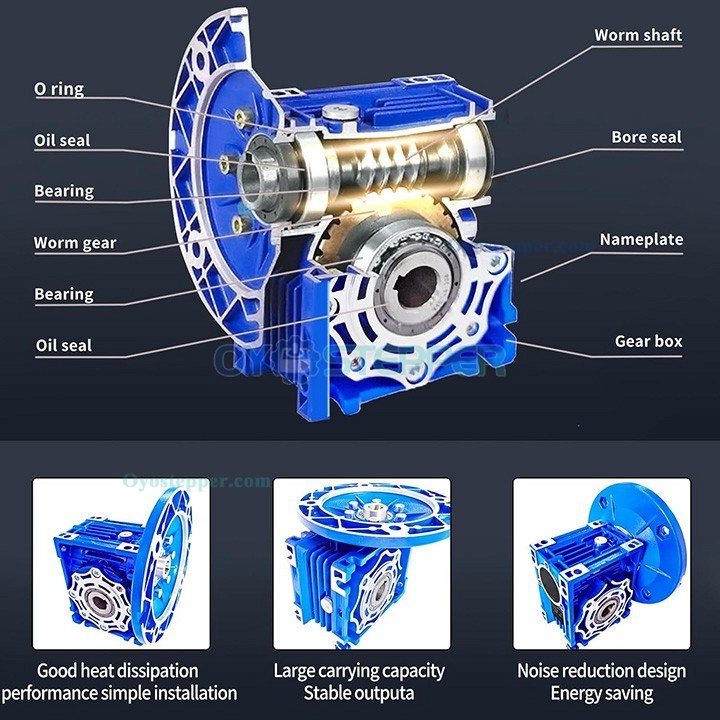

Features:

Housing material: aluminum alloy;

Internal metal gears;

Integrated transmission structure, no external chain or belt required;

Protection rating: IP55 (dustproof and water‑resistant);

Compatible with various mounting accessories.

Applications:

Gearboxes are commonly used in applications such as automotive, robotics, heavy machinery, wind turbines, and manufacturing equipment to support speed reduction and torque increase where needed.

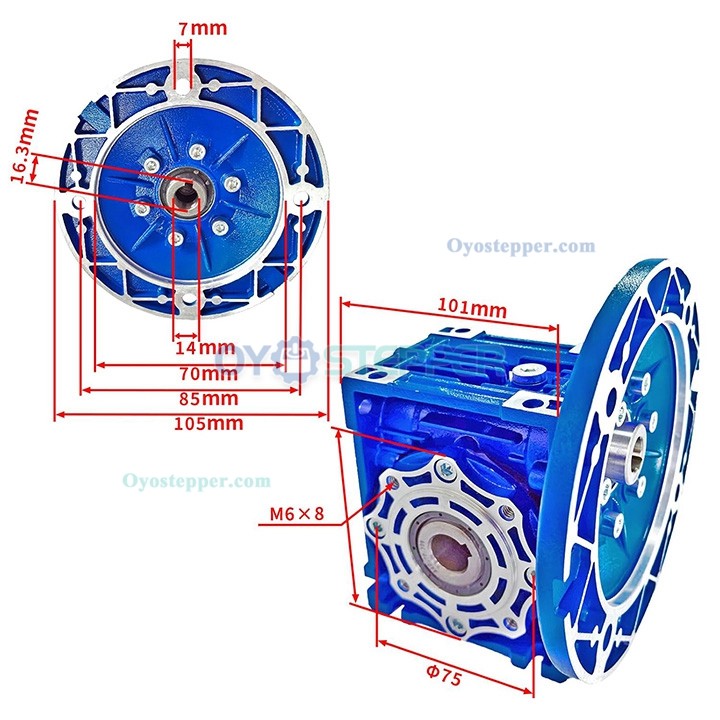

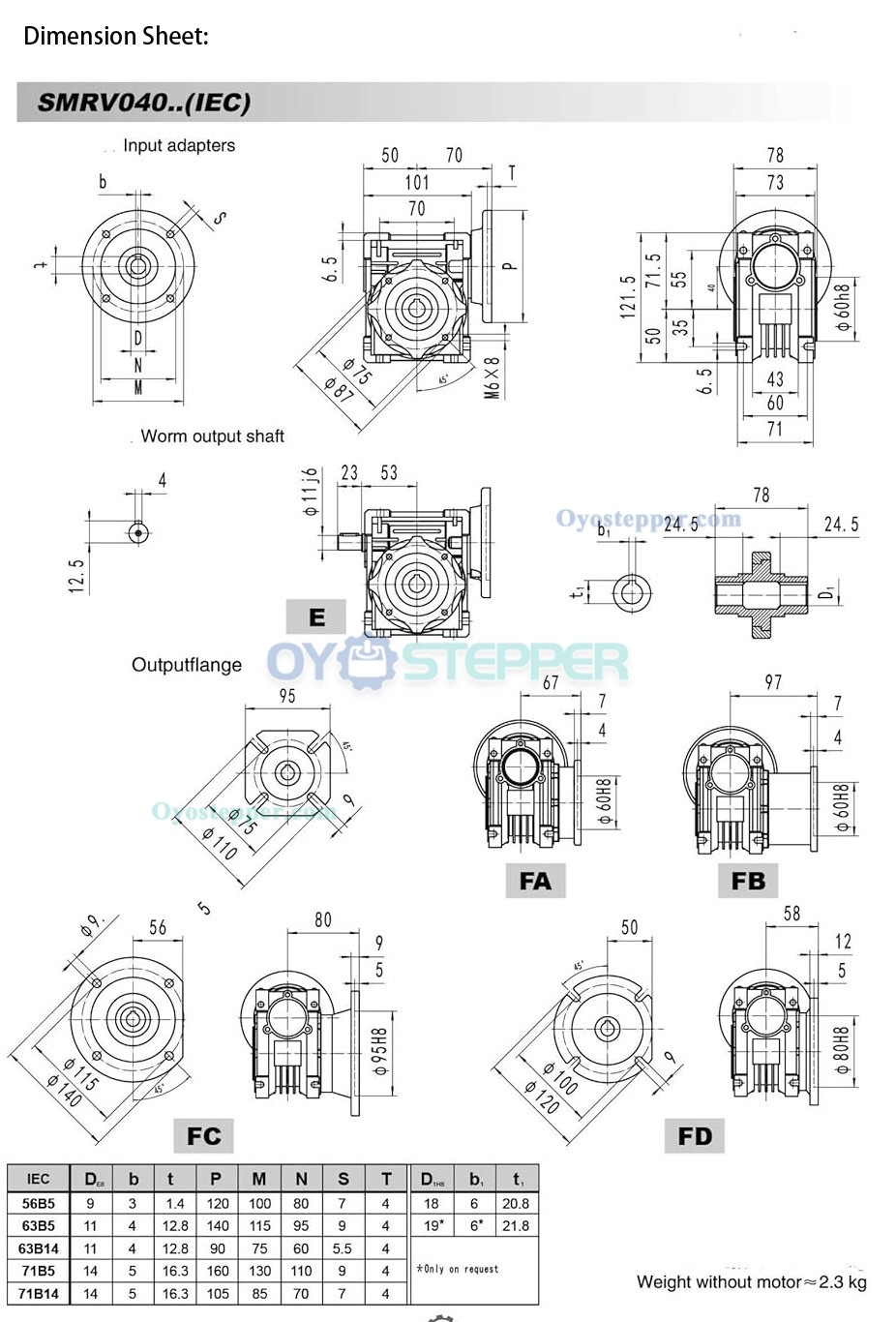

Specifications:

Model: NMRV040

Input Flange Model:71B14/71B5

Flange Shape:Round

Input bore diameter: 14mm

Output bore diameter: 18mm

Reduction ratio: 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1

Reducer can be positive and reverse operation.

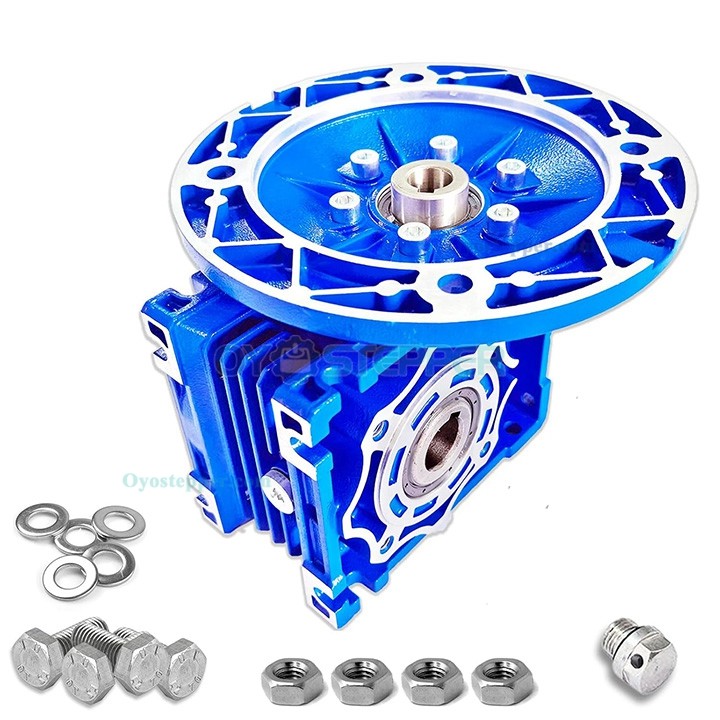

Package included:

1x Gearbox Speed Reducer;
