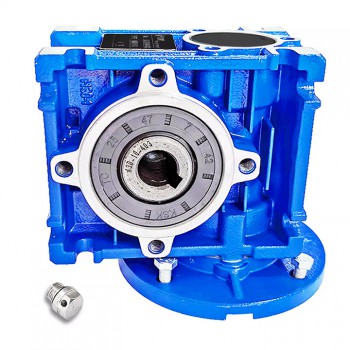

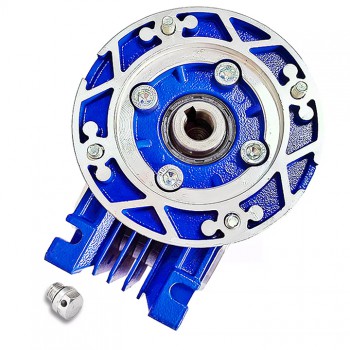

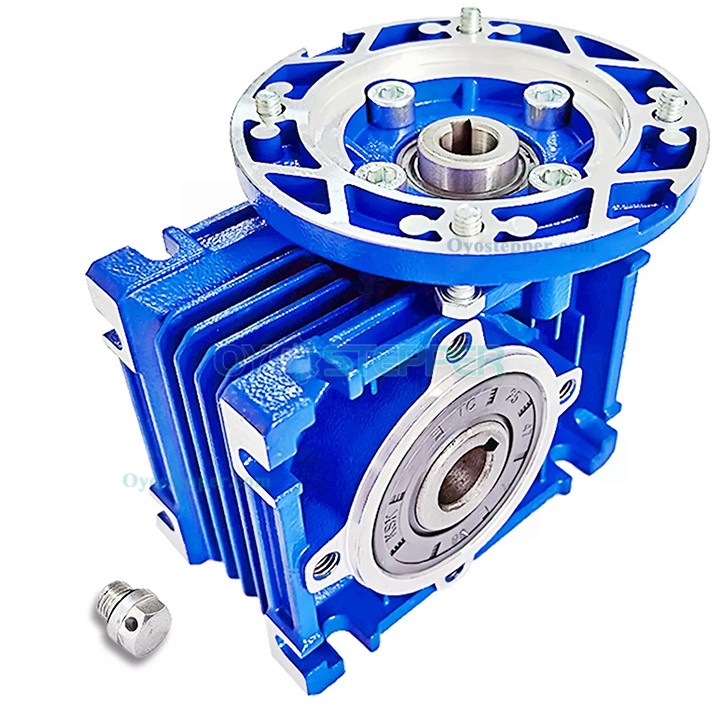

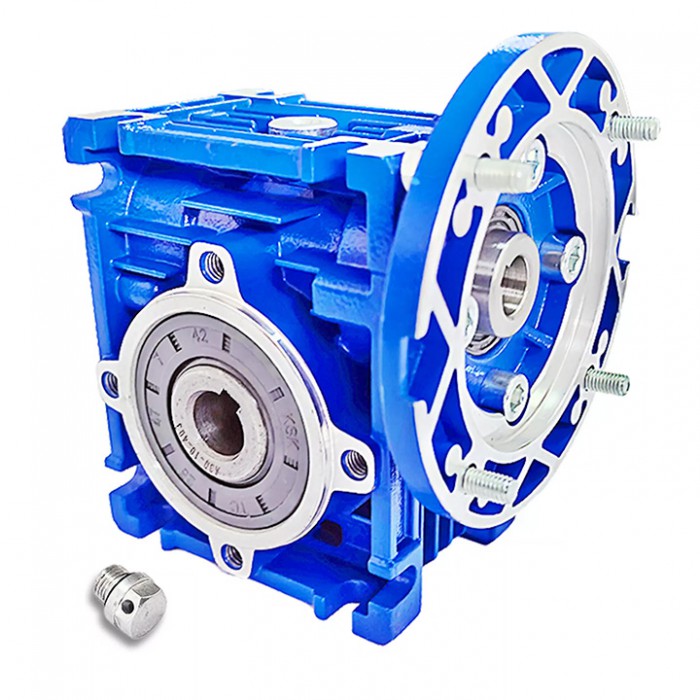

RV030 Round Worm Gearbox Speed Reducer Ratio 5:1 10:1 20:1 30:1 40:1 50:1 :60:1 80:1 Input 11mm B14/B5

RV030 Round Worm Gearbox Speed Reducer Ratio 5:1 10:1 20:1 30:1 40:1 50:1 :60:1 80:1 Input 11mm B14/B5

Features:

Housing material: aluminum alloy;

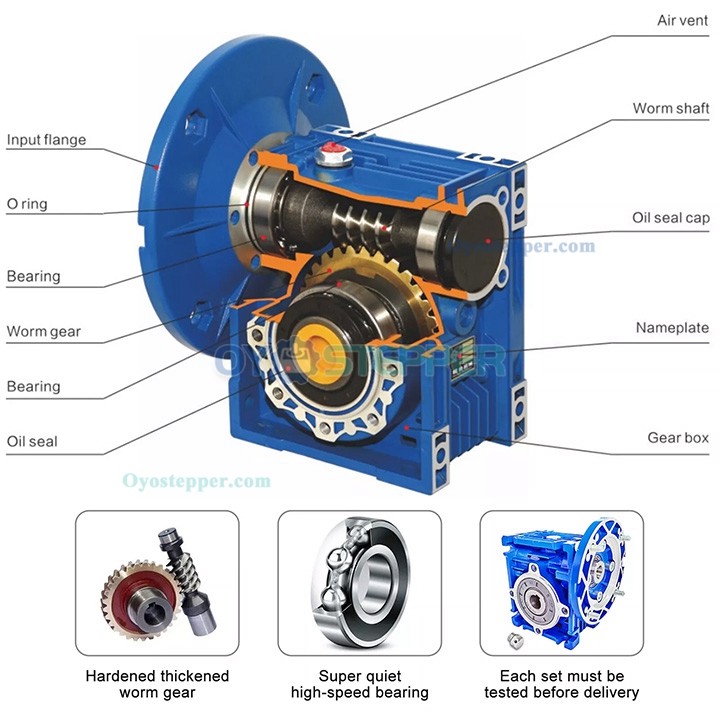

Internal metal gears;

Integrated transmission structure, no external chain or belt required;

Protection rating: IP55 (dustproof and water‑resistant);

Compact and lightweight design;

Compatible with various mounting accessories;

Specifications:

Model: NMRV030

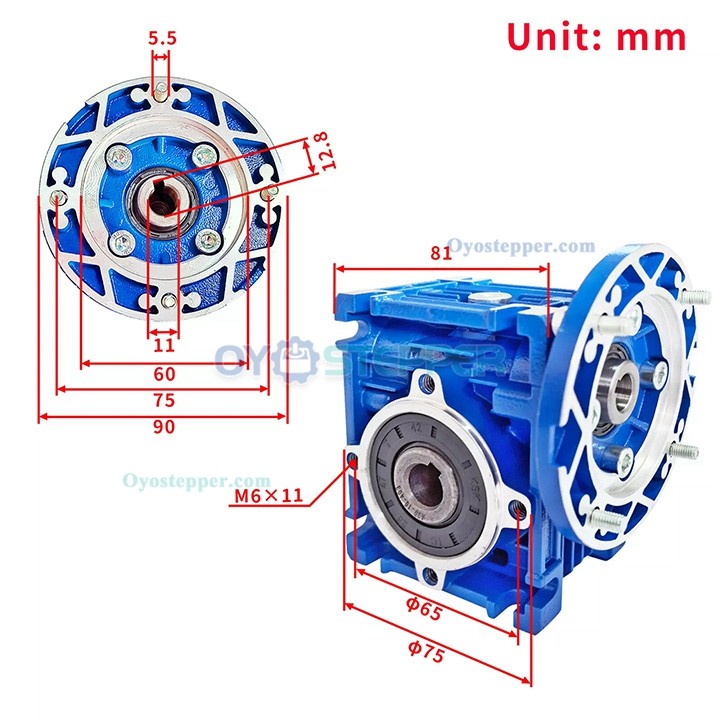

Input Flange Model:B14/B5(B5 is larger in size than B14)

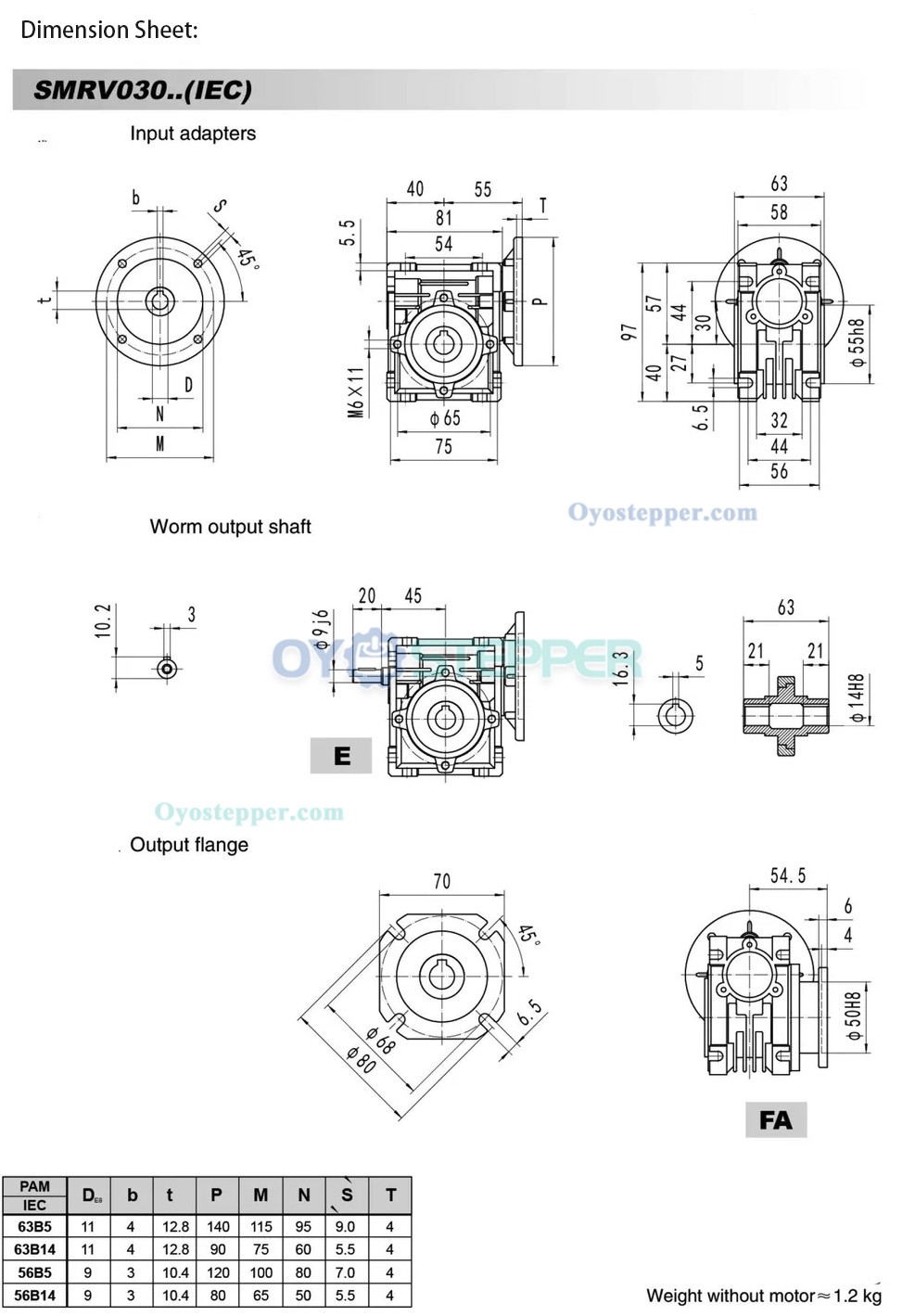

B14:60*75*90(N*M*P)/B5:95*115*140(N*M*P)

Flange Shape:Round

Input power: 0.06KW to 0.18KW

From speed: 18~240rpm

Input bore diameter: 11mm

Output bore diameter: 14mm

Reduction ratio: 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1

Reducer can be positive and reverse operation.

Application:Stepper Motor/AC Motor;

Package included:

1x Gearbox Speed Reducer;
