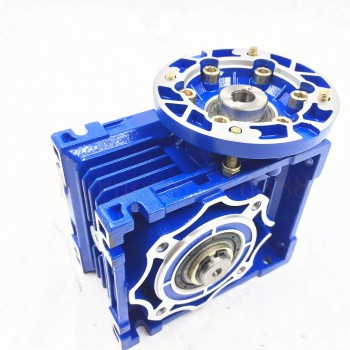

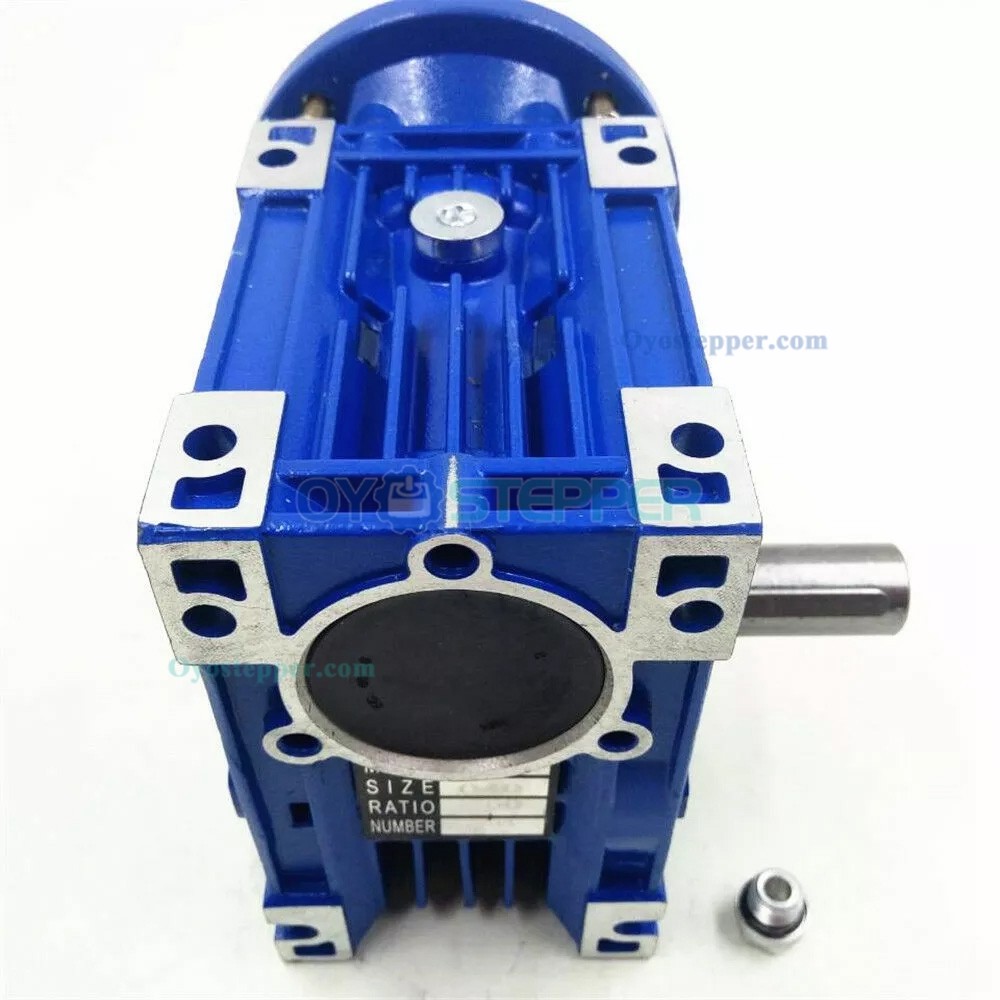

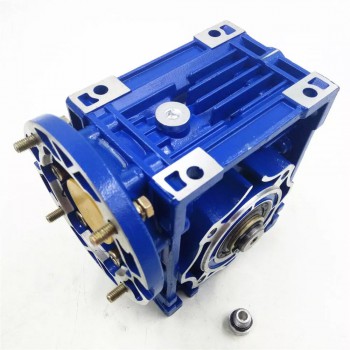

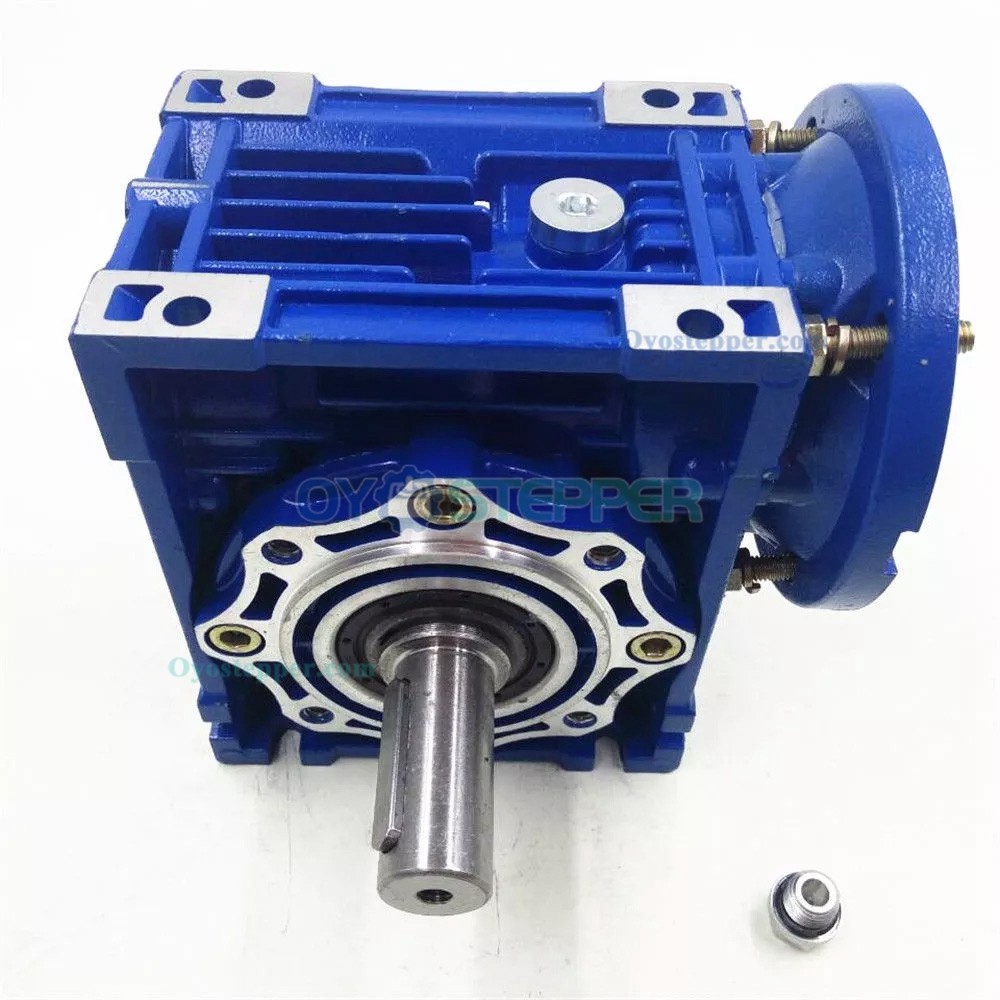

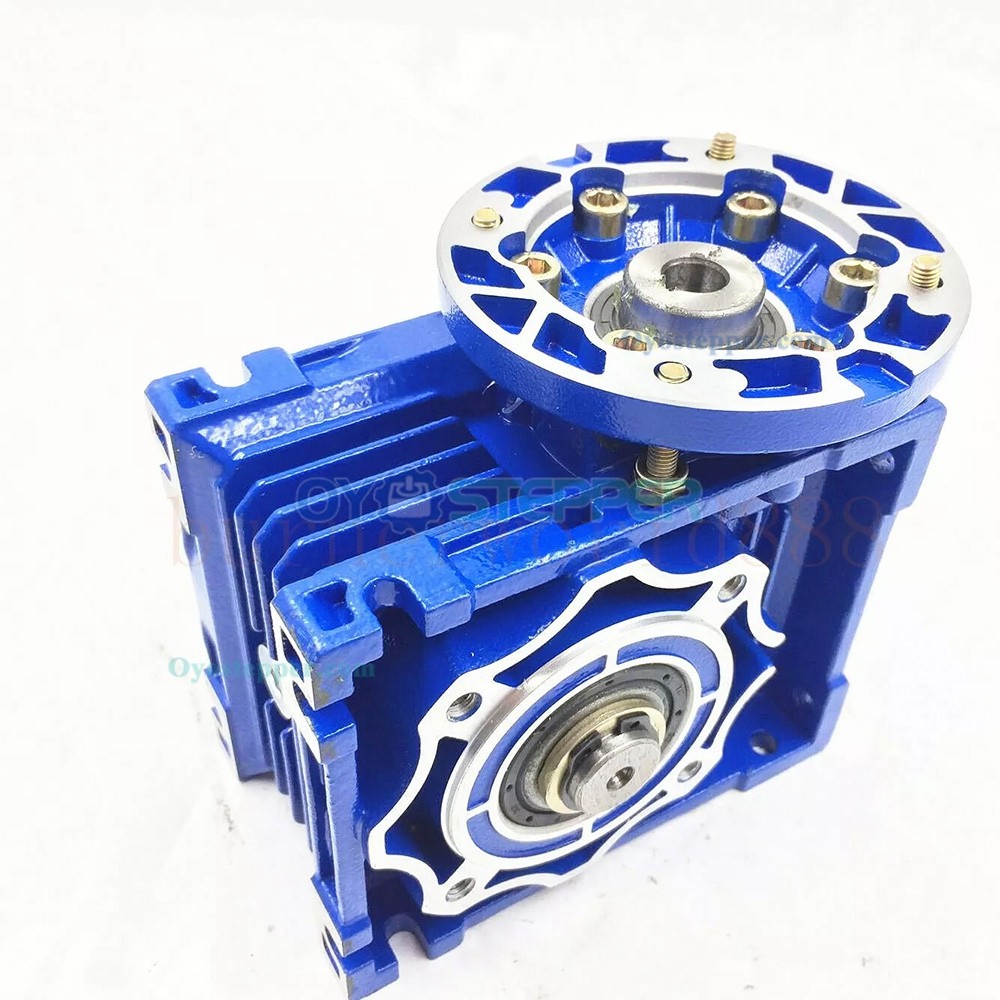

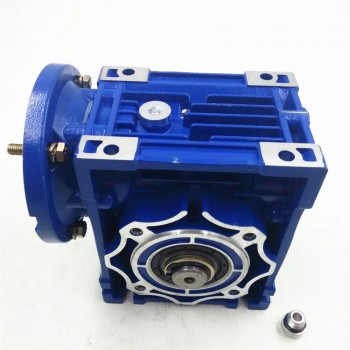

NMRV050 80B14 Worm Gearbox Speed Reducer Gear Ratio 10:1/15:1/20:1/25:1/30:1/50:1/60:1/80:1/100:1 Input 19mm

NMRV050 80B14 Worm Gearbox Speed Reducer Gear Ratio 10:1/15:1/20:1/25:1/30:1/50:1/60:1/80:1/100:1 Input 19mm

Specifications:

Model Number: NMRV050-10-80B14

Continuous Current(A): Acording to the motor

Construction: Permanent Magnet

Type: Worm Gearbox Speed Reducer

Protect Feature: Drip-proof

Commutation: Brush

Certification: CE

Input Bore Size: 19mm

Output hole diameter: 25mm

Output Bore Size:25mm

Speed ratio: 5:1 , 7.5:1 , 10:1 , 15:1 , 20:1 , 25:1 , 30:1 , 40:1 , 50:1 , 60:1 , 80:1 , 100:1

Input Flange Model: 80B14

Input speed:1400r/min (Matched with 4 poles motor)

Application: Fit for Servo Motor /Stepper Motor;

Please choose the correct gear ratio you need, Or you can tell us what kind of gearbox you need. Such as:

1.Motor Drawing

2.Speed Ratio

3.Input/Output Bore(C)

4.Input Square Flange Length (A)

5.Distane of Diagonal Screw(D)

6.Rabbet (B);

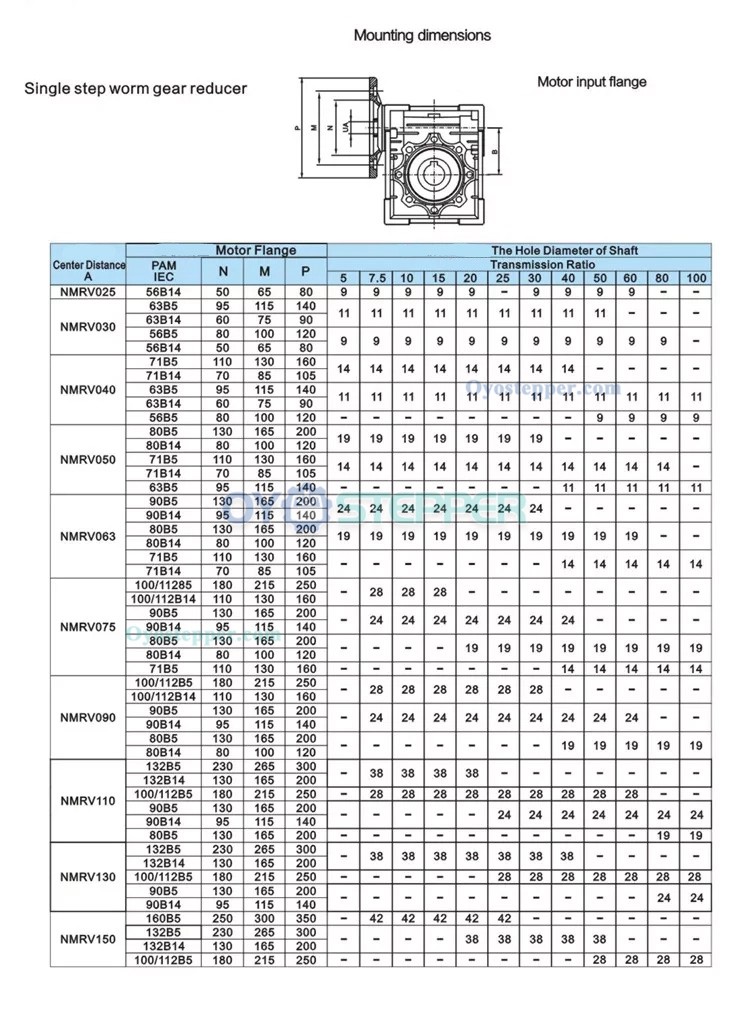

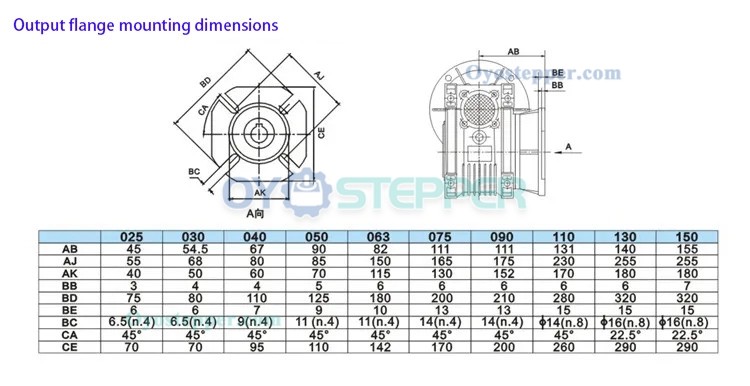

NMRV050 Mounting Dimensions:
