RV050 Round Worm Gearbox Speed Reducer Ratio 5:1 10:1 15:1 20:1 30:1Input 19mm 80B14/80B5

RV050 Round Worm Gearbox Speed Reducer Ratio 5:1 10:1 15:1 20:1 30:1Input 19mm 80B14/80B5

Features:

Housing material: aluminum alloy

Internal metal gears;

Integrated transmission structure, no external chain or belt required;

Protection rating: IP55 (dustproof and water‑resistant);

Compatible with various mounting accessories.

Applications:

Gearboxes are commonly used in applications such as automotive, robotics, heavy machinery, wind turbines, and manufacturing equipment to support speed reduction and torque increase where needed.

Specifications:

Model: RV050

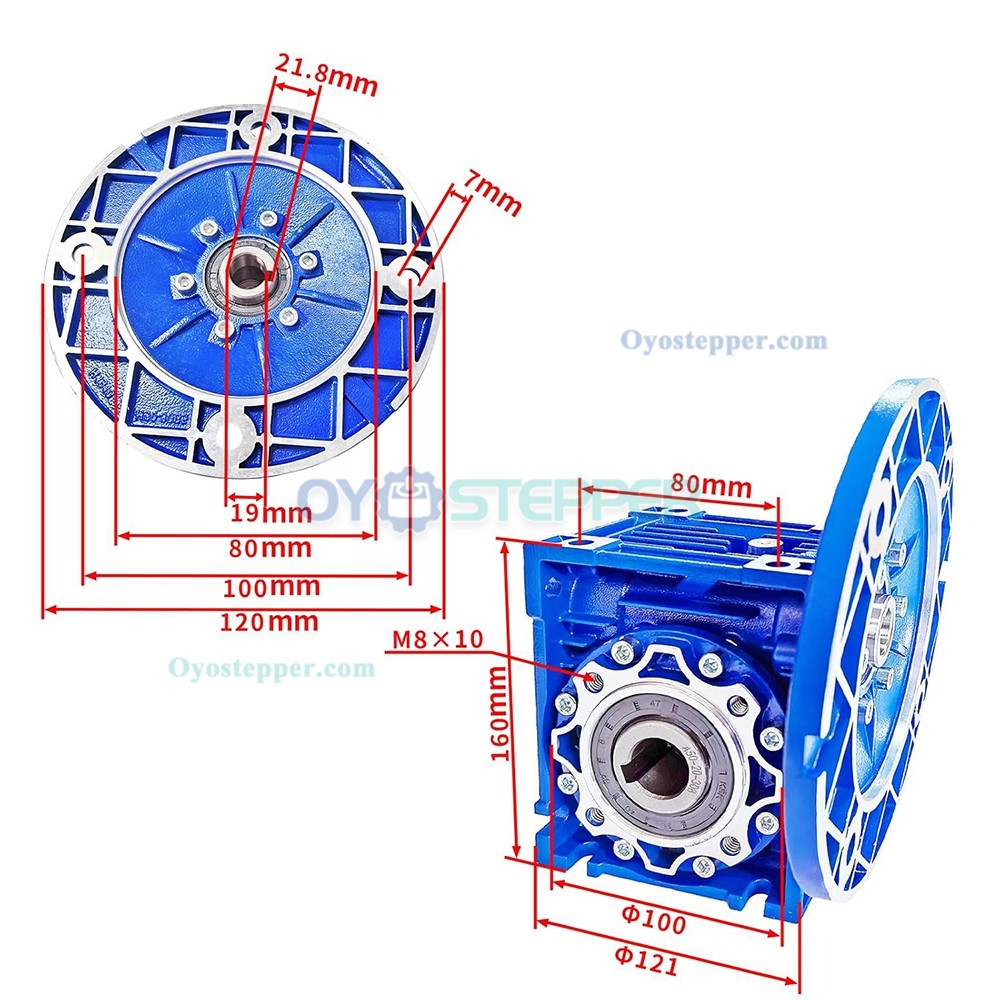

Input Flange Model:80B14/80B5

Flange Shape:Round

Input bore diameter:19mm

Output bore diameter:25mm

Reduction ratio: 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1

Reducer can be positive and reverse operation.

Weight:3.5kg;

Package included:

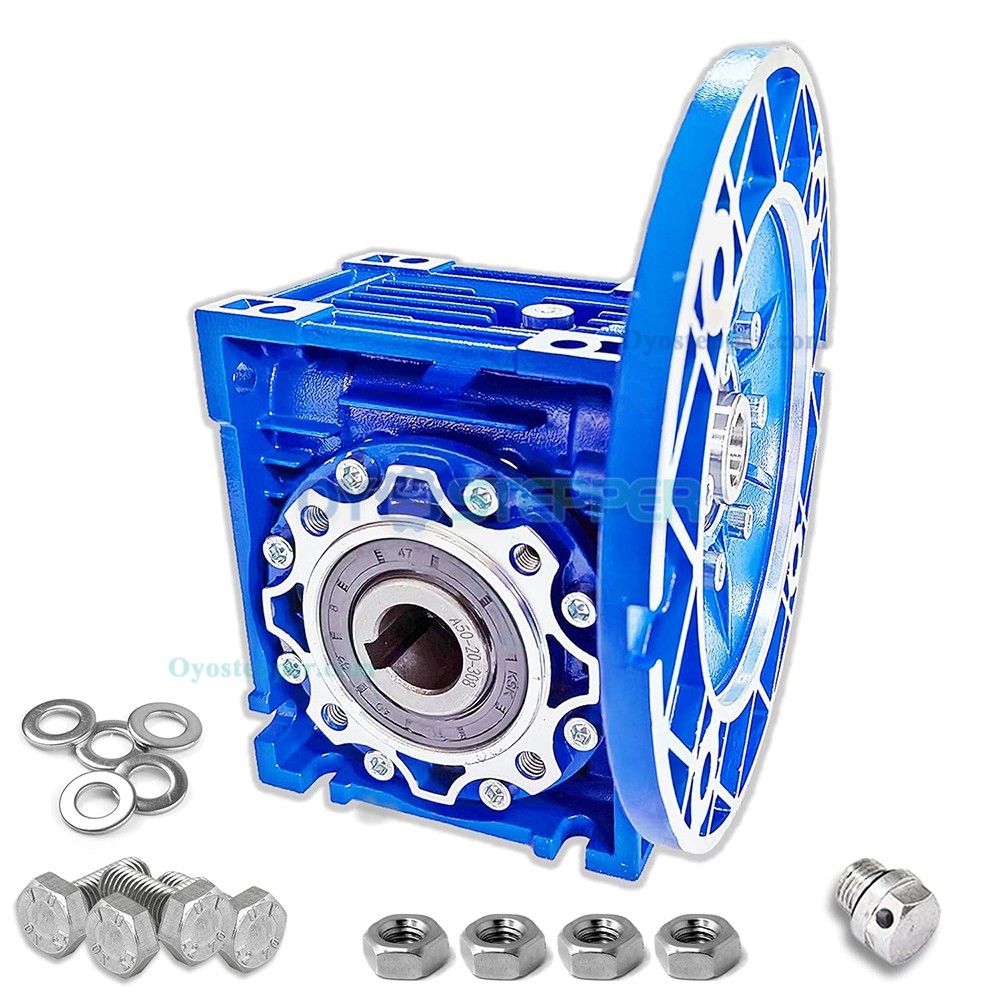

1x Gearbox Speed Reducer;
