Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 3.0Nm(425oz.in) 4.2A 3.78V 4 Wires

Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 3.0Nm(425oz.in) 4.2A 3.78V 4 Wires
NO.:23LS22-2004N-150T
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$52.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $49.56 5%
10 $48.52 7%
50 $46.95 10%
100 $45.39 13%
Add To Cart

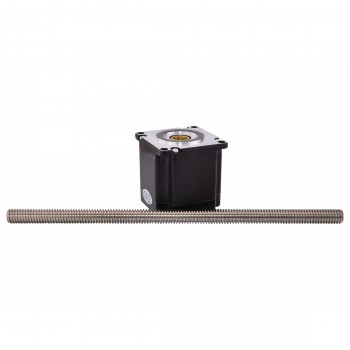

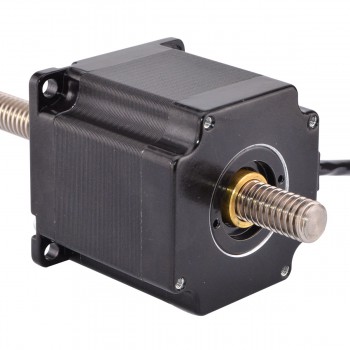

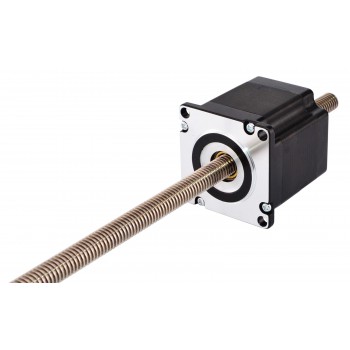

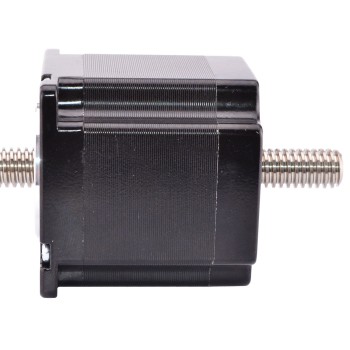

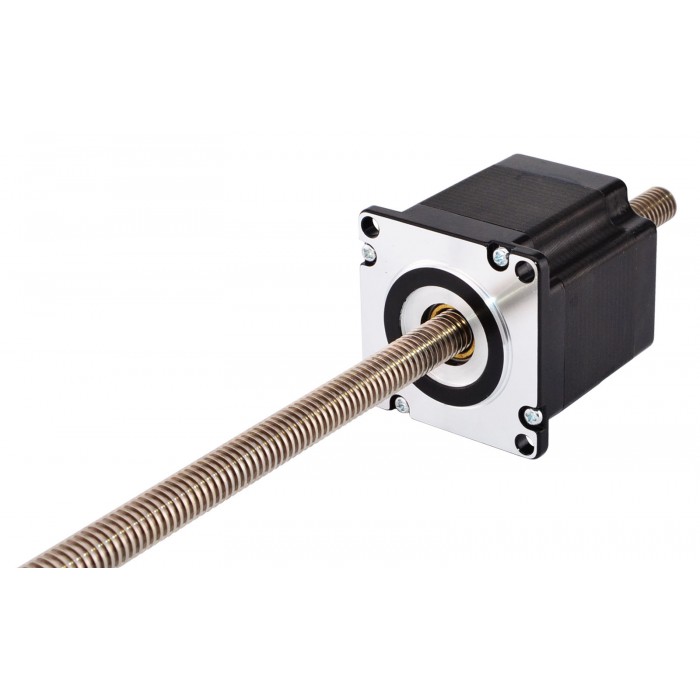

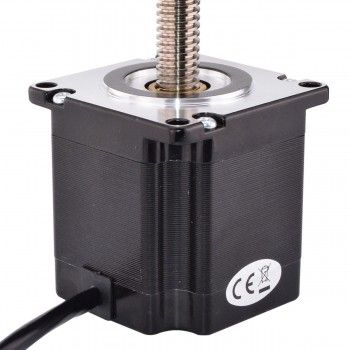

This model is economy linear stepper motor which named Nema 23 non-captive linear actuator, it was composed of 56mm 2A Nema 23 stepper motor and 150mm length Tr11x2 linear screw.

Electrical Specification

Manufacturer Part Number: 23LS22-2004N-150T

Motor Type: Bipolar Stepper

Holding Torque: 1.2Nm

Rated Current/phase: 2.0A

Phase Resistance: 3.6ohms

Voltage: 7.2V

Inductance: 12mH ± 20%(1KHz)



Physical Specification

Frame Size: 57 x 57mm

Motor Length: 56mm

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ11mm(0.433")

Lead /Step: 0.01mm(0.0003937" )

Lead/Revolution: 2mm(0.0787")

Number of Leads: 4

Lead Length: 500mm

Weight : 650g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 23LS22-2004N-150T.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.2Nm 2A 7.2V 4 Wires
Next: Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 2A 7.2V Lead Screw 200mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 120
Holding Torque (oz.in) 170
Inductance(mH) 12
Motor Type Non-Captive
Phase Resistance(ohm) 3.6
Rated Current (A) 2
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 56
Lead Screw Diameter(mm) 11
Lead Screw Length(mm) 150
Lead Revolution(mm) 2
Linear Travel / Step(mm) 0.01
No. of Lead 4
Lead Length(mm) 500
Frame Size(mm) Nema 23 (57 x 57)
