Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 0.7Nm 2.0A 3.26V Lead Lead Revolution Screw 300mm
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$59.63

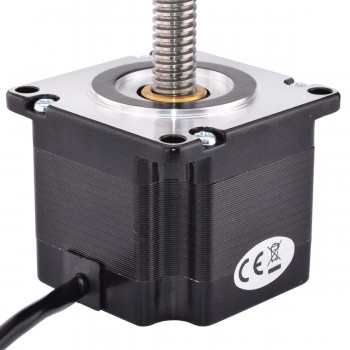

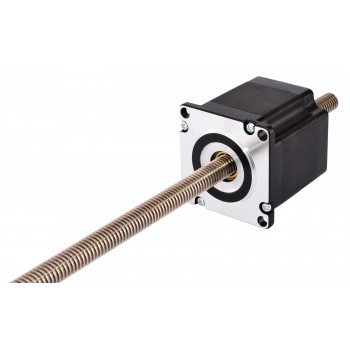

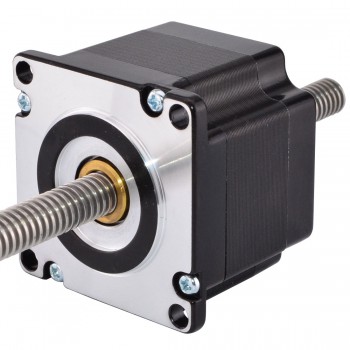

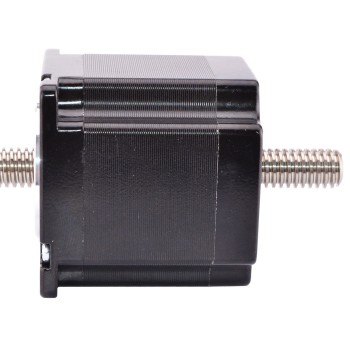

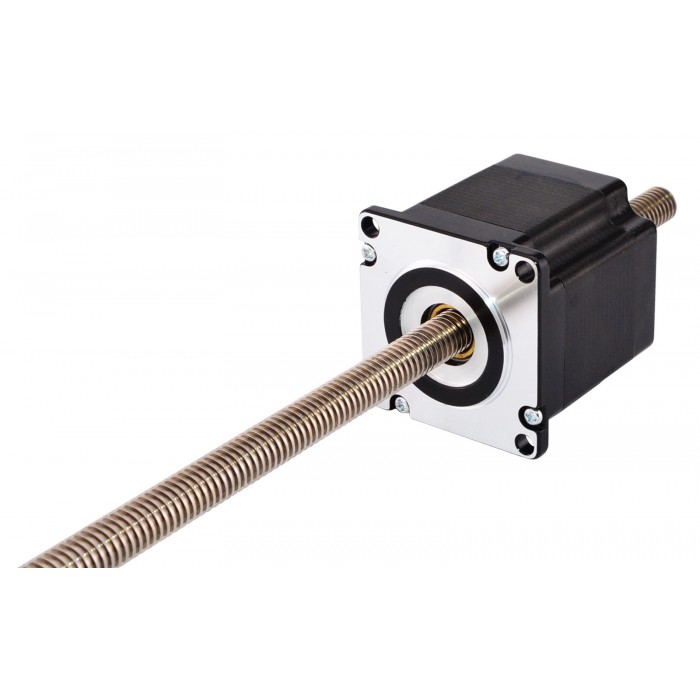

This model is economy linear stepper motor which named Nema 23 non-captive linear actuator, it was composed of 45mm 2A Nema 23 stepper motor and 300mm length Tr10x2 linear screw.
Electrical Specification
- Manufacturer Part Number: 23LS18-2004N-300N
- Motor Type: Bipolar Stepper
- Holding Torque: 0.7Nm
- Rated Current/phase: 2.0A
- Phase Resistance: 1.63ohms
- Voltage: 3.26V
- Inductance: 5.8mH ± 20%(1KHz)
Physical Specification
- Frame Size: 57 x 57mm
- Motor Length: 45mm
- Lead Screw Length: 300mm（11.811"）
- Lead Screw Diameter: Φ10mm（0.3937"）
- Lead /Step: 0.01mm(0.0003937" )
- Lead/Revolution: 2mm（0.0787"）
- Number of Leads: 4
- Lead Length: 500mm
- Weight : 650g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 23LS18-2004N-300N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 70 |
| Holding Torque (oz.in) | 99 |
| Inductance(mH) | 5.8 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 1.63 |
| Rated Current (A) | 2 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 45 |
| Lead Screw Diameter(mm) | 10 |
| Lead Screw Length(mm) | 300 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Frame Size(mm) | Nema 23 (57 x 57) |
