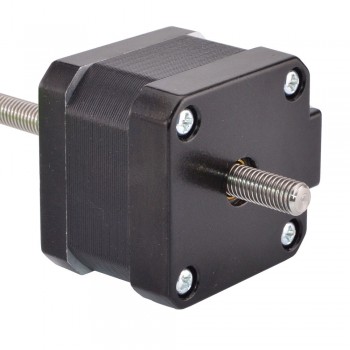

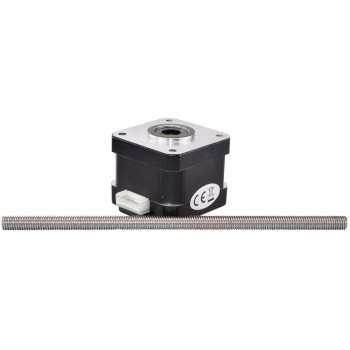

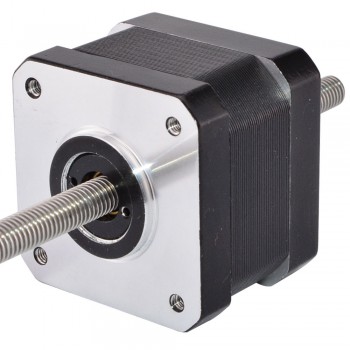

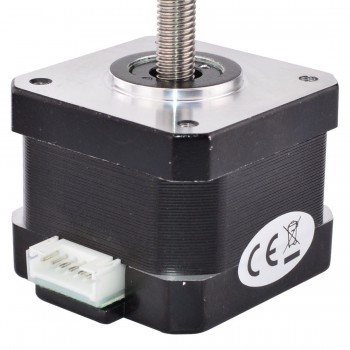

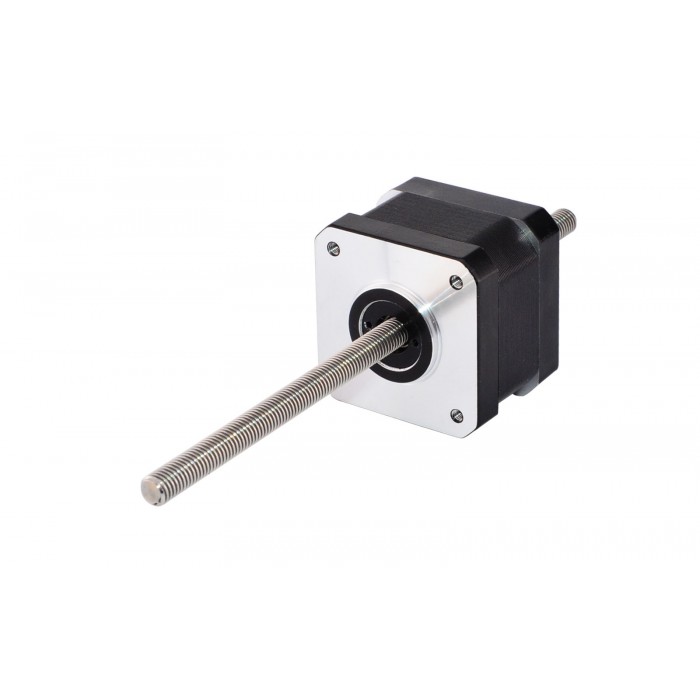

Nema 17 Non-captive Stepper Motor Linear Actuator 1.8 Deg 12V 26Ncm(36.8oz.in) 0.4A Lead Screw 150mm
- Manuals and Documentation: Full Datasheet:
Our Price:$34.45
This model is linear stepper motor which named Nema 17 non-captive linear actuator, it was composed of 34mm 1.8 degree 0.4A Nema 17 stepper motor and 150mm length Tr6.35x2 linear screw.
Electrical Specification
Manufacturer Part Number: 17LS13-0404N-150D
Motor Type: Non Captive Linear Stepper
Step Angle: 1.8 deg
Holding Torque: 26Ncm(36.8oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30ohms
Voltage: 12V
Inductance: 37mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead /Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Lead Length: 400mm
Weight: 400g
Connection
| A+ | A- | B+ | B- |
| Red | Gray | Yellow | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 26 |
| Holding Torque (oz.in) | 36.8 |
| Inductance(mH) | 37 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
| Frame Size(mm) | Nema 17 (42 x 42) |
