Nema 17 Non-captive 34mm Stack 0.84A Lead 2mm/0.07874" Length 200mm
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$37.12

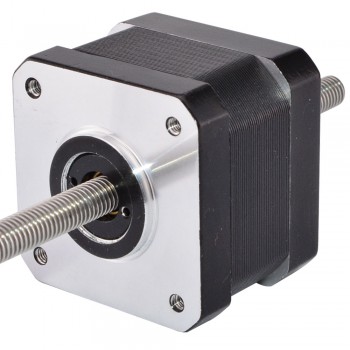

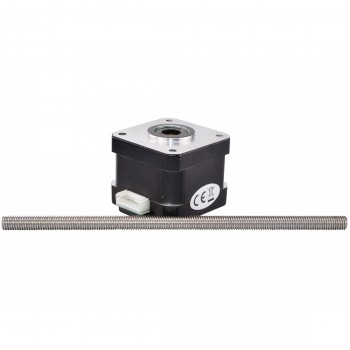

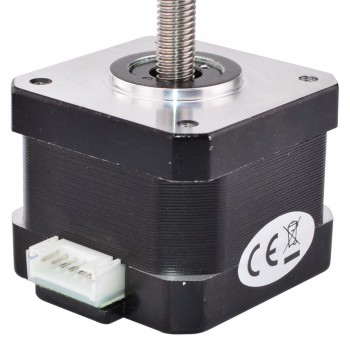

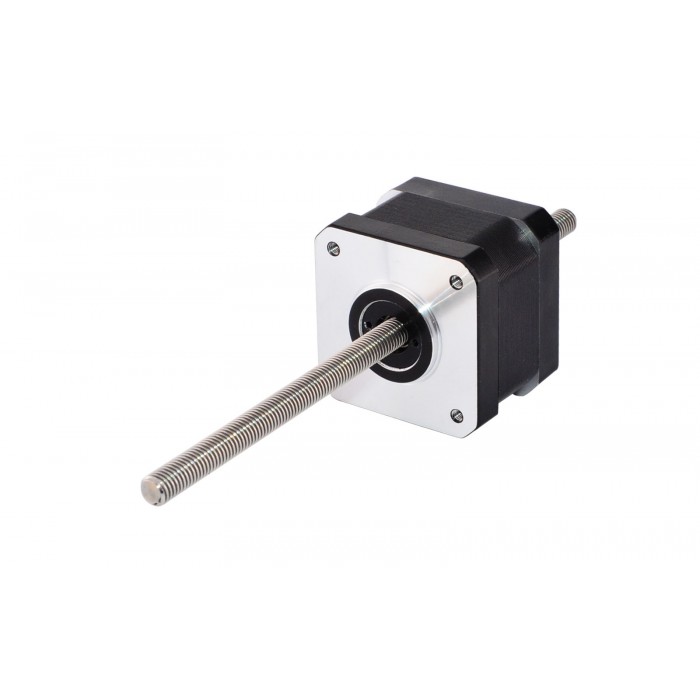

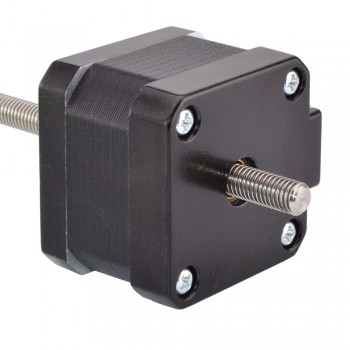

This model is economy linear stepper motor which named Nema 17 non-captive linear actuator, it was composed of 34mm 1.8 degree 0.84A Nema 17 stepper motor and 200mm length Tr6.35x2 linear screw.
Electrical Specification
- Manufacturer Part Number: 17LS13-0844N-200D
- Motor Type: Non Captive Linear Stepper
- Step Angle: 1.8 deg
- Holding Torque: 28Ncm(39.7oz.in)
- Rated Current/phase: 0.84A
- Phase Resistance: 5.75ohms
- Voltage: 4.83V
- Inductance: 9.3mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 34mm
- Lead Screw Length: 150mm（5.9055"）
- Lead Screw Diameter: Φ6.35mm（0.25"）
- Lead /Step: 0.01mm(0.0003937" )
- Lead/Revolution: 2mm（0.0787"）
- Number of Leads: 4
- Lead Length: 400mm
- Weight : 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Gray
|
Yellow
|
Green
|
Resources
- Full Datasheet: 17LS13-0844N-200D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 28 |
| Holding Torque (oz.in) | 39.7 |
| Inductance(mH) | 9.3 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 5.75 |
| Rated Current (A) | 0.84 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 42x42 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 200 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 400 |
