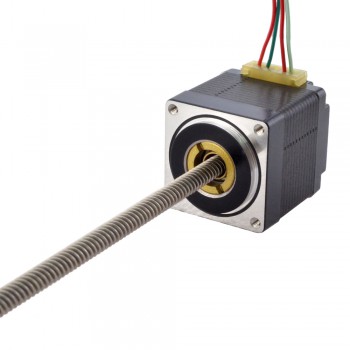

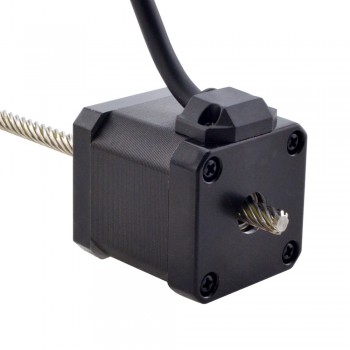

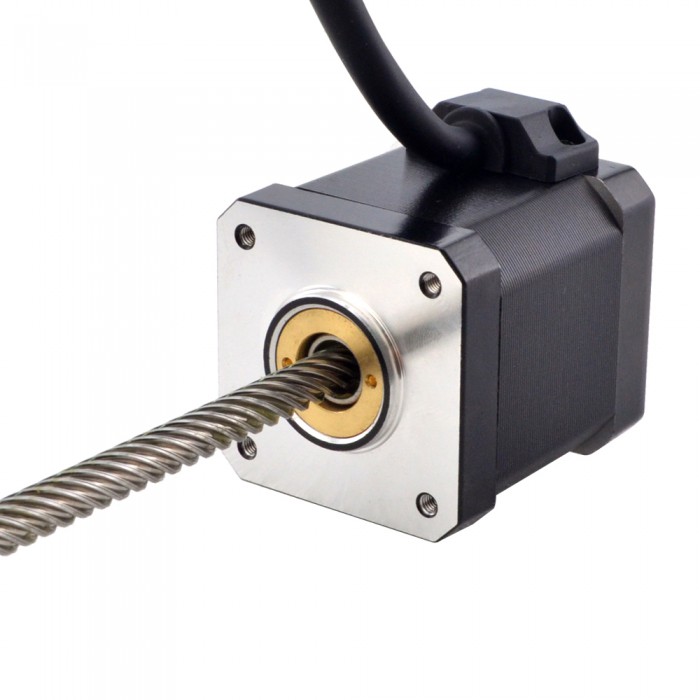

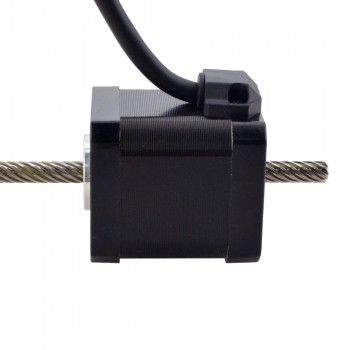

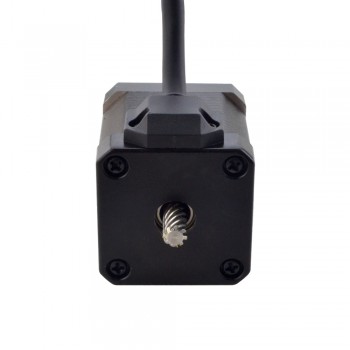

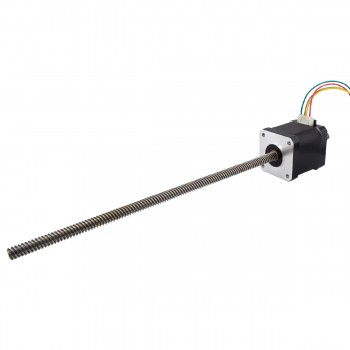

NEMA 17 Non-Captive Acme Hybrid Stepper Linear Actuator 2.5A 48mm Stack Screw Lead 25.4mm(1") Lead Length 200mm

NEMA 17 Non-Captive Acme Hybrid Stepper Linear Actuator 2.5A 48mm Stack Screw Lead 25.4mm(1") Lead Length 200mm
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$41.69
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $40.34 3%
10 $39.00 6%
50 $37.65 10%
100 $36.31 13%
Add To Cart

NEMA 17 Non-Captive Acme Linear Stepper Motor 2.5A 48mm Stack Screw Lead 25.4mm(1") Lead Length 200mm


This model is a Nema 17 Non-Captive screw linear stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 200mm(7.8740") lead screw length and a POM screw nut, the linear travel is 25.4mm(1") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.


Electrical Specification

Manufacturer Part Number: 17N19S2504YF5-200RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 0.5Nm(70.82oz.in)

Rated Current/phase: 2.5A

Phase Resistance: 0.8ohms

Inductance: 1.8mH±20%(1KHz)


Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

Lead Screw Length: 200mm(7.8740")

Lead Screw Diameter: Φ6.35mm(0.25")

Lead/Step: 0.127mm(0.005")

Lead Travel/Revolution: 25.4mm(1")

Number of Leads: 4

Number of Thread Starts: 8

Lead Length: 500mm



A+ A- B+ B-
Red Red/White Green Green/White

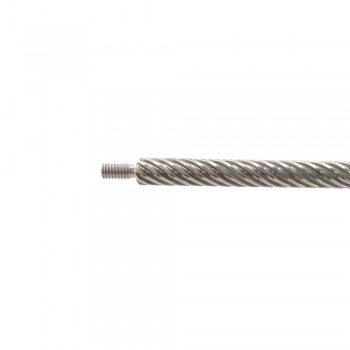

Lead Screw End Machining


Anti-Backlash Nut


OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.




According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.




Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.


Wiring, Cabling and Connectors


Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings


Teflon Coated Screw


If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 17 Non-Captive Acme Hybrid Stepper Linear Actuator 2.5A 48mm Stack Screw Lead 12.7mm(0.5") Lead Length 200mm
Next: NEMA 17 Non-Captive Acme Stepper Motor Linear Actuator 2.5A 48mm Stack Screw Lead 6.35mm(0.25") Lead Length 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1.8
Phase Resistance(ohm) 0.8
Rated Current (A) 2.5
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 25.4
Lead Travel/Step(mm) 0.127
IP Rating 40
