Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 1.2Nm 2A 7.2V Lead Screw 300mm

Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 1.2Nm 2A 7.2V Lead Screw 300mm
NO.:23LS22-2004N-300T
Post a review
Special Offer in September 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till September 28th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$56.39
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $53.57 5%
10 $52.44 7%
50 $50.75 10%
100 $49.06 13%
Add To Cart

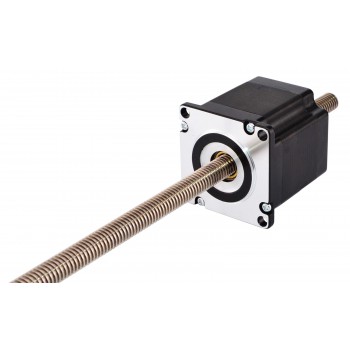

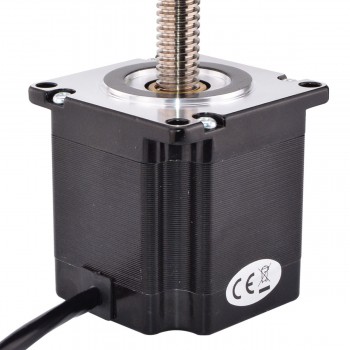

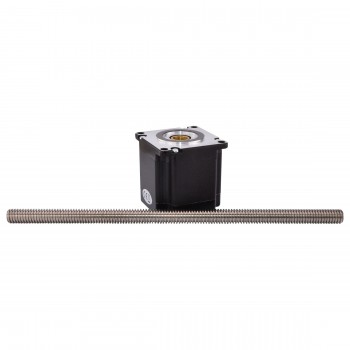

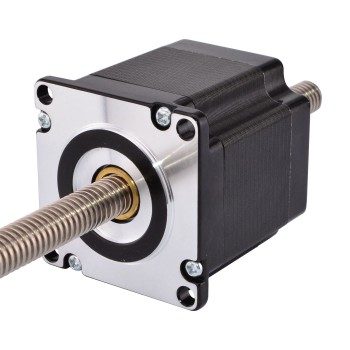

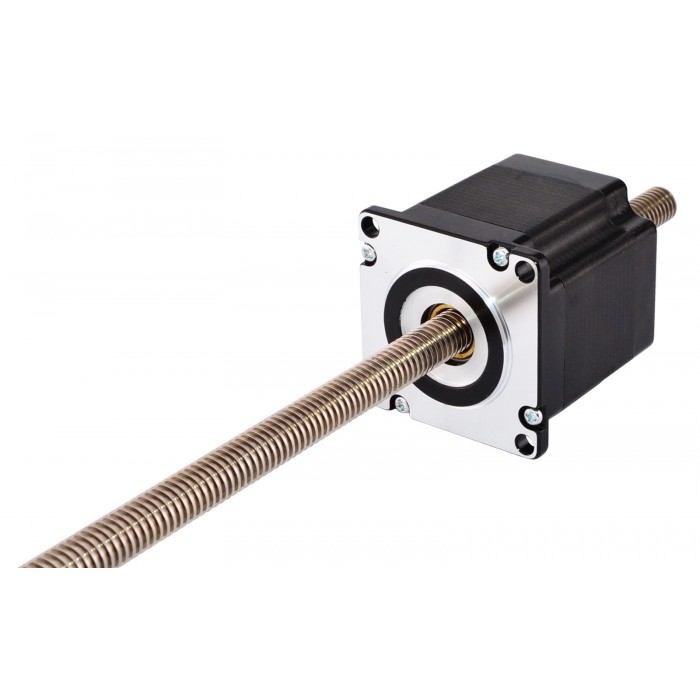

This model is economy linear stepper motor which named Nema 23 non-captive linear actuator, it was composed of 56mm 2A Nema 23 stepper motor and 300mm length Tr11x2 linear screw.

Electrical Specification

  • Manufacturer Part Number: 23LS22-2004N-300T
  • Motor Type: Bipolar Stepper
  • Holding Torque: 1.2Nm
  • Rated Current/phase: 2.0A
  • Phase Resistance: 3.6ohms
  • Voltage: 7.2V
  • Inductance: 12mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Motor Length: 56mm
  • Lead Screw Length: 300mm(11.811")
  • Lead Screw Diameter: Φ11mm(0.433")
  • Lead /Step: 0.01mm(0.0003937" )
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight : 650g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 1.2Nm 2A 7.2V Lead Screw 250mm
Next: Nema 23 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg 2A 7.2V Lead Screw 355mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 120
Holding Torque (oz.in) 170
Inductance(mH) 12
Motor Type Non-Captive
Phase Resistance(ohm) 3.6
Rated Current (A) 2
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 56
Lead Screw Diameter(mm) 11
Lead Screw Length(mm) 300
Lead Revolution(mm) 2
Linear Travel / Step(mm) 0.01
No. of Lead 4
Lead Length(mm) 500
Frame Size(mm) Nema 23 (57 x 57)
