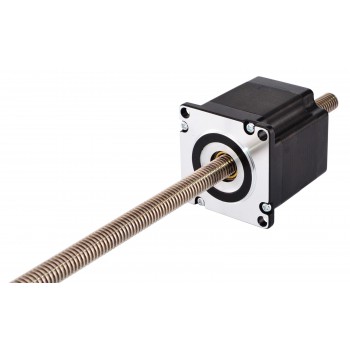

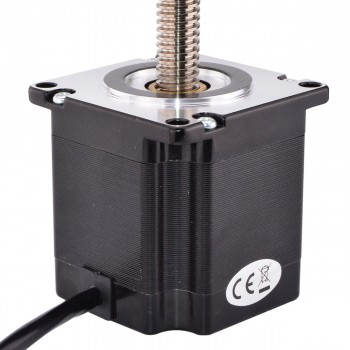

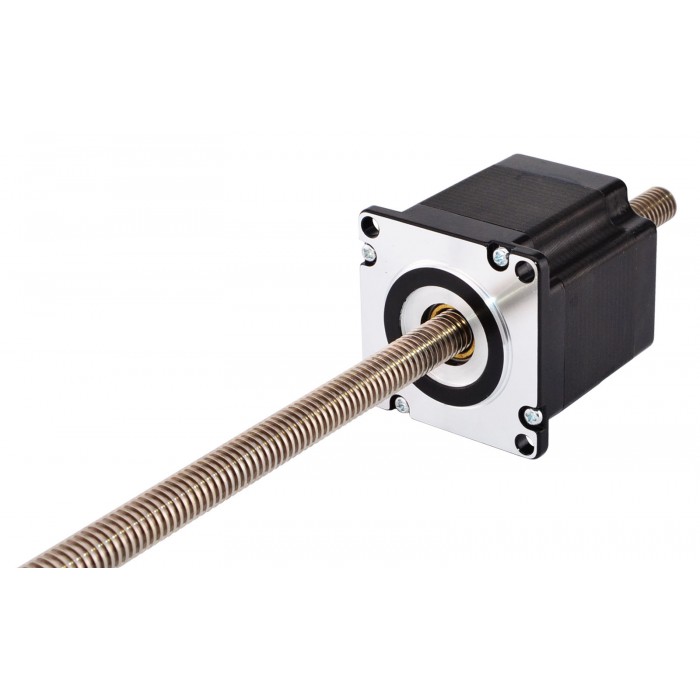

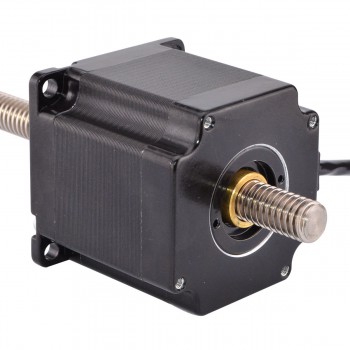

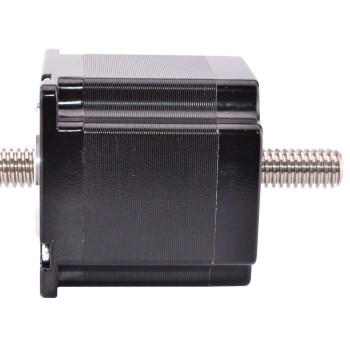

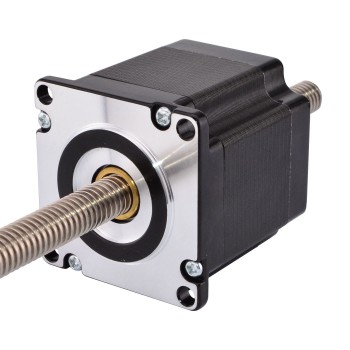

Nema 23 Non-captive 56mm Stack 2A Lead 2mm/0.07874" Length 400mm

NO.:SKU:23LS22-2004N-400T
Review: Post a review
Latest price:$60.86
Buy It Now:$46.81
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$45.51 $44.22 $42.91 $42.68
Add To Cart

This model is economy linear stepper motor which named Nema 23 non-captive linear actuator, it was composed of 56mm 2A Nema 23 stepper motor and 400mm length Tr11x2 linear screw.

Electrical Specification

  • Manufacturer Part Number: 23LS22-2004N-400T
  • Motor Type: Bipolar Stepper
  • Holding Torque: 1.2Nm
  • Rated Current/phase: 2.0A
  • Phase Resistance: 3.6ohms
  • Voltage: 7.2V
  • Inductance: 12mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Motor Length: 56mm
  • Lead Screw Length: 400mm(15.748")
  • Lead Screw Diameter: Φ11mm(0.433")
  • Lead /Step: 0.01mm(0.0003937" )
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight : 650g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 23 Non-captive 56mm Stack 2A Lead 2mm/0.07874" Length 355mm
Next: Nema 23 Non-captive 45mm Stack 2A Lead 2mm/0.07874" Length 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 120
Holding Torque (oz.in) 170
Inductance(mH) 12
Motor Type Non-Captive
Phase Resistance(ohm) 3.6
Rated Current (A) 2
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) 57x57
Lead Screw Diameter(mm) 11
Lead Screw Length(mm) 400
Lead Revolution(mm) 2
Linear Travel / Step(mm) 0.01
No. of Lead 4
Lead Length(mm) 500
