KDT-B-1000 Digital Automatic Constant Tension Controller for Magnetic Particle Brake / Clutch

KDT-B-1000 Digital Automatic Constant Tension Controller for Magnetic Particle Brake / Clutch

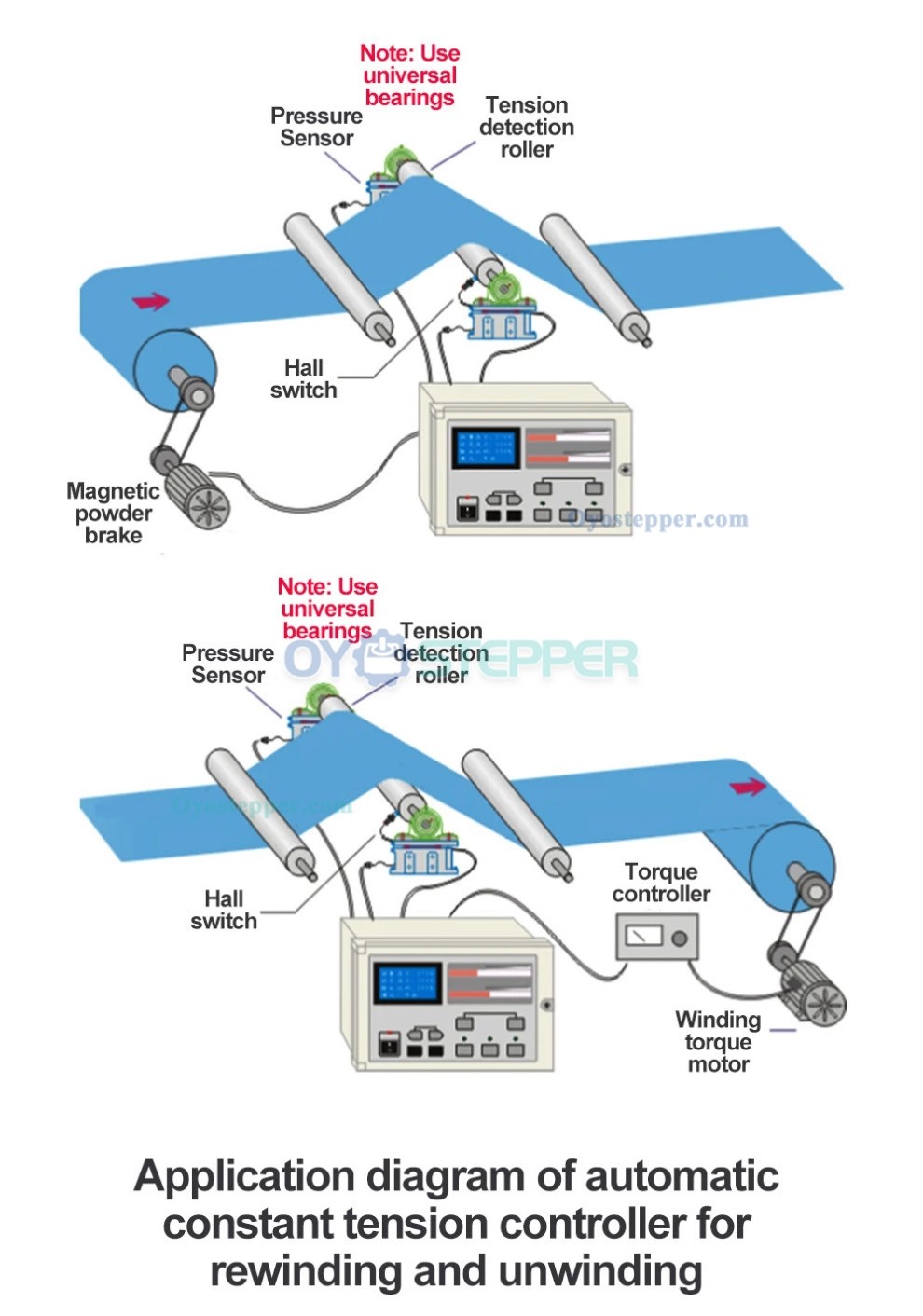

The KDT-B-1000 Automatic Tension Controller is a system designed for measuring and controlling tension in industrial applications, such as with magnetic powder brakes and clutches in machinery like printing presses. It consists of a tension detector, A/D and D/A converters, and a microcontroller for maintaining tension operation. It can be used in applications such as printing, slitting, coating, and laminating machinery.


Parameters:
Measuring range: 0-1000N
Measurement accuracy: less than 1N
Sampling speed: 100 milliseconds
Main output mode: DC 0-2A constant current output (adapted load impedance 8-12Ω)
Auxiliary output: DC 0-5V (MAX 10MA) analog signal output

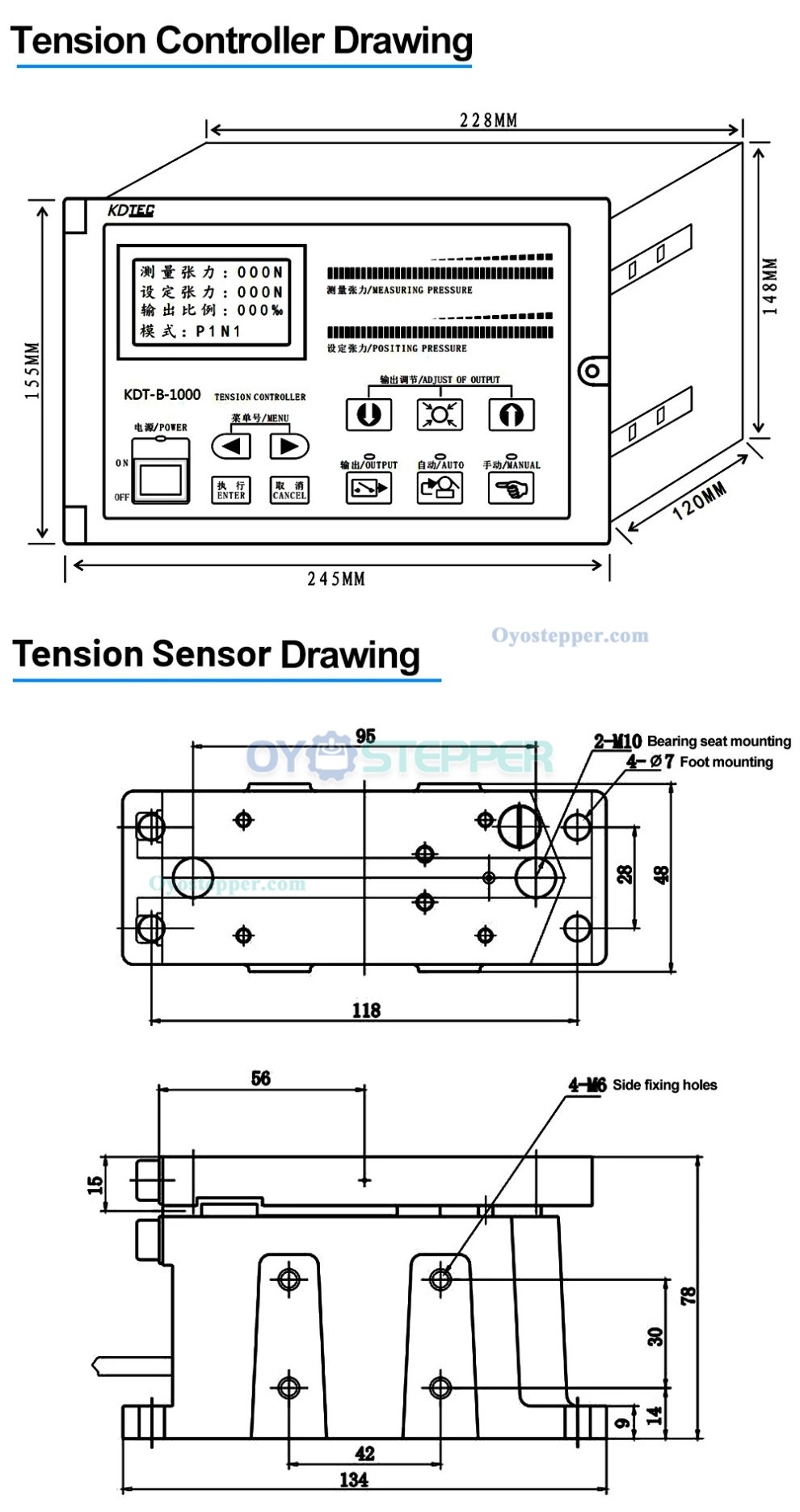

Dimensions: 245 × 155 × 140 (mm) (width × height × depth)
Installation size: 230 × 150 × 120 (mm) (width × height × depth)
Power source: AC 180-245V 50/60Hz



Tension Controller:

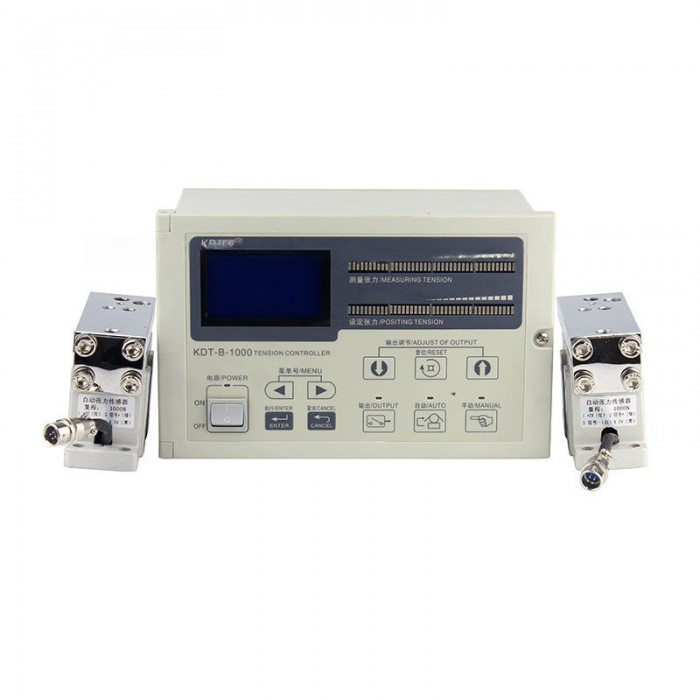

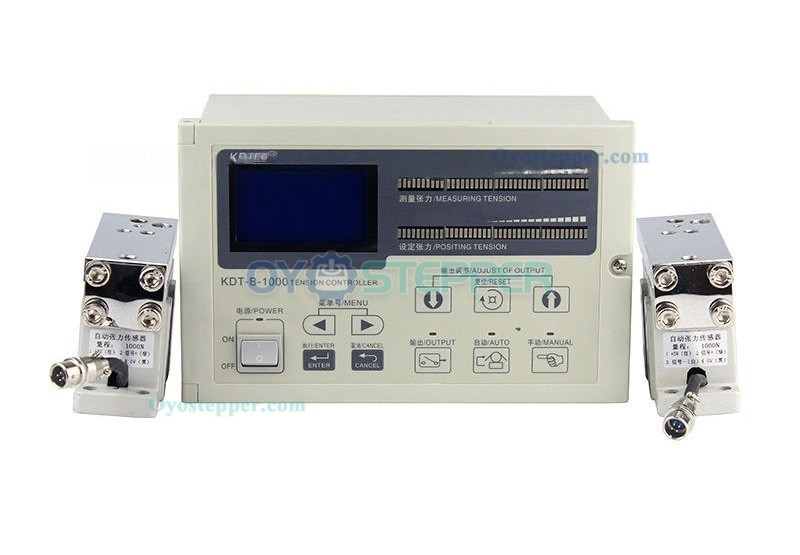

1X Fully automatic tension controller

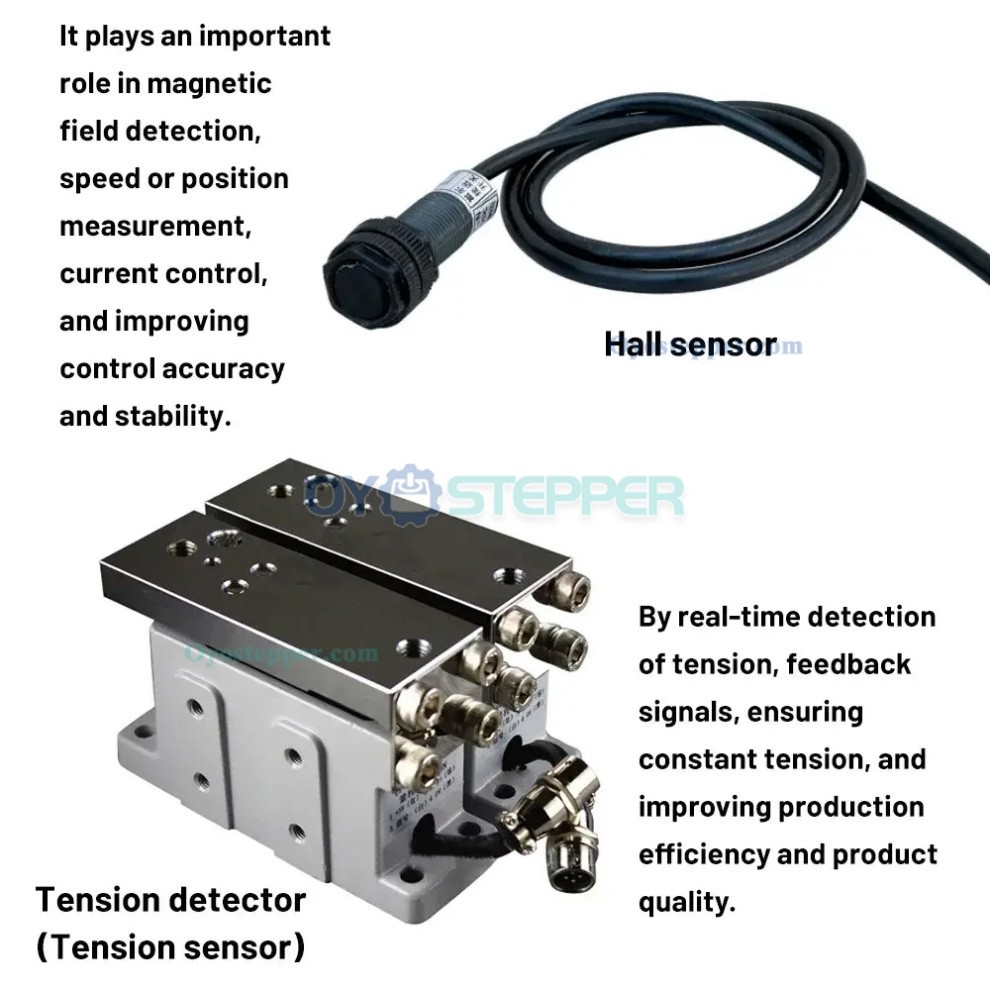

1X Hall switch
2X Pressure Sensor
