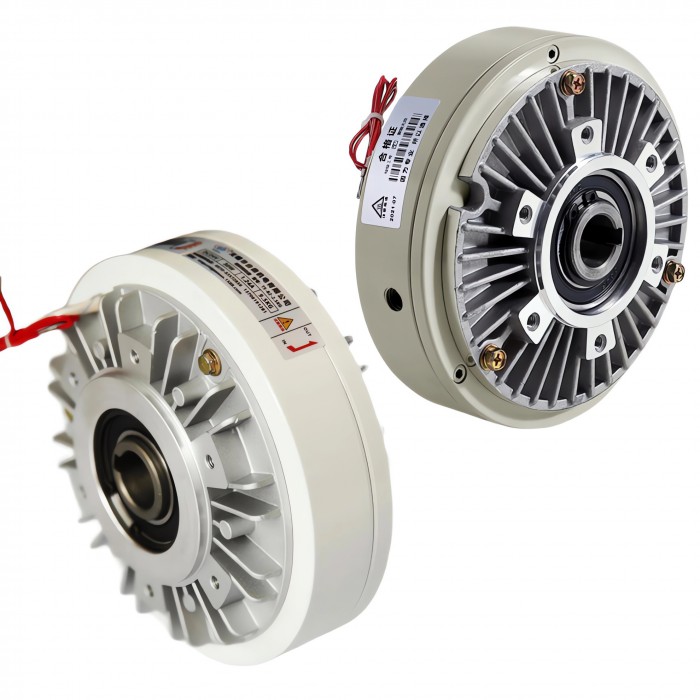

FZ-K Hollow Shaft Type Magnetic Powder Brake 6-200Nm 24V Magnetic Particle Brake

FZ-K Hollow Shaft Type Magnetic Powder Brake 6-200Nm 24V Magnetic Particle Brake

Features:

Adjustable torque range: 6–200N·m (0.6–20kg)

Linear torque response

Response time: millisecond level

Housing material: industrial-grade alloy

Operating temperature: -20°C to +80°C

Sealed magnetic powder chamber

Power supply: 24VDC

Control signal compatibility: PLC, PWM

Customizable shaft sizes

Overheat protection

Fail-safe braking function

Power consumption during activation;

Application Fields:

Printing & Packaging: Tension control for labelers, film winders, and sheeters.

Textile Machinery: Yarn winding, loom braking, and thread tension regulation.

Industrial Automation: Conveyor overload protection, robotic arm safety stops.

Testing Equipment: Dynamometers, torque calibration, and load simulation.

Film Production: Tensioning for coating, laminating, or slitting lines.



Package List:

1x Magnetic Powder Brake
