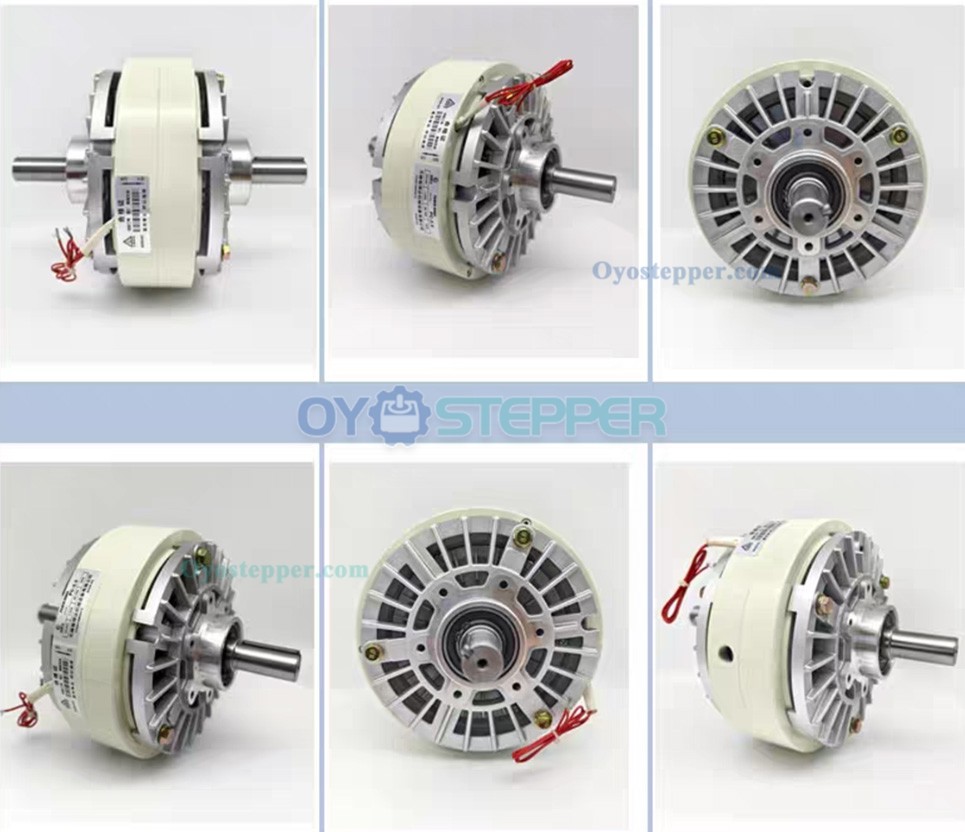

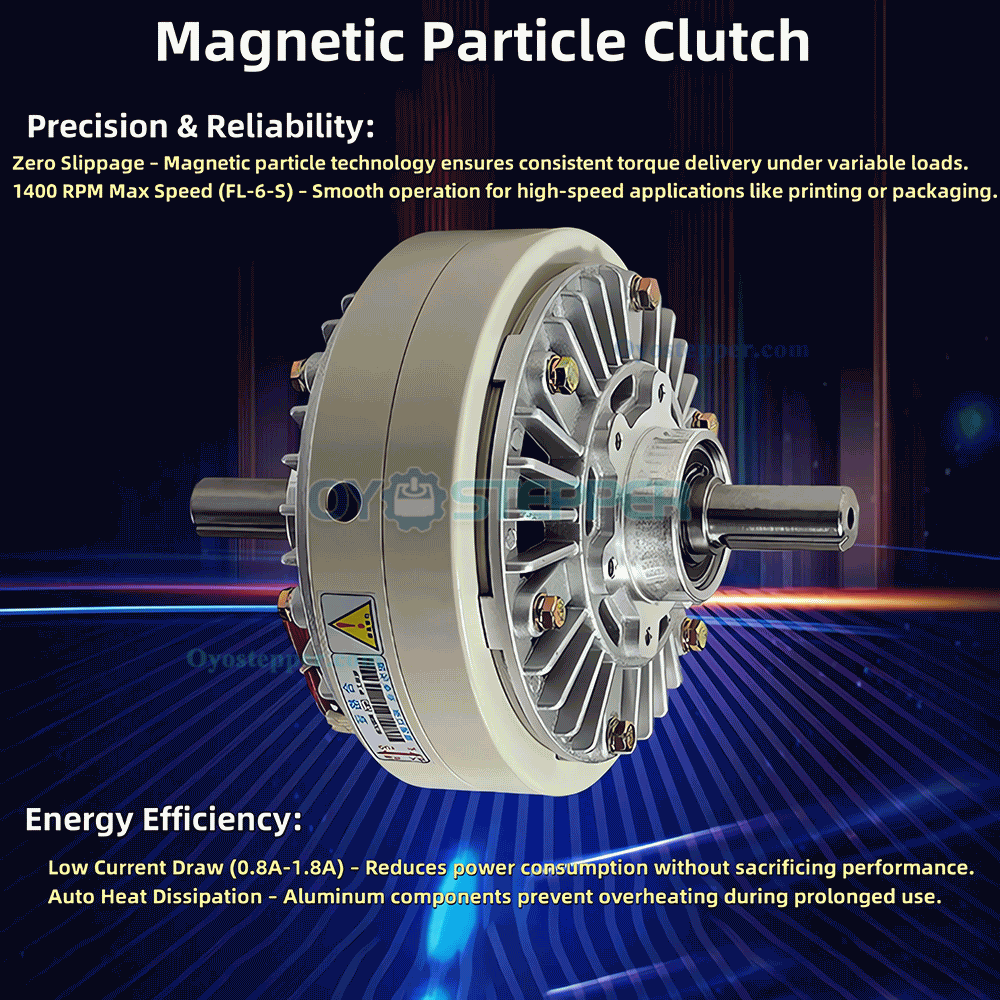

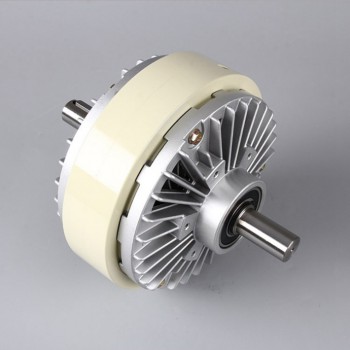

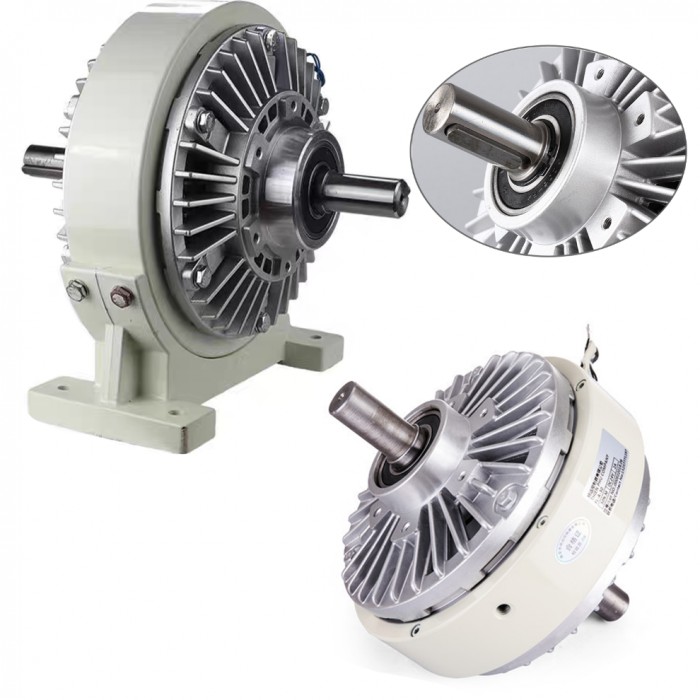

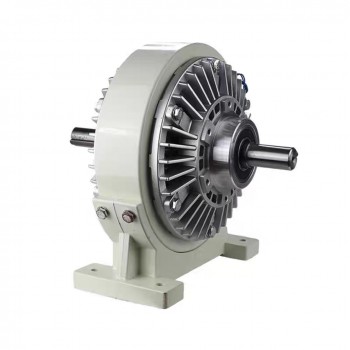

FL-S-C Dual-Shaft Magnetic Particle Clutch 6Nm-50Nm 24VDC CNC Magnetic Powder Clutch

FL-S-C Dual-Shaft Magnetic Particle Clutch 6Nm-50Nm 24VDC CNC Magnetic Powder Clutch

Features:

Available in 4 torque models (6N.m, 12N.m, 25N.m, 50N.m). Operates on a 24V DC power input.

The maximum operating speed is 1400 RPM (model FL-6-S).

Dual-shaft output design. The housing is constructed from steel.

The nominal operating current ranges from 0.8A to 1.8A.



Application Fields:

Industrial Automation: Conveyor belt tensioning, robotic arm safety brakes.

Printing & Packaging: Roll-to-roll tension control for labelers and film winders.

Textile Machinery: Yarn winding, loom speed regulation.

Material Handling: Load braking for cranes, hoists, and elevators.

Testing Equipment: Torque calibration, dynamometers, and simulation rigs.



Technical Specification:

Voltage: 24V DC

Current: 0.8A -1.8A

Speed: Up to 1400 RPM

Weight: 3kg to 14kg
