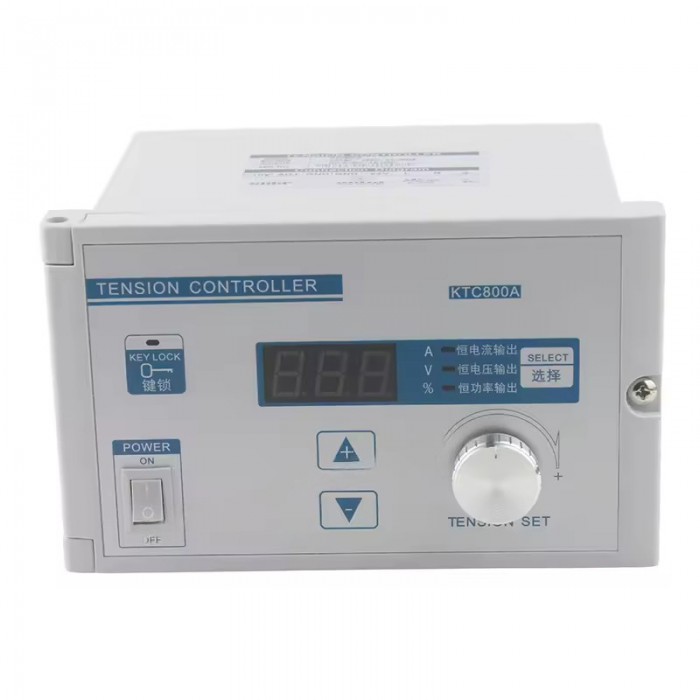

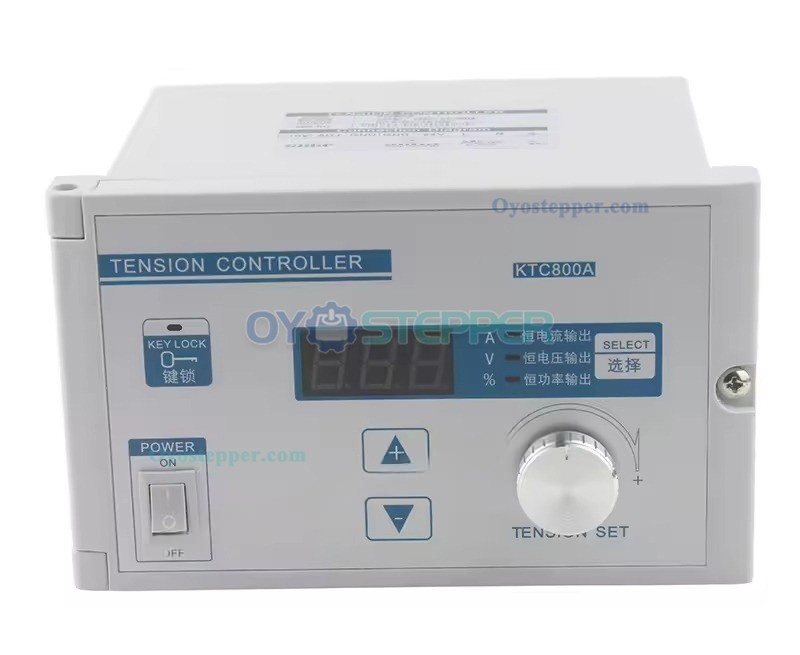

KTC800A Manual Tension Controller 0-24V 4A for Magnetic Particle Brake / Clutch

KTC800A Manual Tension Controller 0-24V 4A for Magnetic Particle Brake / Clutch

KTC800A Manual Tension Controller is used to regulate tension by adjusting the current to devices such as magnetic powder clutches, magnetic powder brakes, or voltage regulators. The controller incorporates a microprocessor and offers three operational modes: constant current, constant voltage, and constant power. It also includes an automatic compensation function for heat fade in clutches/brakes.


Specifications

Control Method: PWM (Pulse Width Modulation)

Input Power: Single-phase AC 185-264V, 50-60Hz

Output: DC 0-24V, 4A Max

External Control Signal: 0-10V (corresponding to 0-24V output)

Compatible Devices: Magnetic powder clutch, magnetic powder brake, voltage regulator

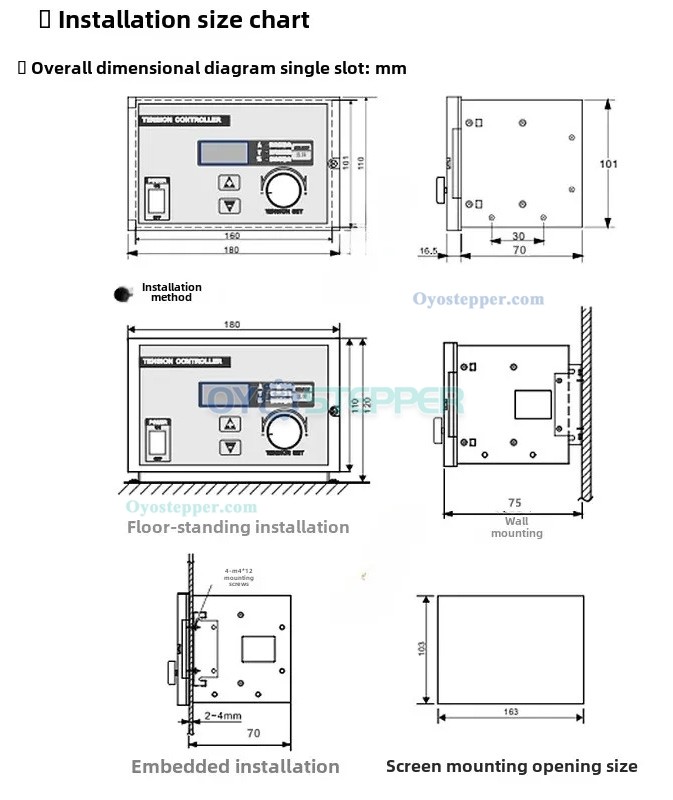

Installation Methods: Vertical, wall-mounted, embedded

Operating Conditions: Temperature -10℃ to 60℃, relative humidity ≤85%

Net Weight: 1.5 kg;
