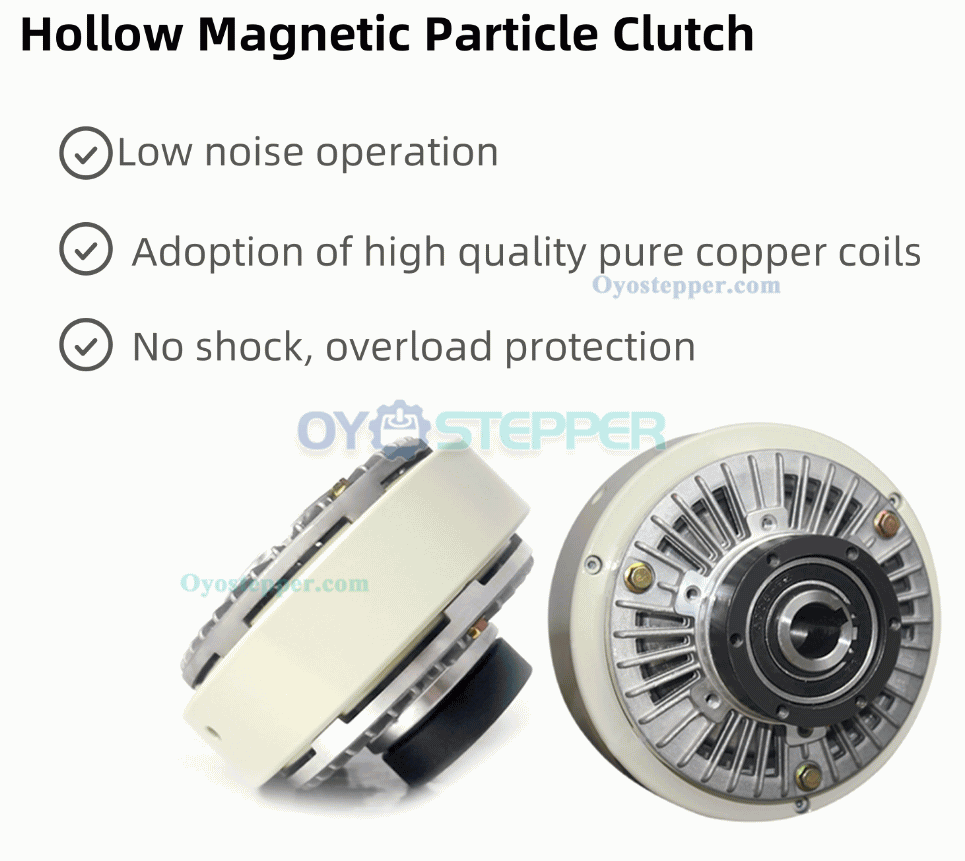

FZ-K-C Hollow Shaft Magnetic Particle Clutch 6-50Nm 24VDC Industrial Magnetic Powder Clutch

FZ-K-H Hollow Shaft Magnetic Particle Clutch 6-50Nm 24VDC Industrial Magnetic Powder Clutch

Features

Available in 4 torque models (6N.m, 12N.m, 25N.m, 50N.m).

24V DC power input.

Maximum operating speed of 1400 RPM (model FL-6-K).

Nominal operating current range of 0.8A to 1.8A.

Housing constructed from aluminum and steel.

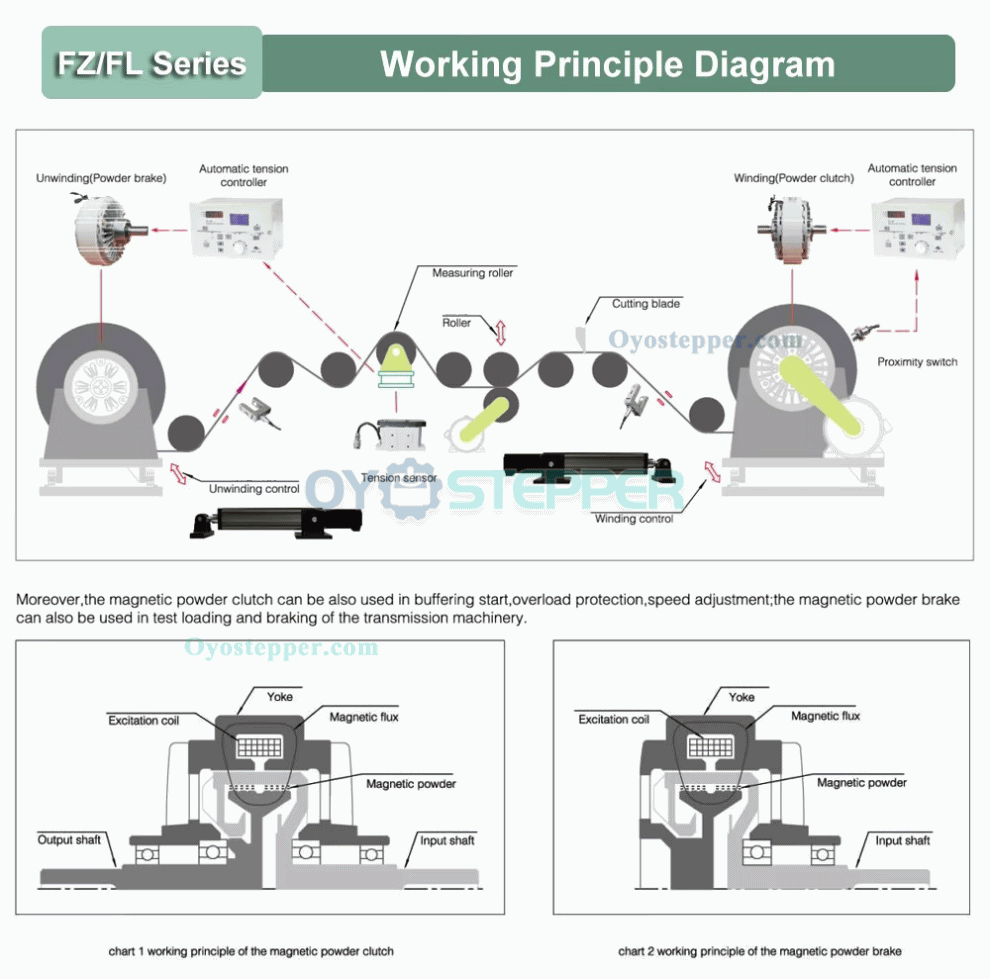

Application Fields:

Packaging Machinery: Tension control for film winding, labeling, and sealing systems.

Textile Industry: Yarn spinning, loom speed regulation, and thread tensioning.

Printing Presses: Roll-to-roll control for high-speed paper or film feeds.

Material Handling: Braking systems for cranes, elevators, and conveyor belts.

Automation Lines: Robotic arm safety brakes and load positioning.

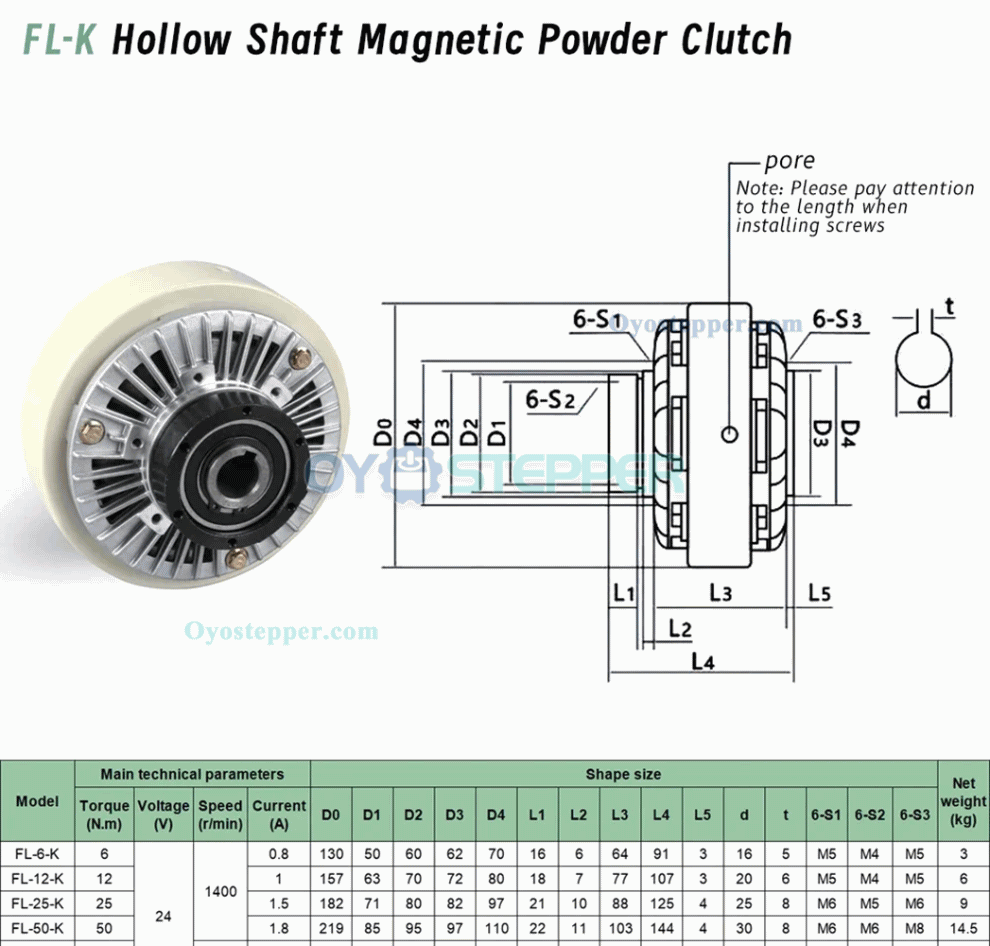

Technical Specs:

Voltage: 24V DC

Current: 0.8A (FL-6-K) to 1.8A (FL-50-K)

Speed: Up to 1400 RPM (FL-6-K)

Weight: 3kg (FL-6-K) to 14.5kg (FL-50-K);
