65mm 0.8KW Water Cooling Spindle Motor ER11 24000RPM 110V/220V for CNC Router Machine
65mm 0.8KW Water Cooling Spindle Motor ER11 24000RPM 110V/220V for CNC Router Machine
Specification:
Model:JGD-65C-0.8KW
Diameter:65mm
Power:0.8KW
Speed:24000RPM
Voltage:110V/220V
Current:2.5A
Frequency:400HZ
Collet:ER11
Cooling Type:Water cooling
Lubrication:Grease
.jpg "65mm 0.8KW Water Cooling Spindle Motor ER11 24000RPM 110V/220V for CNC Router Machine")
.jpg "65mm 0.8KW Water Cooling Spindle Motor ER11 24000RPM 110V/220V for CNC Router Machine")
.jpg "65mm 0.8KW Water Cooling Spindle Motor ER11 24000RPM 110V/220V for CNC Router Machine")
.jpg "65mm 0.8KW Water Cooling Spindle Motor ER11 24000RPM 110V/220V for CNC Router Machine")

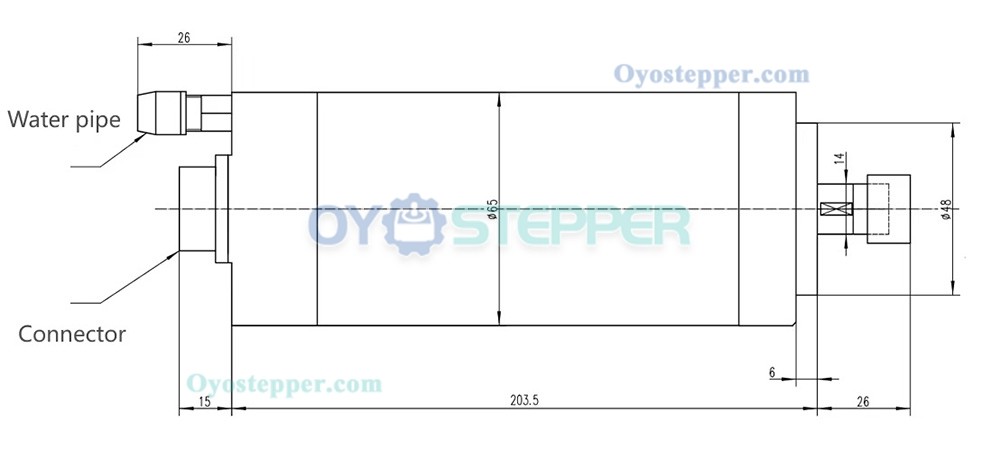

Size Chart:
.jpg "65mm 0.8KW Water Cooling Spindle Motor ER11 24000RPM 110V/220V for CNC Router Machine")
| Spindle Motor Specification | |
|---|---|
| Bearing Lubrication | Grease |
| Body Length(mm) | 203 |
| Collet Size | ER11 |
| Cooling | Water cooled |
| Current(A) | 2.5 |
| Diameter(mm) | 65 |
| Frequency(Hz) | 400 |
| Shape | Round |
| Speed(RPM) | 24000 |
| Voltage(VAC) | 110 / 220 |
| Weight(Kg) | 3.5 |
| Power(Kw) | 0.8 |
